Trijicon OASYS SkeetIRx Micro Thermal Monocular
Video | What’s Included | Specs | Pictures | Restrictions

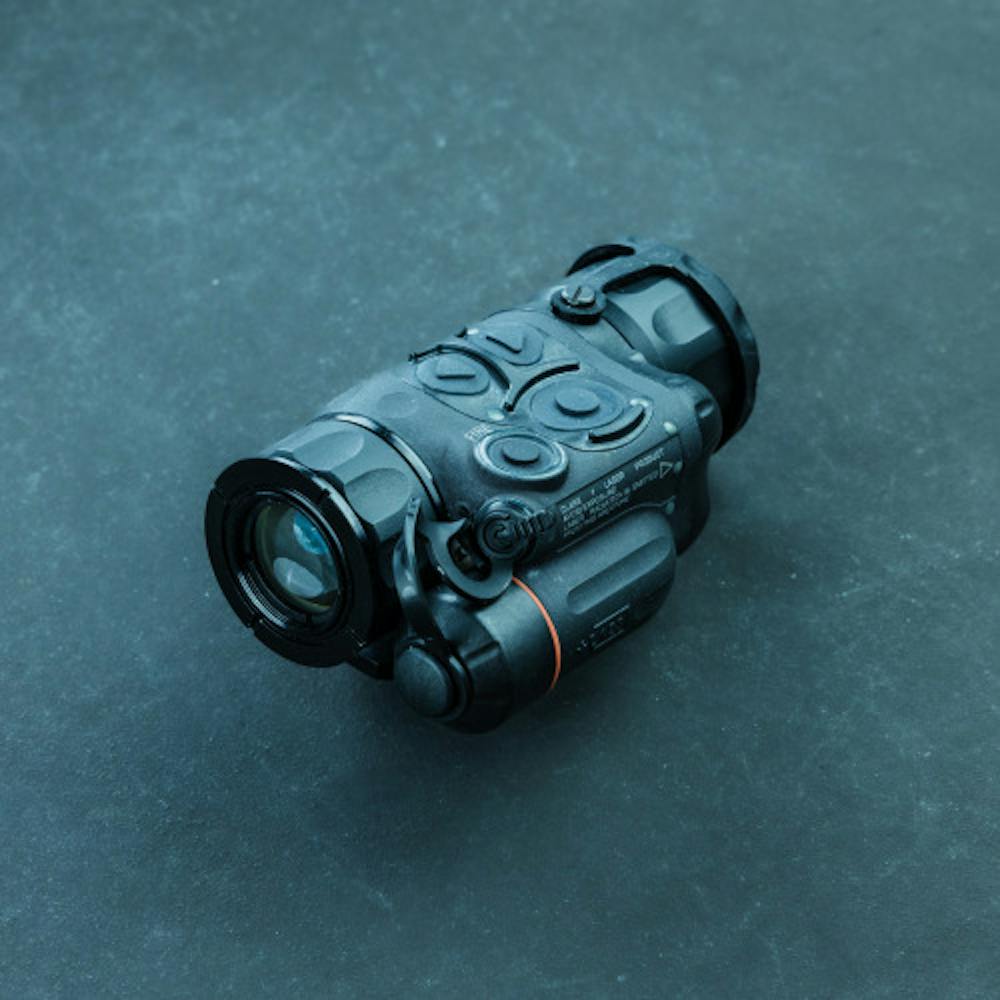

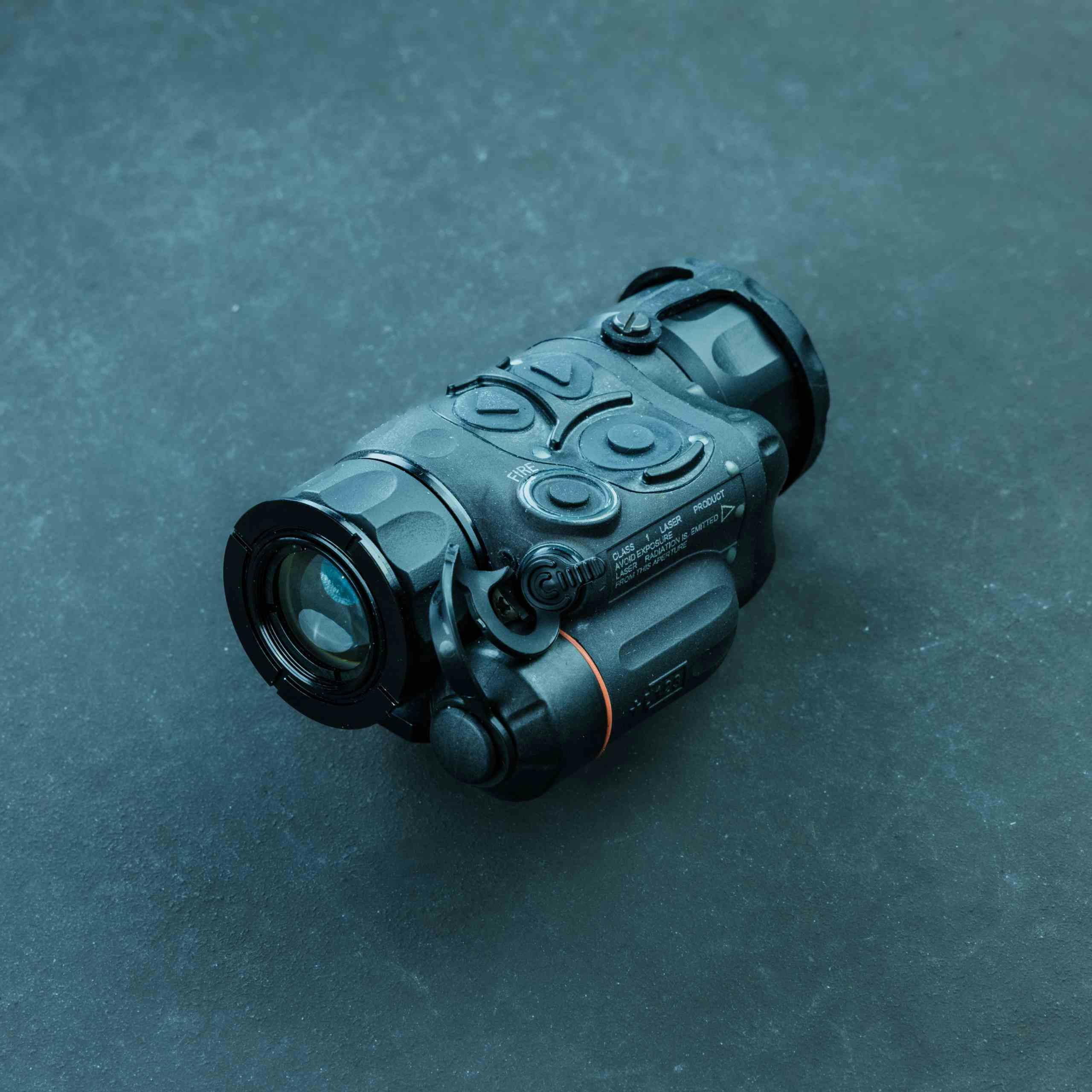

The Trijicon SkeetIRx is a compact thermal monocular that offers one of the lightest, most capable packages on the market. It is not only well suited to helmet-mounted applications but also works well for clip-on and standalone use due to its light-weight, durability, and mounting capability.

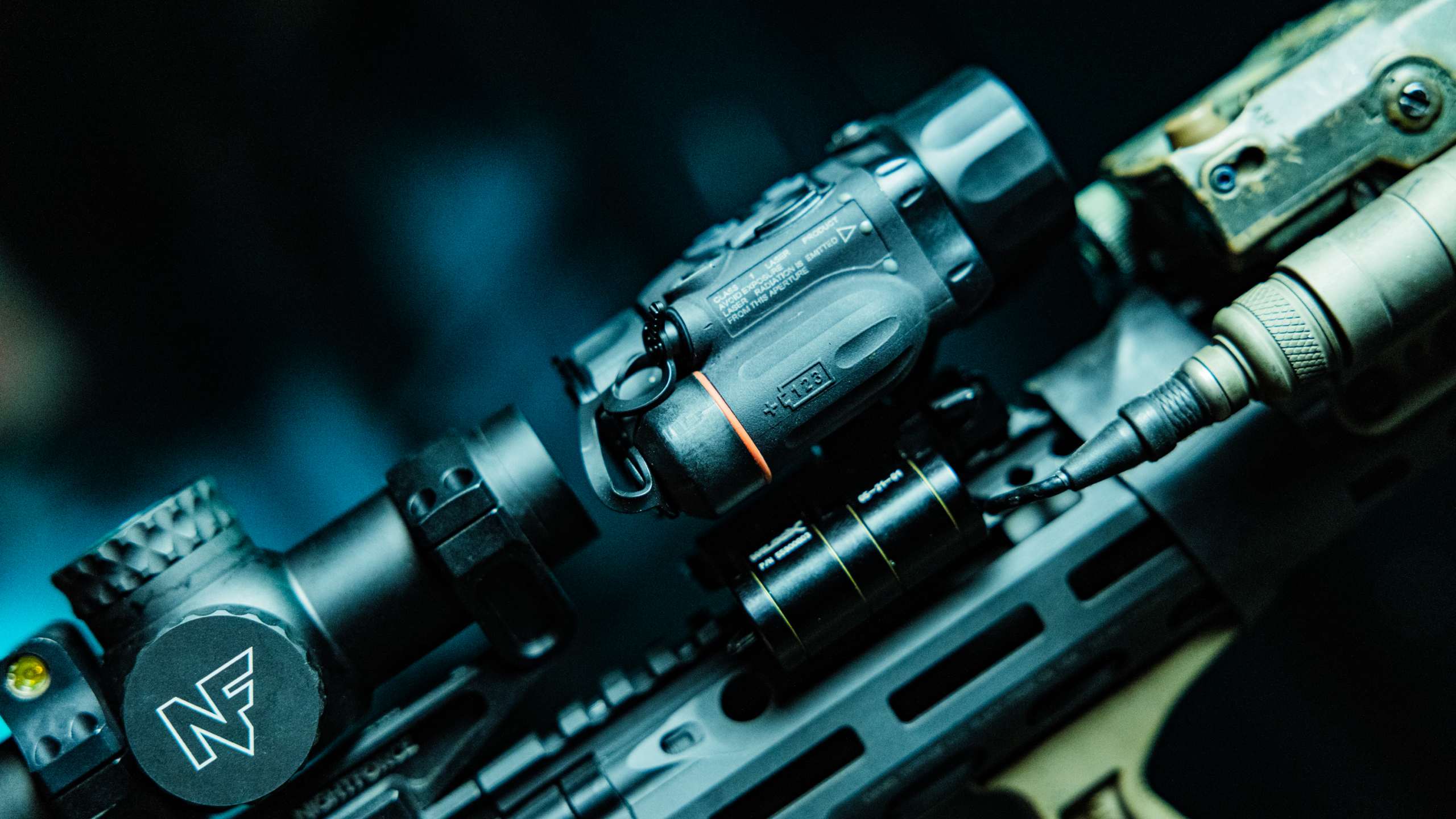

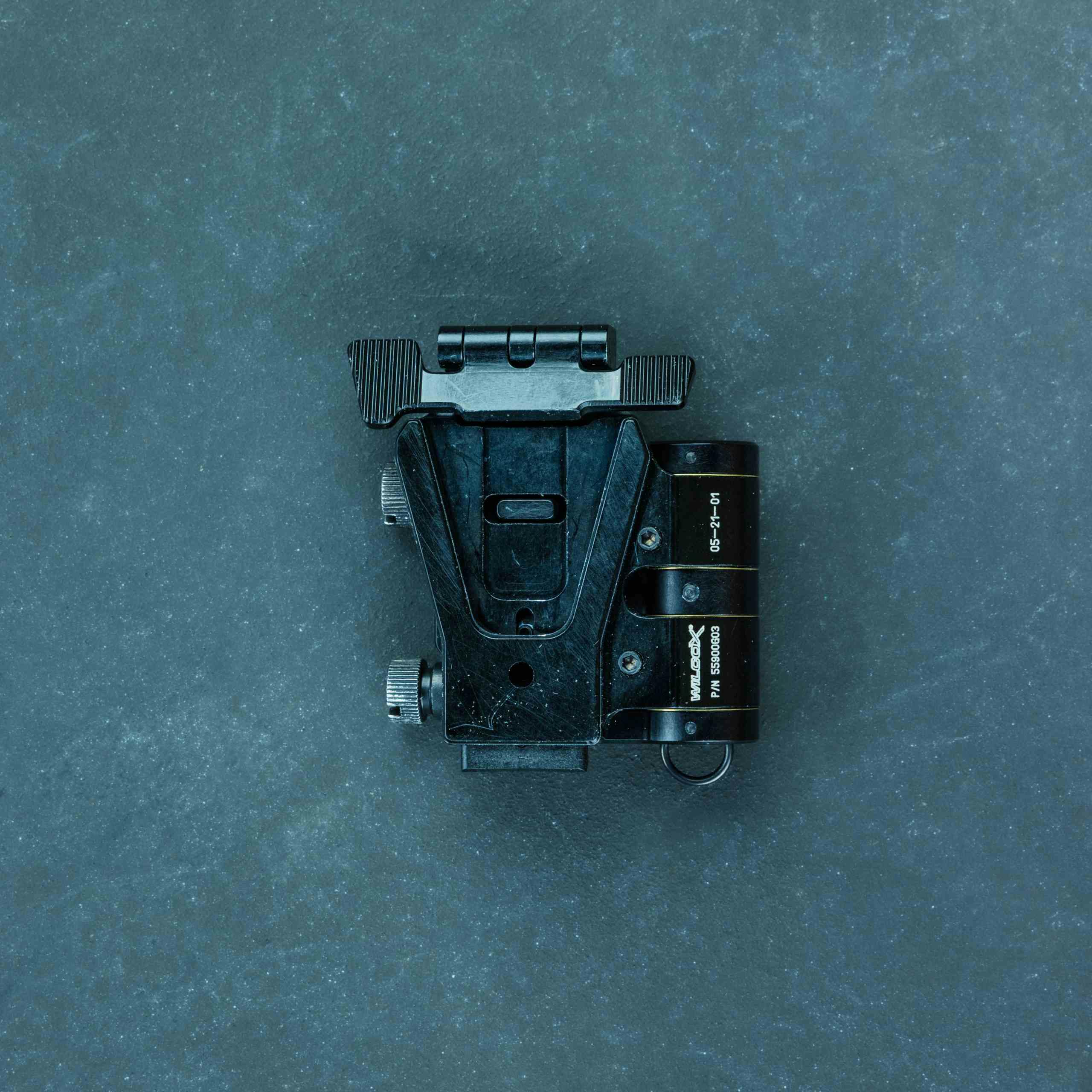

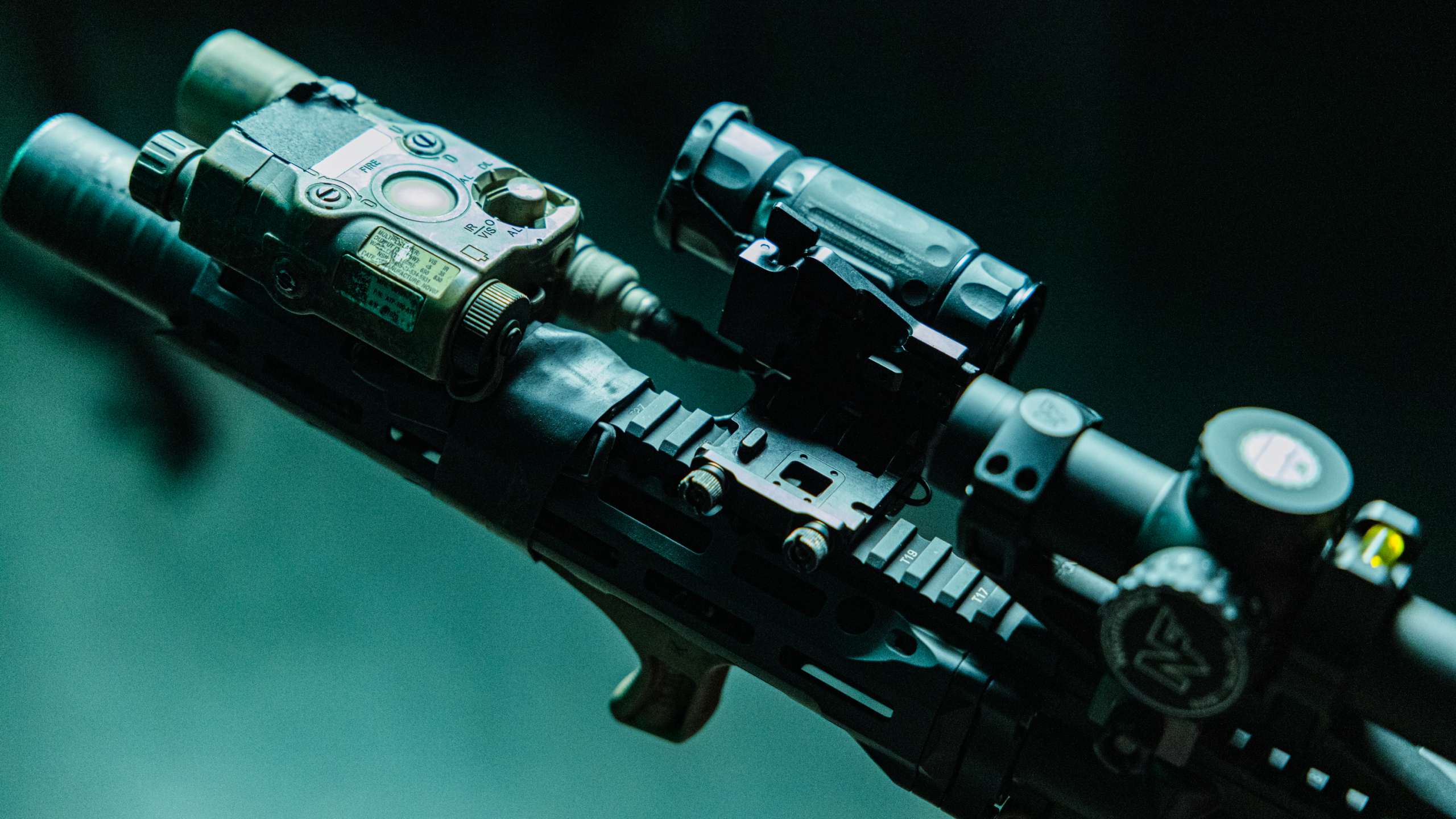

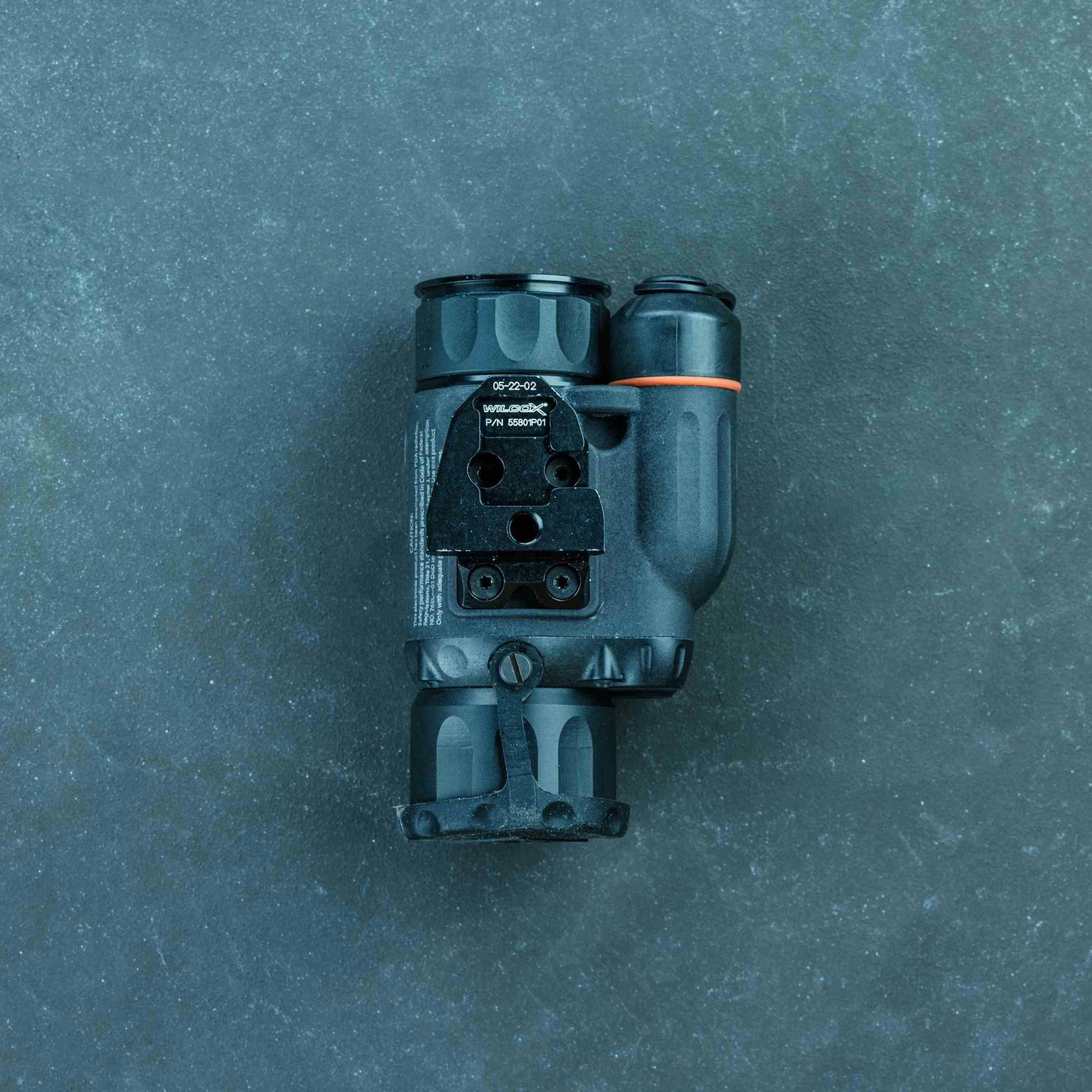

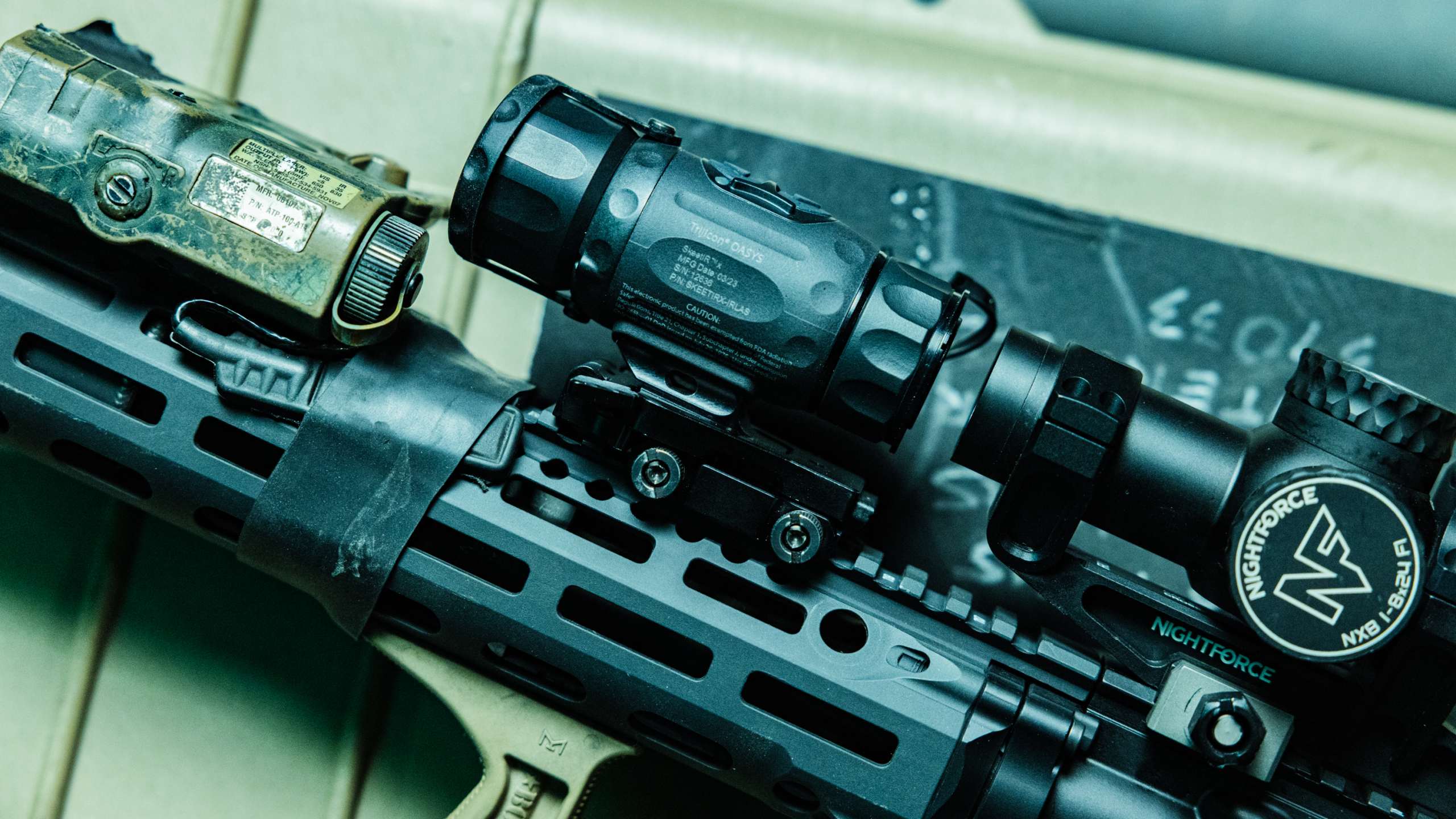

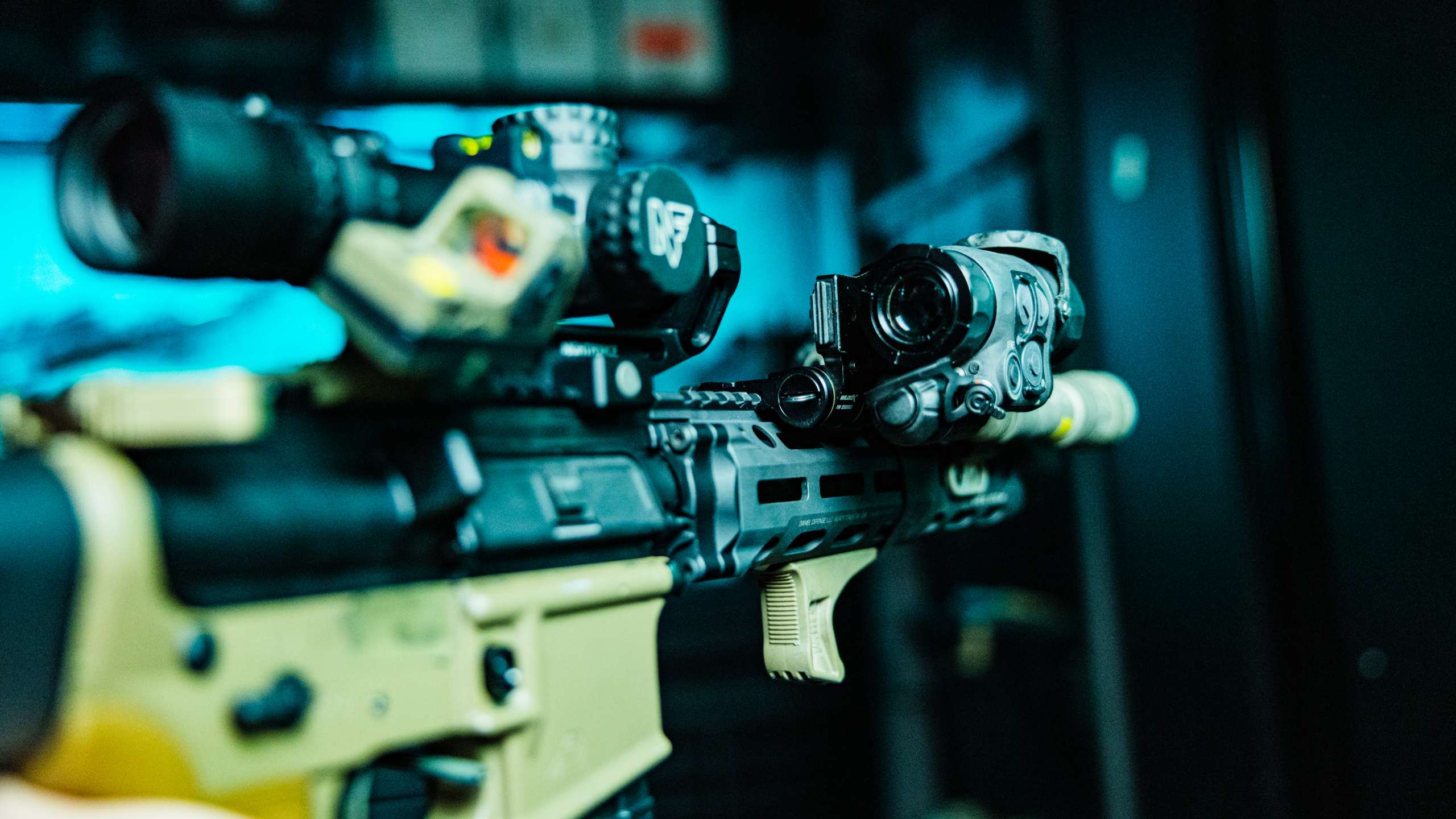

This specific model of the SkeetIRx comes with a Wilcox flip mount that features a dovetail interface, allowing the user to easily swap the SkeetIRx between their rifle and helmet, or just simply flip it out of the way when not in use. The SkeetIRx runs on a single CR123 battery with a 2-hour runtime at 60Hz, or it can be powered externally through a USB-C port for extended runtime.
OVERVIEW VIDEO

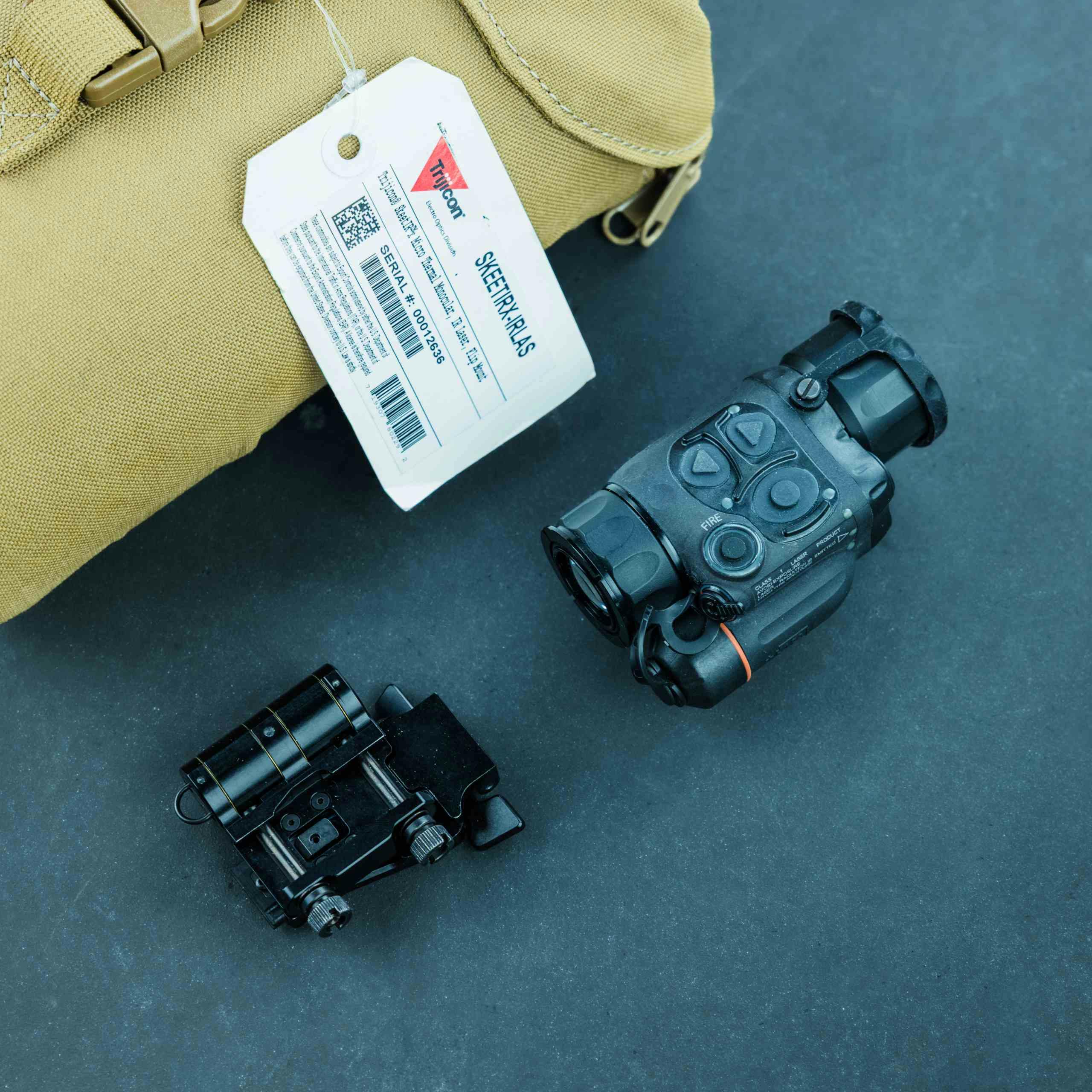

WHAT’S INCLUDED
- 1x Trijicon SkeetIRx Micro Thermal Monocular
- 1x Flip Mount
- 1x Quick Reference Guide
- 1x Product Manual
- 1x CR123 Battery
- 1x Soft Case
SPECS
FEATURES
- Handheld, helmet-mounted, and weapon-mounted configurations enable a seamless transition from an observation to a targeting device to support a range of applications.
- Full 640 resolution thermal sensors create a clear thermal image to detect and recognize targets in all environmental conditions—day or night.
- The intuitive interface and controls are consistent with all other Trijicon OASYS products to help reduce training time and make it easy to use in any situation.
Made in the USA.
DOWNLOADS
TECHNICAL SPECIFICATIONS
| Dimensions (L × W × H) | 4.0″ × 2.4″ × 1.7″ (101.6mm × 60.96mm × 43.18mm) |
| Weight | 8.6 oz (243.81g) |
| Magnification | 1x |
| Power Source | 1 × CR123 or USB outlet |
| Battery Life | 2 hours @ 60Hz |
| Eye Relief | 0.7874 in (20mm) |
| Field of View | 28.1° |
| Mount | Flip Mount |
| Finish | Matte Black |
| Submersion Depth | 66 ft (20m) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Digital Zoom | 0.5X and 2X |
| Sensor Resolution | 640 × 480 |
| Sensor Pixel Pitch | 17 µm |
| Frame Rate | 30 Hz / 60 Hz |
PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the USA.
