Noisefighters M1 Panobridge
Video | What’s Included | Specs | Pictures | Restrictions

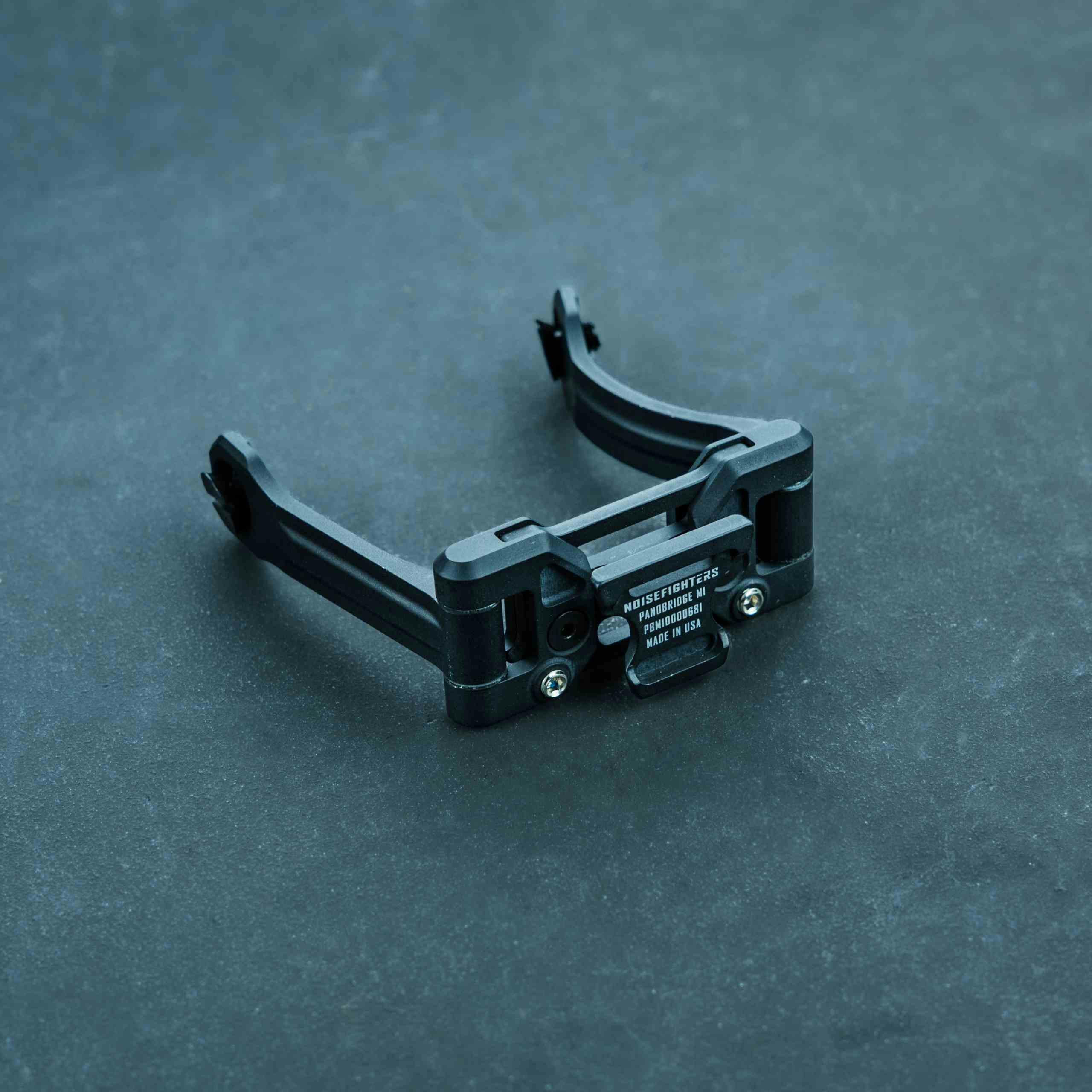

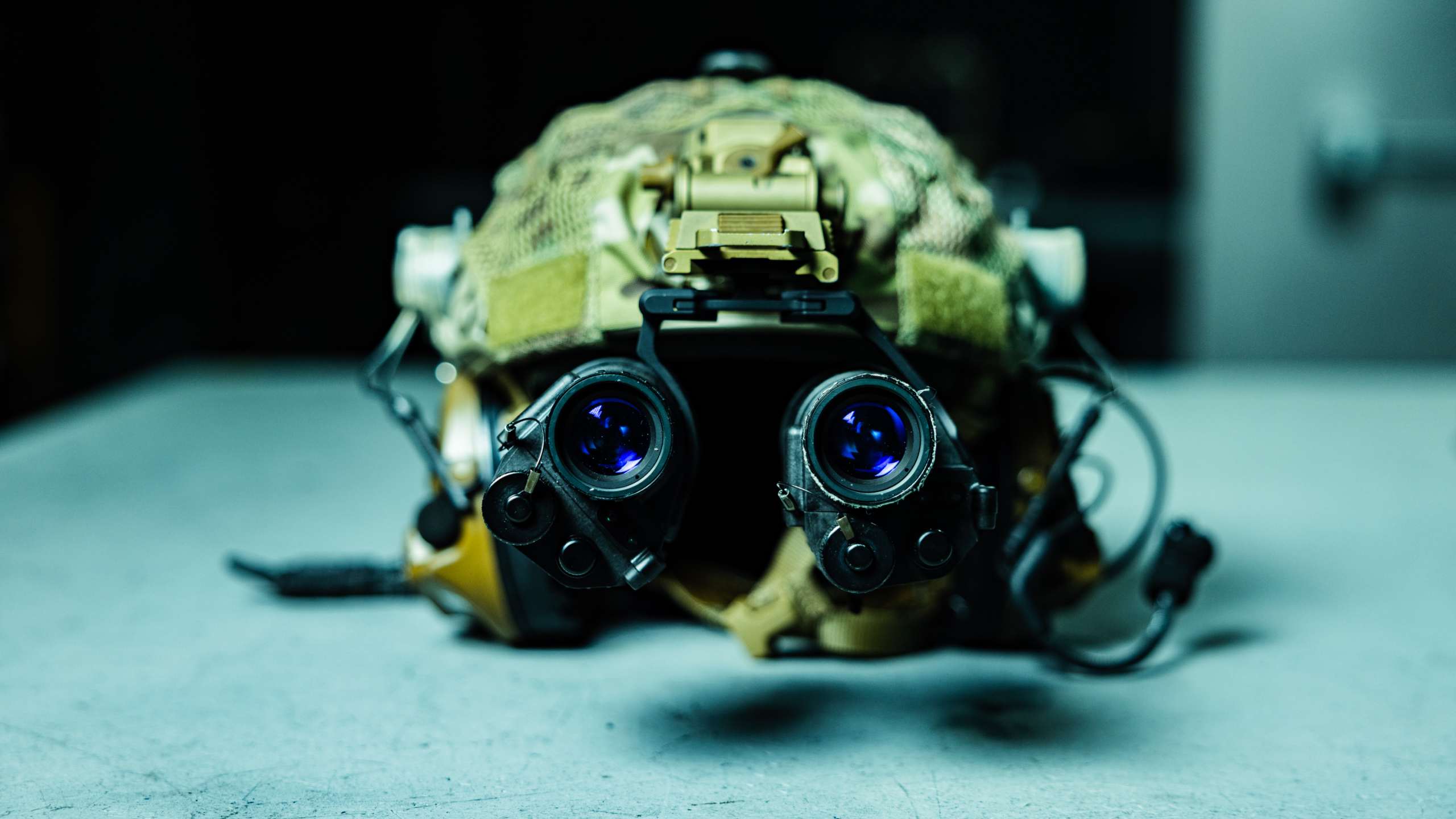

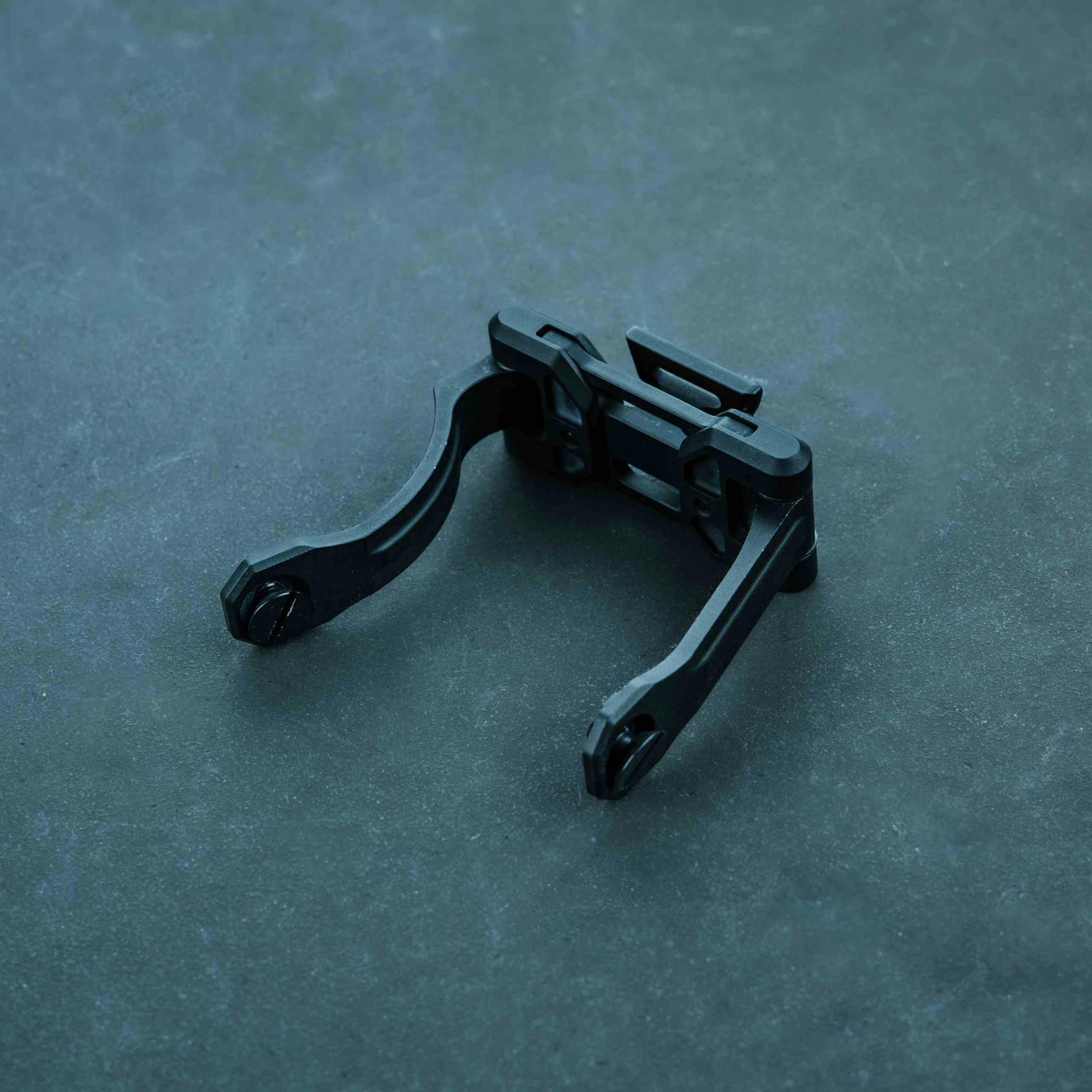

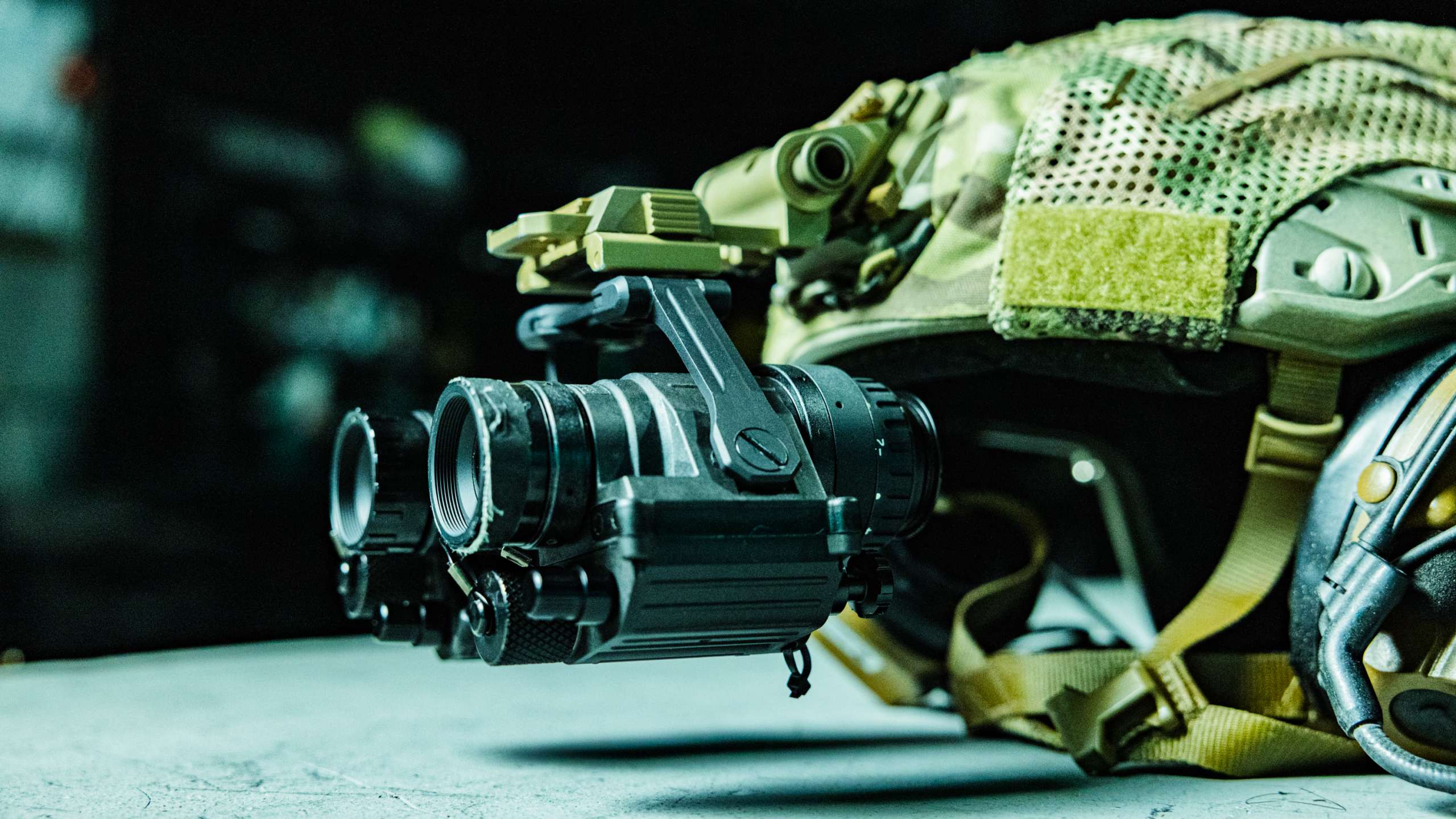

The Noisefighters M1 Panobridge is an ultralight night vision bridge designed for Mil-Spec PVS-14s and other clones. It not only offers full articulation, but also adjustable pan, allowing you to obtain a wider field of view than your standard 40-degree monocular or dual-tube systems.

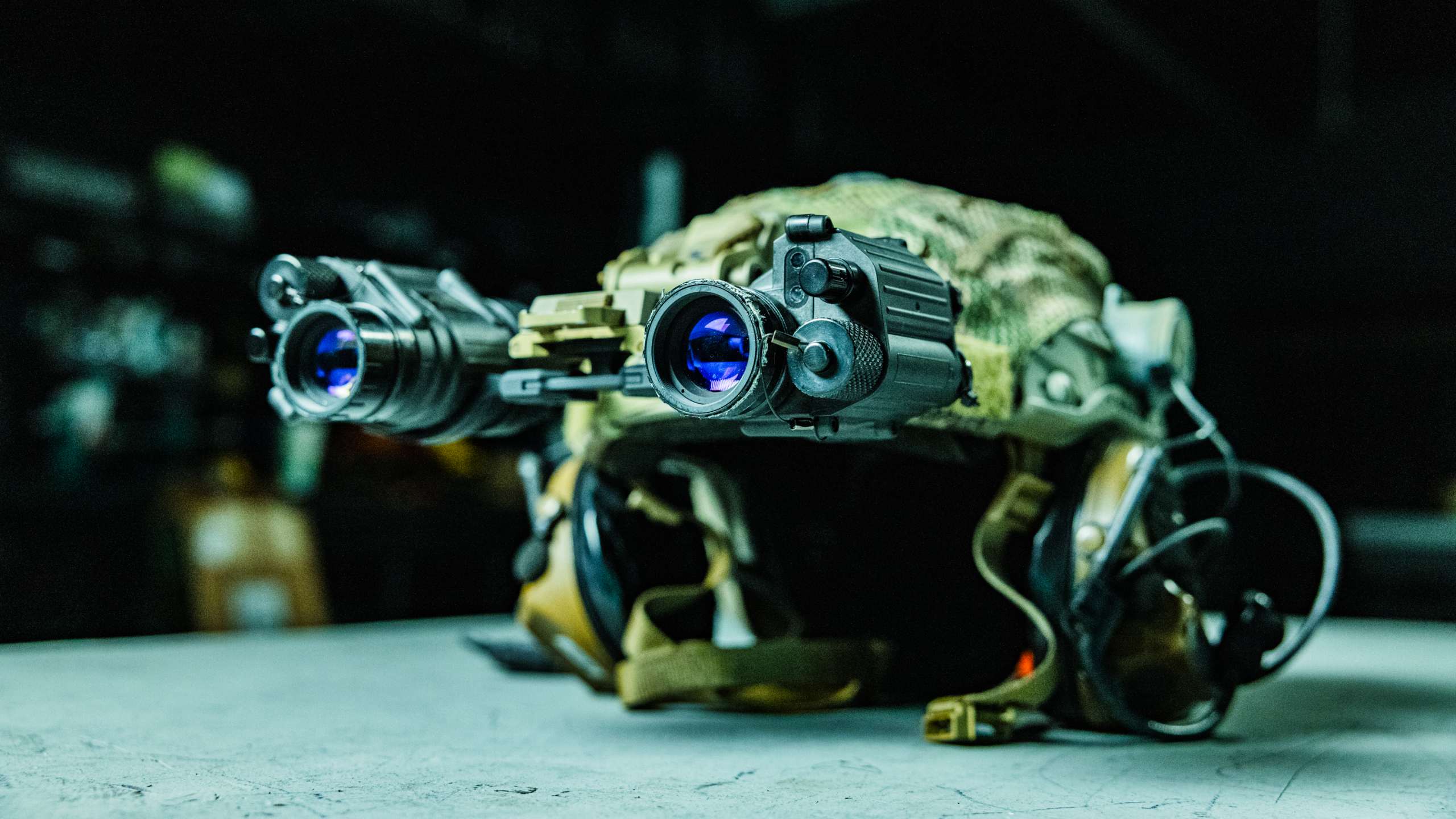

While panning PVS-14s are cool, where we really find this product useful is for pairing thermal with a PVS-14. Simply add the Noisefighters Thermal Dovetail Adapter (and Adjustable Dovetail on some thermals), and you have a fully articulating, panning hybrid setup, or even dual thermals in a compact, lightweight package.
OVERVIEW VIDEO

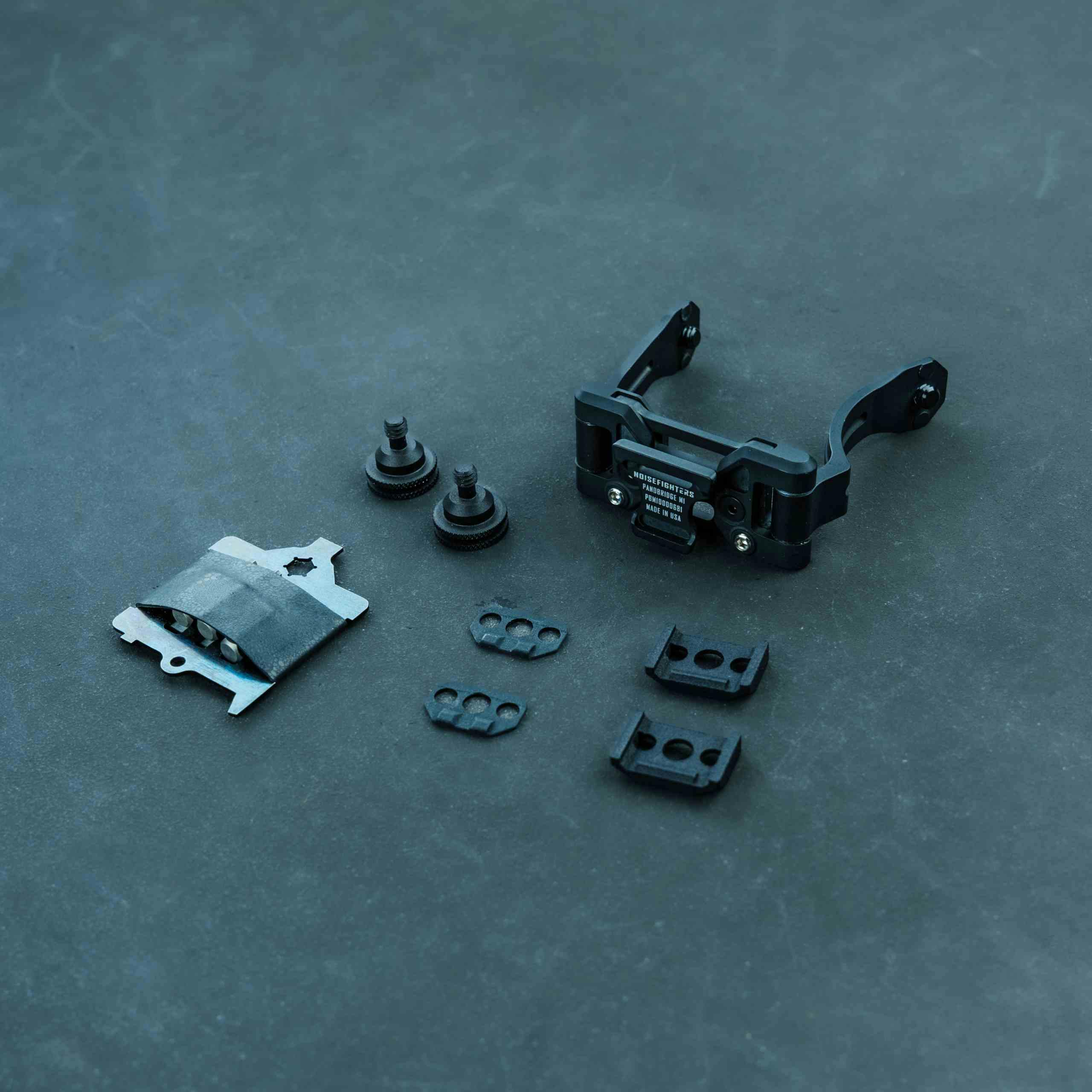

WHAT’S INCLUDED
- 1x Noisefighters M1 Panobridge
- 2x Thumbscrews
- 1x Night Vision Accessory Tool w/ Bits
- 4x Adapters
SPECS
FEATURES
- 7075-T6 aluminum construction allows the Panobridge to be stronger than a Mil-Spec J-arm while maintaining the same weight.

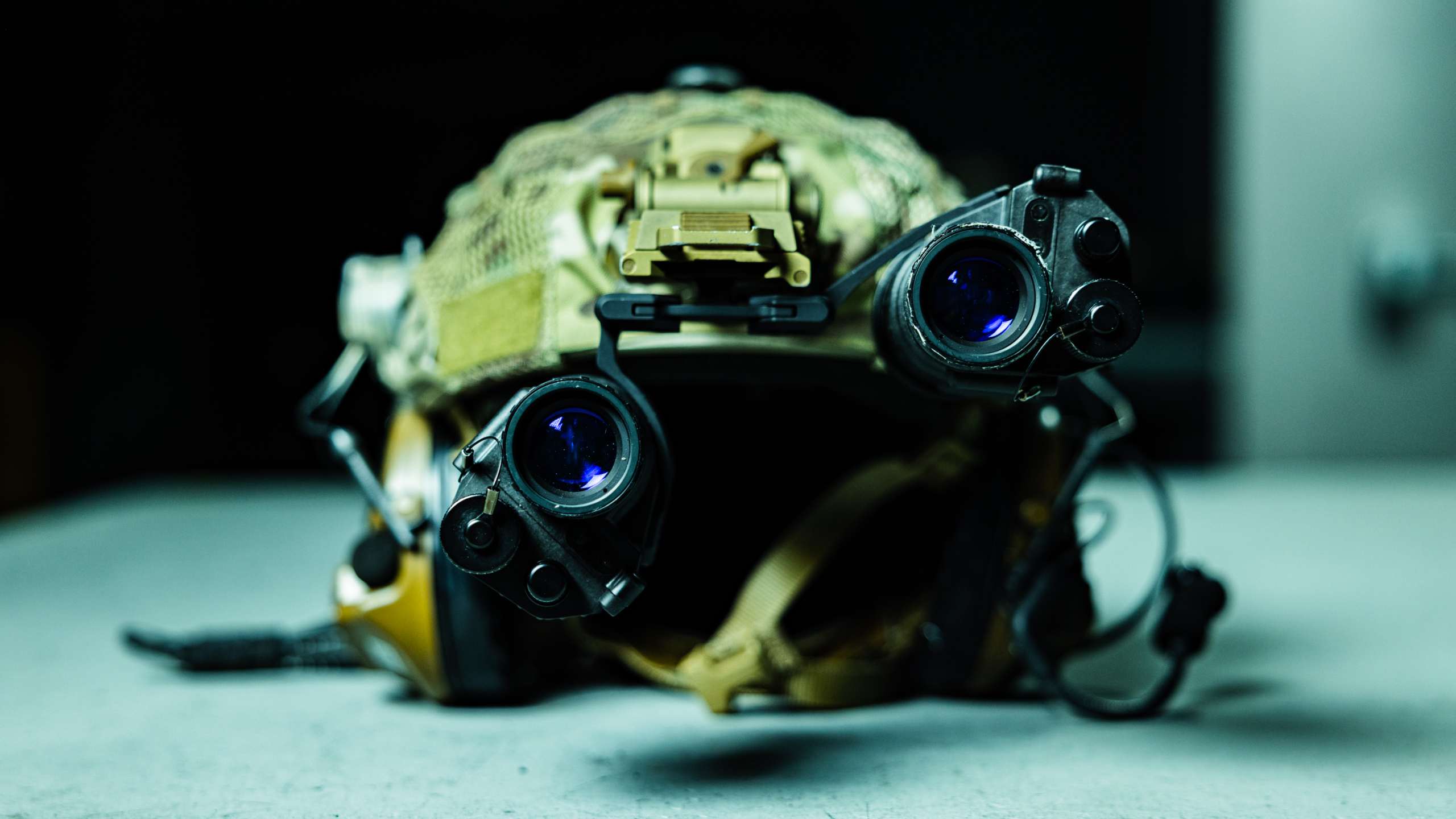

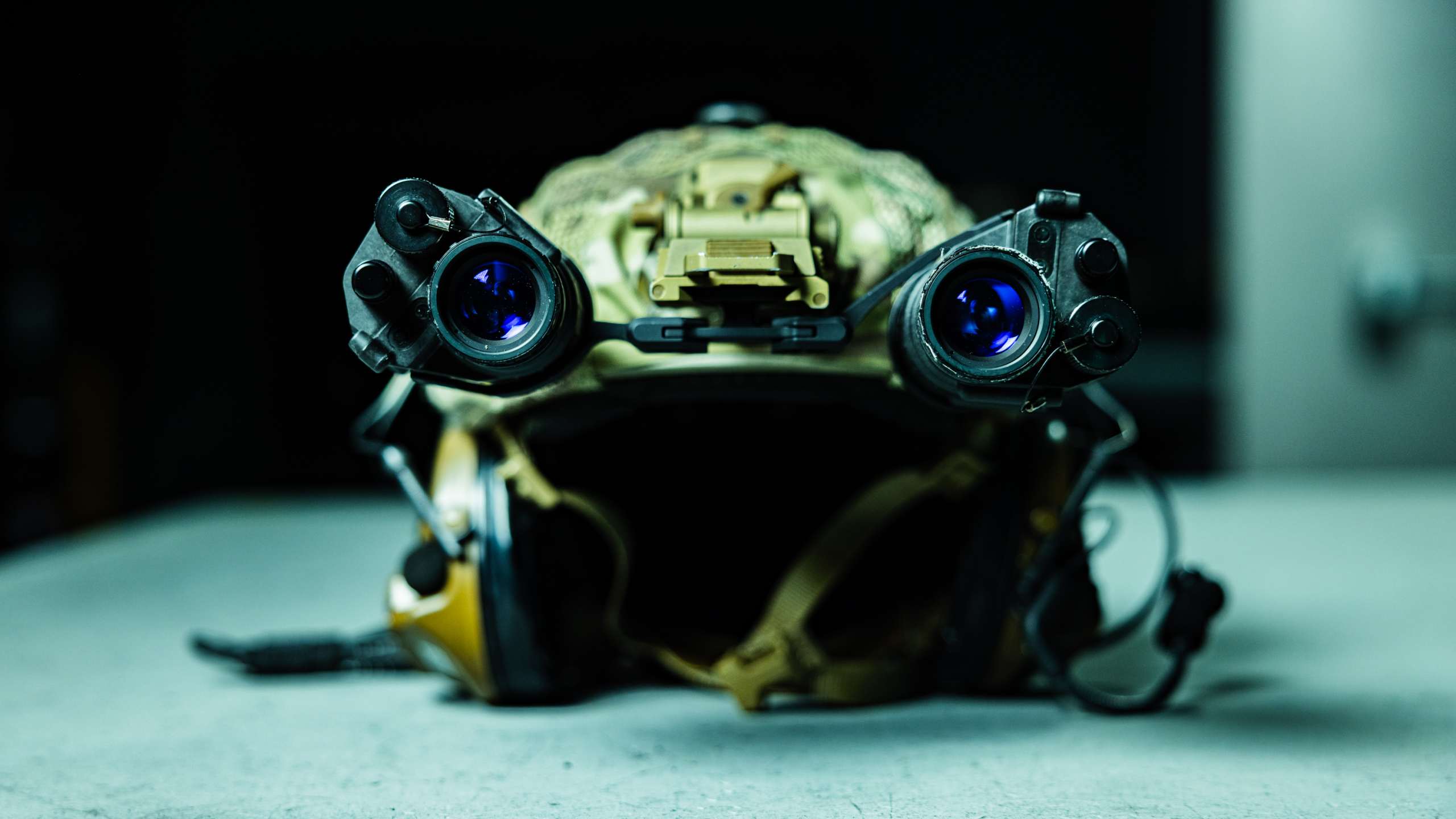

- It allows for pan-angle adjustments on each monocular, providing a panoramic field of view much wider than the standard 40-degree FOV.

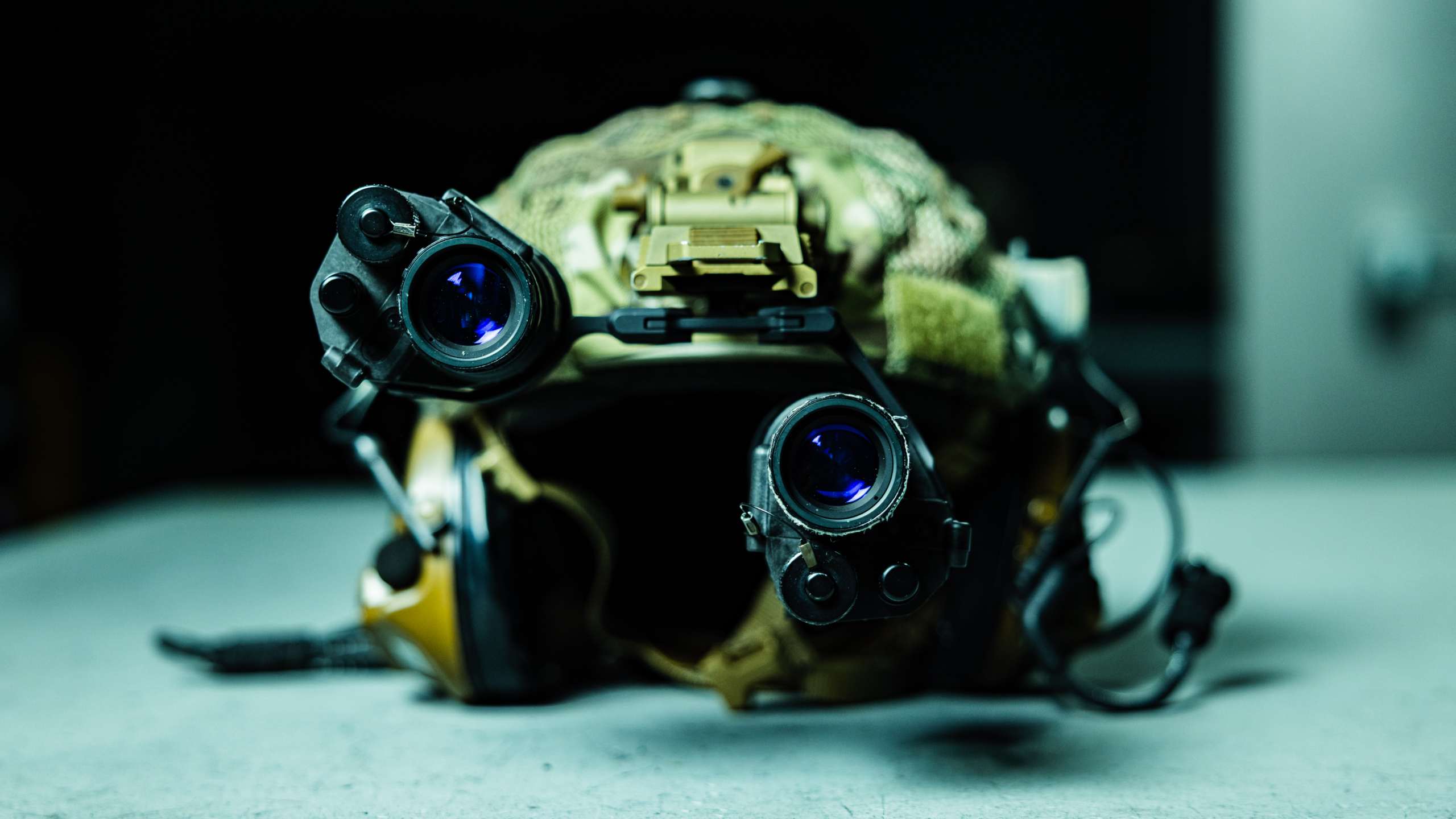

- Independent articulation allows each monocular to be swung upward, allowing for unobstructed vision and improved stowage.
- Supports various thermal devices, including FLIR Breach, iRay MH25/RH25, and Sionyx OPSIN, through optional adapters (see table below.)
- Designed for use with dovetail-style helmet mounts, ensuring secure attachment and compatibility with industry-standard mounts.
- Accommodates IPD adjustments between 55mm and 75mm for personalized fitment.
- Design has been drop-tested to 2m with Mil-Spec PVS-14 units attached to ensure durability.
Made in the USA.
THERMAL COMPATIBILITY
| N-Vision NOX18 | YES, with the following accessories: – Noisefighters Thermal Dovetail Adapter – Noisefighters Adjustable Dovetail |
| Trijicon REAP-IR | NO |
| Trijicon OASYS SkeetIRx | YES, with the following accessory: – Noisefighters Thermal Dovetail Adapter |
| iRayUSA RICO MICRO RH25 V2 | YES, with the following accessories: – Noisefighters Thermal Dovetail Adapter – iRay Pictail Shoe or Noisefighters Adjustable Dovetail |
TECHNICAL SPECIFICATIONS
| Assembled Weight | 1.9 oz |
| Weight with 2x Mil-Spec PVS-14s | 26.1 oz (w/ batteries) |
| Weight with iRay RH25 V2 + Mil-Spec PVS-14 | 26.38 oz (w/ batteries) |
| Weight with NOX18 + Mil-Spec PVS-14 | 27.72 oz (w/ PVS-14 AA + NOX18 CR123 batteries) |
| Weight with SkeetIRx + Mil-Spec PVS-14 | 23.77 oz (w/ batteries) |
| Interpupillary Distance (IPD) | 55-75 mm |
| Materials | 7075-T6 Aluminum, Stainless Steel |
| Collapsed Dimensions | 3″ x 3″ x 1.5″ |
| Helmet Mount | Dovetail |

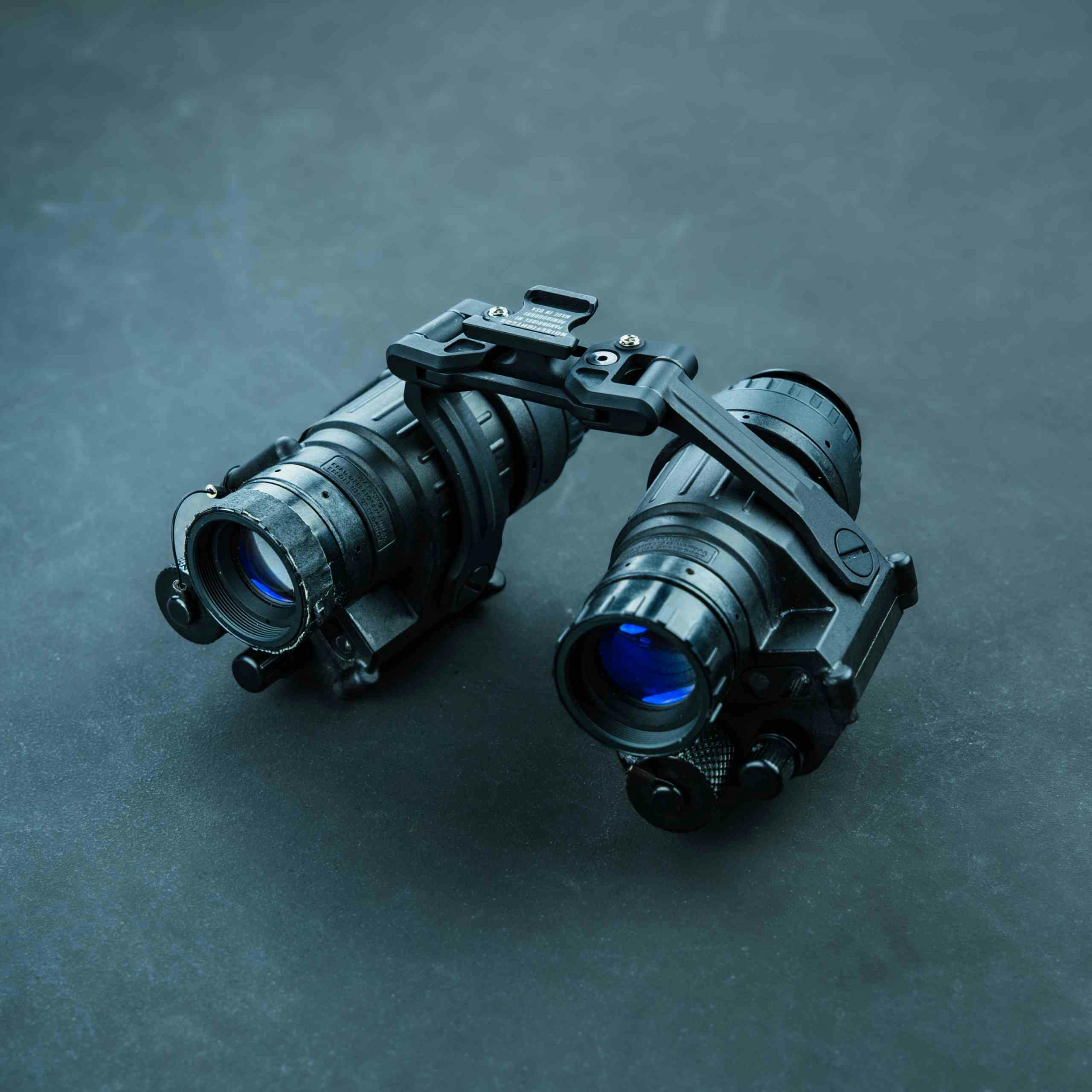

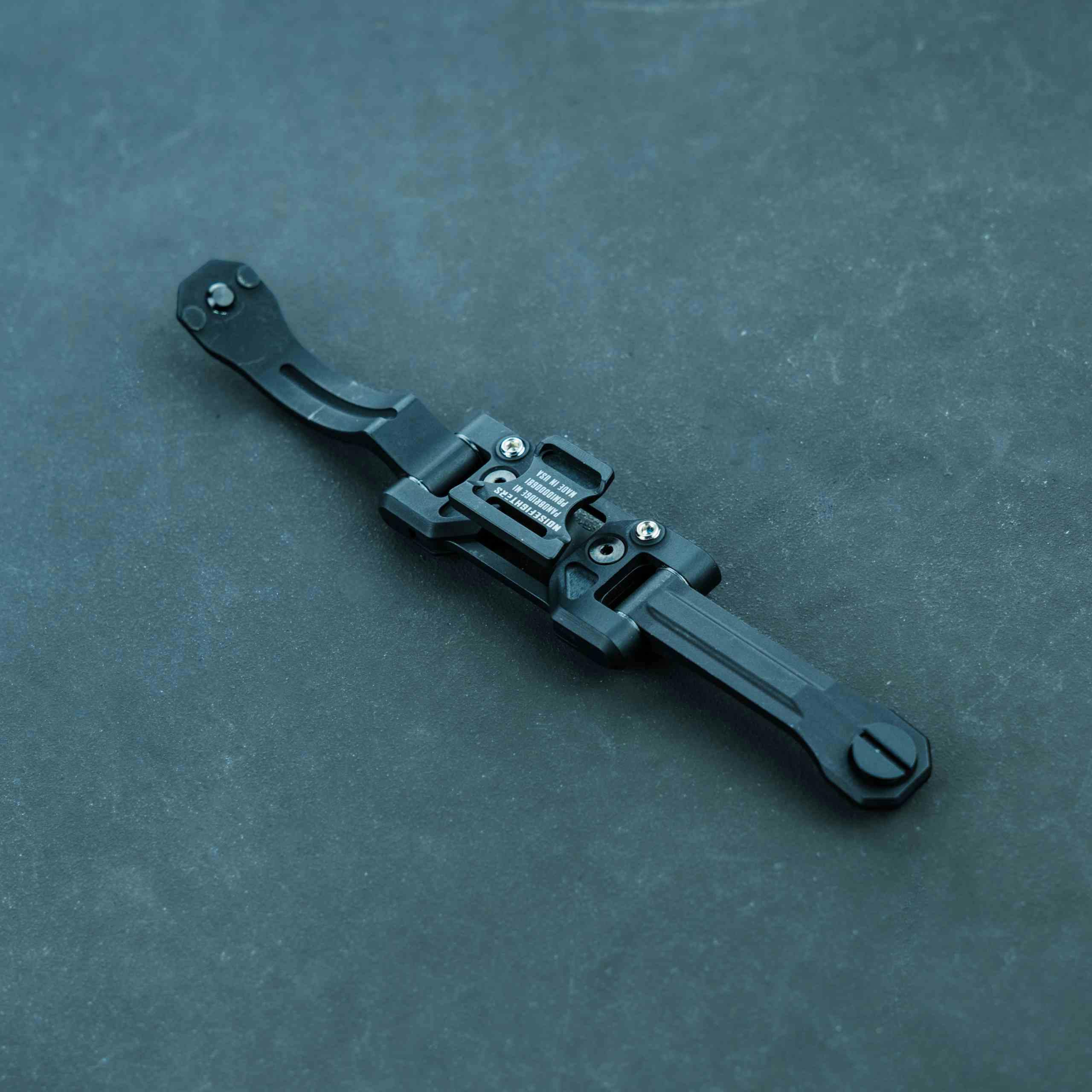

PICTURES
RESTRICTIONS
This product cannot be shipped outside of the USA.
