Noisefighters Panobridge Thermal Dovetail Adapter
$180.00
Video | What’s Included | Specs | Pictures | Restrictions

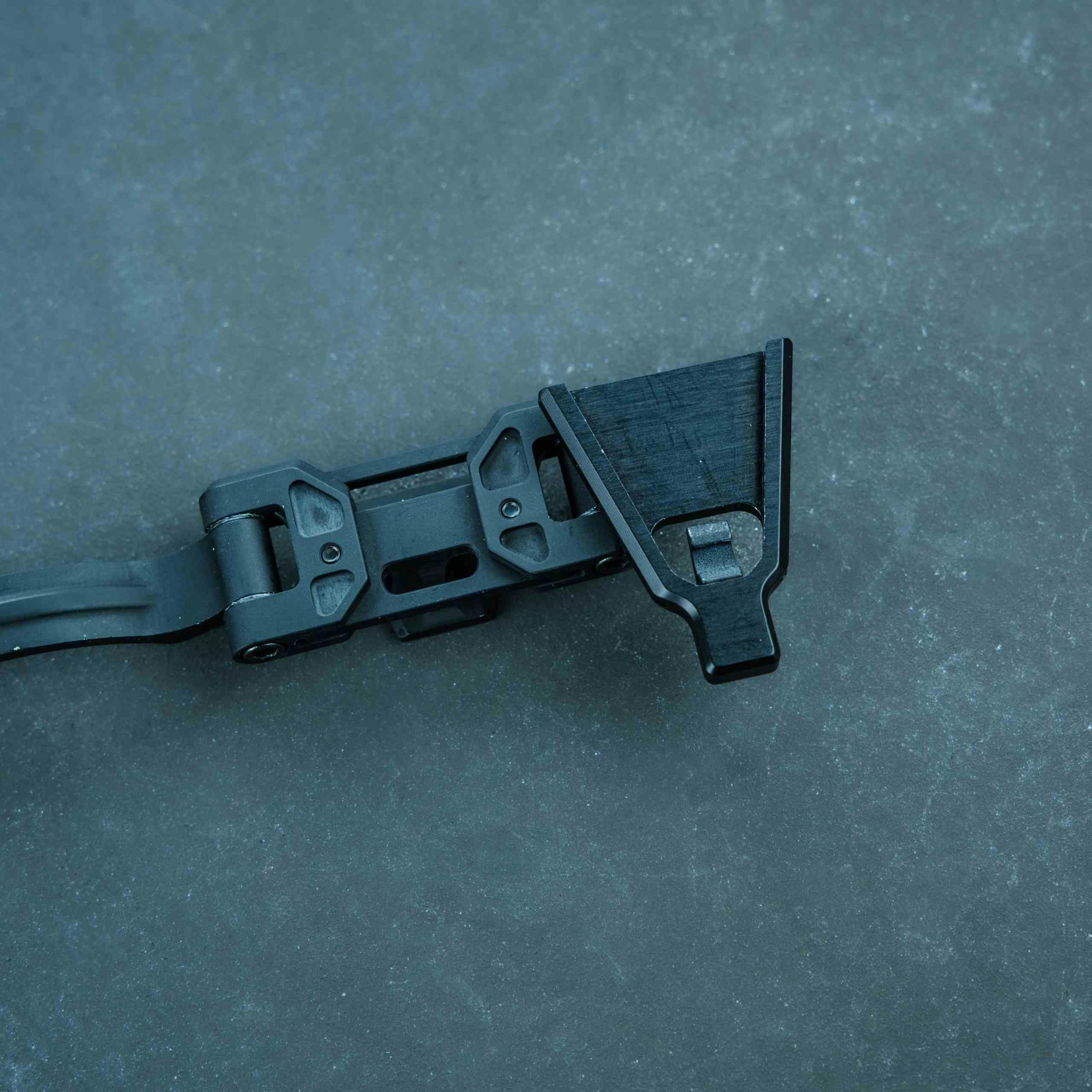

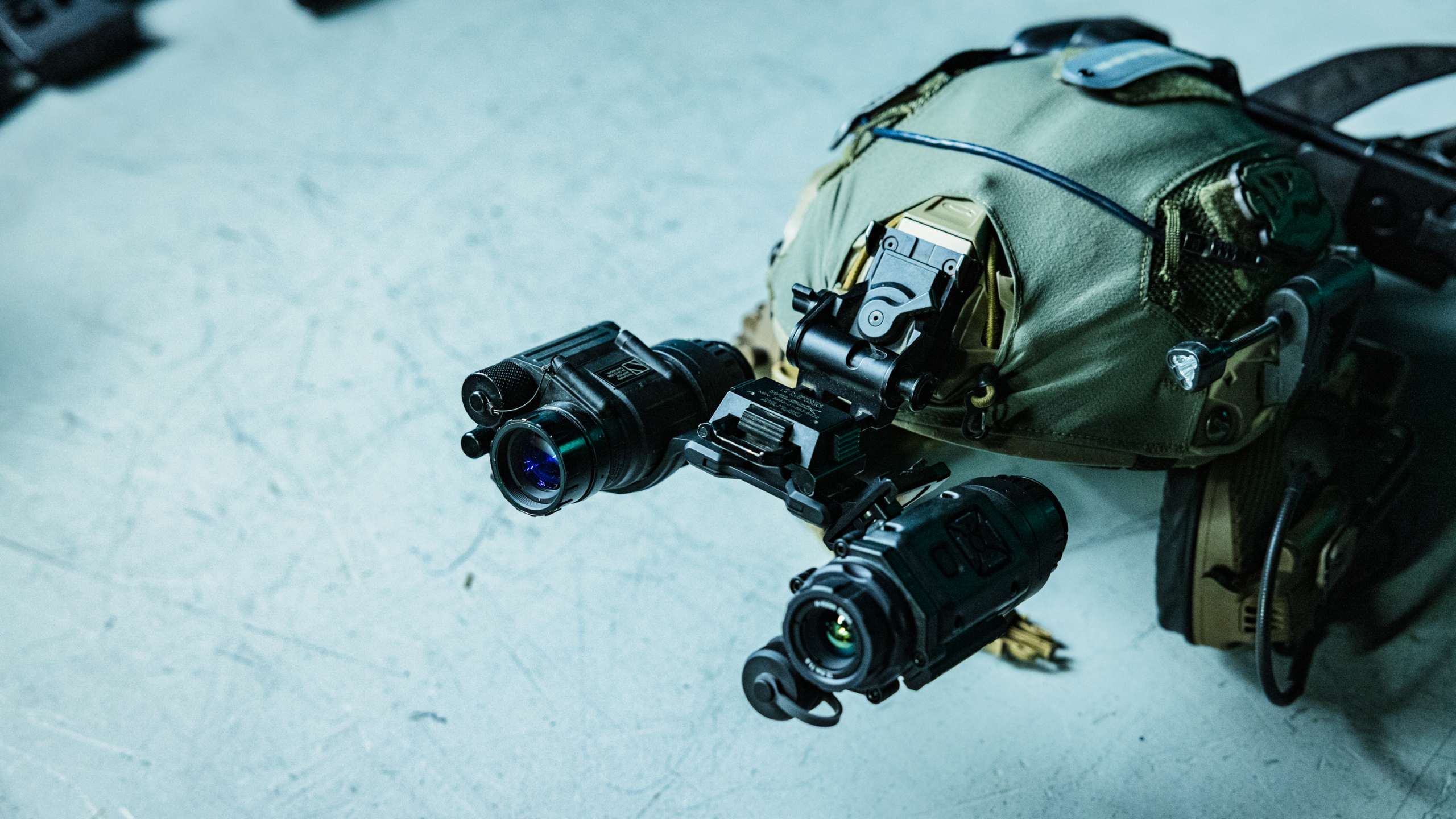

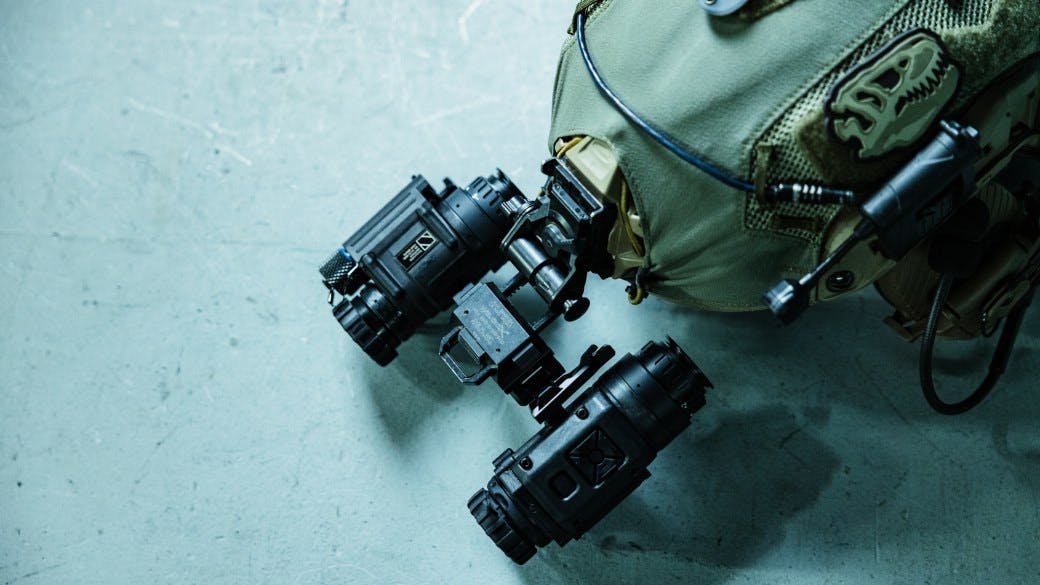

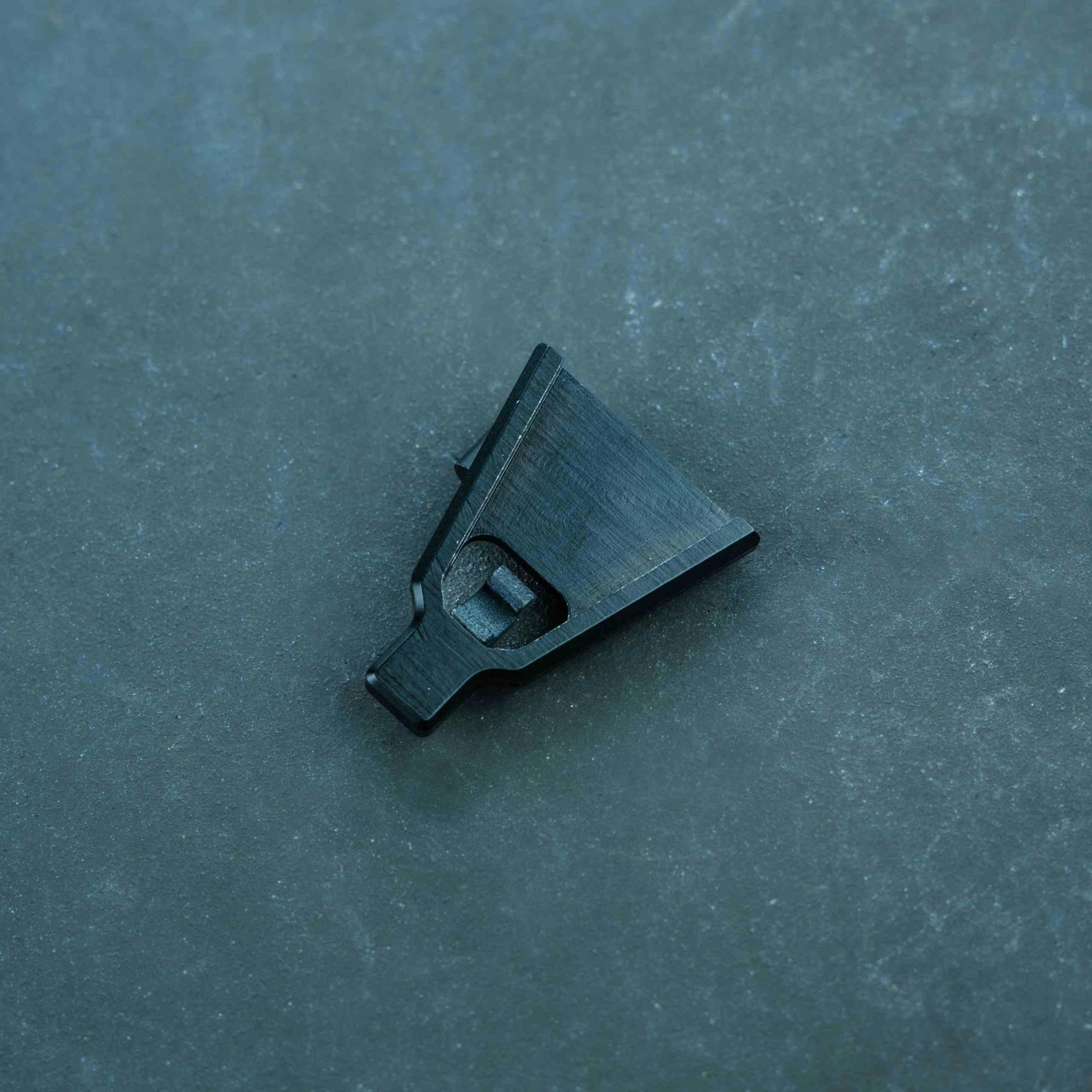

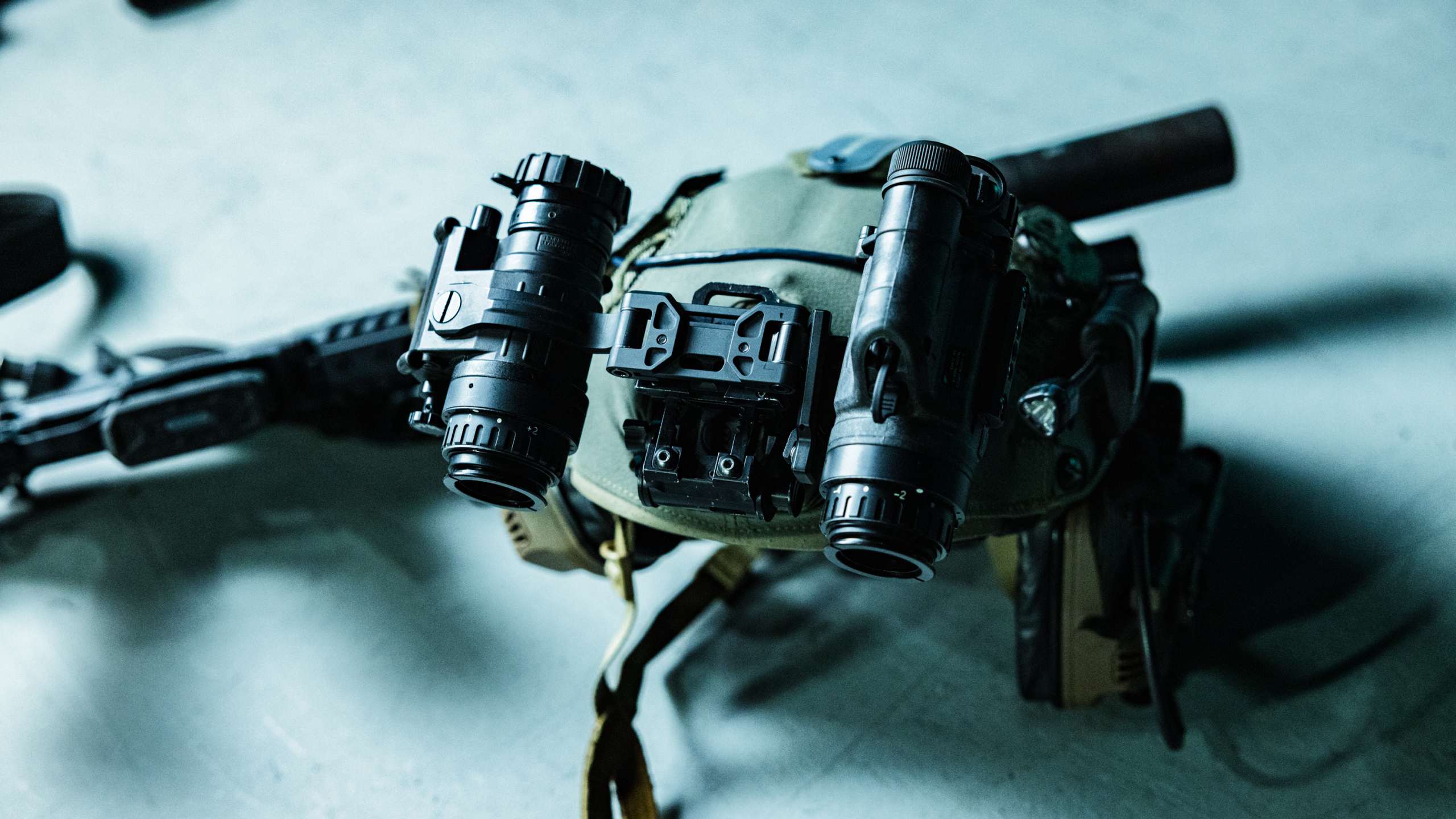

The Noisefighters Panobridge Thermal Dovetail Adapter is an add-on to the M1 Panobridge that allows you to mount thermals that use a dovetail interface. Its fully ambidextrous design allows you to run a thermal device on either or even both sides of the Panobridge, with full IPD adjustment and articulation.
OVERVIEW VIDEO

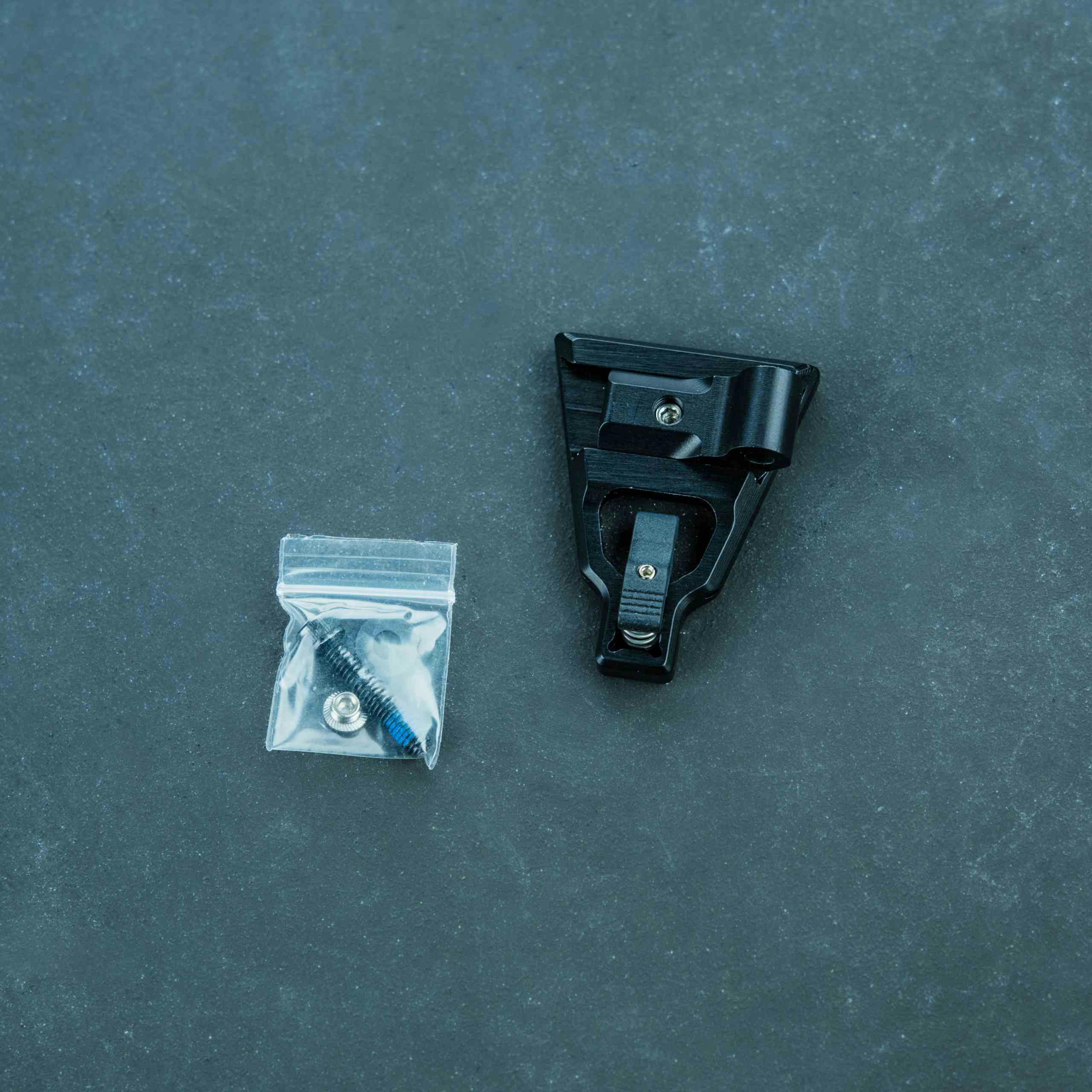

WHAT’S INCLUDED
- 1x Noisefighters Panobridge Thermal Dovetail Adapter
- 1x Mounting Hardware
SPECS
FEATURES
- Ambidextrous design allows the user to run the dovetail over either eye.
- Interpupillary distance is adjustable by loosening a set screw, sliding the QD Adapter on the IPD Slider, and retightening.
- Allows complete arm rotation in order to stow your device(s). Optimized for the Wilcox G24.

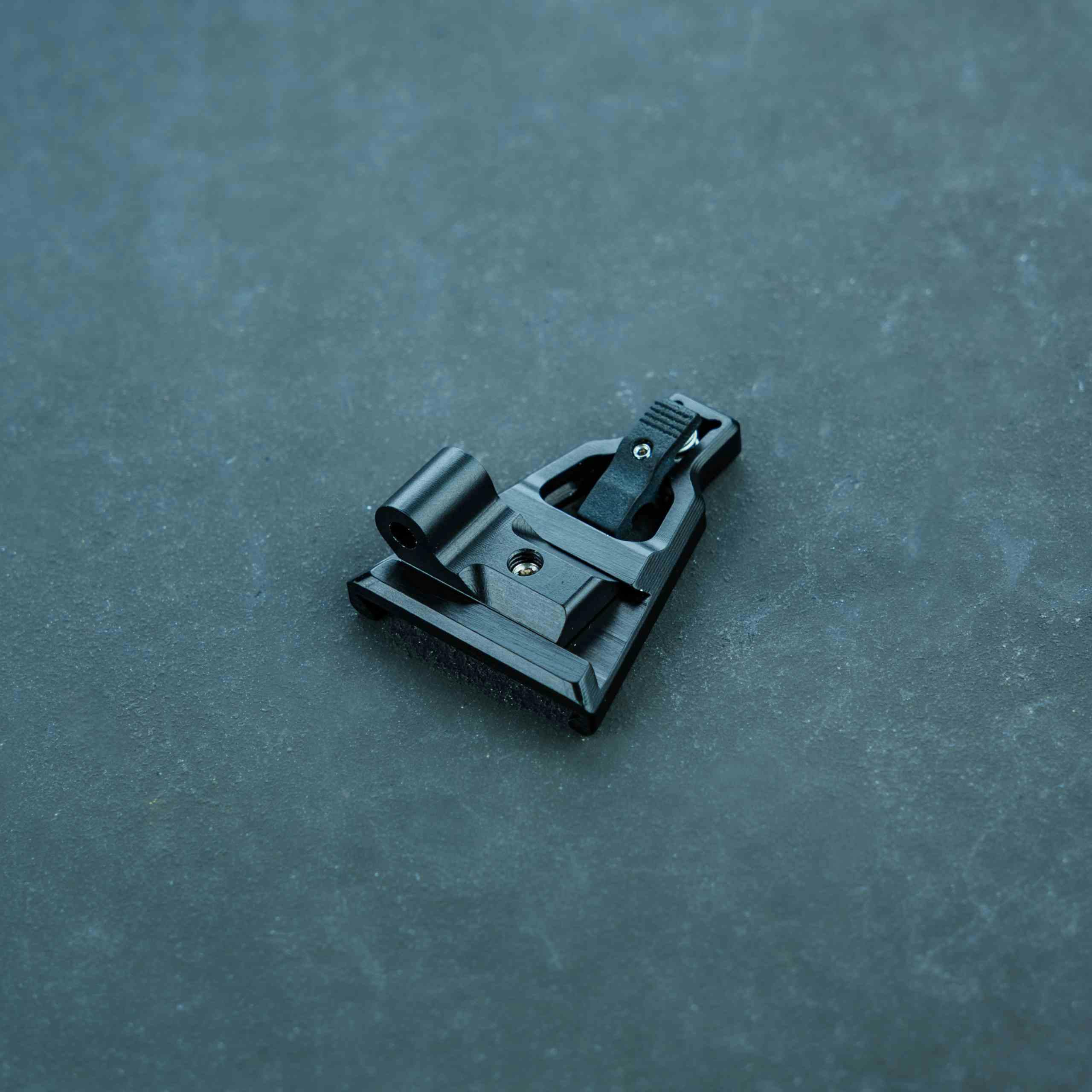

- A lever-actuated locking mechanism allows for fast attachment and removal of imaging devices.
Made in the USA.
COMPATIBILITY
- Compatible with:
- iRayUSA RICO MICRO RH25 V2 with the iRay Micro Pictail Shoe or the Noisefighters Adjustable Dovetail
- Trijicon OASYS SkeetIRx
- N-Vision NOX18 with the Noisefighters Adjustable Dovetail
- AGM STINGIR
- RIX STRIDE

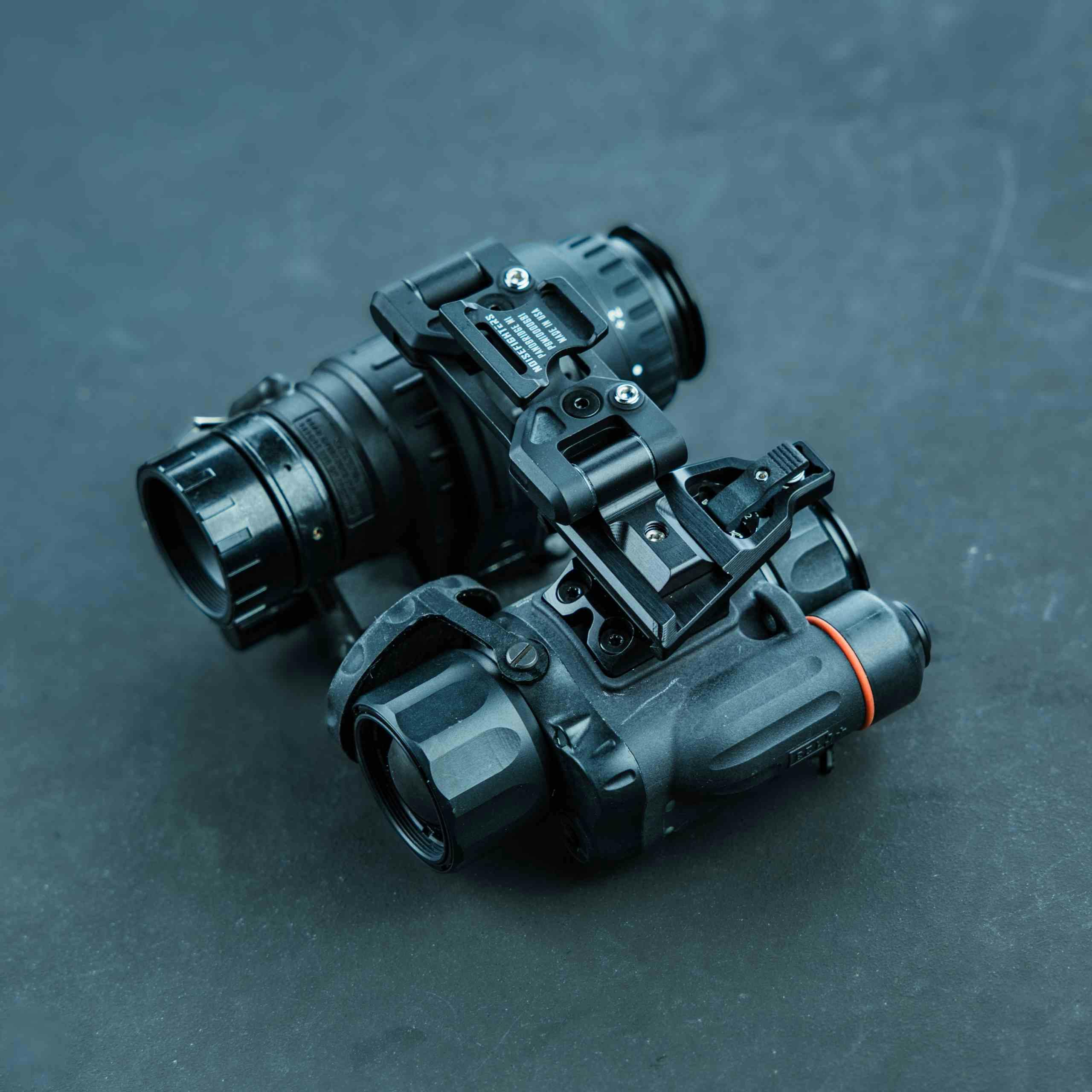

- When used with this dovetail adapter, these devices will line up with the eyepiece of a Mil-Spec PVS-14:
- iRAY RH25 with the iRAY Pictail Shoe or Noisefighters Adjustable Dovetail
- NOX18 and AGM STINGIR with the Noisefighters Adjustable Dovetail
- Trijicon OASYS SkeetIRx does not line up perfectly with PVS-14 eyepiece, but still works well
TECHNICAL SPECIFICATIONS
| Weight | 0.64 oz |
| Material | 7075-T6 Aluminum, Stainless Steel |
| Weight w/M1 Panobridge | 2.25 oz |

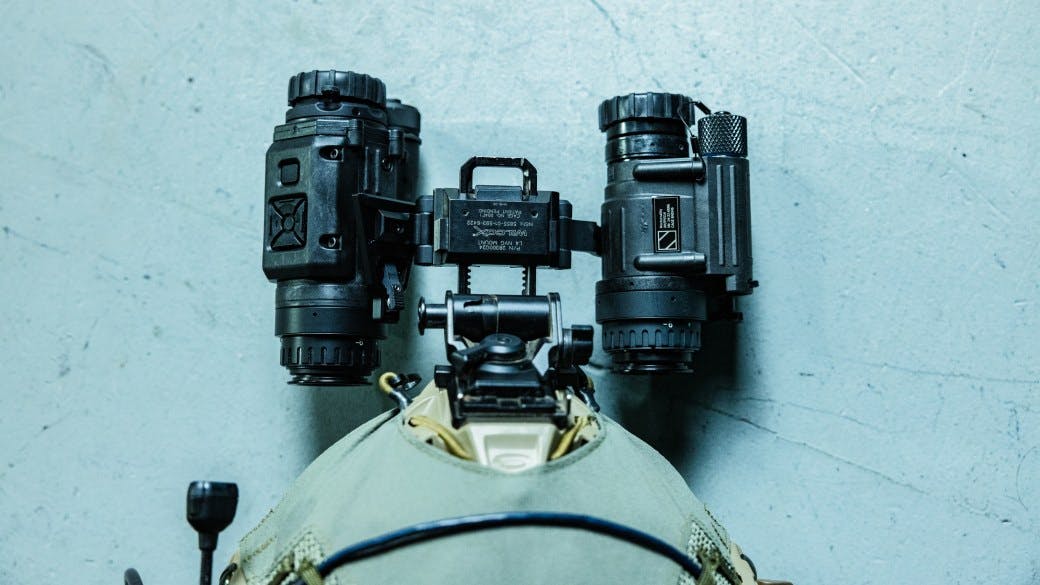

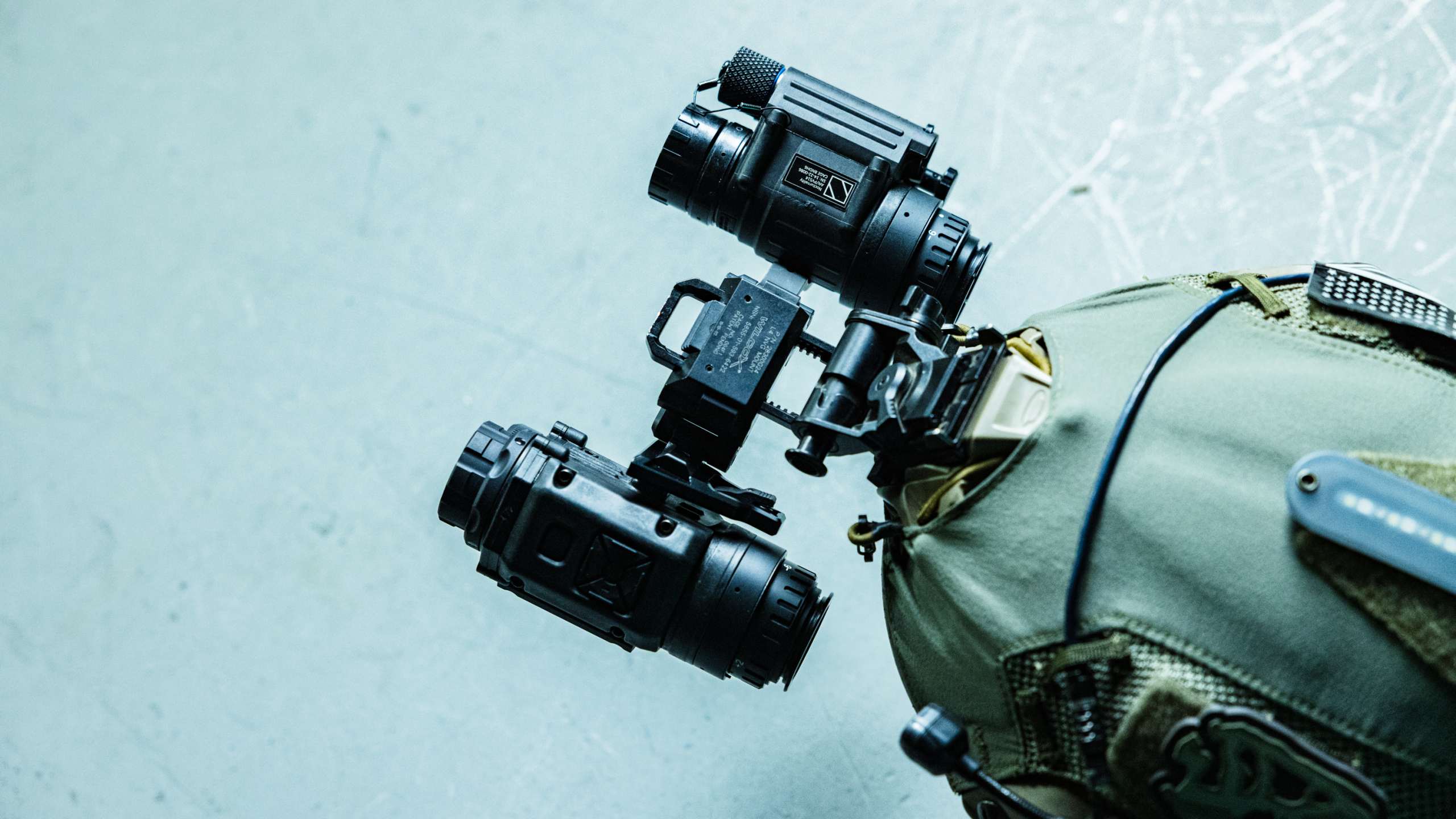

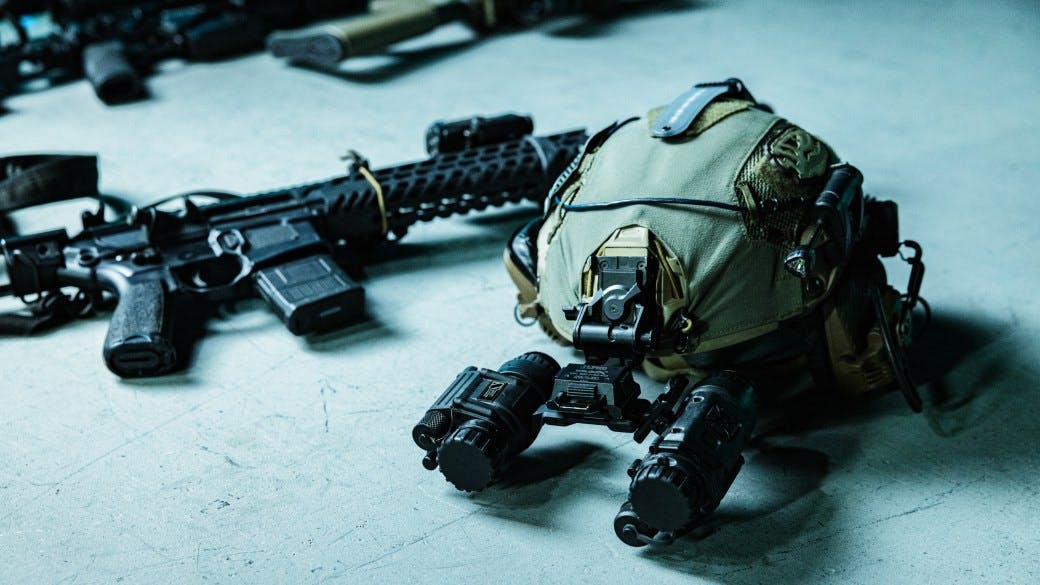

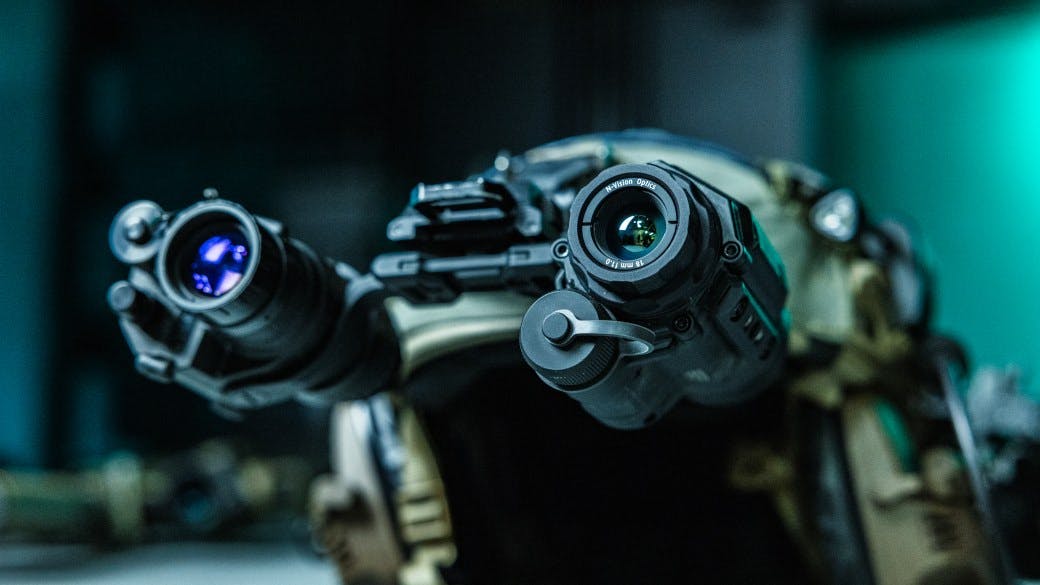

PICTURES
RESTRICTIONS
This product cannot be shipped outside of the USA.
