N-Vision NOX18 Thermal Monocular
Video | What’s Included | Specs | Pictures | Restrictions
The N-Vision NOX18 is a thermal monocular that lends itself well to both helmet-mounted use as well as standalone thermal optic applications.
The NOX features 8 user-selectable reticles, three polarity settings, and digital zoom levels up to 8x, and it is nitrogen-purged to prevent internal fogging. On top of all its baked-in features, its modular design allows it to be used over either eye, and the removable mounts allow it to be scaled up or down based on the user’s needs.
The NOX is powered by your choice of a single CR123 or a single 18650 with the extended cap. The CR123s offer roughly 1.5 hours of operation, and the 18650s boost that to 4-7 hours. If you want even longer operation, the NOX can be powered by an external source via the integrated USB-C port.
OVERVIEW VIDEO
WHAT’S INCLUDED
- 1x N-Vision NOX18 Thermal Monocular

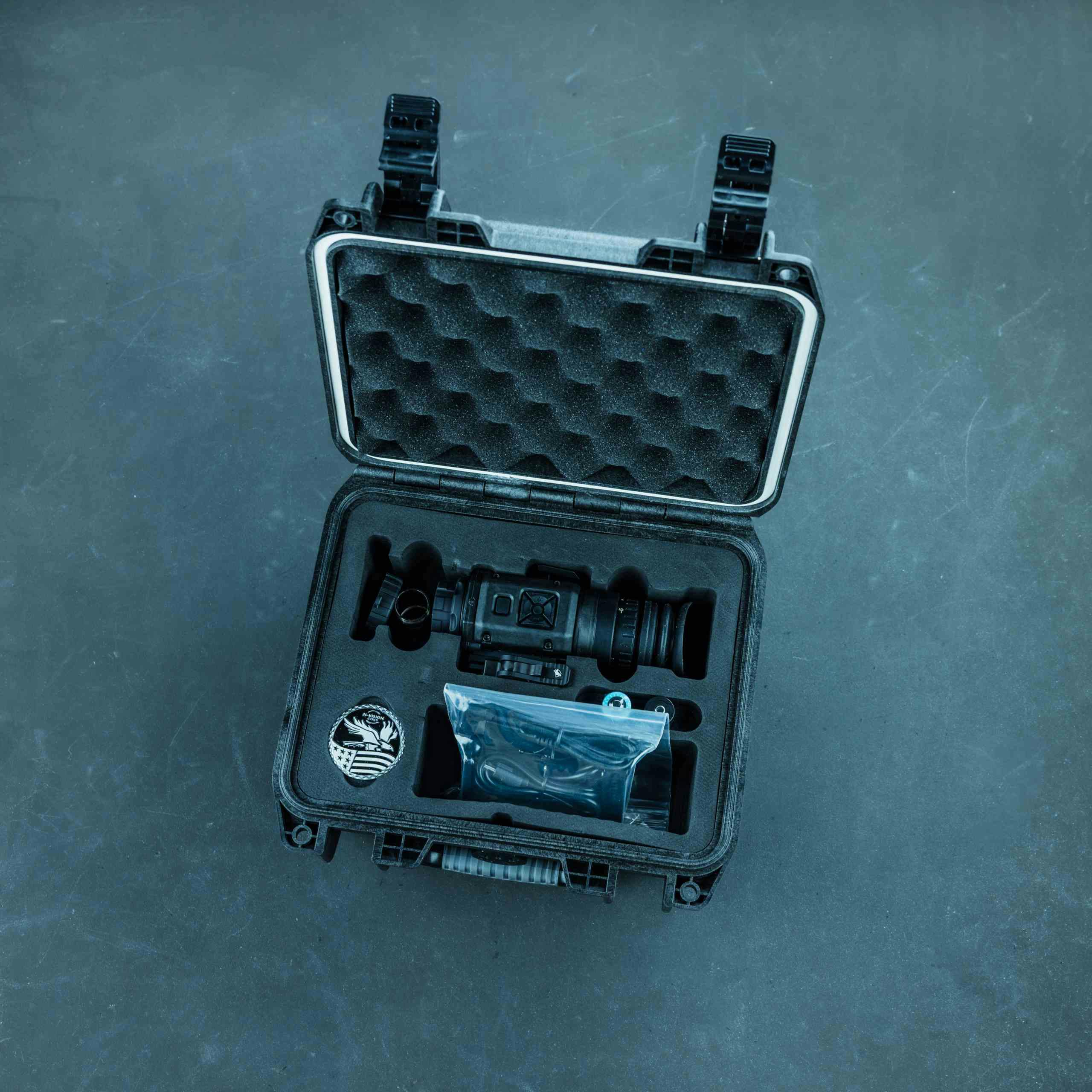

- 1x Hard Carrying/Storage Case
- 1x USB-C Cable
- 1x Lens Cleaning Cloth
- 1x Quick Reference Guide
- 1x CR123 Battery
- 1x CR123 Battery Cap
- 1x 18650 Battery
- 1x 18650 Battery Cap
- 1x 18650 Charger
- 1x QD Picatinny Mount
- 1x Dovetail Shoe
SPECS
FEATURES
- 2-micron BAE thermal core with 60Hz refresh rate

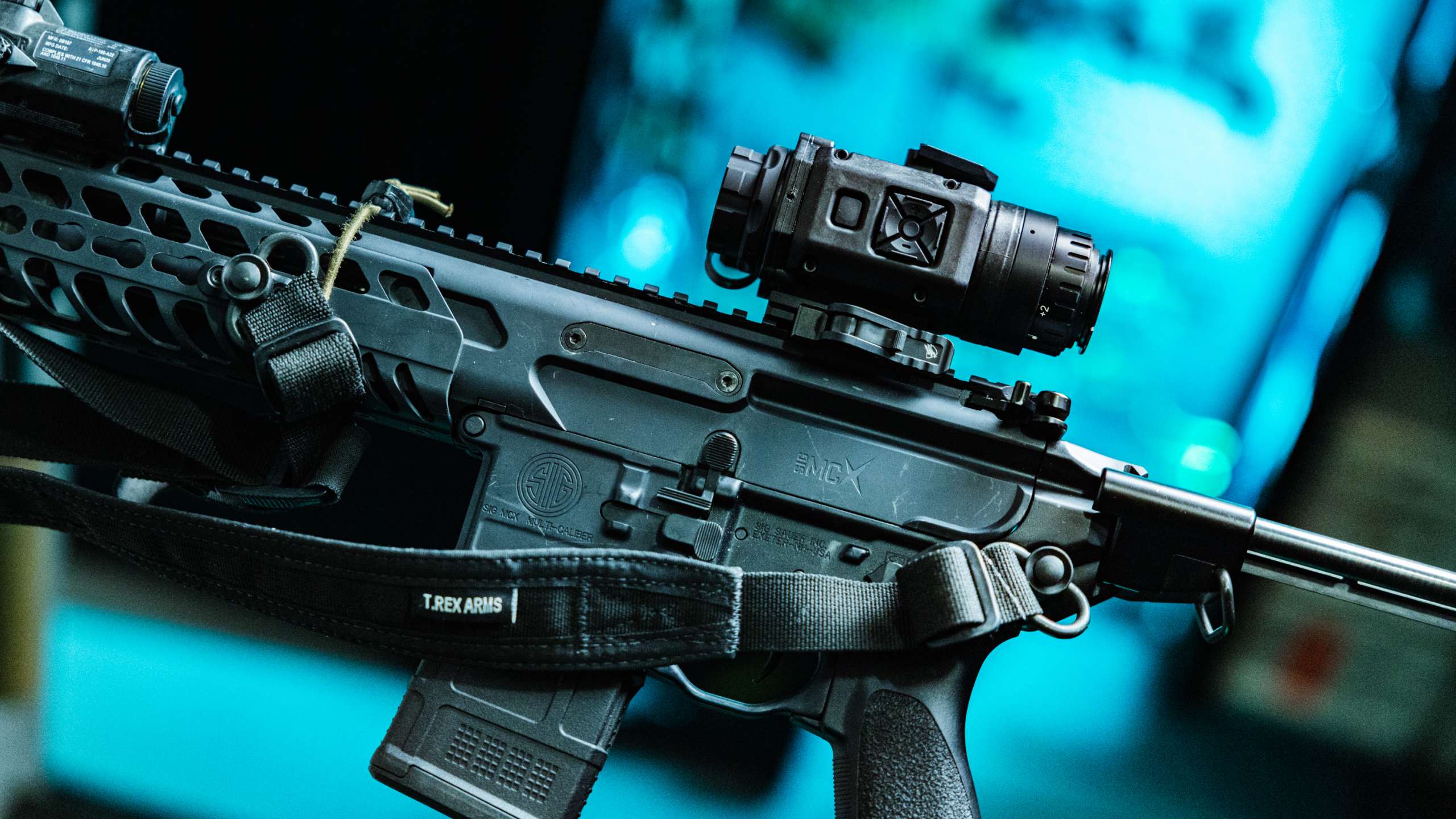

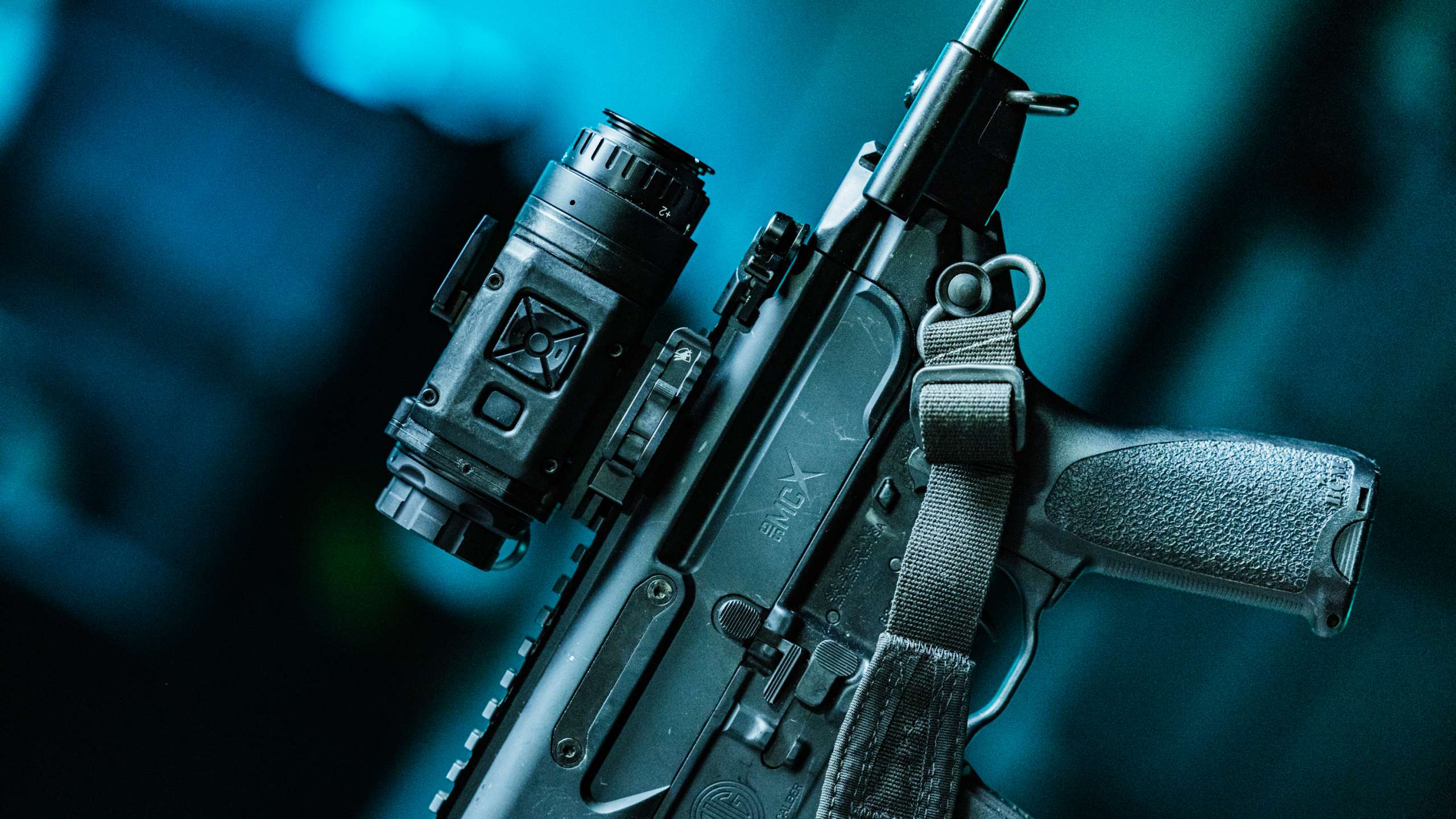

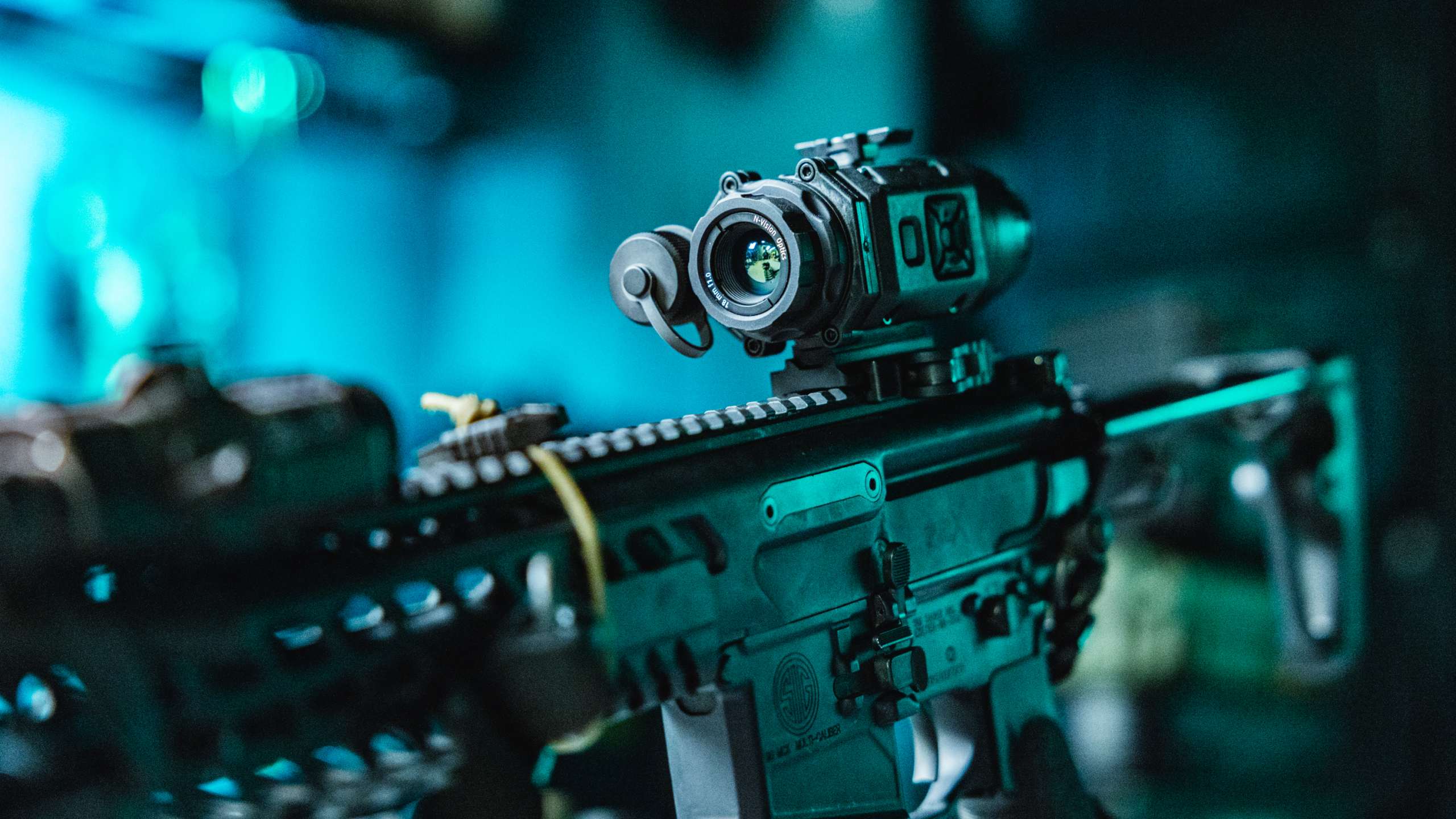

- Versatile use: weapon sight, head-mounted monocular, or handheld scanner
- 18mm lens for wider FOV
- Compact, modular design: configurable for left/right eye use

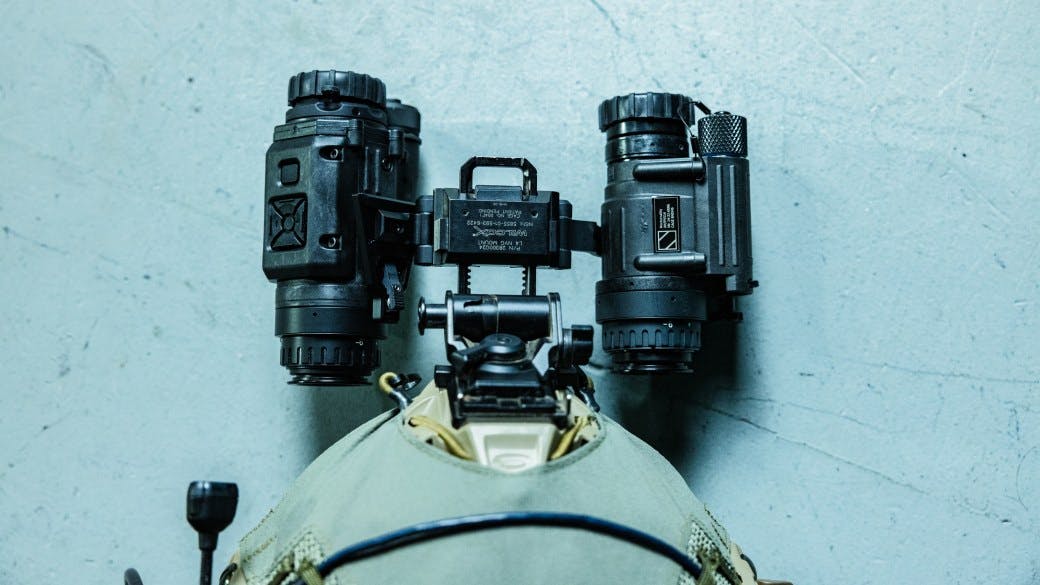

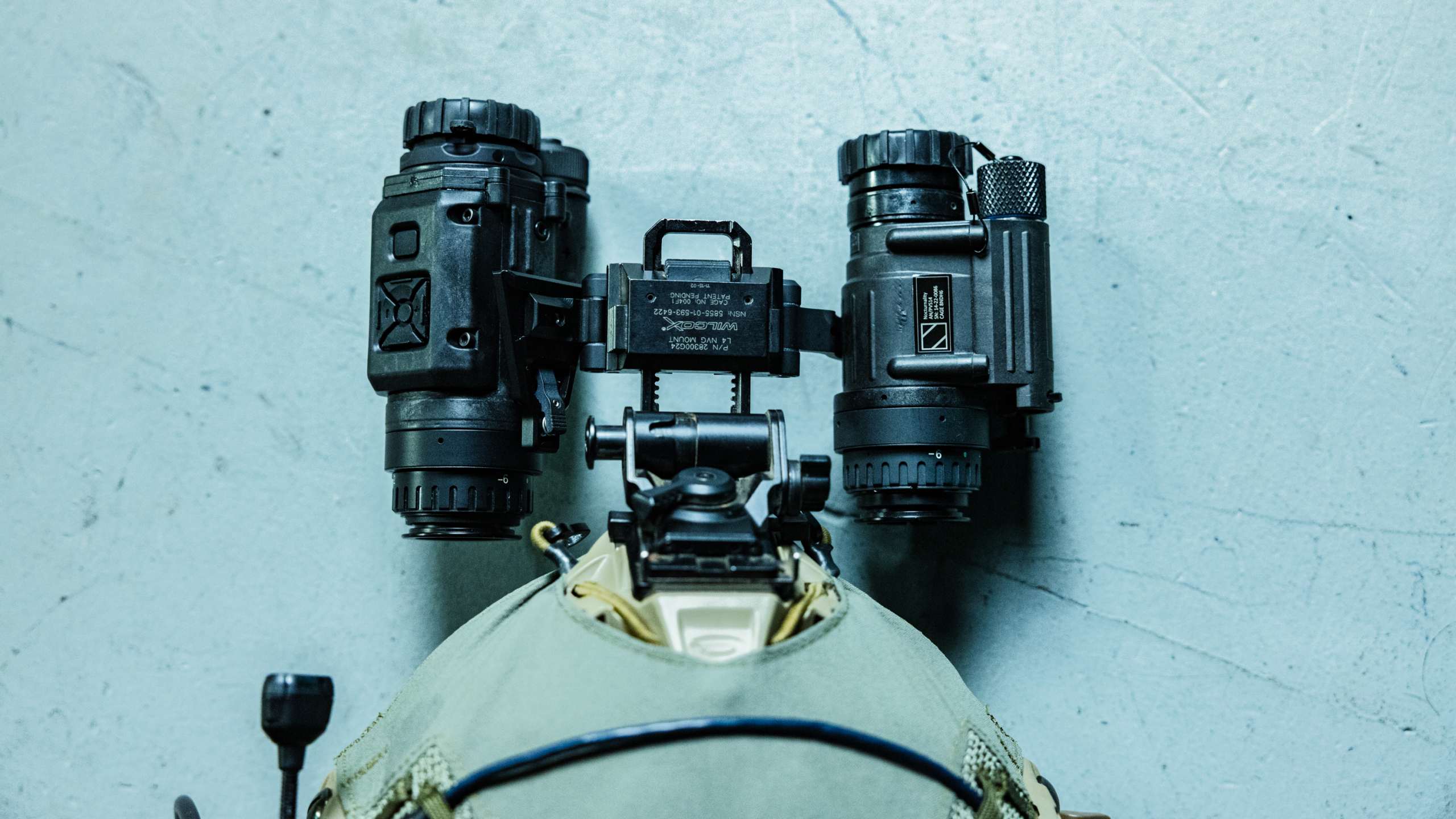

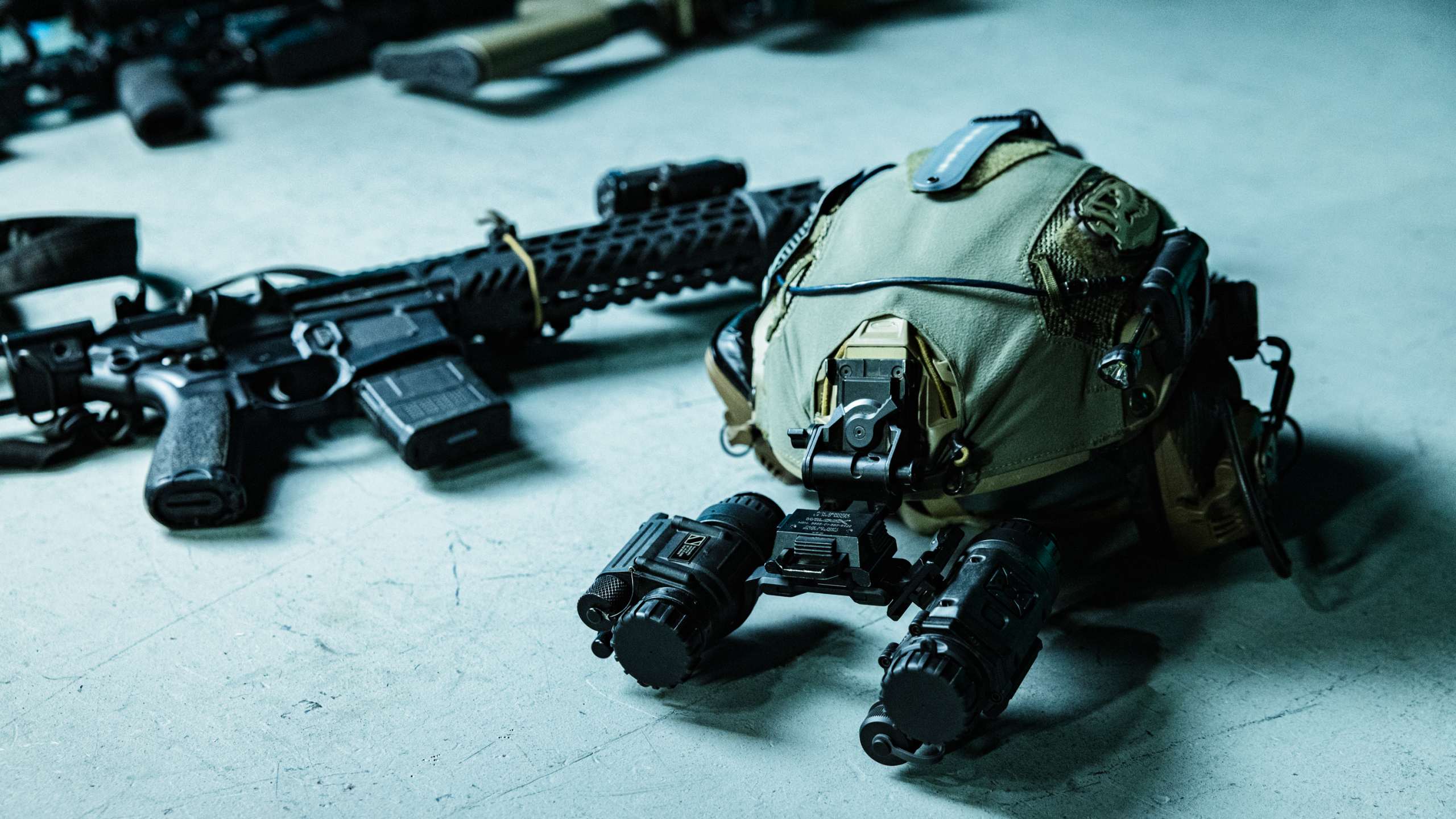

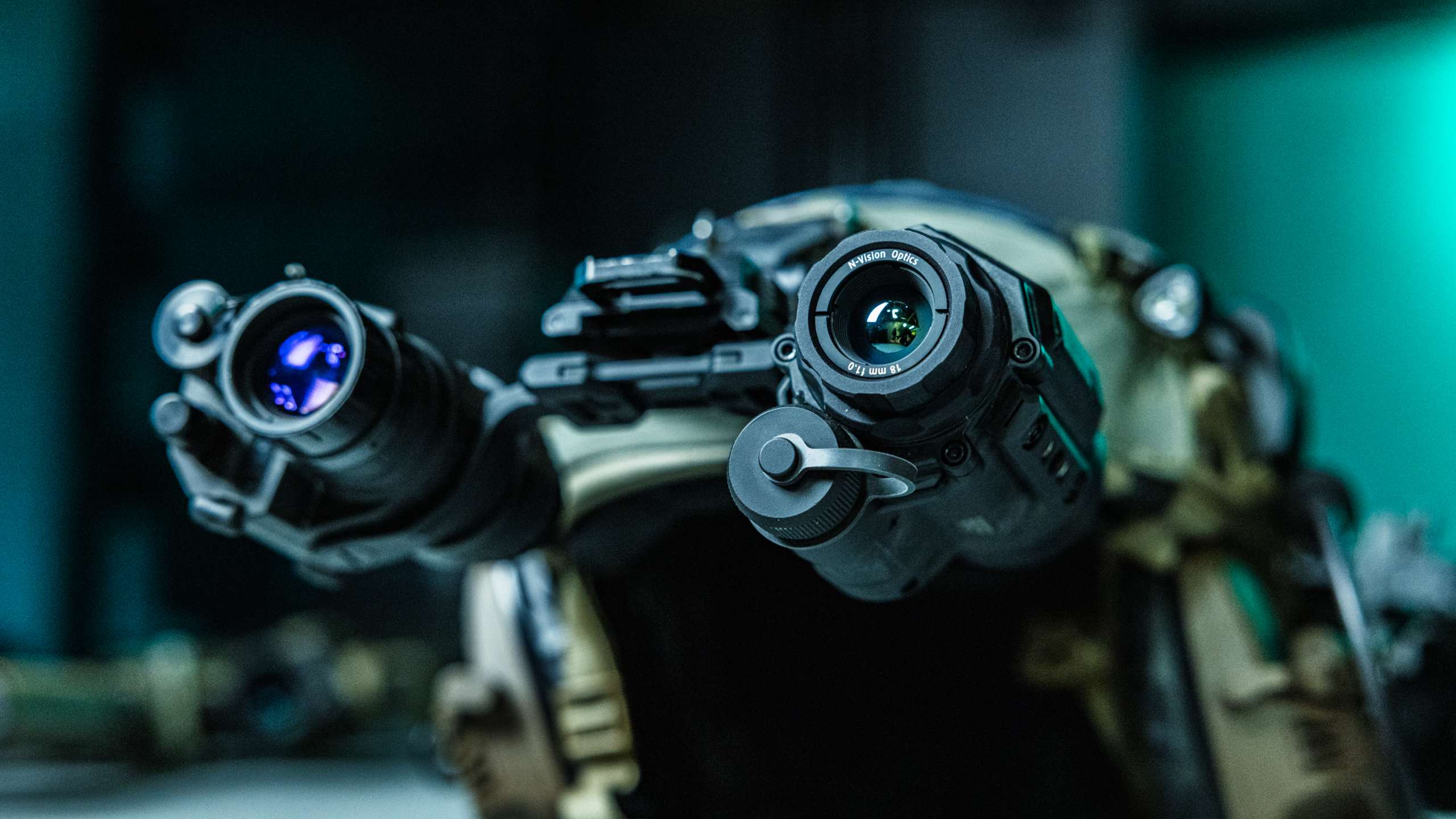

- Dual mounting capable: pair with another NOX or night vision monocular (e.g. PVS-14)
- Removable mounts: reduce weight and size when needed
- Eight reticle options
- Power options:
- CR123 battery (up to 1.5 hours runtime)
- Rechargeable 18650 battery (4–7+ hours runtime)
- External USB power via waterproof USB-C
- Eight user-selectable reticles
- Electronic windage and elevation adjustments
- Focusable objective lens
- Black hot/white hot, black/white edge detect polarity selections
- Digital 2x, 4x, and 8x zoom
- High resolution throughout the entire field of view

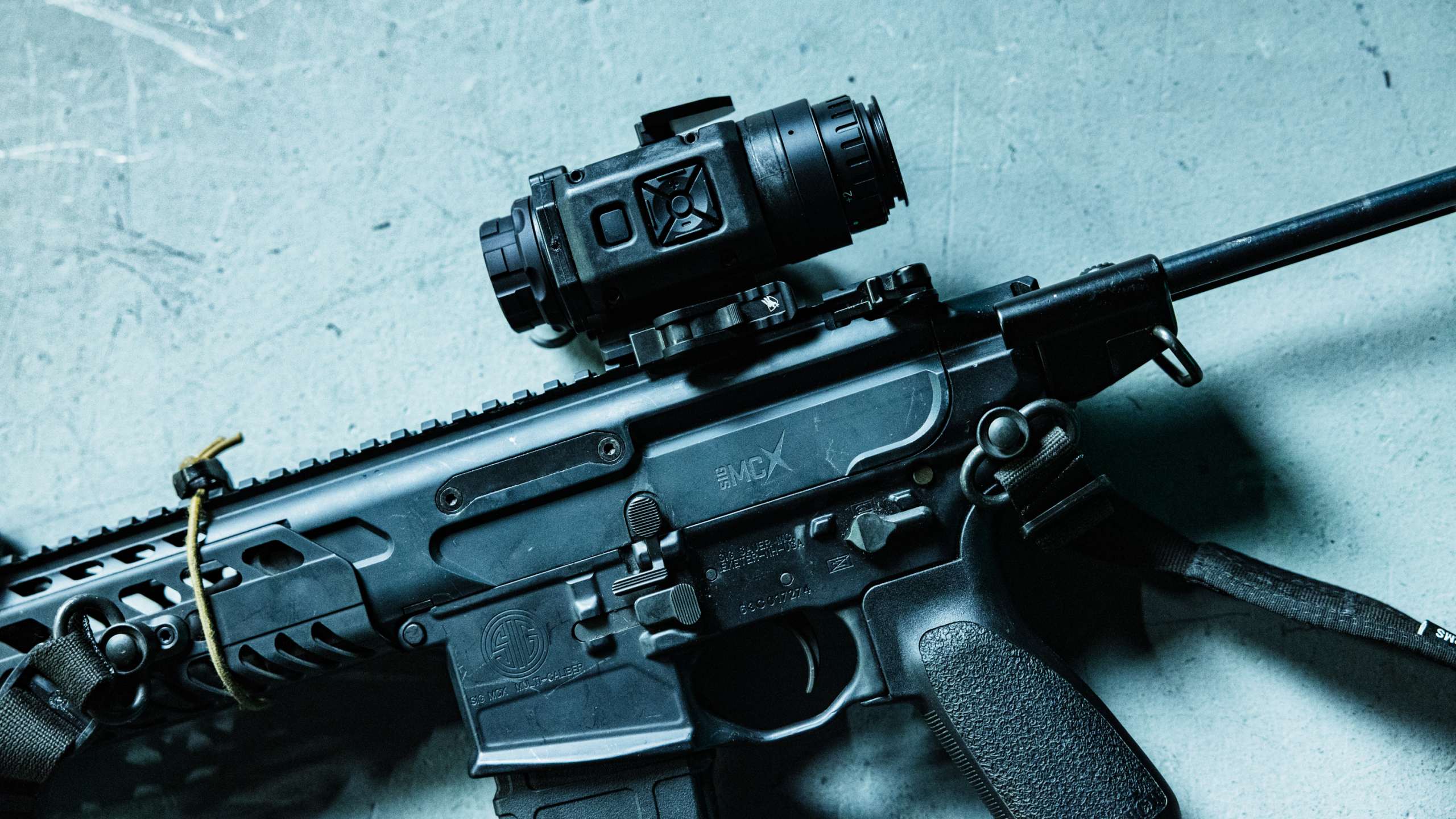

- Standard MIL-STD-1913 (Picatinny) rail mounting system
- Dovetail (AN/PVS-15 style) head/helmet mounting interface
- Nitrogen purged to prevent internal fogging and extend the service life
- State of the art impact-resistant engineered plastic housing
Built in the USA with high-grade optics and components
DOWNLOADS
TECHNICAL SPECIFICATIONS
| Sensor Pixel Pitch | 12 μm |
| Resolution | 640 x 480 |
| Refresh Rate | 60 Hz |
| Lens | 18mm F1.0 |
| Focus | Manual, non-rotating |
| Field of View | 18mm: 24.3°(H) x 18.3°(V); 30.4° (Diagonal) |
| Digital Zoom | 1x / 2x / 4x / 8x |
| Display Type | OLED 640×480 B&W |
| Power | One CR123 or one 18650 |
| Remote Power | USB 5.0V |
| External Connector | Waterproof USB-C |
| Calibration (NUC) | Manual |
| Weight (CR123 Battery) | 13.5 oz (no mount), 16 oz (w/ mount) |
| Weight (18650 Battery) | 15.3 oz (no mount), 17.6 oz (w/ mount) |
| Size (CR123 Battery) | 5.0″ × 2.9″ × 2.4″ (no mount) 5.0″ × 2.9″ × 3.0″ in (w/ mount) |
| Size (18650 Battery) | 6.4″ × 2.9″ × 2.4″ (no mount) 6.4″ × 2.9″ × 3.0″ (w/ mount) |
| Detection Range | 753 yards |
| Recognition Range | 267 yards |
| Identification Range | 136 yards |

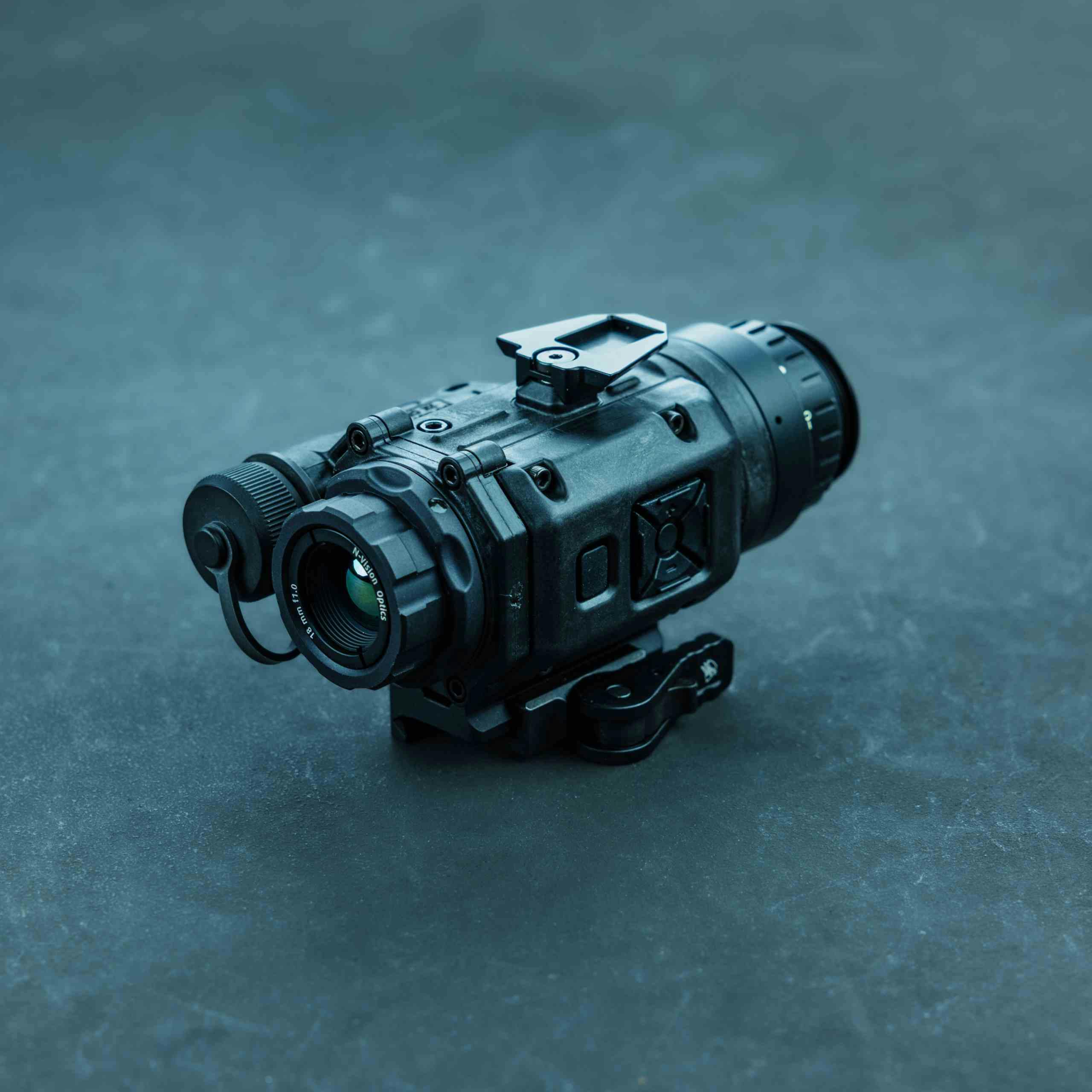

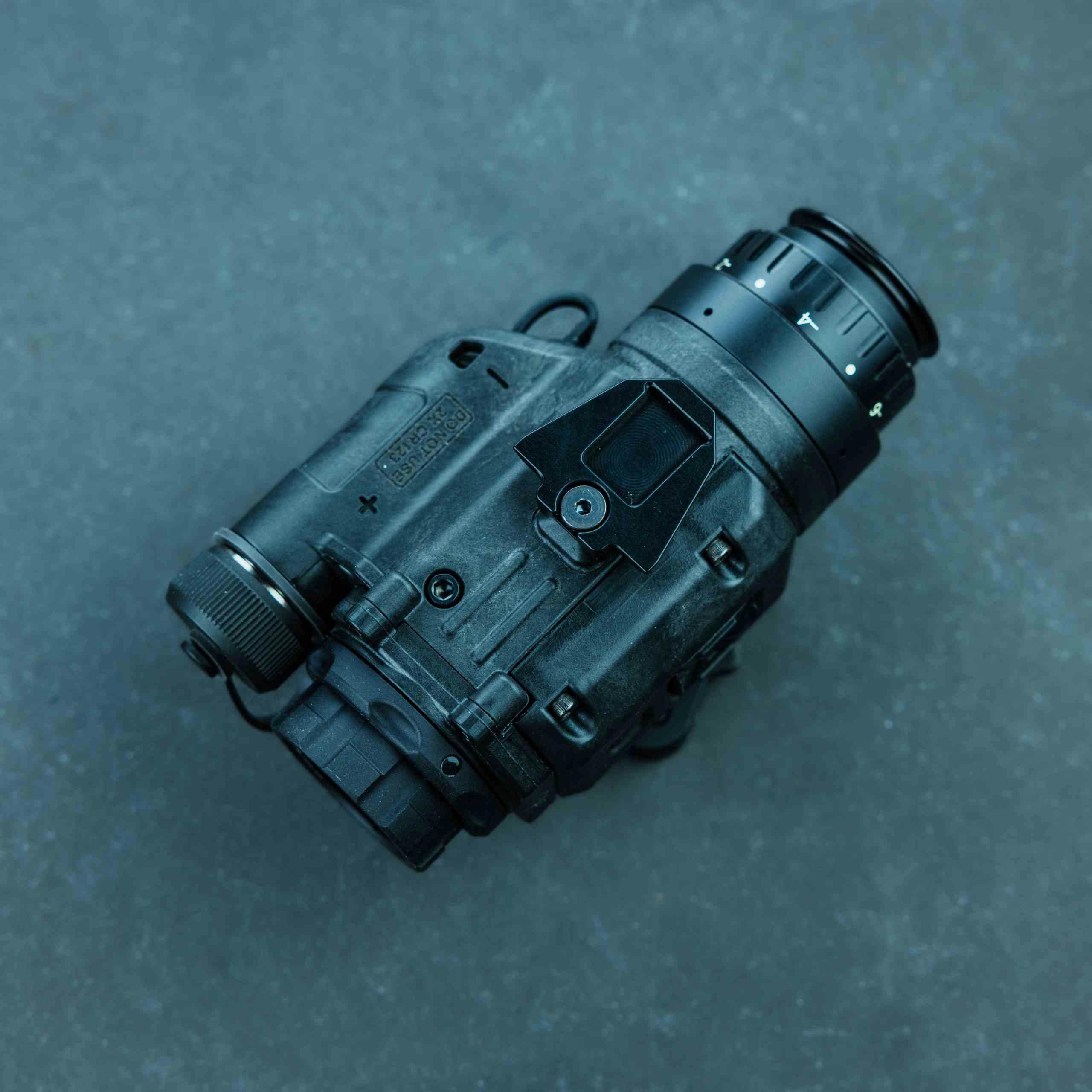

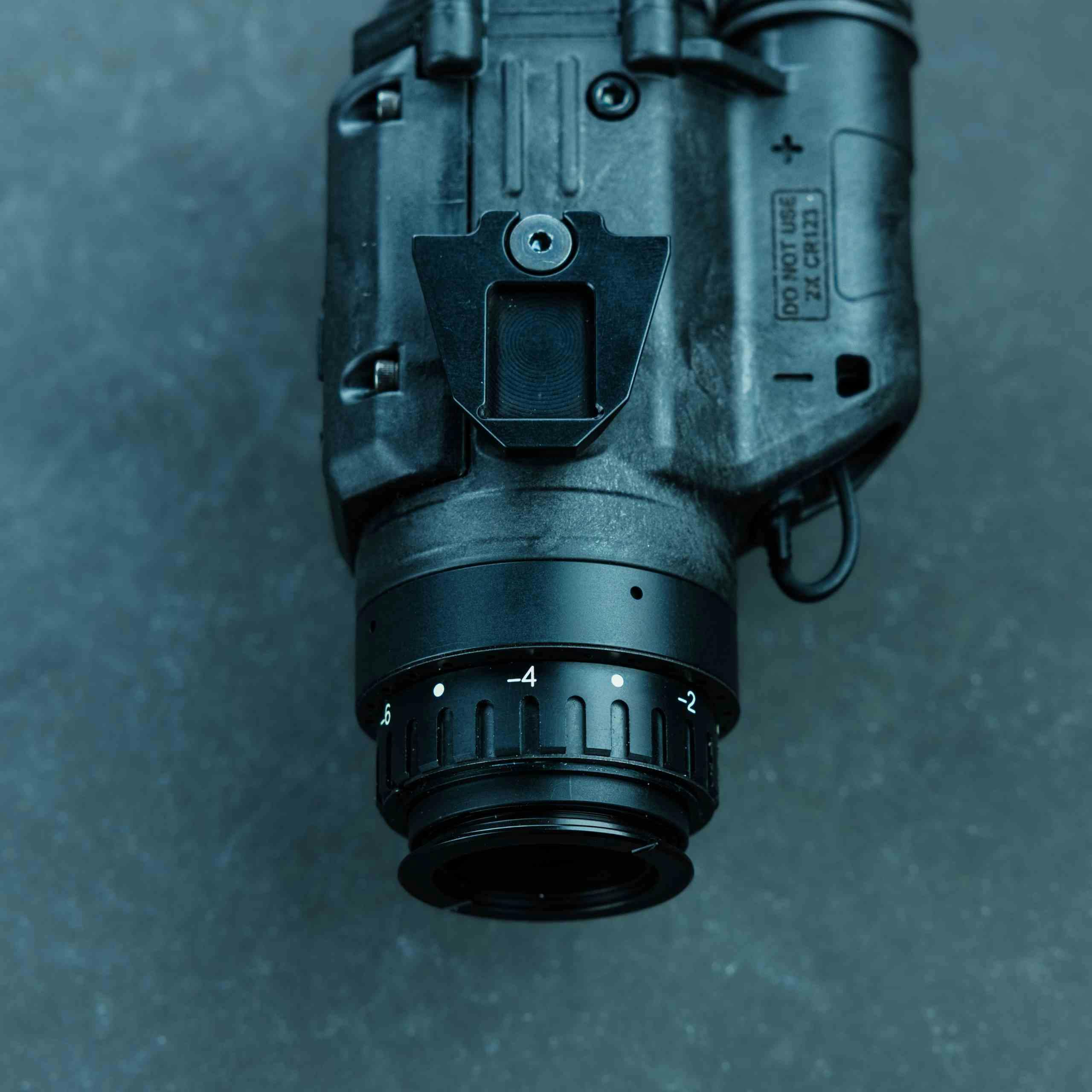

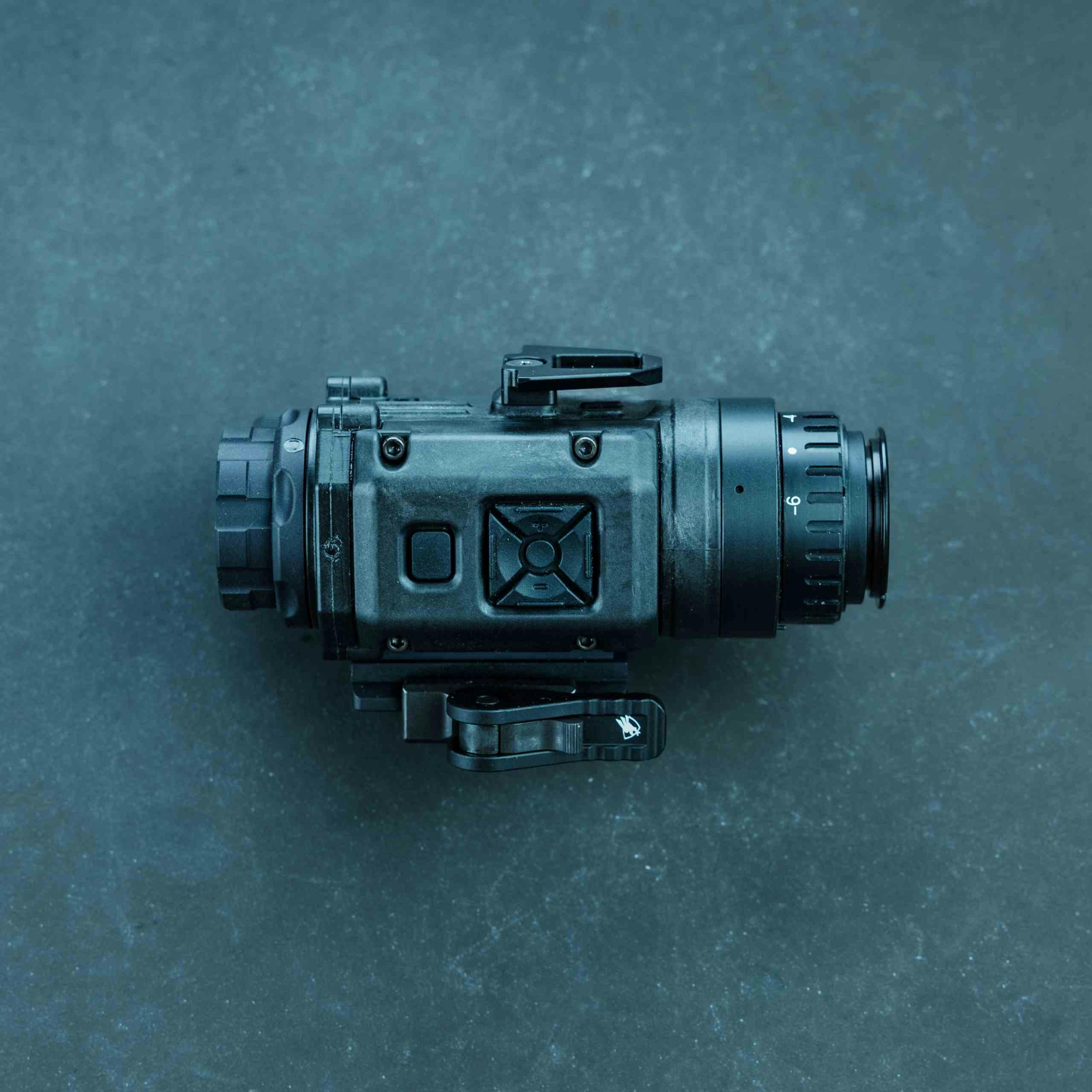

PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the USA.
