SureFire X300U Weapon Light


Video | What’s Included | Specs | Pictures | FAQ | Restrictions | Related Info

The SureFire X300U is one of the most widely-issued weapon lights in special operations and law enforcement units. And for good reason. It boasts an impressive track record, is nearly indestructible, and has improved with the times at a steady pace. The current X300U can put out 1000 lumens for 1.25 hours on two CR123A batteries. The beam is tight with a focused center and spill on the edges. This means the light can be used at distance very nicely. Activating the X300 Ultra is done via intuitive, ambidextrous switches—now wider and shorter for improved ergonomics—at the rear of the body. Simply press the switch on either side for momentary-on activation or flip up or down for constant-on activation. We highly recommend the X300 series of lights at T.REX ARMS.

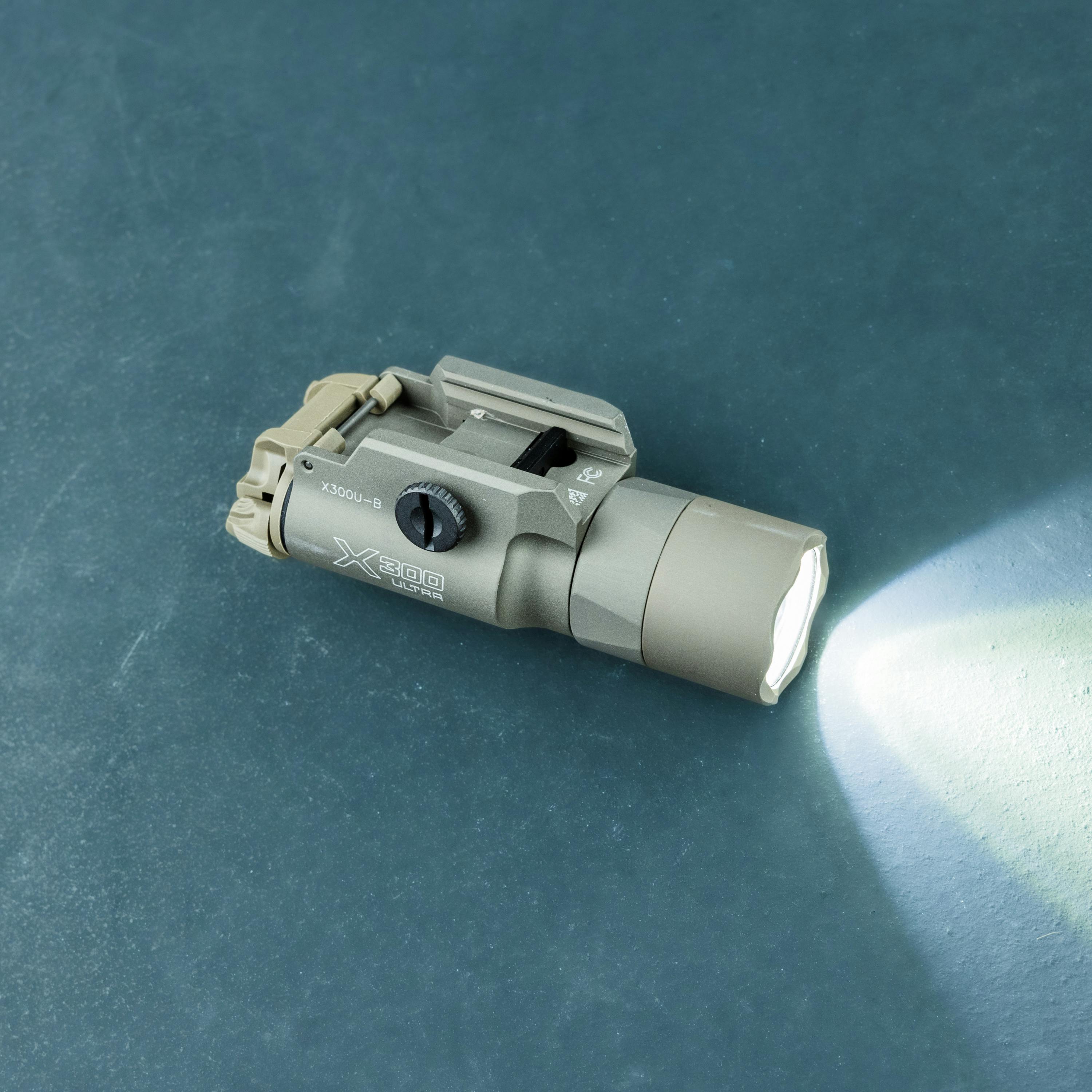

The X300 Ultra is comprised of two models, the “A” and “B”. These signify the attachment system of the light. The A model features Surefire’s Rail-Lock system, a latch attachment. You pull down on the two levers on the side of the light and slide the X300 onto the rail system. It will then lock in place. The B model has a T-slot mounting solution that is tightened by hand, and then turned a half rotation with a flathead screwdriver, bullet casing, knife, etc.

Back to top ↑


Back to top ↑


X300U-A model: X300 ULTRA WeaponLight; Battery Cover; Battery Cover Retaining Pin; Universal Lever Latch (marked “U,” installed); Picatinny Lever Latch (marked “P”); Spring (installed); Rail Latch Lock; Universal Rail Latch (marked “U”); Picatinny Rail Latch (marked “P”); Lock Actuator; Lock Actuator Screw; 5/64” Hex Wrench; One Tube Loctite 242; Two 123A Batteries

X300U-B model: X300 ULTRA WeaponLight; Battery Cover; Battery Cover Retaining Pin; Two 123A Batteries; Picatinny Crossmember

Back to top ↑



  • Recoil-proof high-performance LED produces 1,000 lumens
  • Custom TIR lens creates smooth, far-reaching light with a larger center spot beam that is ideal for close- to medium-range engagements
  • Integral ambidextrous momentary- and constant-on switching provides easy instant activation
  • Attaches securely to both Universal and Picatinny accessory rails
  • IPX7 waterproof to 1 meter for 30 minutes
  • High-strength aerospace aluminum body is Mil-Spec hard-anodized for extreme durability
  • Accepts optional pressure-activated DG and XT remote switches for precision control without altering grip on weapon

View the User Manual for the X300U-A model HERE and the User Manual for the X300U-B model HERE.

Made in the USA.

OUTPUT1,000 lumens
RUNTIME*1.25 hours
DISTANCE213 meters
FINISHMil-Spec Hard Anodized
WEIGHT (w/ batteries)4.0 oz (113 g)
LENGTH3.76 in (9.55 cm)
BEZEL DIAMETER1.125 in (2.9 cm)
BATTERIESTwo 123A lithium (incl.)
SWITCHINGAmbidextrous push/toggle
LIQUID INGRESS PROTECTIONIPX7, Submersion up to one meter for 30 minutes
*Continuous hours until output drops to 10% of normal output

Back to top ↑


Back to top ↑


Which attachment option should I choose?
SureFire makes the A quick latch model for polymer frame guns and the B thumb screw model for metal frame guns.
What makes the X300 ULTRA different from the X300 TURBO?
The Ultra has more lumens than the X300T (1,000 vs. 600) and more flood, but less peak beam intensity (11,300 vs. 66,000 candela) and less throw (40 vs. 150 meters). The battery life is slightly less than the TURBO (1.25 vs. 1.5 hours). We tend to opt for higher candela options like the TURBO, but it does come down to mission and preference—more flood may be the best for you.
