iRayUSA RICO MICRO RH25 V2 Multifunction Thermal Weapon Sight
Video | What’s Included | Specs | Pictures | Restrictions

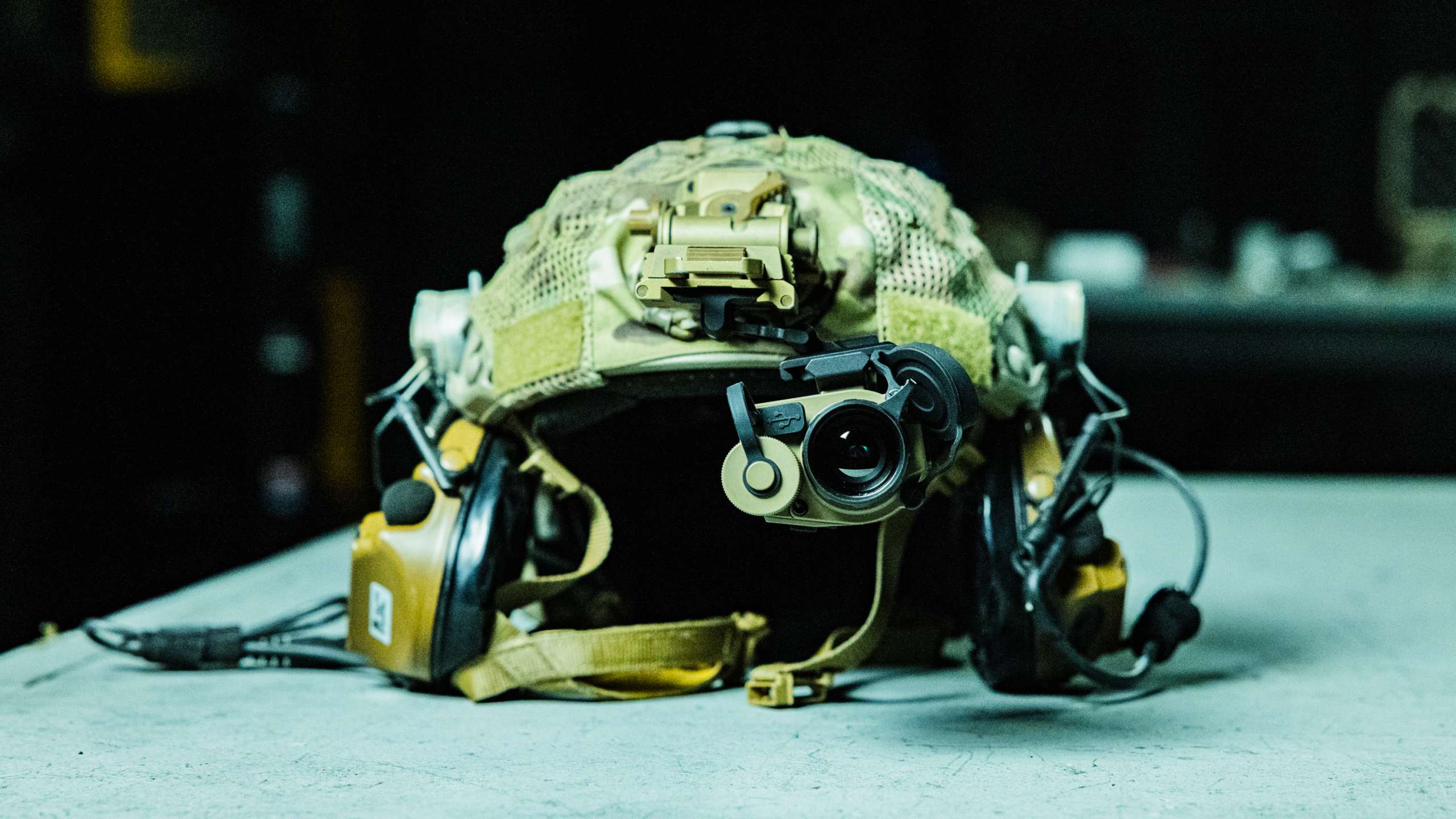

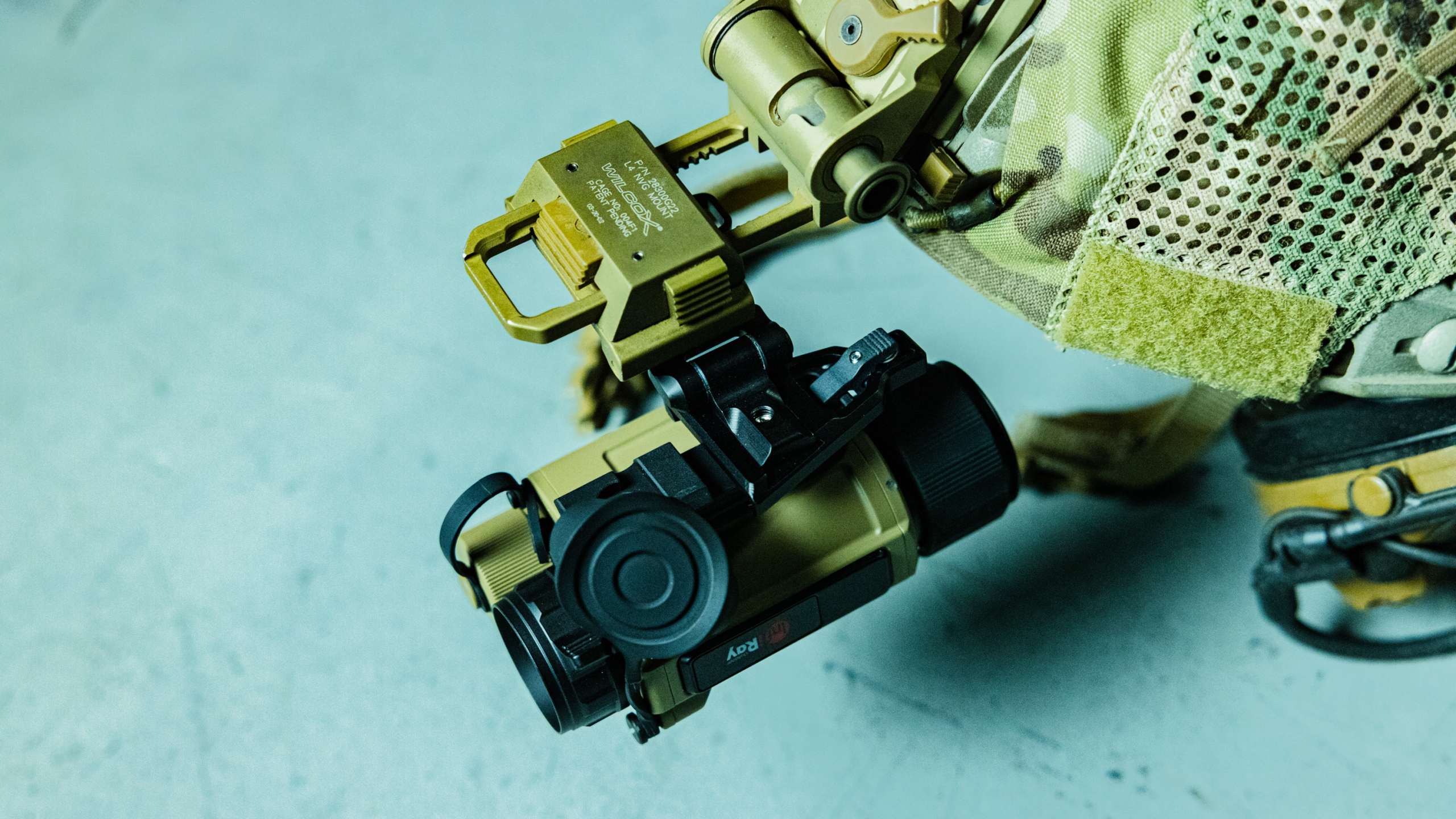

The iRayUSA RICO MICRO RH25 V2, simply known as the RH25 V2, is a versatile thermal monocular that covers a wide range of applications in a reasonable, relatively affordable package. It offers the capability to run as a helmet-mounted unit, a clip-on in front of your standard day optic, or even as its own standalone thermal optic. The 640×480, 12-micron thermal sensor is on par with most other high-end thermal devices, and its AMOLED screen provides great image quality and detail.

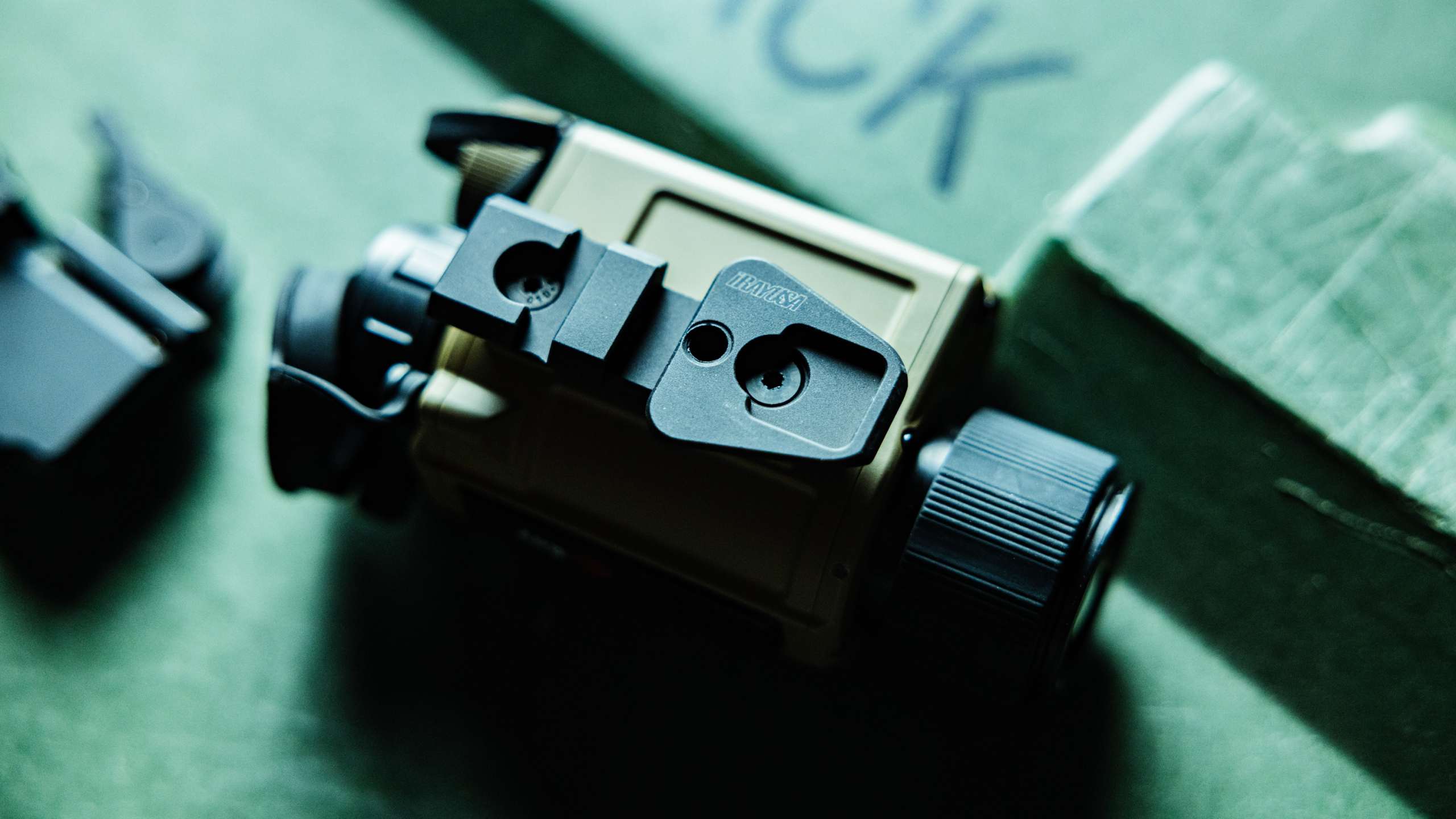

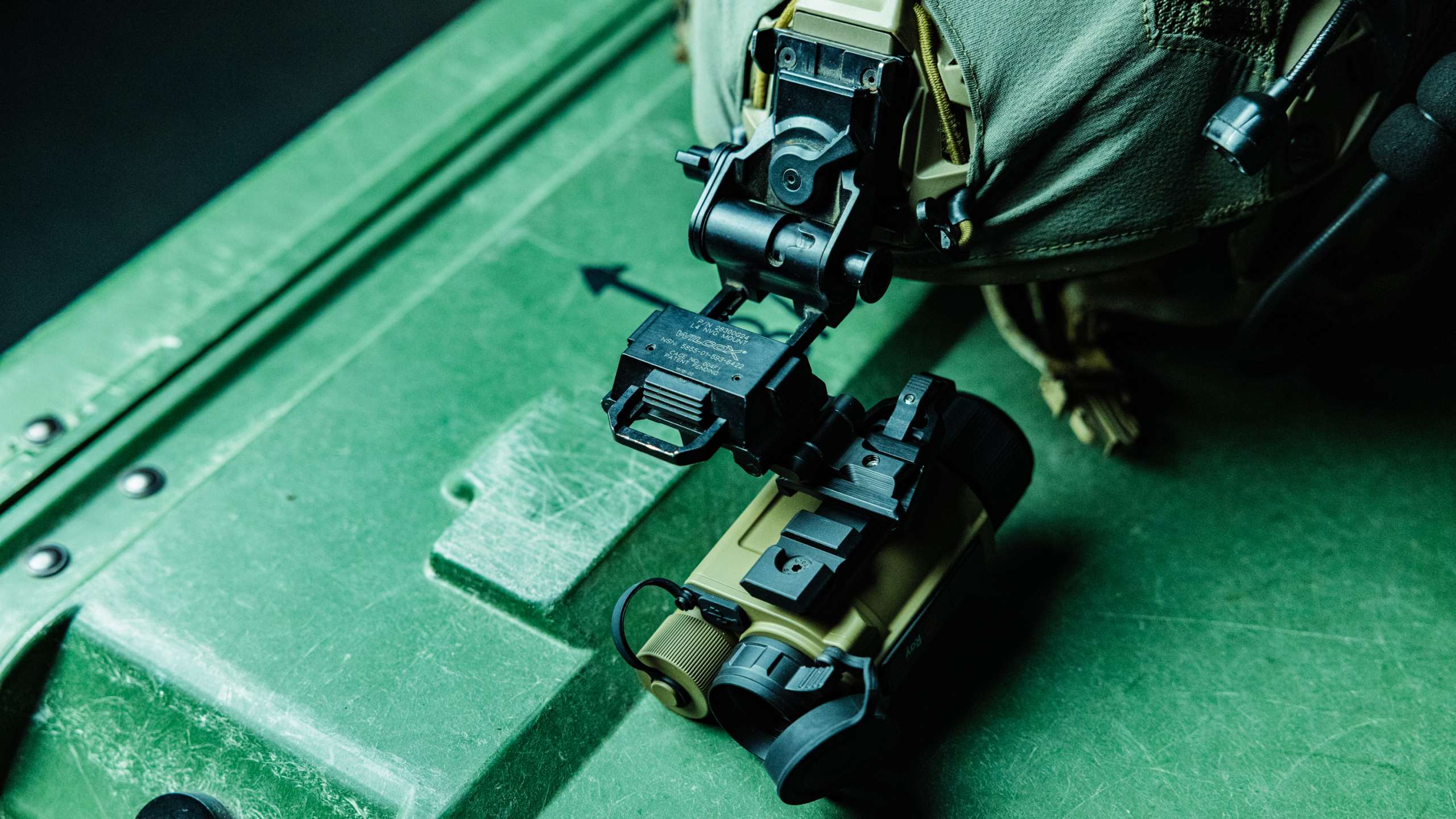

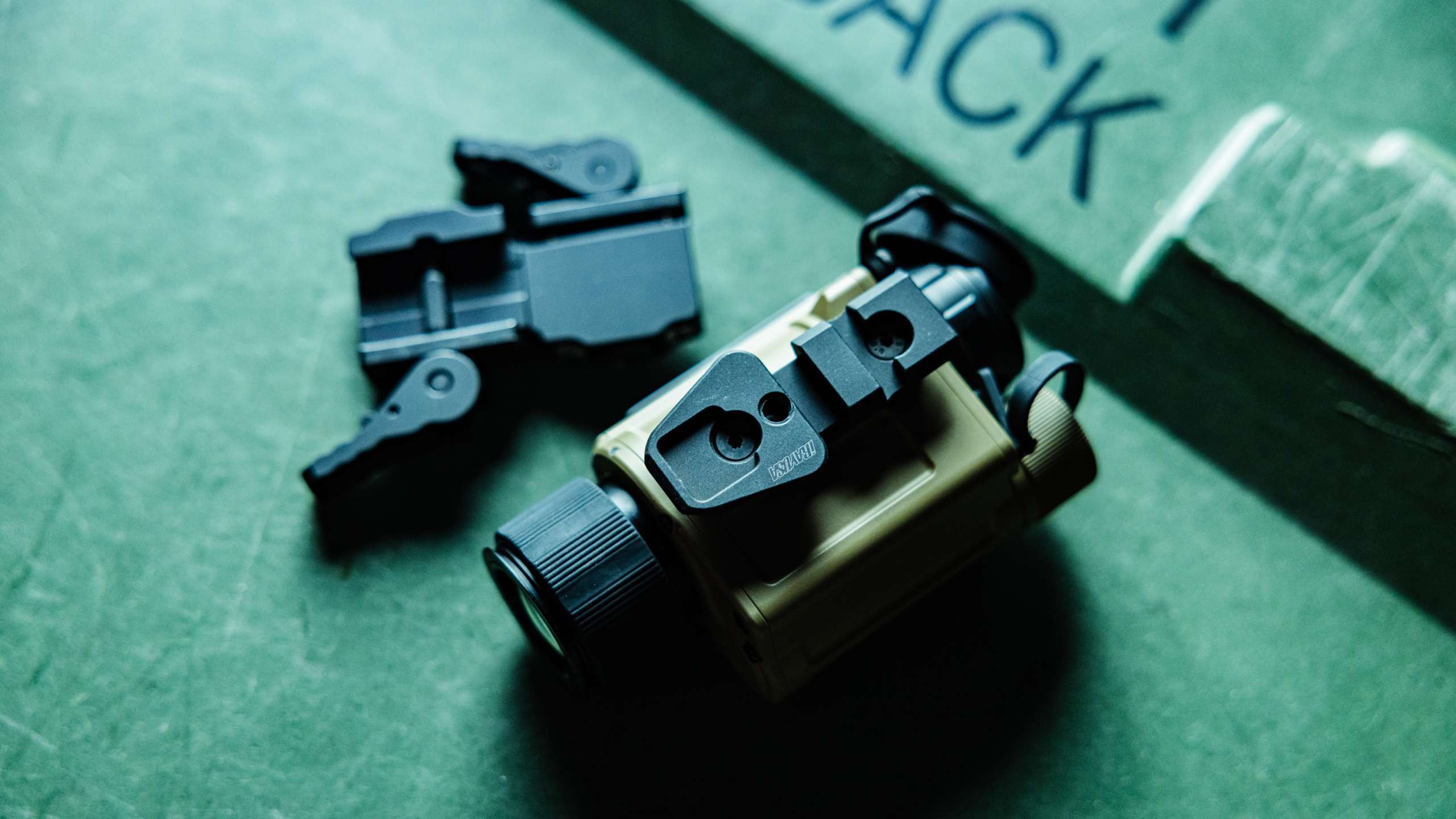

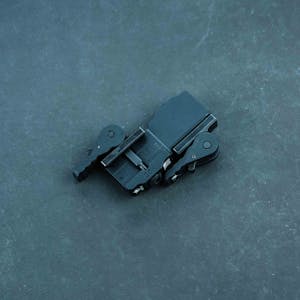

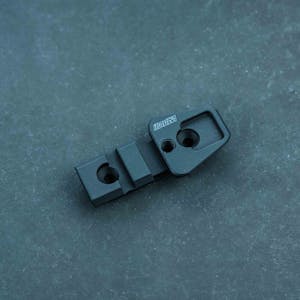

With the addition of the iRay Pictail Shoe and iRay ADM MQD Mount, the RH25 V2 can easily swap between your helmet and any Picatinny platform you could possibly want it on. It also features 64 GB of internal storage for capturing thermal footage, which is transferable via the onboard USB-C port.
Powered by the included 18650 battery, the RH25 V2 has a battery life of about 4 hours, with the capability for external power through the USB-C port to further extend runtime.
OVERVIEW VIDEO
WHAT’S INCLUDED
- 1x iRayUSA RICO MICRO RH25 V2 Multifunction Thermal Weapon Sight
- 2x 25mm Objective Lens Cap
- 2x Eyeguards
- 1x OEM Rifle Mount (1.93 inch)
- 2x M4×8mm Flat Head Screws (2)
- 2x Hex Keys
- 1x Lens Lever
- 1x Bluetooth Remote
- 2x 18650 Batteries
- 1x 18650 Battery Charger
- 1x Battery Cap for short (unprotected) 18650
- 1x USB-C Cable
- 1x USB Power Adapter

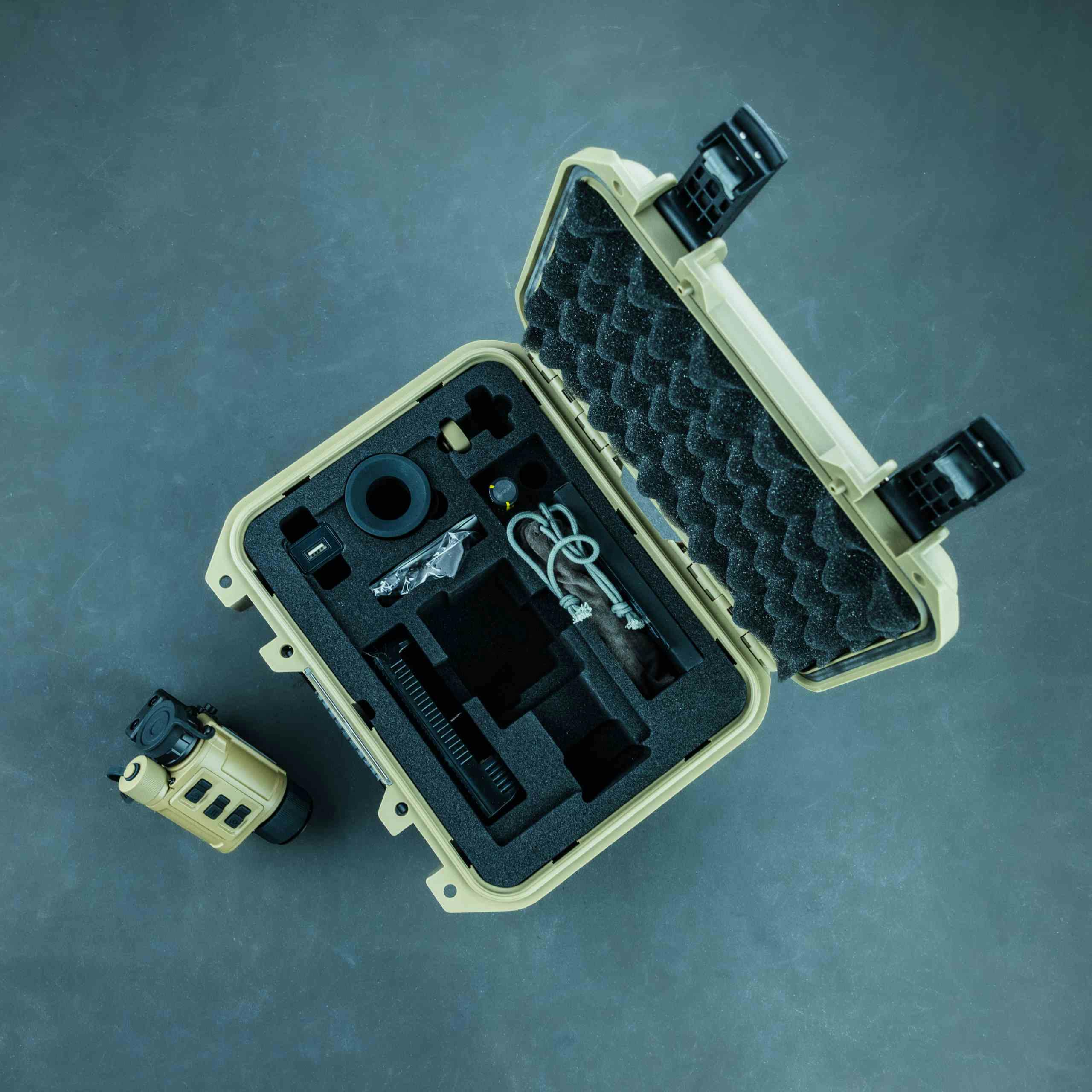

- 1x Hard Case
- 1x Lens Cloth
- 1x User Manual
SPECS
FEATURES

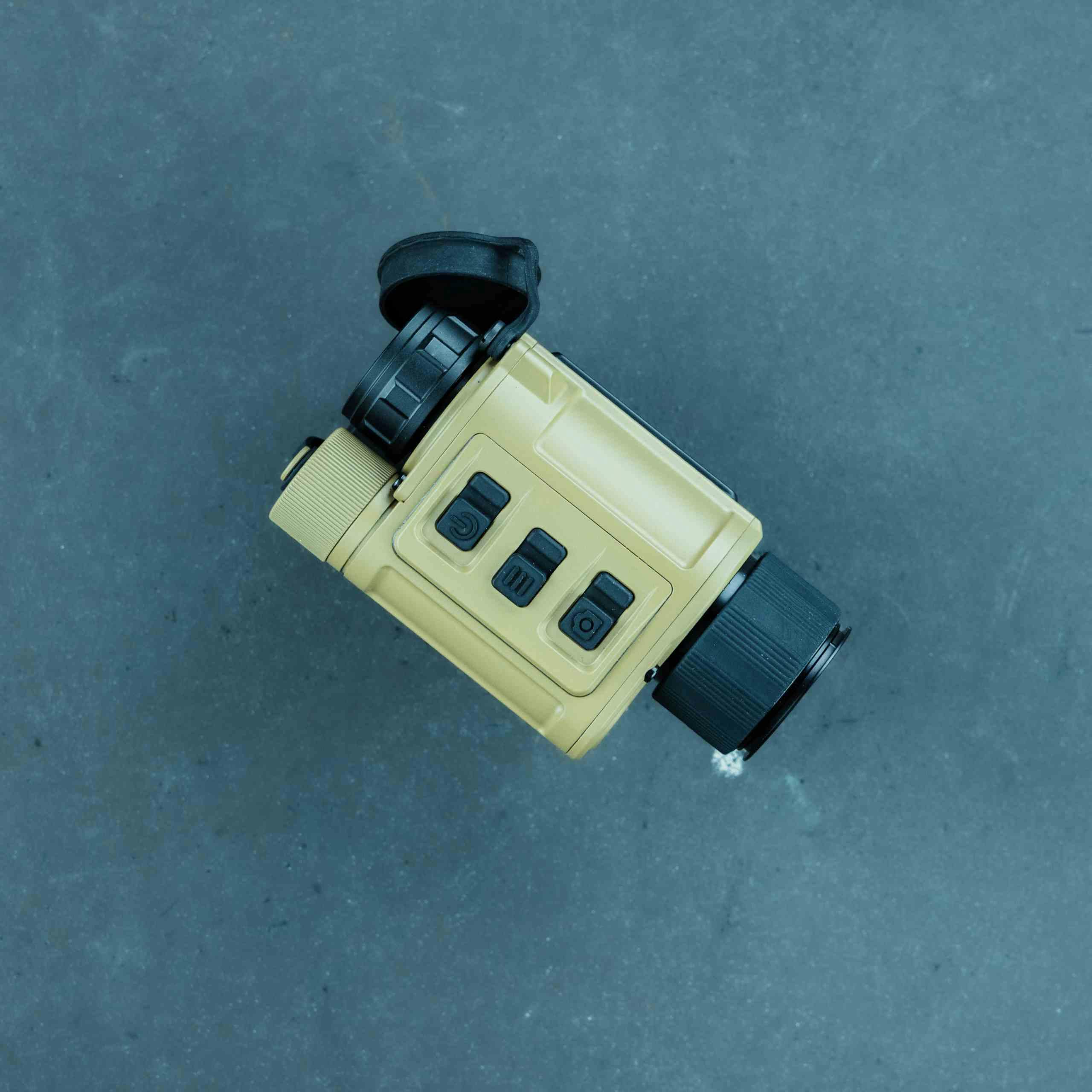

- The compact 3-button control panel offers separate interfaces for clip-on and helmet modes.
- 25 mm f/1.0 germanium lens provides native 1× magnification and a wide field of view.
- A USB-C port allows for data transfer and external power.
- Multiple mounting options include a MUM rail and Picatinny riser mount, with extended options via iRayUSA PICTAIL (AC52).
- The RH25 V2 features a Flat Dark Earth protective finish on a machined magnesium body.
- The updated display and eyepiece improve comfort and support clip-on use up to 5× magnification.
- The device includes 64 GB of internal storage for photo and video recording.
- A rechargeable 18650 battery provides over 4 hours of runtime and is easily interchangeable.
Made in China.
DOWNLOADS
QUICK SPECS
| Weight | Picatinny Mount: 17.35 oz (w/batteries) Pictail: 12.48 oz (w/batteries) Pictail + ADM MQD: 16.15 oz (w/batteries) |
| Runtime | 6.5+ Hours |
| Dimensions | 4.52″ x 2.55″ x 1.88″ |
| Detection Range | 1375 Yards |
TECHNICAL SPECIFICATIONS
| Objective Focal Length | 25 mm |
| Optical Magnification | 1X |
| Digital Magnification | 4X |
| Objective Lens Material | Germanium |
| Horizontal Field of View | 17.5° |
| Vertical Field of View | 13.1° |
| Objective Diameter | 25 mm |
| Objective F# | 1.0 |
| Focusing Mechanism | Manual Focus |
| Eye Relief | 45 mm |
| Diopter Range | -5 to +2 |
| Display Type | AMOLED |
| Display Resolution | 1440 × 1080 |
| Reticle | 7 options |
| Color Palettes | White Hot, Black Hot, Red Hot, Color |
| Stand-by Mode | Yes |
| Picture-in-Picture | No |
| Image Capture | Yes |
| Mobile App | Yes |
| WiFi | Yes |
| User-Updatable Firmware | Yes |
| Connector Output | Power/Data |
| Connector Type | USB-C |
| Onboard Recording | Yes |
| Storage Capacity | 64 GB |
| Power Source | USB-C External, 18650 Battery |
| External Power Source | USB-C |
| Warranty | 5 Years |
| Startup Time | <10 Seconds, Instant from Standby |
| Country of Manufacture | China |
| Operating Temperature Range | -4°F to 122°F |
| Ingress Protection | IP67 |
| Recoil Rating | 1000 g/s² (300 Win. / 7mm Mag) |
| Housing Material | Magnesium Alloy |
| Sensor Type | InfiRay MICRO II |
| Device Technology | Thermal Imaging |
| Sensor Resolution | 640 × 480 |
| Sensor Pixel Size | 12 µm |
| Sensor Frame Rate | 60 Hz |
| Thermal Sensitivity | <15 mK |
| NUC (Calibration) | Manual, Automatic, Semi-Automatic |

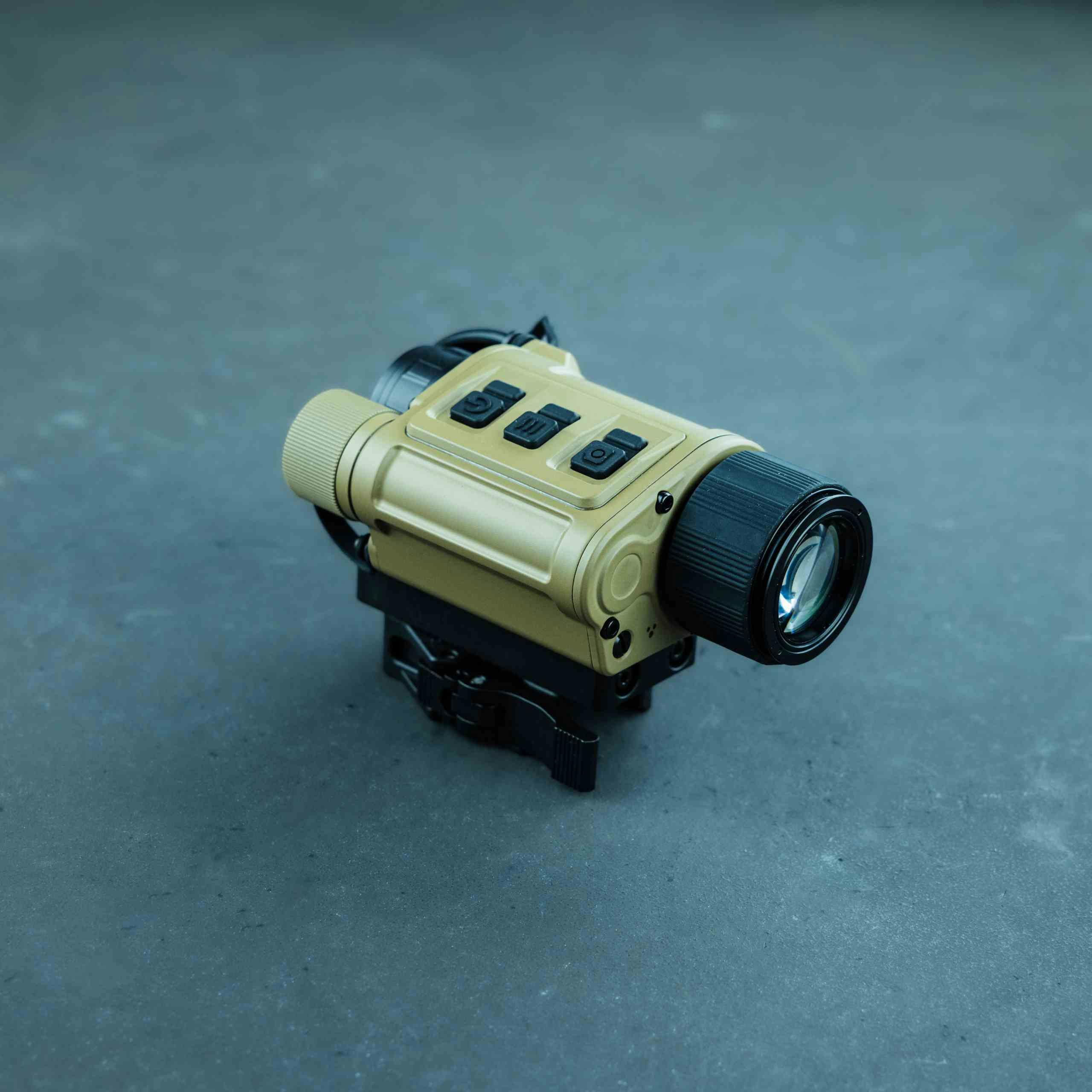

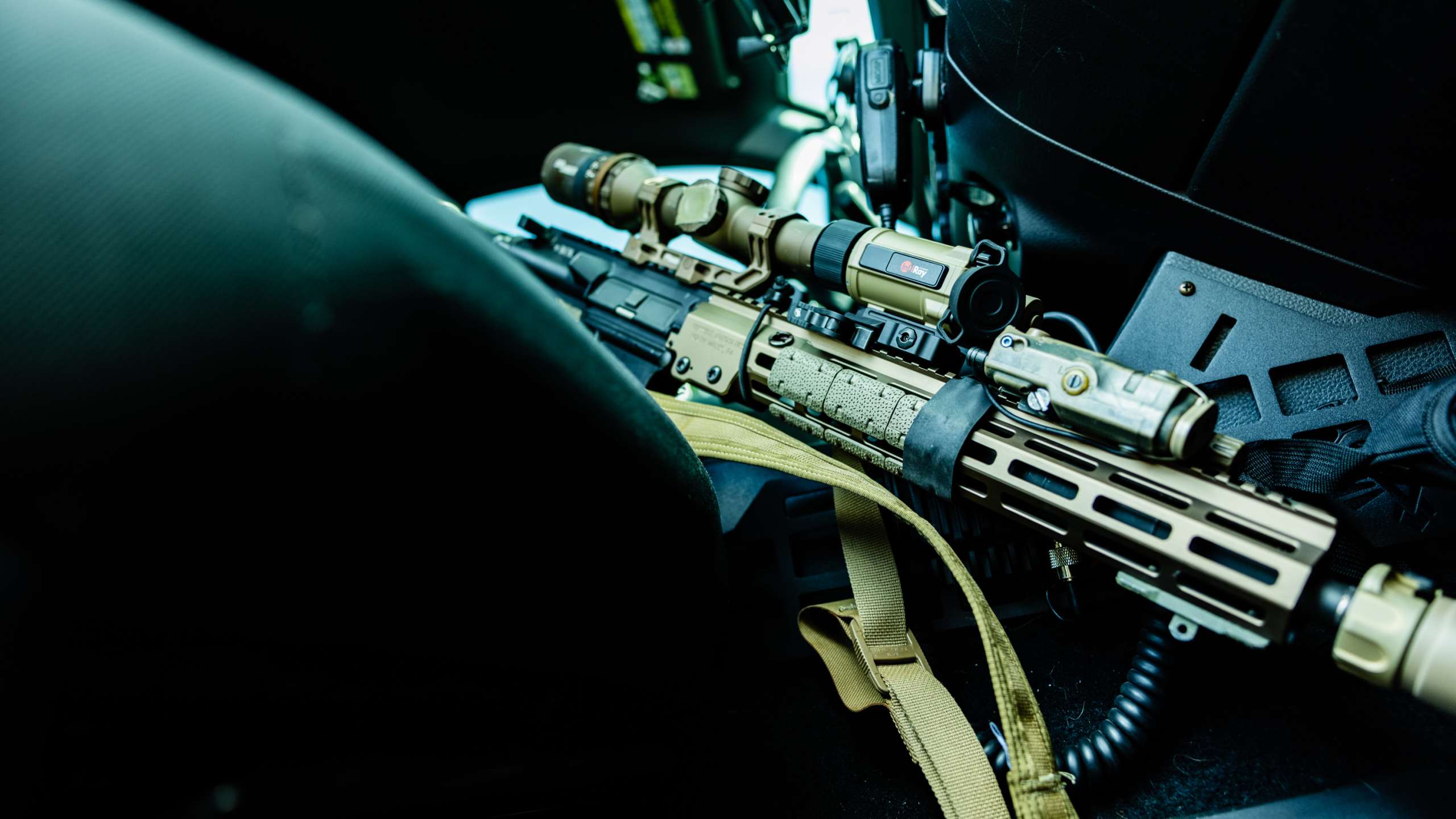

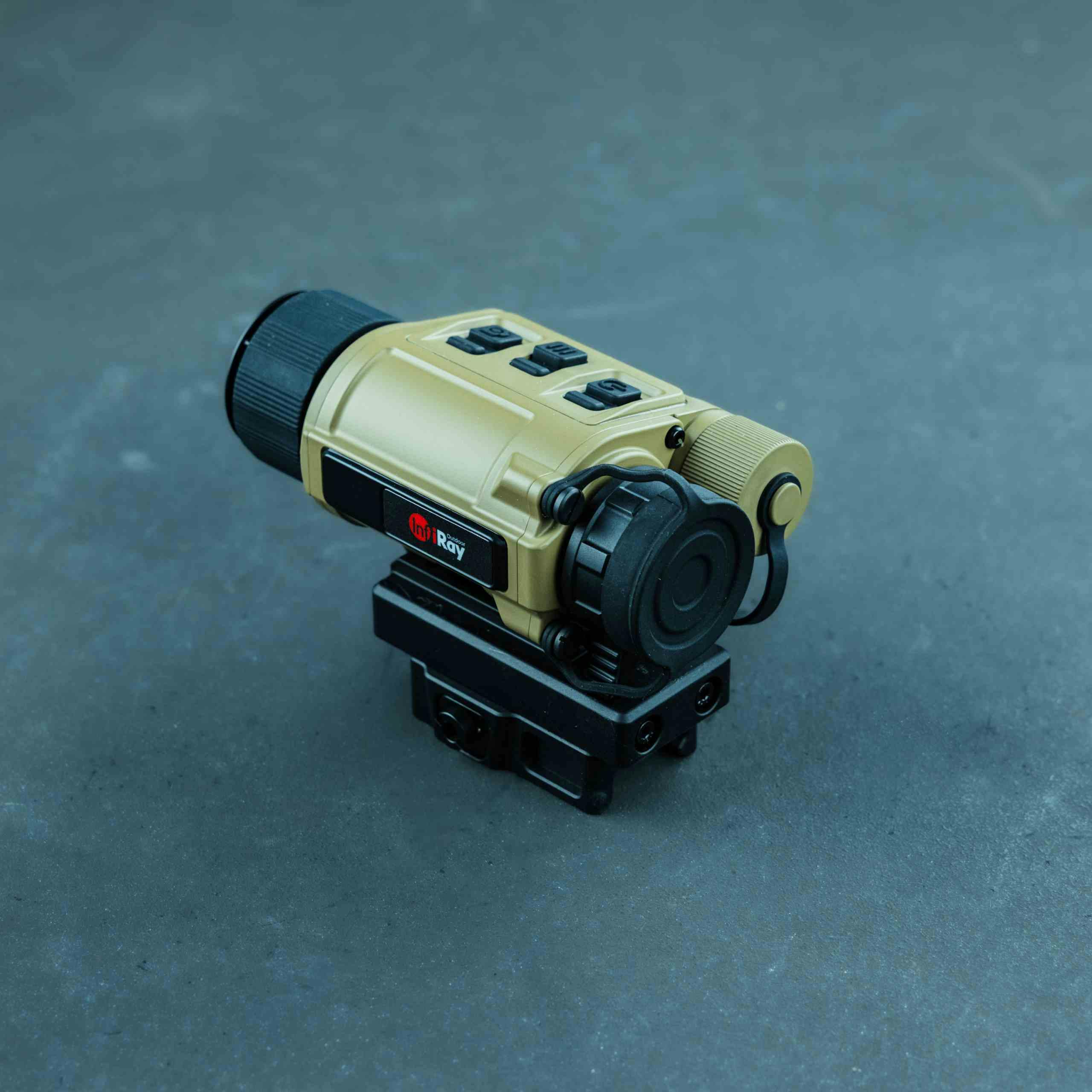

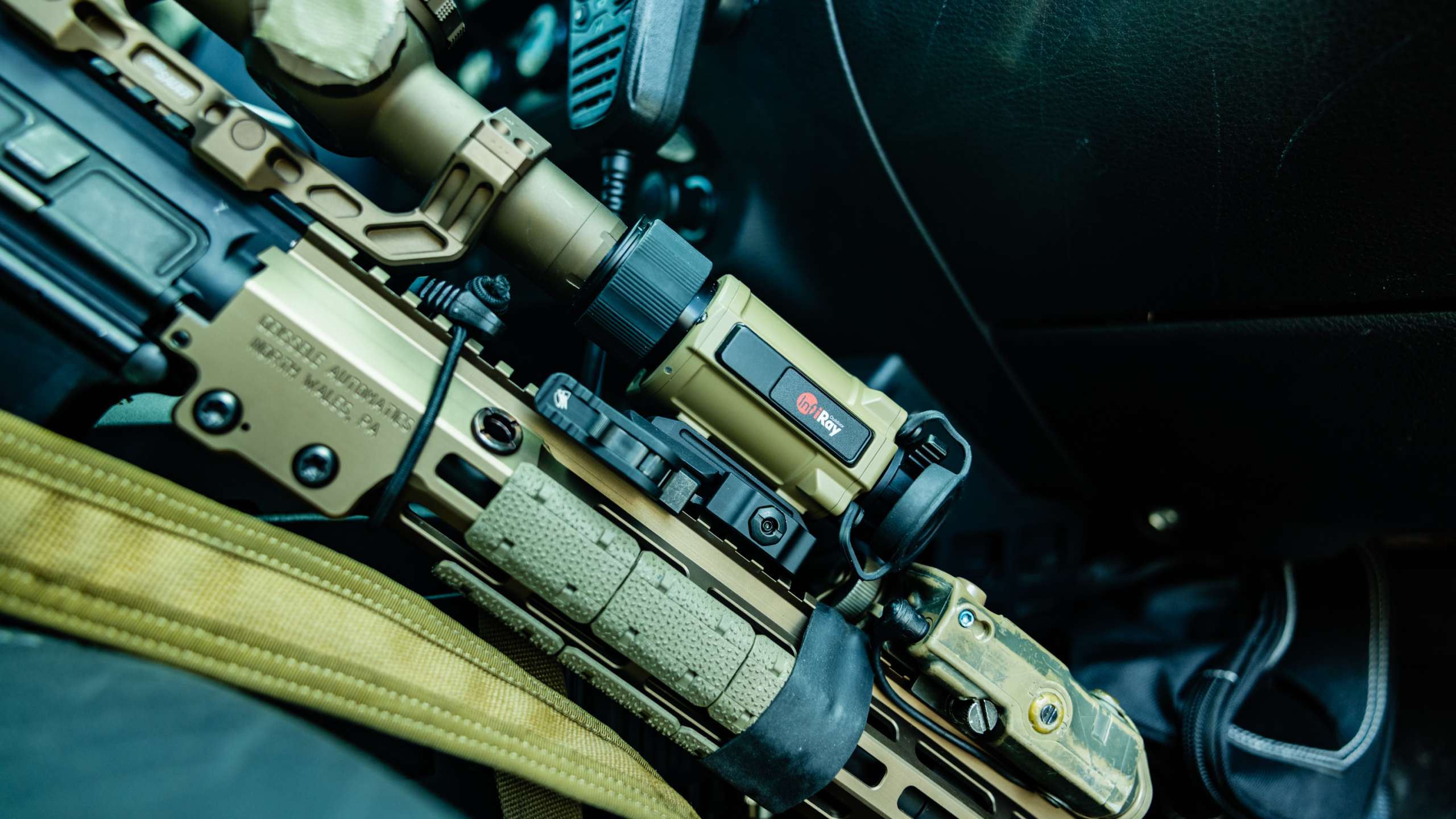

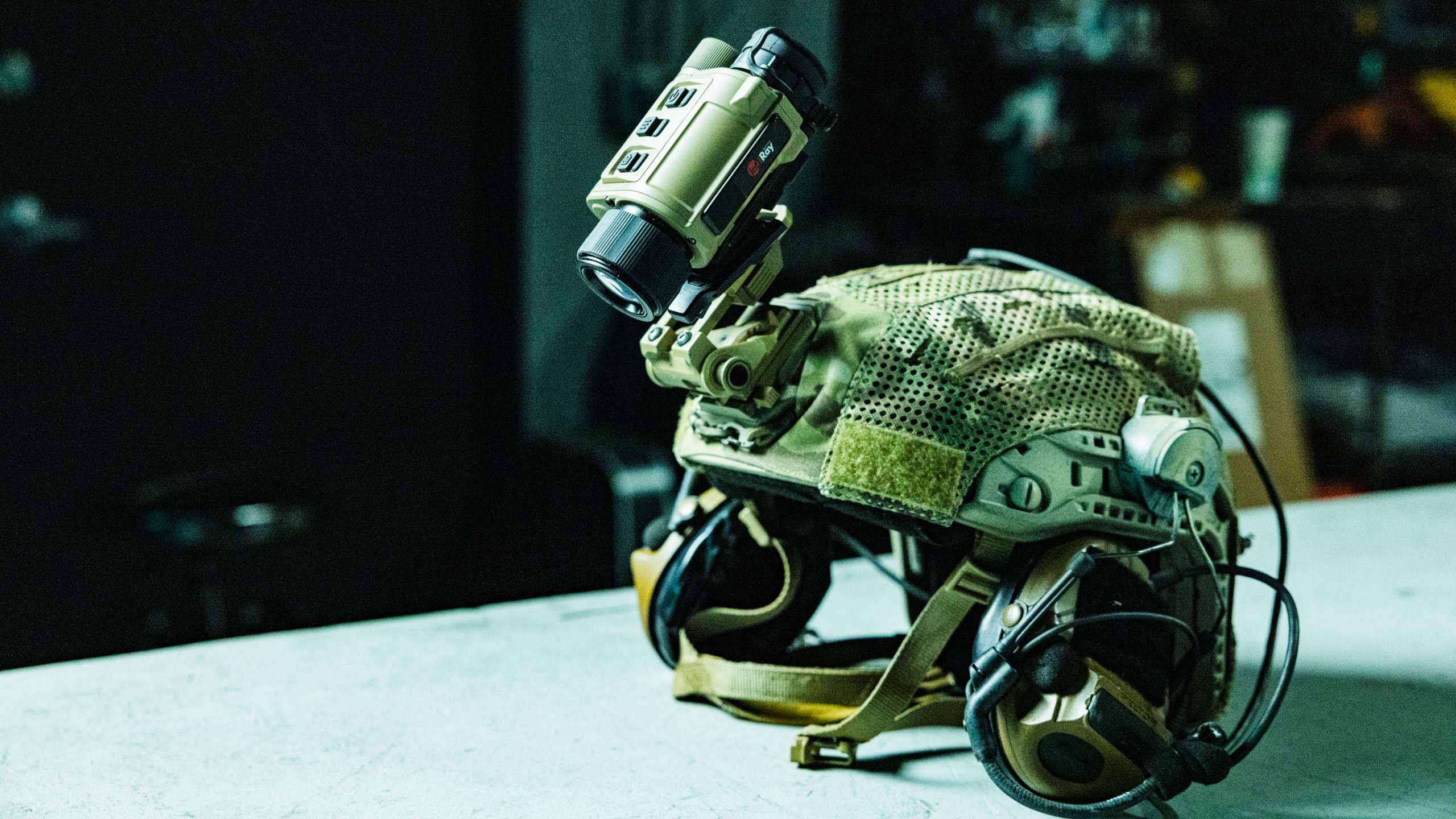

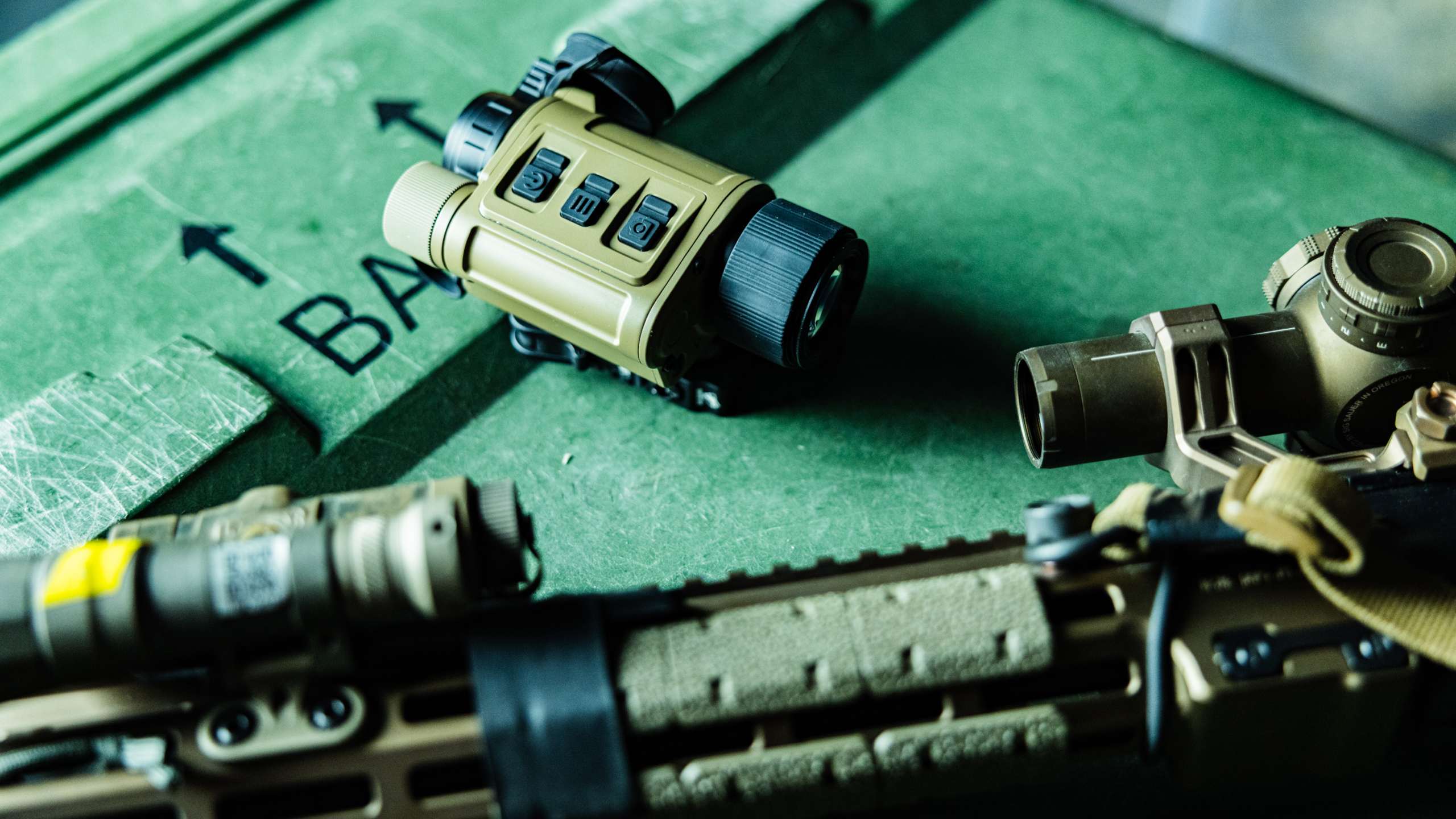

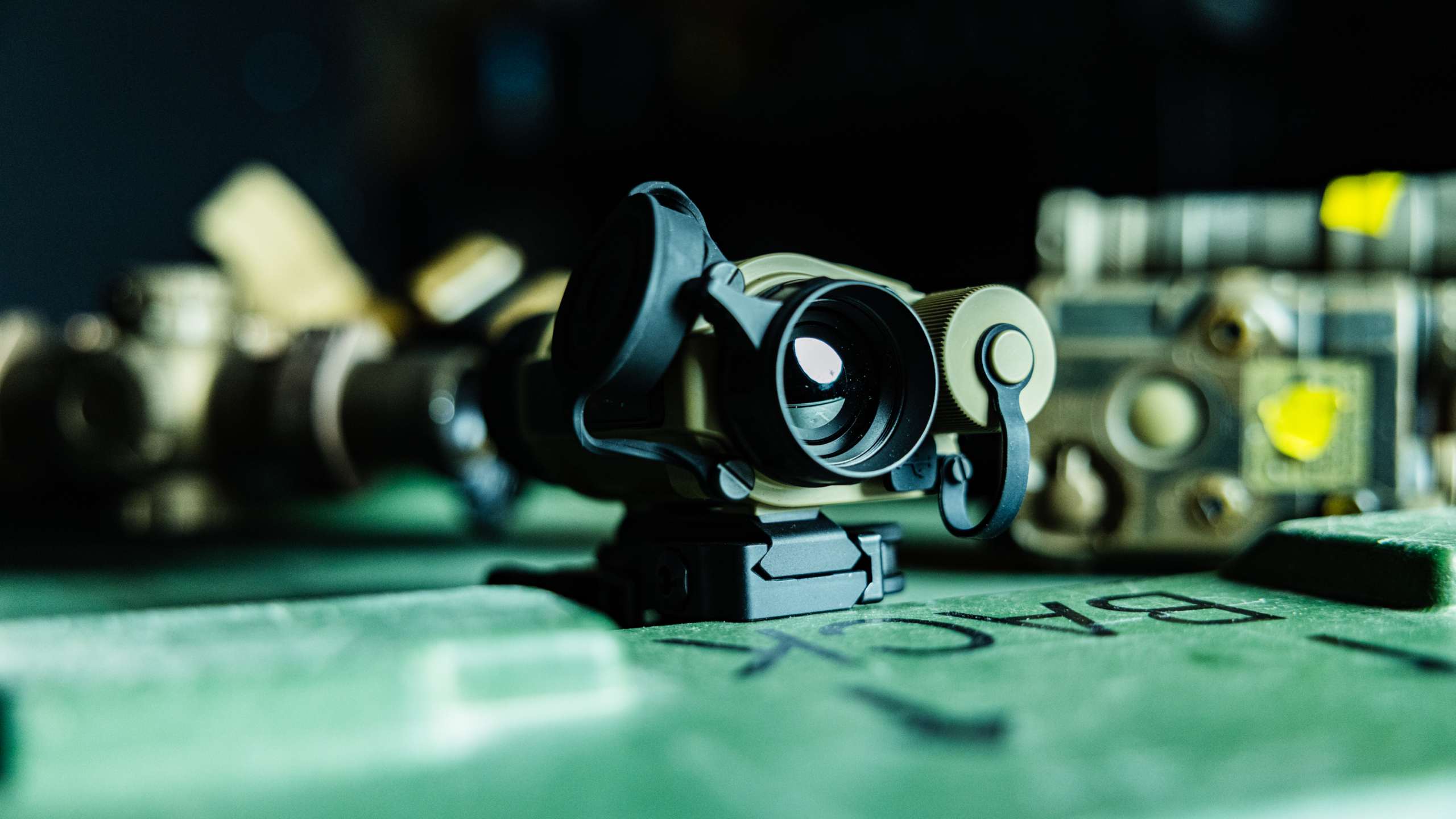

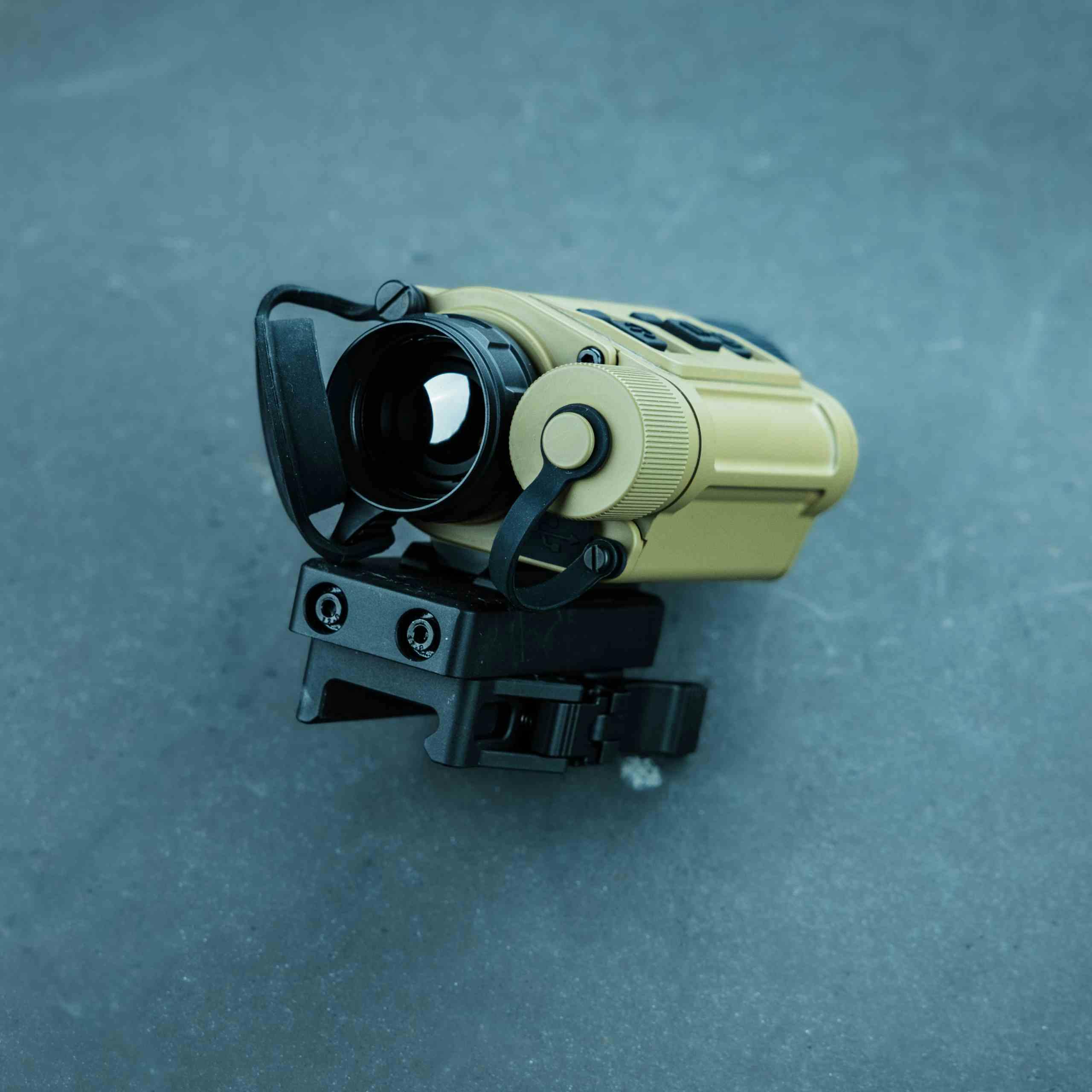

PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the USA.
