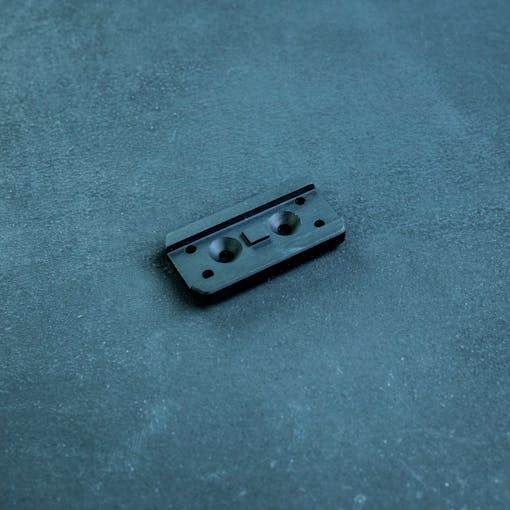

Arisaka Offset Optic Mount Plate
Plate Types | What’s Included | Specs | Related Info
The Mount Base is sold separately.
If you have an Arisaka Offset Optic Mount Base, you’ll need an optic plate to attach your optic. They come in Standard Height (1.5″-1.8″) and Tall Height (1.9″-2.2″). We recommend choosing a height that matches the height of the LPVO you’re running. So, if you have a scope with standard height rings, choose a standard height optic plate. This will help maintain a consistent cheek weld and head placement when rotating from behind an LPVO to the offset optic.

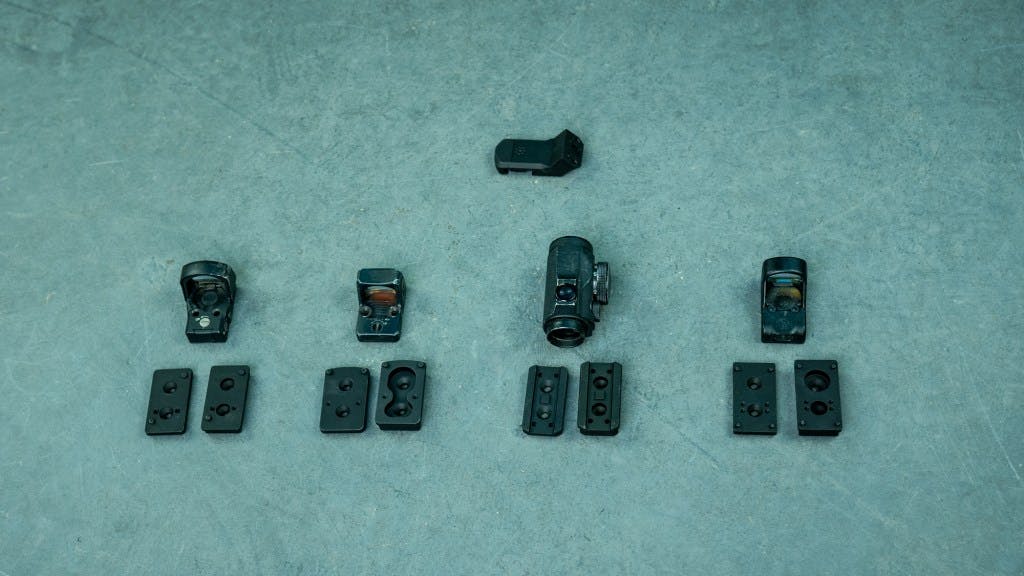

PLATE TYPES
Standard Height (For scope mounts 1.5″ to 1.8″):
- Plate 1: Docter, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III
- Plate 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
- Plate 4: Leupold DeltaPoint Pro, EOTECH MRDS, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero
- Plate 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530
- Plate 6: Aimpoint Acro, Steiner MPS
Tall Height (For scope mounts 1.9″ to 2.2″):
- Plate 7: Docter, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III
- Plate 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
- Plate 10: Leupold DeltaPoint Pro, EOTECH MRDS, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero
- Plate 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530
- Plate 12: Aimpoint Acro, Steiner MPS
WHAT’S INCLUDED
- Plate 1: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
- Plate 2: Plate; Two screws for mounting plate to base.
- Plate 4: Plate; Two screws for mounting plate to base; Two long screws for mounting optic to plate; 2.5mm Allen key.
- Plate 5: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
- Plate 6: Plate; Two screws for mounting plate to base.
- Plate 7: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
- Plate 8: Plate; Two screws for mounting plate to base.
- Plate 10: Plate; Two screws for mounting plate to base; Two long screws for mounting optic to plate; 2.5mm Allen key.
- Plate 11: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
- Plate 12: Plate; Two screws for mounting plate to base.
SPECS
Loctite 222 or 243 is recommended on all screws, which should be torqued to:
- Picatinny rail clamp – IP27 Torx Plus, 55 in/lbs.
- Optic base to stem M4x16mm – IP20 Torx Plus, 30 in/lbs.
- Optic plate to stem M4x10mm – IP20 Torx Plus, 30 in/lbs.
- Optic to optic plate – Refer to your optic’s manufacturer for correct torque values, not to exceed 20 in/lbs.
Click HERE for full installation instructions from Arisaka.
Made in the USA.
