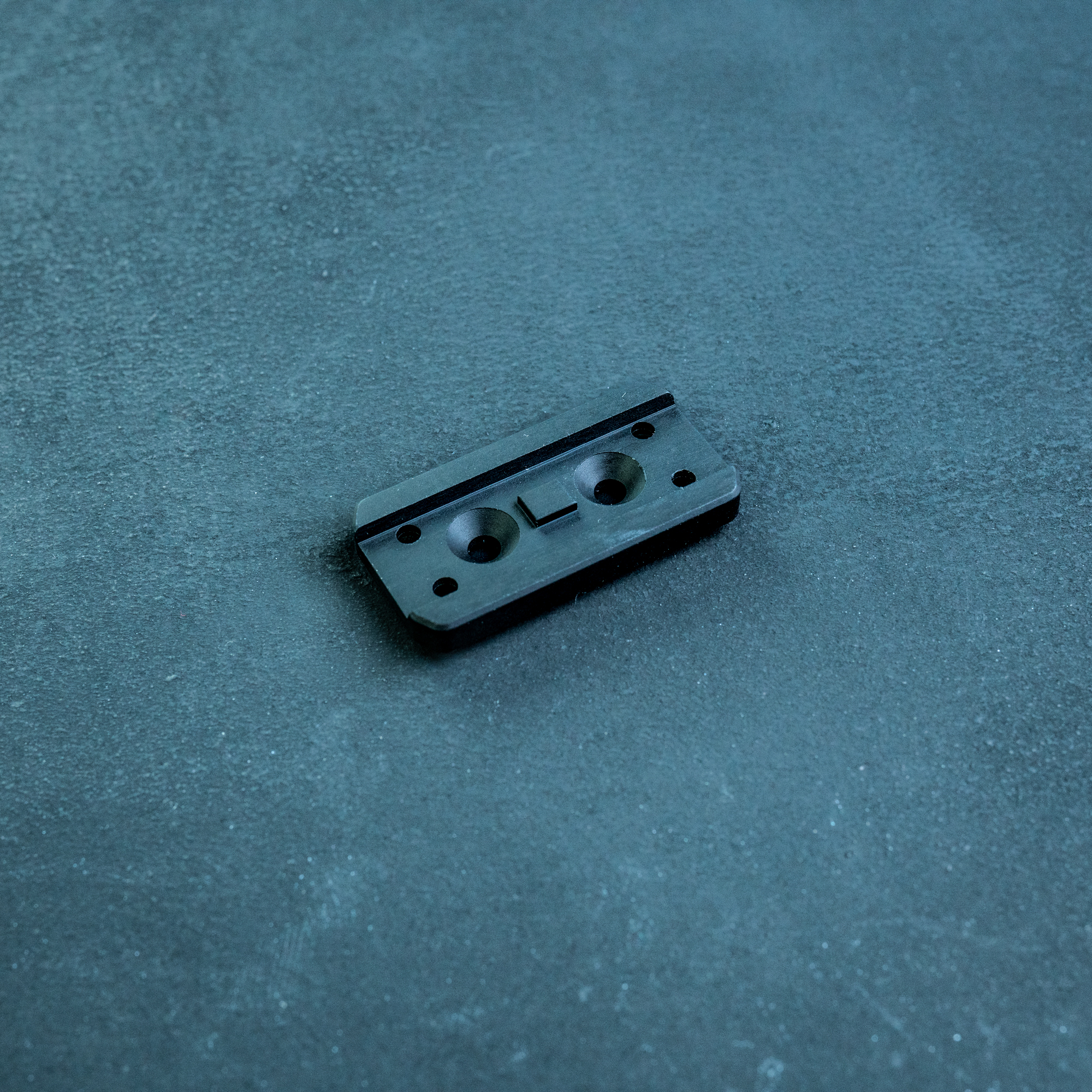

Arisaka Offset Optic Mount Plate

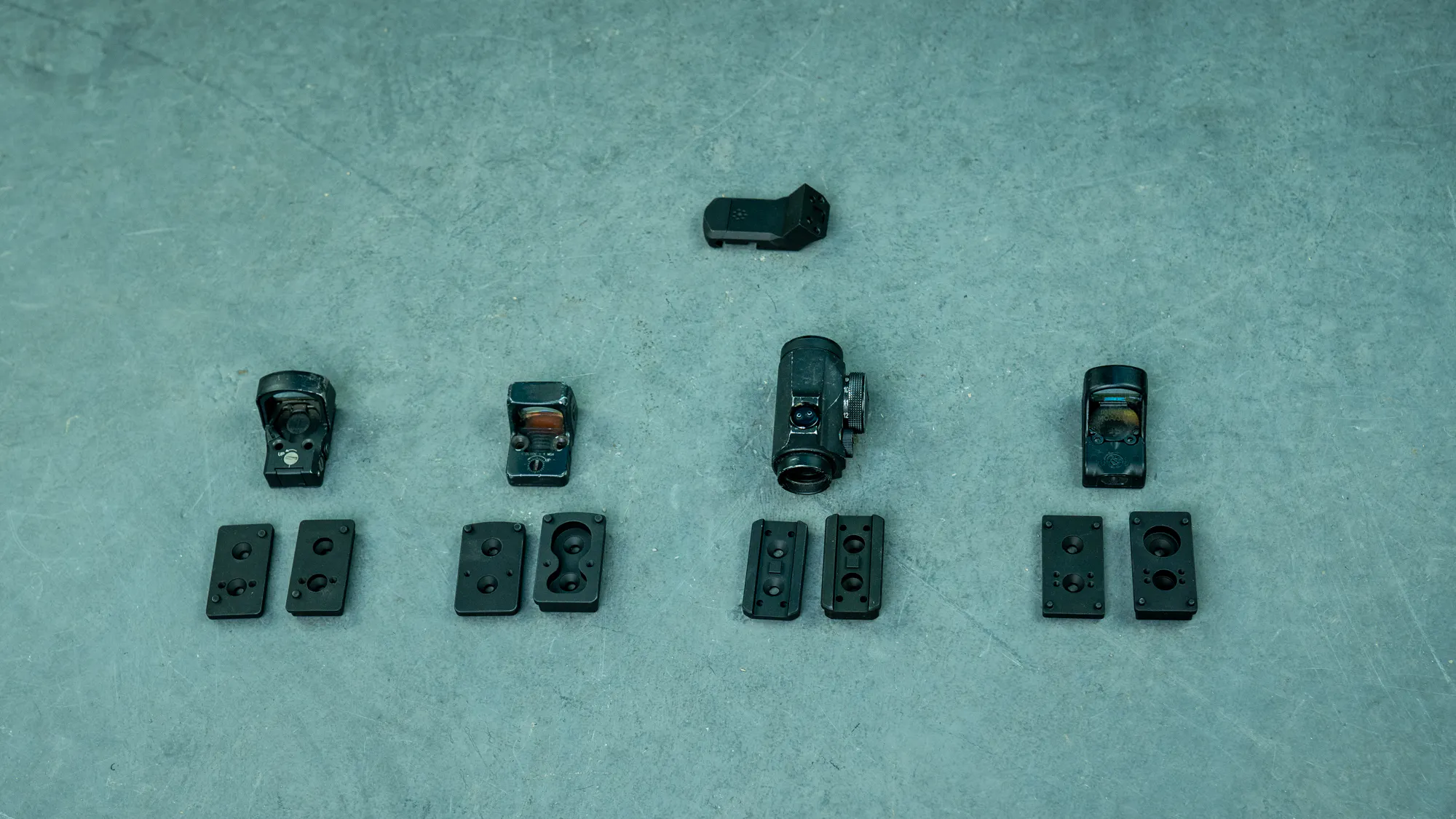

If you have an Arisaka Offset Optic Mount Base, you'll need an optic plate to attach your optic. They come in Standard Height (1.5"-1.8") and Tall Height (1.9"-2.2"). We recommend choosing a height that matches the height of the LPVO you're running. So, if you have a scope with standard height rings, choose a standard height optic plate. This will help maintain a consistent cheek weld and head placement when rotating from behind an LPVO to the offset optic.

Standard Height (For scope mounts 1.5" to 1.8"):

• Plate 1: Docter, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III
• Plate 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
• Plate 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530
• Plate 6: Aimpoint Acro, Steiner MPS

Tall Height (For scope mounts 1.9" to 2.2"):

• Plate 7: Docter, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III
• Plate 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
• Plate 10: Leupold DeltaPoint Pro, EOTECH MRDS, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero
• Plate 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530
• Plate 12: Aimpoint Acro, Steiner MPS

• Plate 1: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
• Plate 2: Plate; Two screws for mounting plate to base.
• Plate 5: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
• Plate 6: Plate; Two screws for mounting plate to base.
• Plate 7: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
• Plate 8: Plate; Two screws for mounting plate to base.
• Plate 10: Plate; Two screws for mounting plate to base; Two long screws for mounting optic to plate; 2.5mm Allen key.
• Plate 11: Plate; Two screws for mounting plate to base; Four screws for mounting optic to plate.
• Plate 12: Plate; Two screws for mounting plate to base.

Loctite 222 or 243 is recommended on all screws, which should be torqued to:

• Picatinny rail clamp - IP27 Torx Plus, 55 in/lbs.
• Optic base to stem M4x16mm - IP20 Torx Plus, 30 in/lbs.
• Optic plate to stem M4x10mm - IP20 Torx Plus, 30 in/lbs.
• Optic to optic plate - Refer to your optic's manufacturer for correct torque values, not to exceed 20 in/lbs.

Made in the USA.
