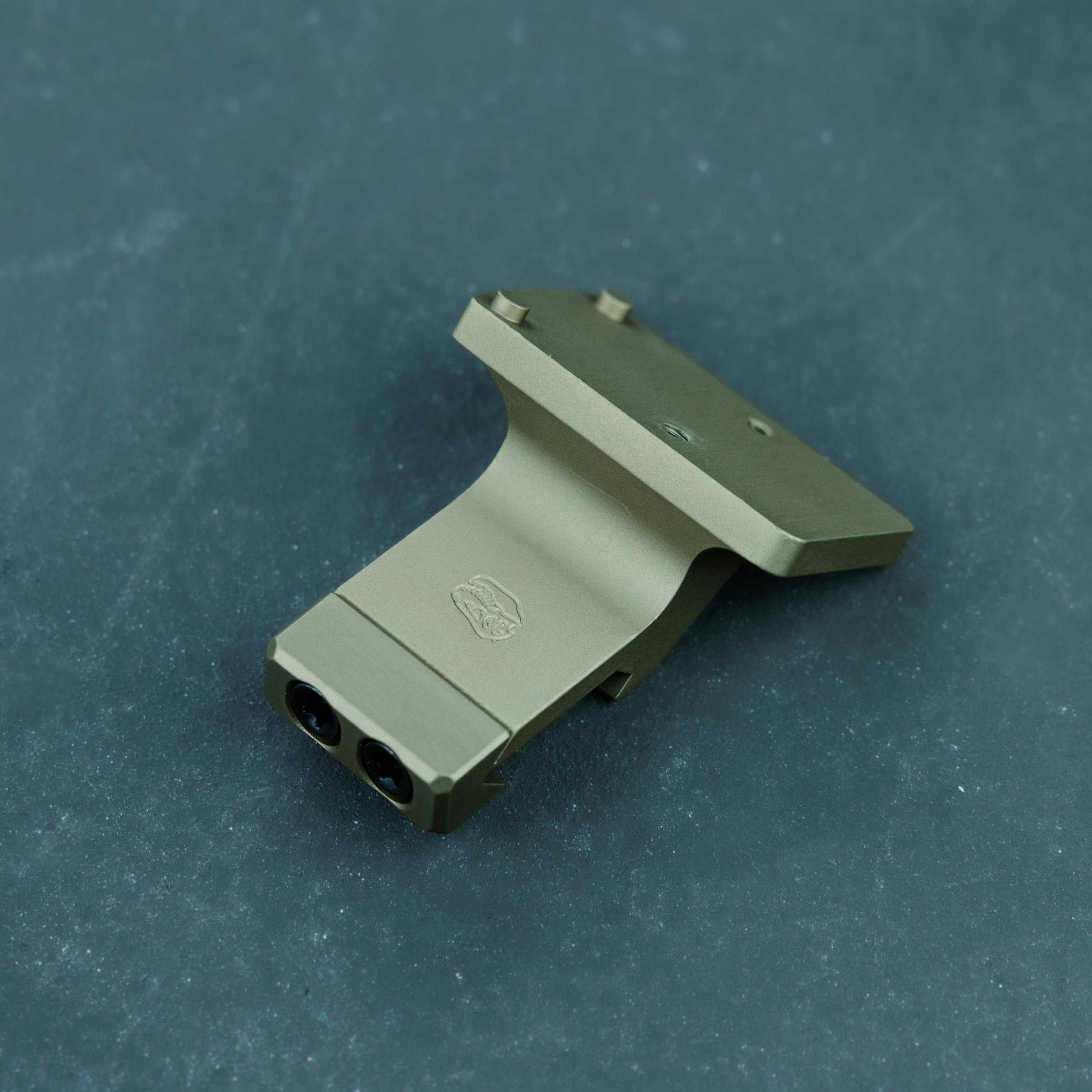

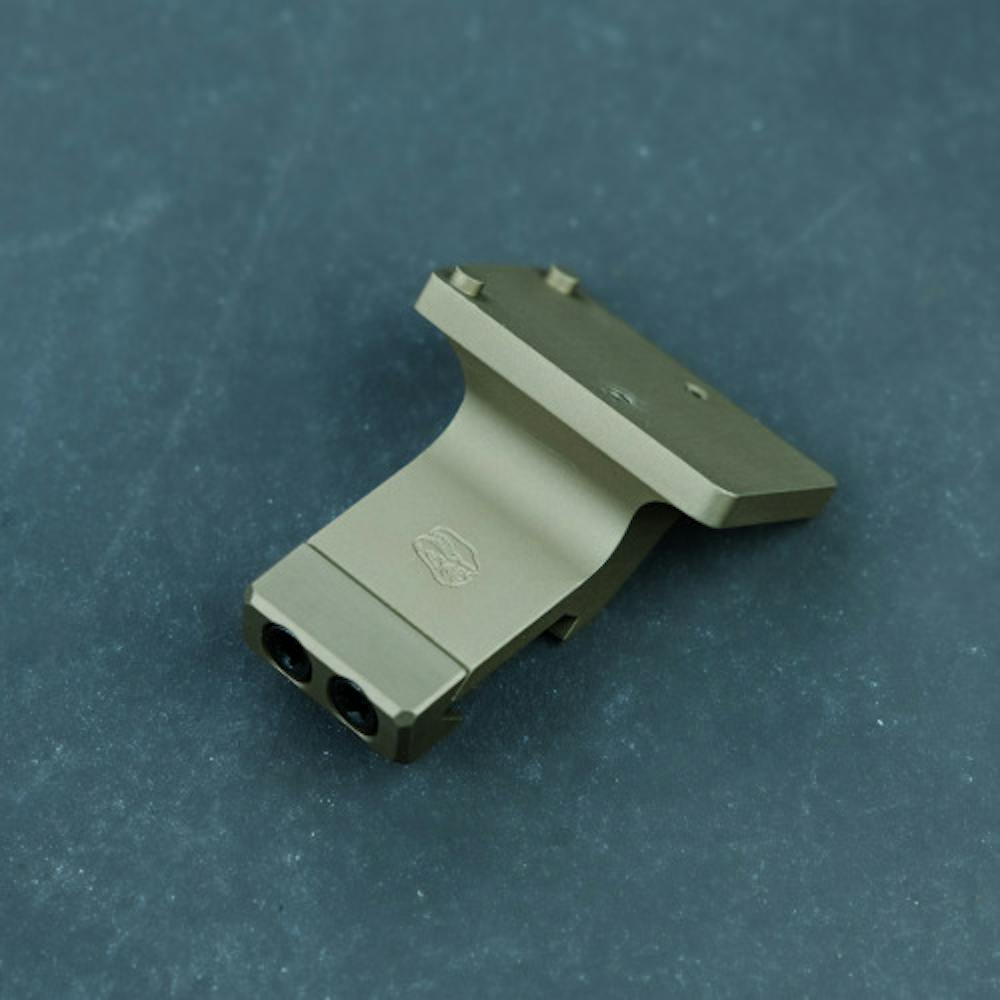

T.REX Offset Mount
Video | What’s Included | Installation | Compatibility | Specs | Pictures | FAQ | Related Info

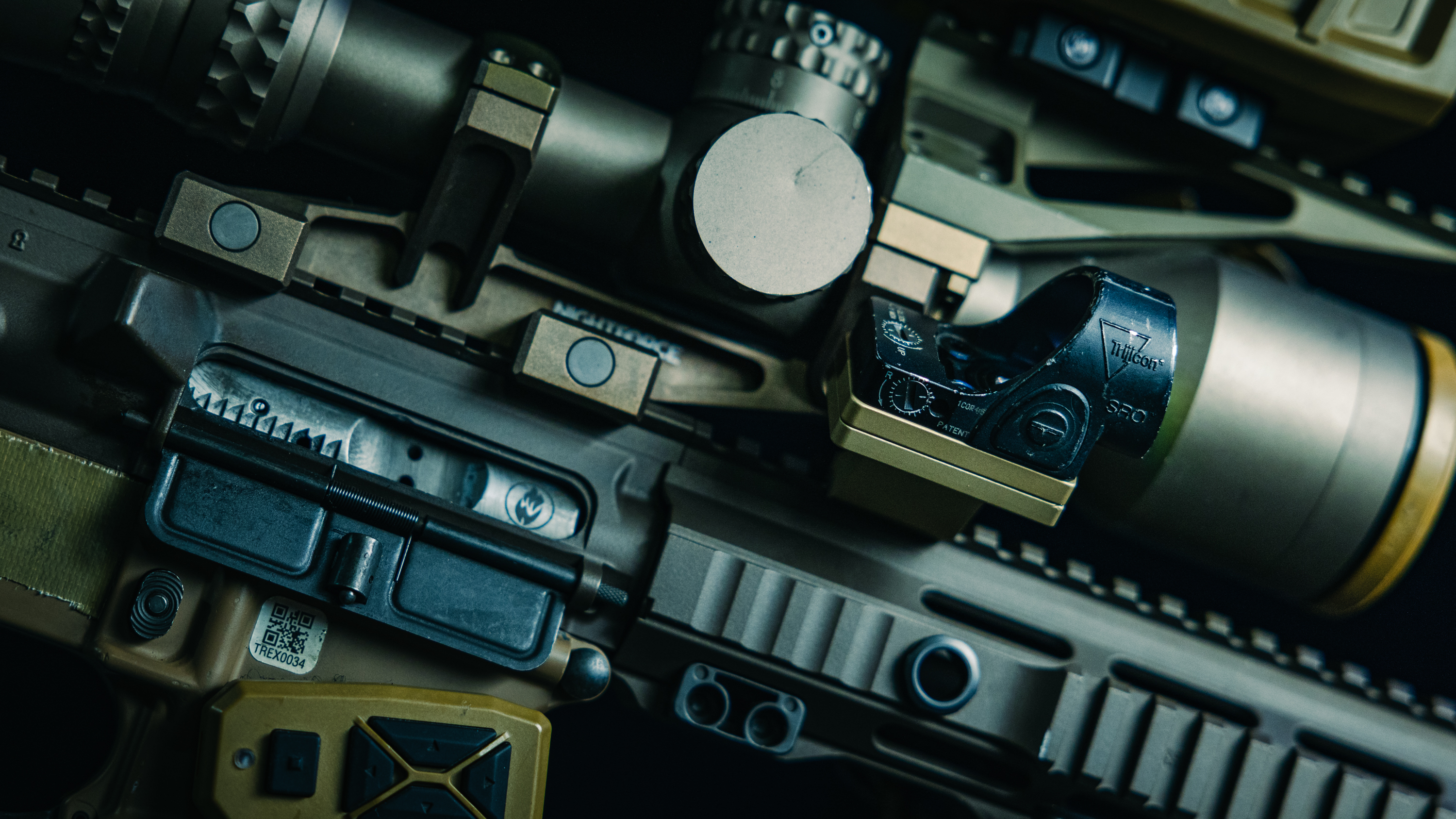

The T.REX offset mount is a minimalistic approach to mounting an offset optic on your rifle. Offsets provide a fast 1x aiming solution that is readily available by rotating the rifle in your shoulder. The offset optic also functions as a reliable backup optic platform. Each mount includes a riser plate, allowing users to run it higher than the standard height depending on your needs or primary optic setup.
Trijicon RMR Offset Mount; two T25 rail clamp screws; one riser plate; four T15 screws (2 short, 2 long); two Torx wrenches
Leupold DeltaPoint Pro Offset Mount; two T25 rail clamp screws; one riser plate; two T20 screws; two Torx wrenches
Aimpoint Micro Offset Mount; two T25 rail clamp screws; one riser plate; four 2.5mm Hex screws (short); four 2.5mm Hex screws (long); one Torx wrench; one Hex wrench
Trijicon RMR: If using the riser, use the two longer screws (6-32 x 5/8″) included with your Offset Mount to install your RMR. If not using the riser, use the two shorter screws (6-32 x 1/2″) included with the Offset Mount.
Review the Assembly Instructions on the left for the Trijicon RMR Offset Mount before mounting your optic.
Leupold DeltaPoint Pro: Use the two screws (T15 M4-0.7×15.8) that are included with your DeltaPoint Pro to mount the optic to the Offset Mount (with or without the riser plate). If using the riser, use the two screws (T20 M4-0.7×10) included with your Offset Mount to install the riser plate to the mount.
Review the Assembly Instructions on the left for the Leupold DeltaPoint Pro Offset Mount before mounting your optic.
Aimpoint Micro: If using a riser plate, use the longer 2.5mm Hex screws to secure the optic to the mount. Torque to 12 in-lbs, or 10 in-lbs, with a drop of blue threadlocker. If not using a riser plate, use the shorter 2.5mm Hex screws to secure the optic to mount. Torque to 12 in-lbs, or 10 in-lbs, with a drop of blue threadlocker
Review the Assembly Instructions on the left for the Aimpoint Micro Offset Mount before mounting your optic.
|Trijicon RMR: (Right-Handed ONLY)||Trijicon RMR/SRO; Holosun 407C/507C/508T (Holosun 509T with Holosun adapter plate)|
|Leupold DeltaPoint Pro: (Ambidextrous)||Leupold DeltaPoint Pro only. Does not fit Shield RMS/RMSc footprint optics.|
|Aimpoint T-1/T-2 Micro: (Ambidextrous)||Aimpoint T-1/T-2, H-1/H-2, Comp M5; SIG Romeo4/4XT; Holosun 403/503/530|
- 6061-T6 Aluminum construction
- Type III hard anodized coating
- Improved 35-degree angle for fast and natural aiming
- Low profile; only sits 0.14″ above the Picatinny rail
- An optional riser plate allows the end-user to roughly match the height of their primary optic for smoother transitions
Made in the USA.
|Rail Clamp Torque||30 in/lbs|
|Optic/Riser to Mount Torque||RMR: 12 in/lbs (dry) 10 in/lbs (wet)|
DeltaPoint Pro: 25 in/lbs (dry) 20 in/lbs (wet)
Aimpoint Micro: 12 in/lbs (dry) 10 in/lbs (wet)
|Weight||RMR: 1.8 oz (no riser) 2.4 oz (riser)|
DeltaPoint Pro: 1.6 oz (no riser) 2.2 oz (riser)
Aimpoint Micro: 1.4 oz (no riser) 2.1 oz (riser)
|Rail Clamp Length||0.99 inches|
|Height Over Rail||0.14 inches|
For example, some scopes are very picky about eye-relief and in those cases, running a Standard ~1.50″ scope mount makes more sense as it allows the shooter to get a tight cheek-weld to the stock in the same place every time. Even still, we’d prefer to run the Offset with the riser so it’s easier to shoot on the move with. Again… this comes down to preference.
