Low Power Variable Optics (LPVOs) bring unique advantages to any rifle build and have only gotten better over time. LPVOs allow shooters to positively identify threats and no-shoots at a distance while still providing the shooter the ability to quickly aim down their sights at a target nearby. Combined with a top-tier weapon light, they make identification in low light conditions at distance a breeze as well.
The Vudu 1-10×28 FFP is similar to the popular Vudu 1-8 in its construction, but the 1-10 gives you that extra 2x magnification when you need it. With a quick turn of the throw lever, we can effortlessly magnify targets at distance and quickly adjust our aim to place the daylight-visible illuminated Triplex BDC reticle on the target. If you need a single optic that has the capability of shooting targets in close proximity and at a distance, LPVOs are the way, and this is one of our favorites. The glass clarity is top-notch, and the adjustment turrets are quite minimalist, keeping the scope’s profile streamlined. Plus, it has stellar battery life out of a single CR2032.
WHAT’S INCLUDED
- 1x EOTECH Vudu 1-10X28 Rifle Scope
- 1x Throw lever
- 1x Lens Cleaning Cloth
- 1x Operator Manual
- 1x Reticle Manual
- 2x CR2032 batteries
- 2x Stickers
We include an 8.5″ x 11″ rifle zero target with every rifle optic. We recommend a 100-meter zero for the Vudu on most 5.56 rifles.
How To Shoot Part 2: Zeroing – Video – T.REX ARMS
SPECS
- Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability
- Laser-etched adjustment indicators and push-button illumination controls
- 10 brightness settings and 2-hour auto shutoff
- Fog Resistant: Nitrogen gas purging prevents internal fogging over the operating temperature range
- Shock Resistant: The rugged design prevents damage from heavy recoil and rough handling
- Water Resistant: Single-piece tube and o-ring seals
- Anti-Reflective Lenses: XC high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity
- Scalping design on the one-piece eye-piece allows for greater purchase and faster, fluid magnification adjustment
- Throw lever allows for quick magnification changes
- Low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. Allows re-indexing back to “0”
The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.
- Adjustment Graduation Per Click: 0.1 MRAD
- Adjustment Graduation Per Rotation: 15 MRAD
- Total Elevation Travel: 29 MRAD
- Total Windage Travel: 23 MRAD
The SR-5 reticle is optimized for a 100-yard zero. More information, including subtensions, can be found in the user and reticle manuals below.
Vudu 1-10 Reticle Manual
Vudu 1-10 User Manual
Made in Japan.
| Overall Length | 10.63″ (270mm) |
| Weight | 21.3oz (603g) |
| Magnification | 1-10X |
| Tube Diameter | 34mm |
| Objective Inner Diameter | 28mm |
| Objective Outer Diameter | 34mm |
| Power Source | CR2032 Battery |
| Eye Relief | 1X:3.27-3.90 (83-99mm) 10X:3.35-3.62 (85-92mm) |
| Field-of-View @ 100 Yards | 1X:116.6ft(35.5m) 10X:11.7ft(3.6m) |
| Focal Plane | First Focal Plane (FFP) |

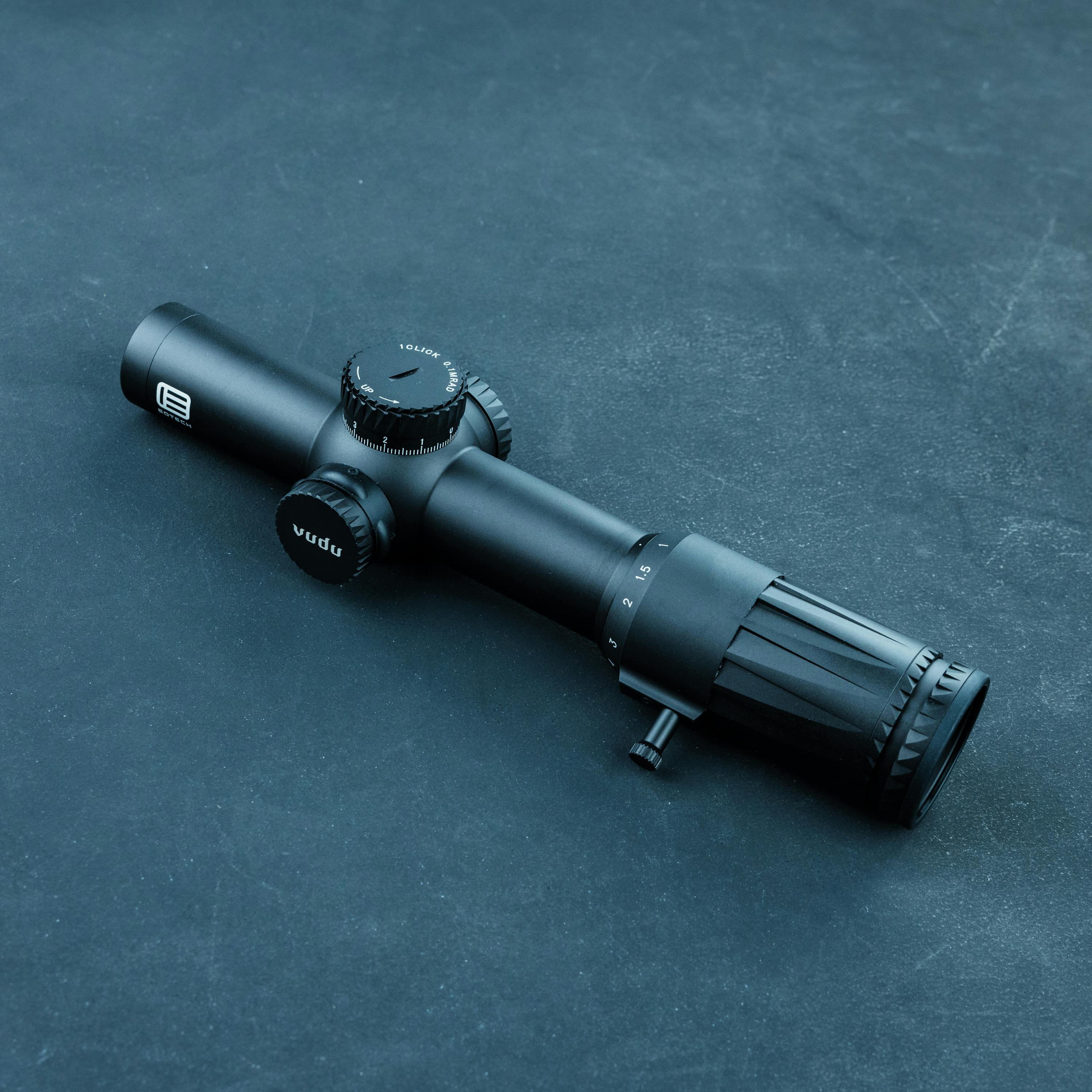

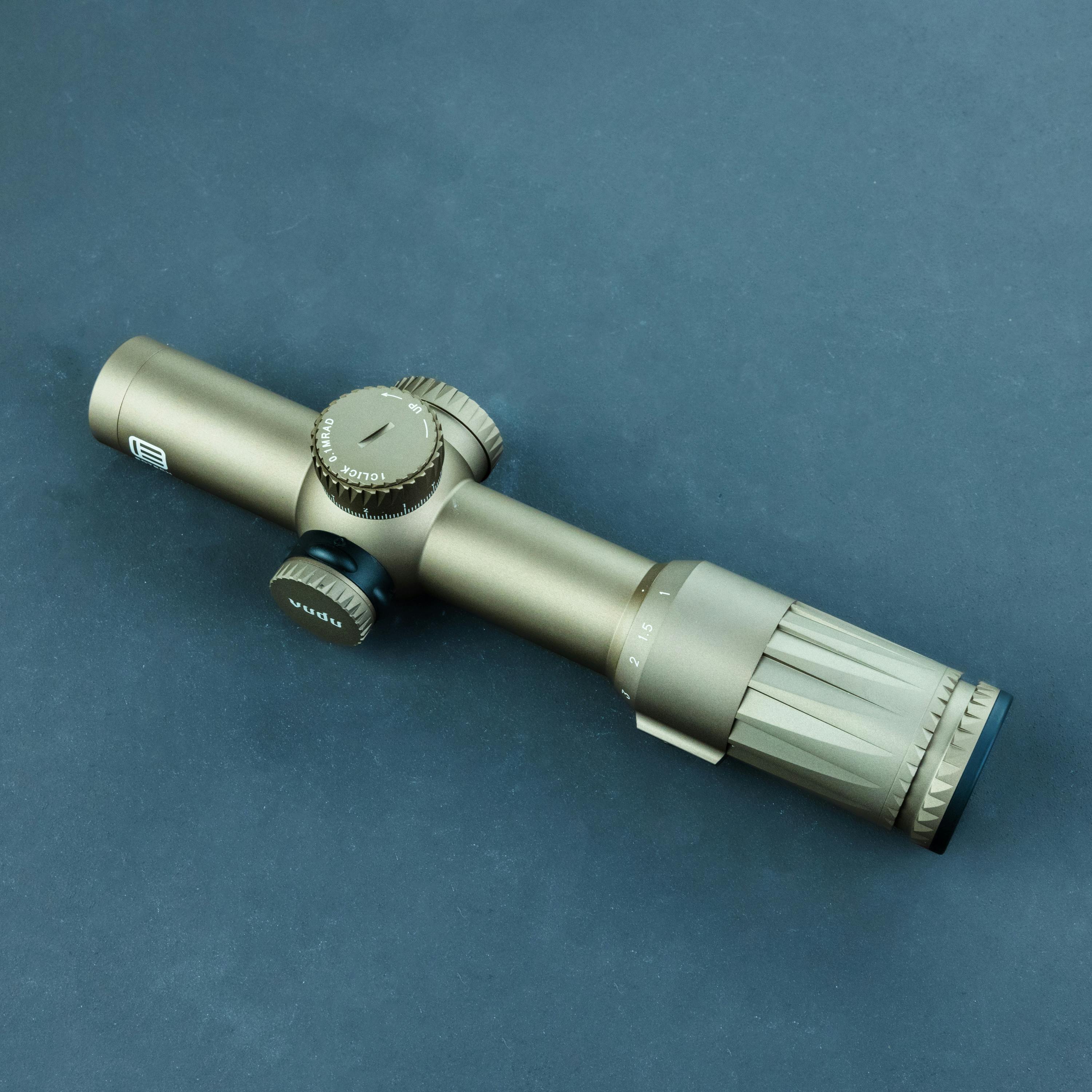

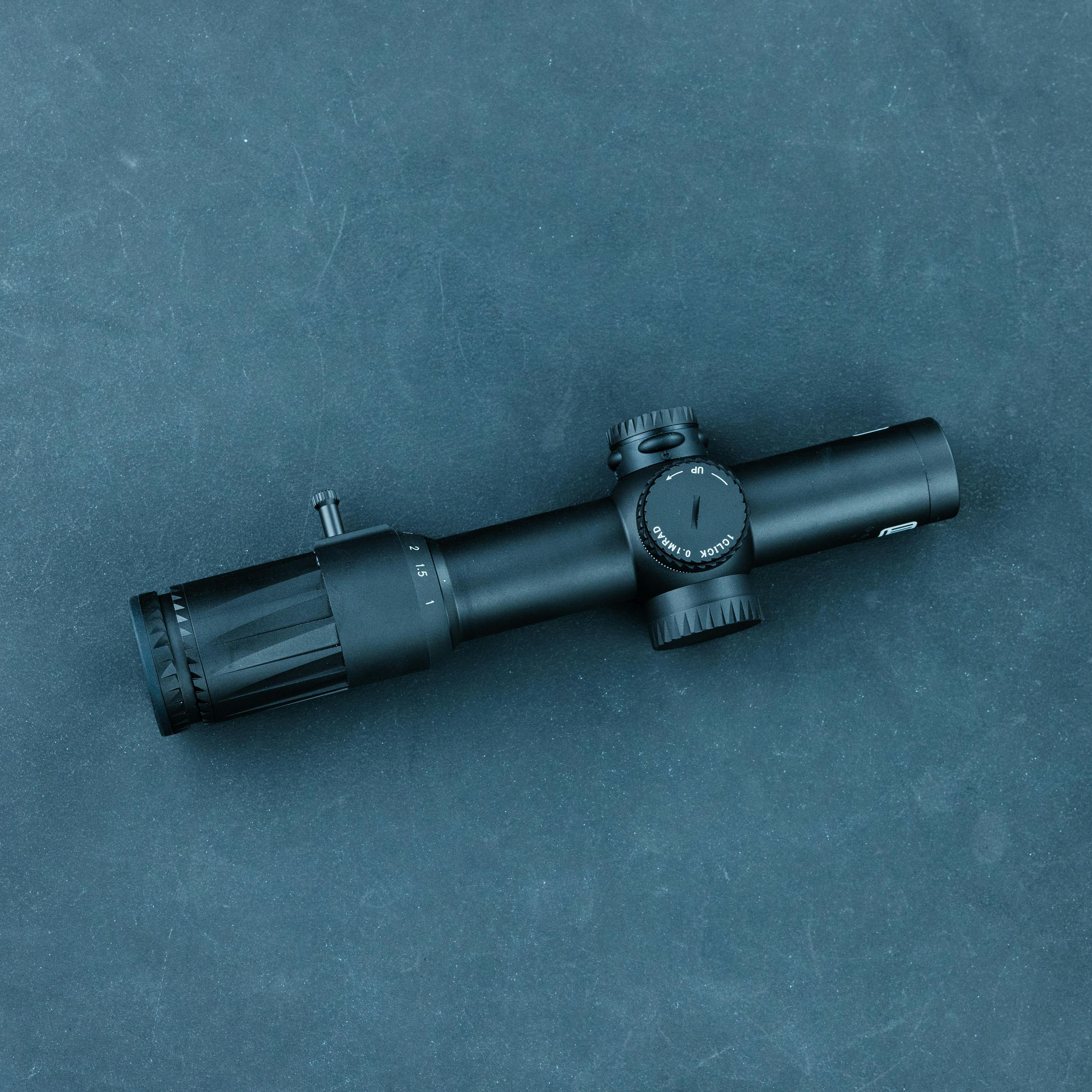

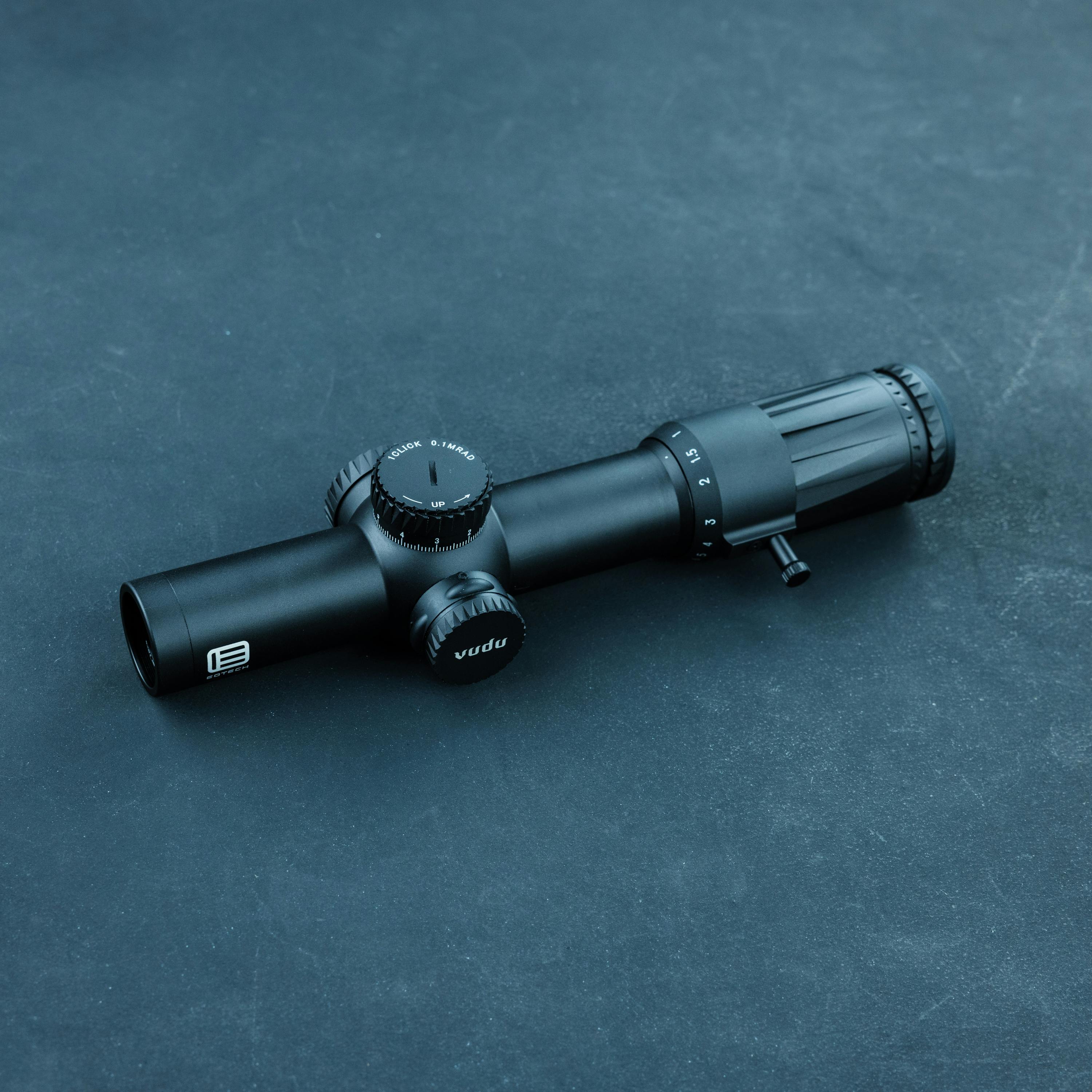

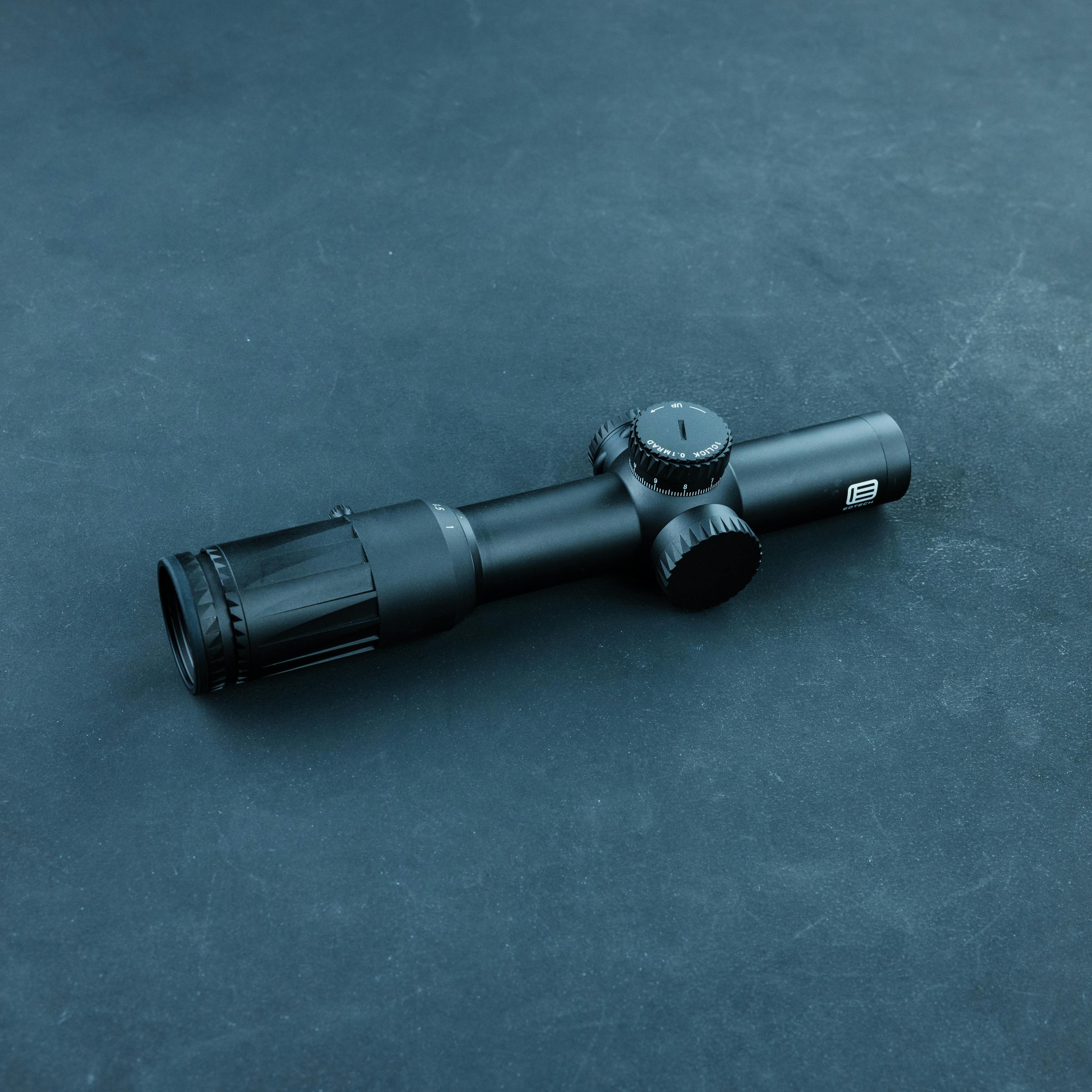

PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the US.
EOTECH products cannot be shipped outside of the US.
