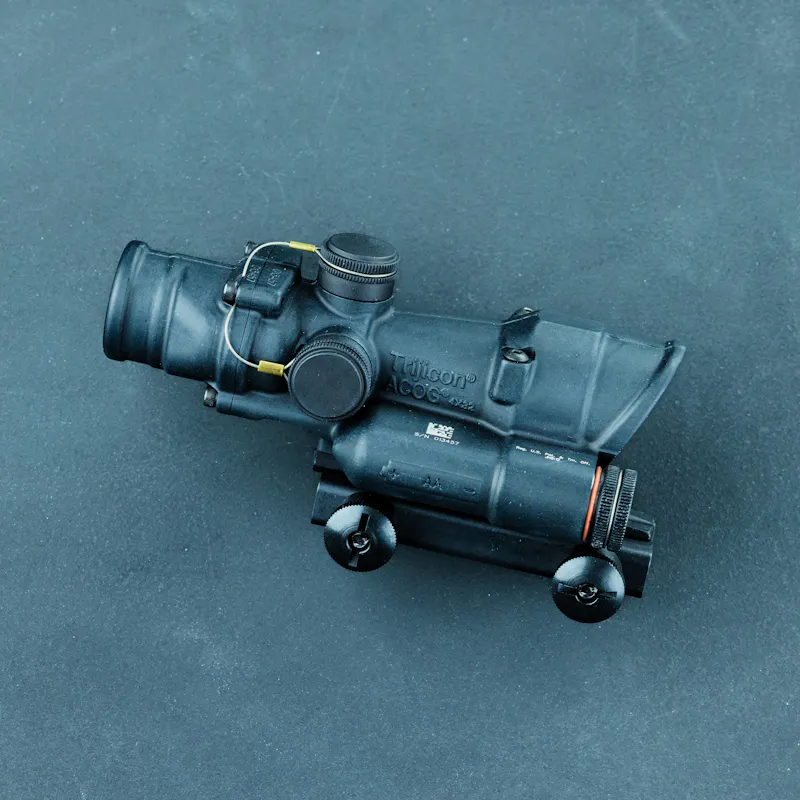

Trijicon ACOG 4x32 LED
Overview
An iconic magnified optic that’s still one of our favorites. Rugged, reliable, and one of the best in its class, the Trijicon ACOG 4×32 is as relevant as ever.
This is the TA02 LED, a 4×32 fixed-power optic designed for .223 rifles. It features an illuminated reticle (chevron, crosshair, or horseshoe) powered by a single AA battery. When turned off, you can still see the dark, non-illuminated etched reticle in the glass. The glass is super clear, the reticle is easy to use with six brightness settings, and the overall construction solidifies it as one of the most durable optics in the market.
What's Included
- 1x Trijicon ACOG 4x32 LED Riflescope
- 1x Thumbscrew Flattop Adapter
- 1x AA Battery
- 1x LensPen
- 1x Owners Manual
- 1x Warranty Card
We include an 8.5" x 11" rifle zero target with every rifle optic. We recommend a 100-meter zero for the ACOG on most 5.56 rifles.
How To Shoot Part 2: Zeroing – Video – T.REX ARMS
Specs
FEATURES
- High-quality glass and multi-coated lenses maximize light-gathering capabilities and a clear field of view with zero distortion
- Six adjustable brightness levels with an "off" between each setting
- Able to withstand recoil from a .22LR to a .50BMG and everything in between
- Performs in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging
- Passes U.S. Military drop test requirements
- Minimal moving parts, creating a nearly indestructible sighting system
- Exceptional waterproof performance that exceeds military standards
- LED ACOG can run 12,000 continuous hours (on setting #4)
- Forged from rugged 7075-T6 aircraft aluminum
- Night vision device compatible
- Compatible with most other 4x32 ACOG accessories available
- Warranty: Covered by Trijicon's manufacturer warranty. Warranty service is provided by Trijicon.

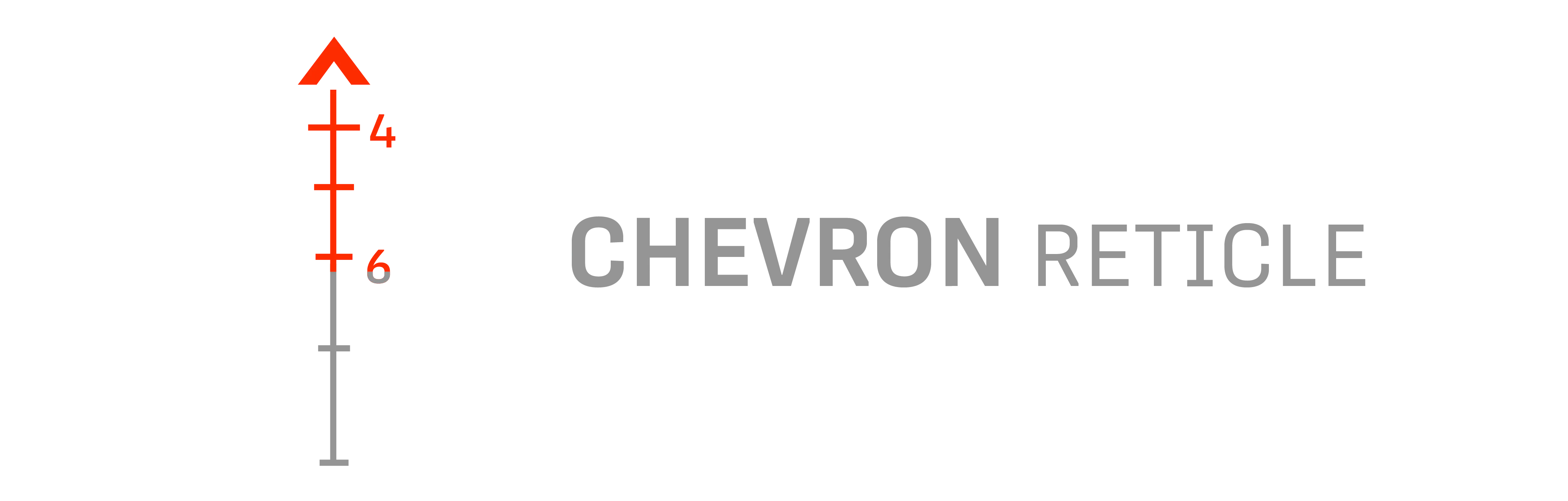

View the Chevron Reticle HERE.
View the Crosshair Reticle HERE.
View the Horseshoe Reticle HERE.
| Dimensions (L x W x H) | 6 in x 2.9 in x 2.5 in (152.4mm x 73.66mm x 63.5mm) |
| Weight (with mount) | 17.5 oz. (496.12 g) |
| Magnification | 4x |
| Objective Size | 32mm |
| Reticle Pattern | Chevron, Crosshair, or Horseshoe |
| Reticle Color | Red |
| Bullet Drop Compensating (BDC) | Yes |
| Caliber | .223 / 5.56 |
| Illumination / Power Source | LED & AA Lithium or Alkaline Battery |
| Battery Life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21° C (70° F) |
| Adjustments (Per In. @ 100 Yds.) | 2 clicks |
| Eye Relief | 1.5 in. (38.1mm) |
| Exit Pupil | 0.32 in. (8.13mm) |
| Field of View (Degrees) | 7° |
| Field of View (Feet) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminum |
Top Mount Compatibility
| Aimpoint T2 / Micro | Aimpoint Acro | Trijicon RMR | |
| 3.5x35 LED (TA110) | Aimpoint Micro Middle Mount for ACOG Works on either mounting boss, but the rear mount is not an ideal placement for Acro-style optics. | Aimpoint Acro Middle Mount for ACOG Works on either mounting boss, but the rear mount is not an ideal placement for Acro-style optics | RMR Rear Mount for ACOG Works on either mounting boss. |
| 3.5x35 (TA11) | Aimpoint Micro Middle Mount for ACOG Rear only, not ideal placement for T-2 style optics. | Aimpoint Acro Middle Mount for ACOG Rear only, not an ideal placement for Acro-style optics. | RMR Rear Mount for ACOG |
| 4×32 LED (TA02) | Aimpoint Micro Front Mount for ACOG | Aimpoint Acro Front Mount for ACOG | RMR Front Mount for ACOG |
| 4×32 (TA31F) | Not Recommended | Not Recommended | RMR Rear Mount for ACOG |
