An iconic magnified optic that’s still one of our favorites. Rugged, reliable, and one of the best in its class, the Trijicon ACOG 4×32 is as relevant as ever.

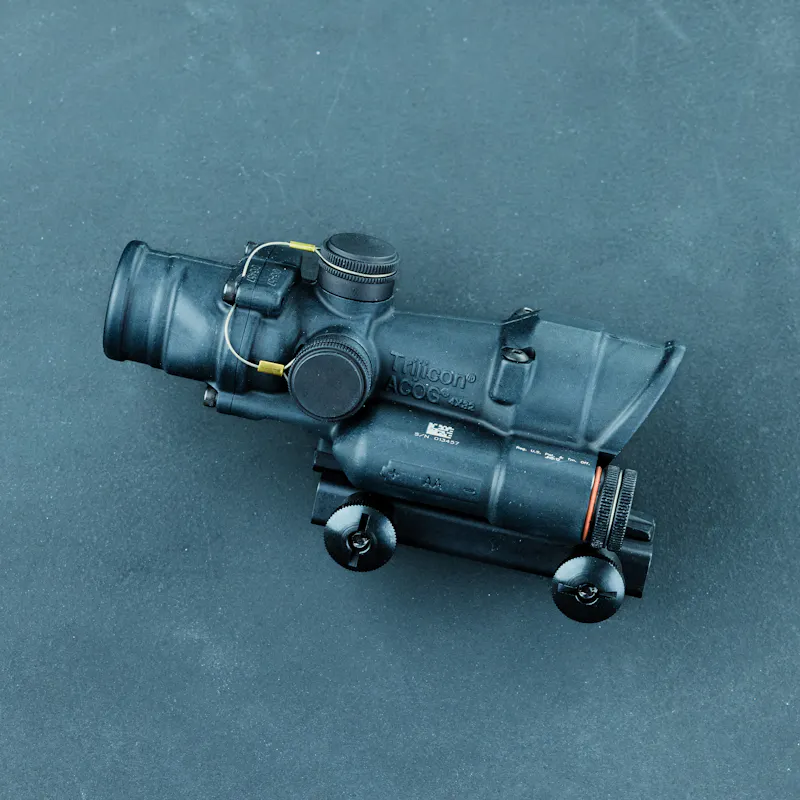

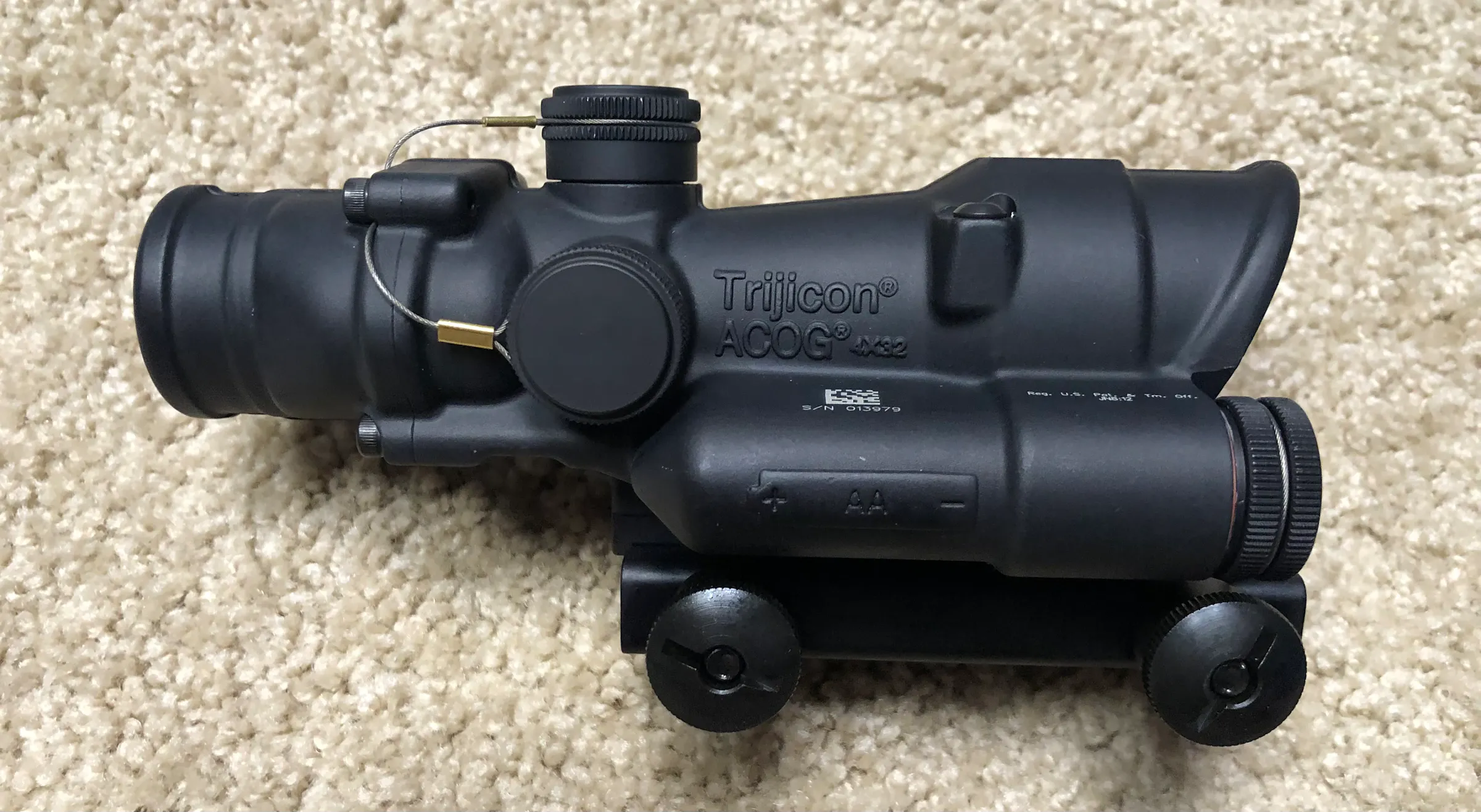

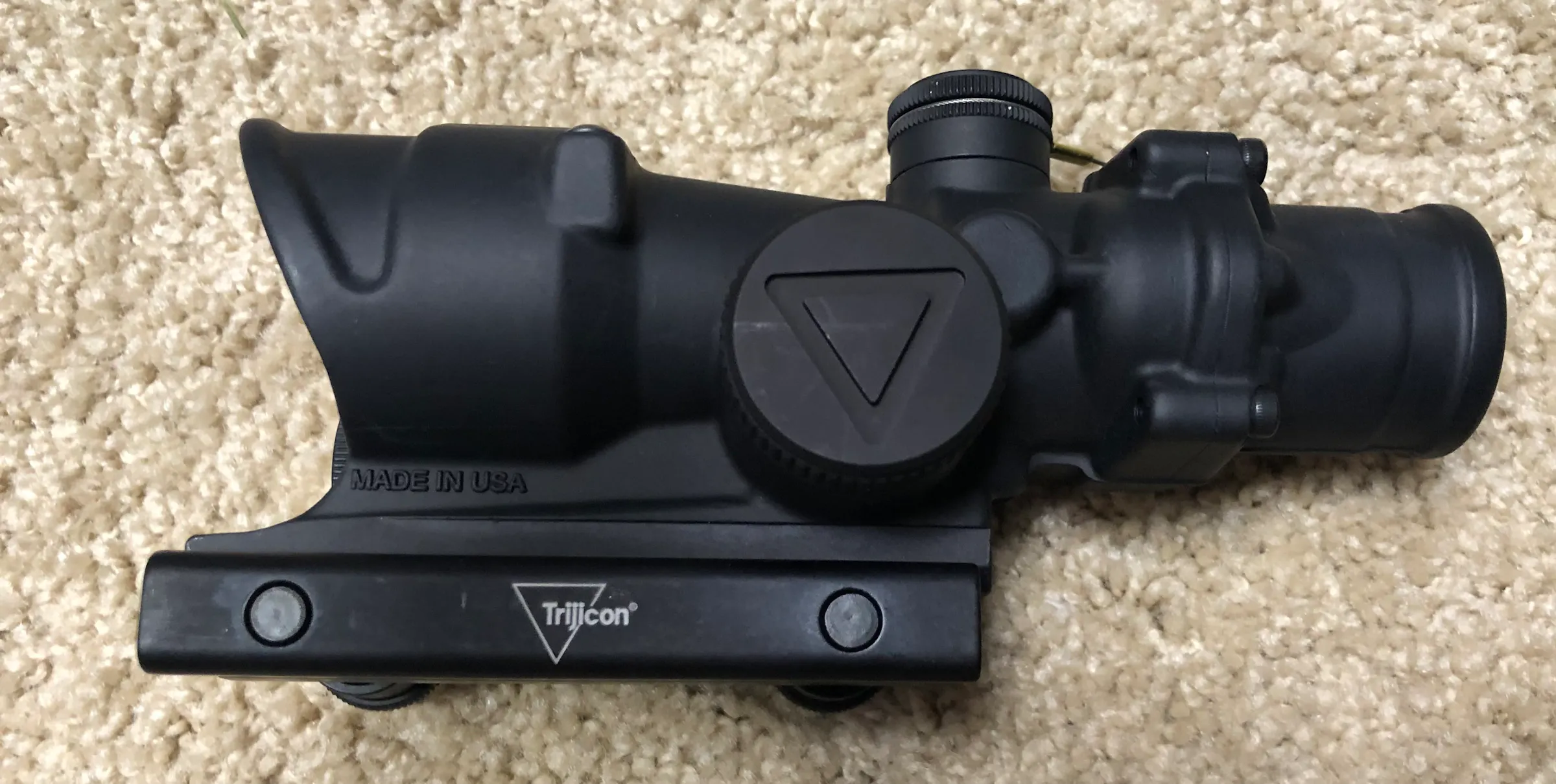

This is the TA02 LED, a 4×32 fixed-power optic designed for .223 rifles. It features an illuminated reticle (chevron, crosshair, or horseshoe) powered by a single AA battery. When turned off, you can still see the dark, non-illuminated etched reticle in the glass. The glass is super clear, the reticle is easy to use with six brightness settings, and the overall construction solidifies it as one of the most durable optics in the market.
We include an 8.5" x 11" rifle zero target with every rifle optic. We recommend a 100-meter zero for the ACOG on most 5.56 rifles.
How To Shoot Part 2: Zeroing – Video – T.REX ARMS
FEATURES
View the Chevron Reticle HERE.
View the Crosshair Reticle HERE.
View the Horseshoe Reticle HERE.
| Dimensions (L x W x H) | 6 in x 2.9 in x 2.5 in (152.4mm x 73.66mm x 63.5mm) |
| Weight (with mount) | 17.5 oz. (496.12 g) |
| Magnification | 4x |
| Objective Size | 32mm |
| Reticle Pattern | Chevron, Crosshair, or Horseshoe |
| Reticle Color | Red |
| Bullet Drop Compensating (BDC) | Yes |
| Caliber | .223 / 5.56 |
| Illumination / Power Source | LED & AA Lithium or Alkaline Battery |
| Battery Life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21° C (70° F) |
| Adjustments (Per In. @ 100 Yds.) | 2 clicks |
| Eye Relief | 1.5 in. (38.1mm) |
| Exit Pupil | 0.32 in. (8.13mm) |
| Field of View (Degrees) | 7° |
| Field of View (Feet) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminum |
| Aimpoint T2 / Micro | Aimpoint Acro | Trijicon RMR | |
| 3.5x35 LED (TA110) | Aimpoint Micro Middle Mount for ACOG Works on either mounting boss, but the rear mount is not an ideal placement for Acro-style optics. | Aimpoint Acro Middle Mount for ACOG Works on either mounting boss, but the rear mount is not an ideal placement for Acro-style optics | RMR Rear Mount for ACOG Works on either mounting boss. |
| 3.5x35 (TA11) | Aimpoint Micro Middle Mount for ACOG Rear only, not ideal placement for T-2 style optics. | Aimpoint Acro Middle Mount for ACOG Rear only, not an ideal placement for Acro-style optics. | RMR Rear Mount for ACOG |
| 4×32 LED (TA02) | Aimpoint Micro Front Mount for ACOG | Aimpoint Acro Front Mount for ACOG | RMR Front Mount for ACOG |
| 4×32 (TA31F) | Not Recommended | Not Recommended | RMR Rear Mount for ACOG |
Return or exchange anytime within 30 days of receipt. Available for domestic orders only. Item must be in new condition and in the unopened original manufacturer packaging. Customer pays return shipping.
Learn more →Loading…
Lizards Tactical

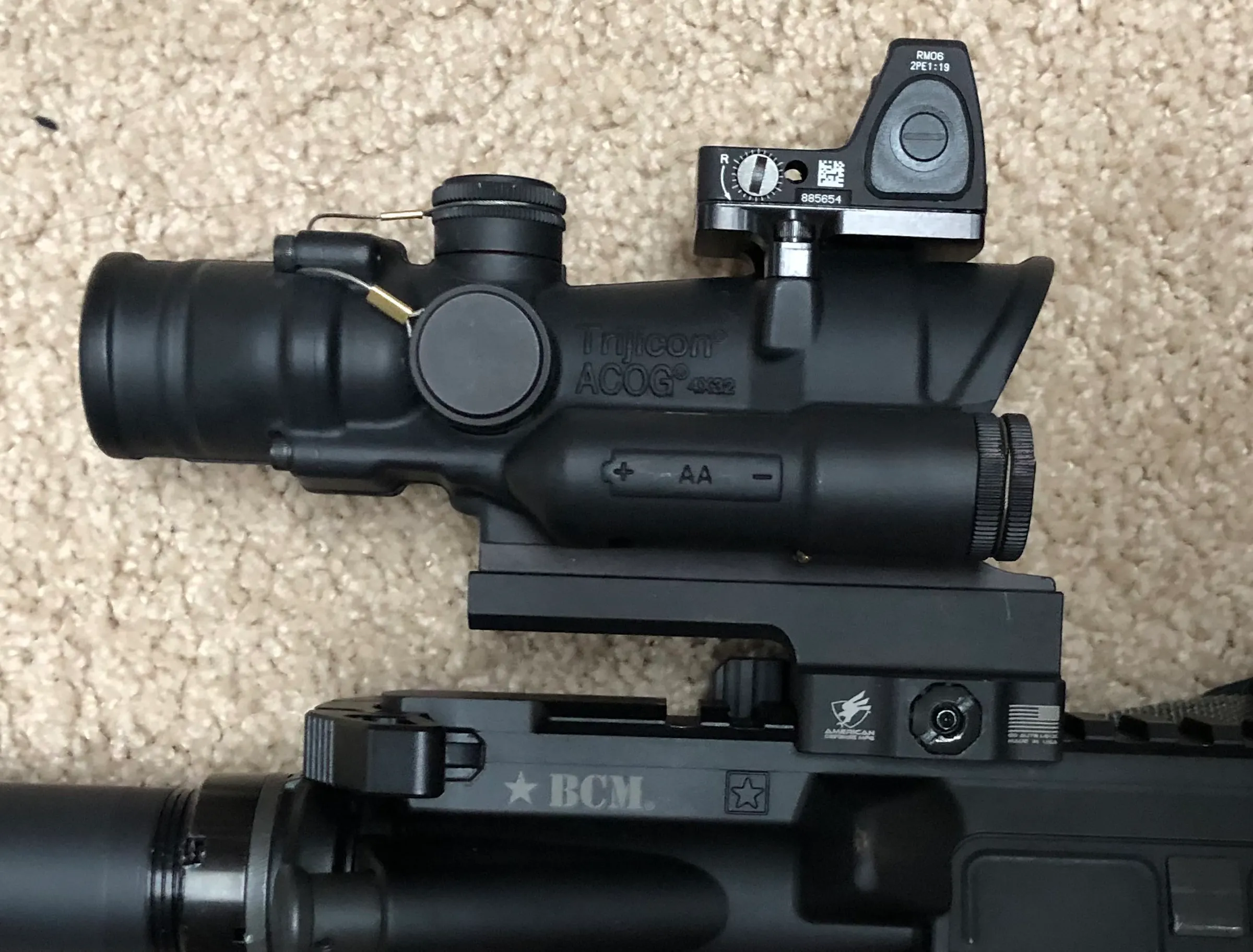

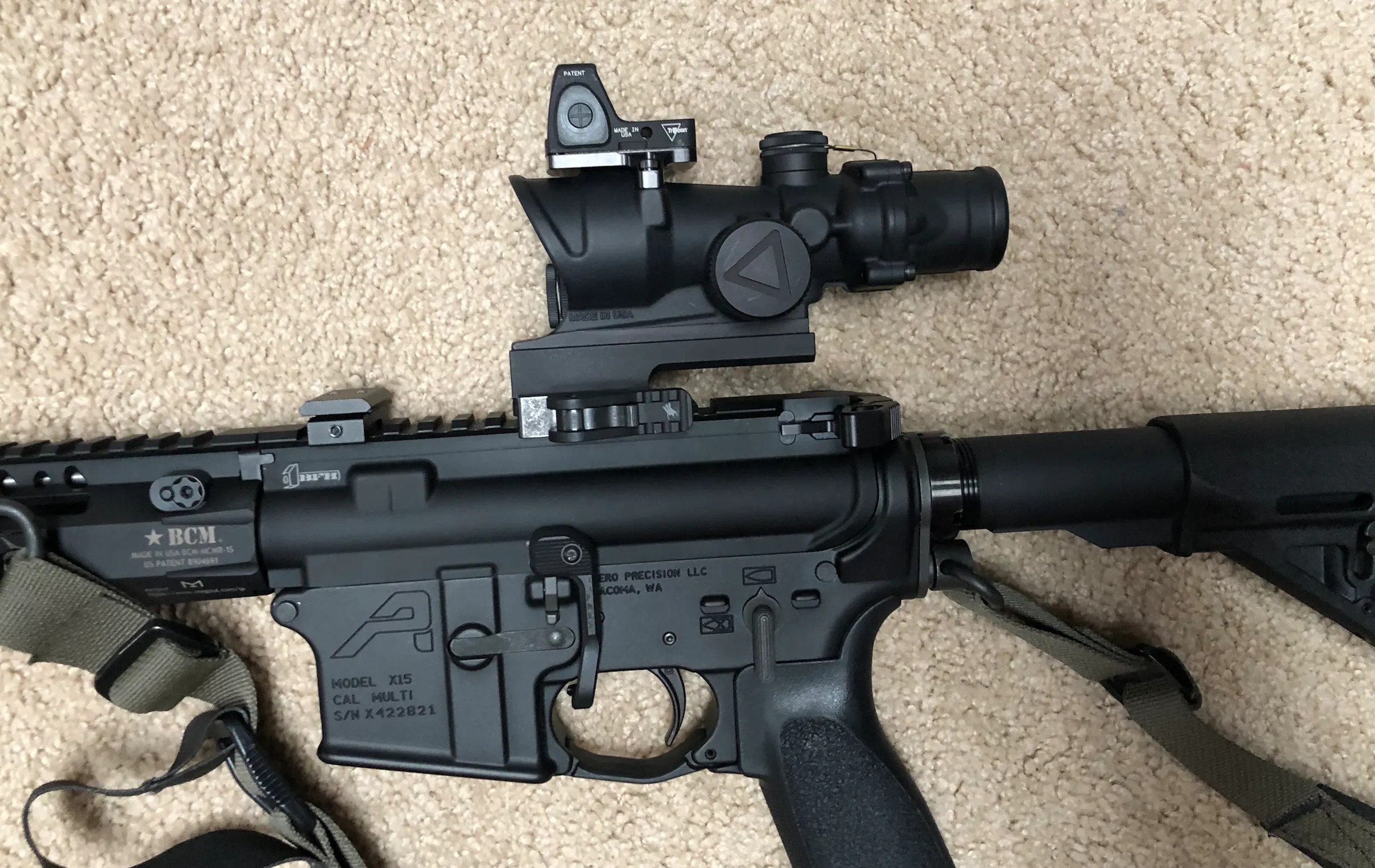

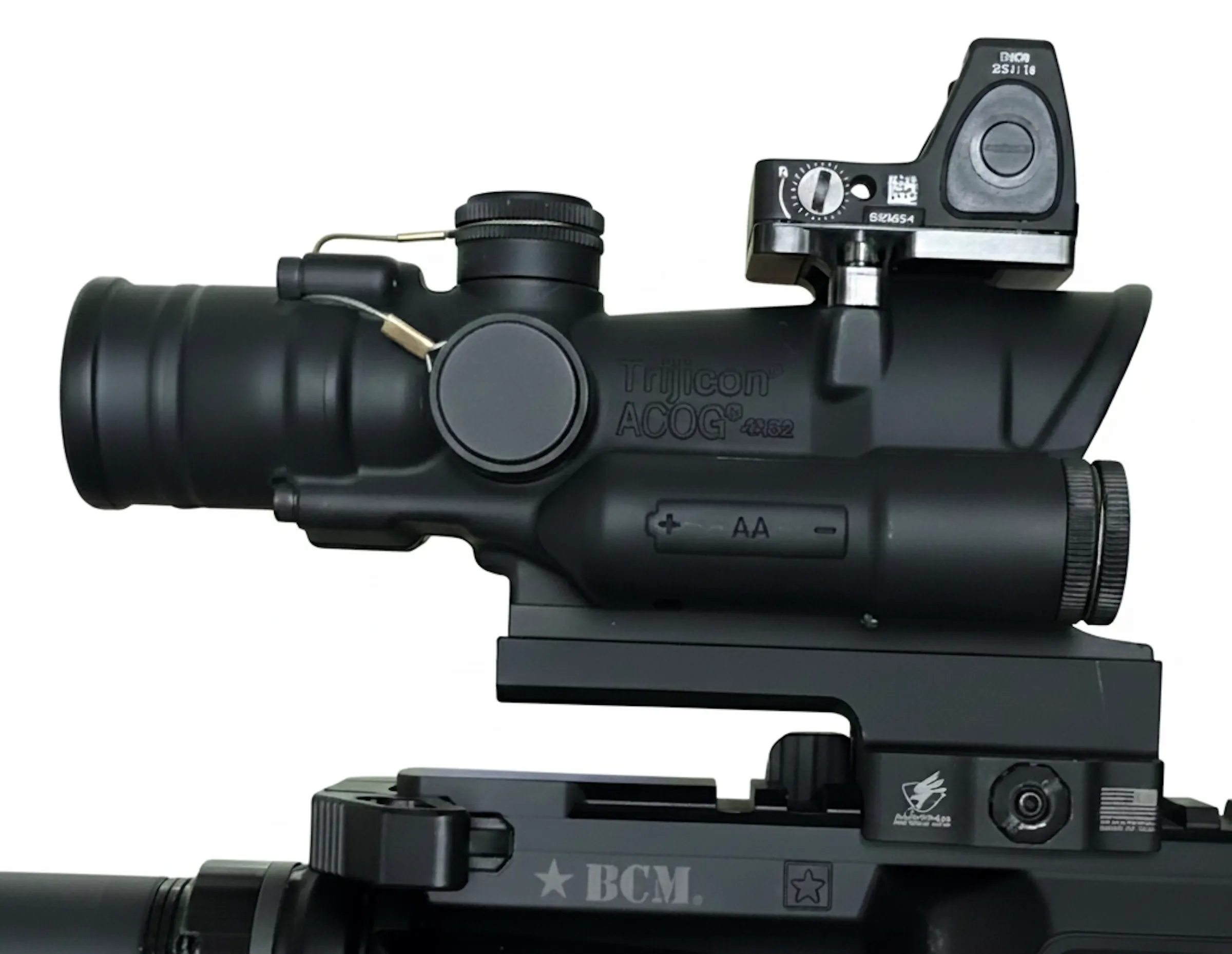

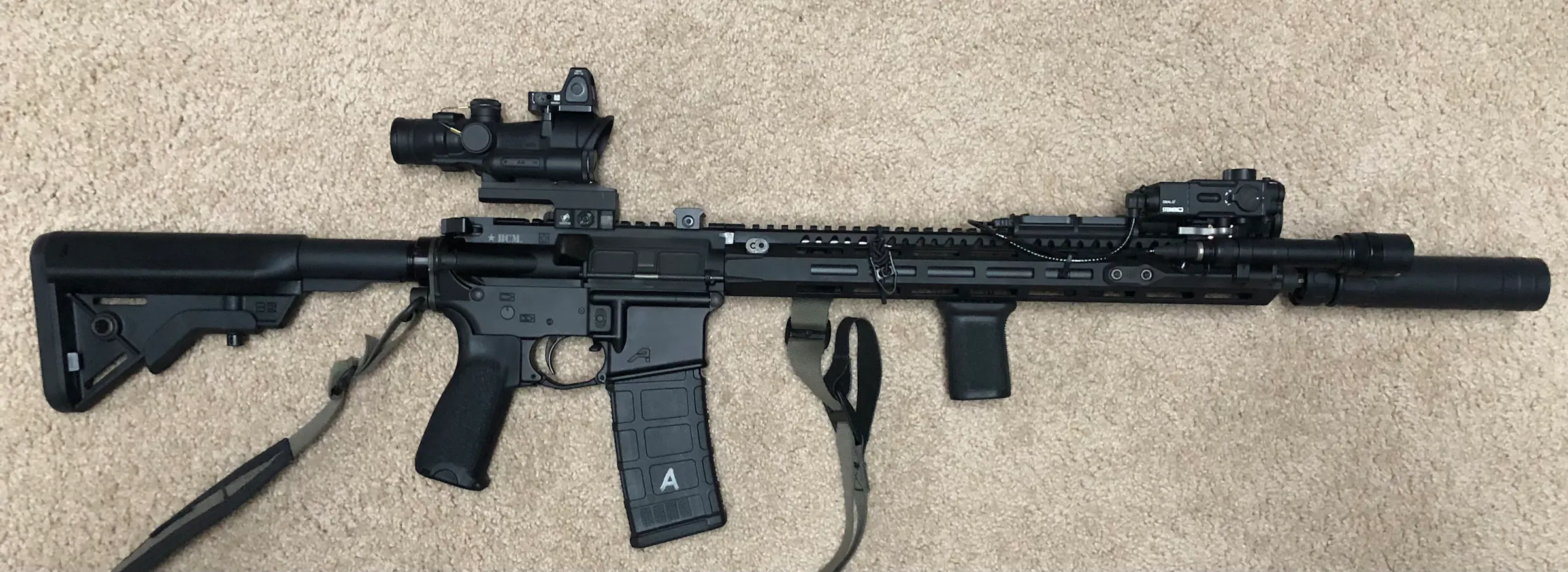

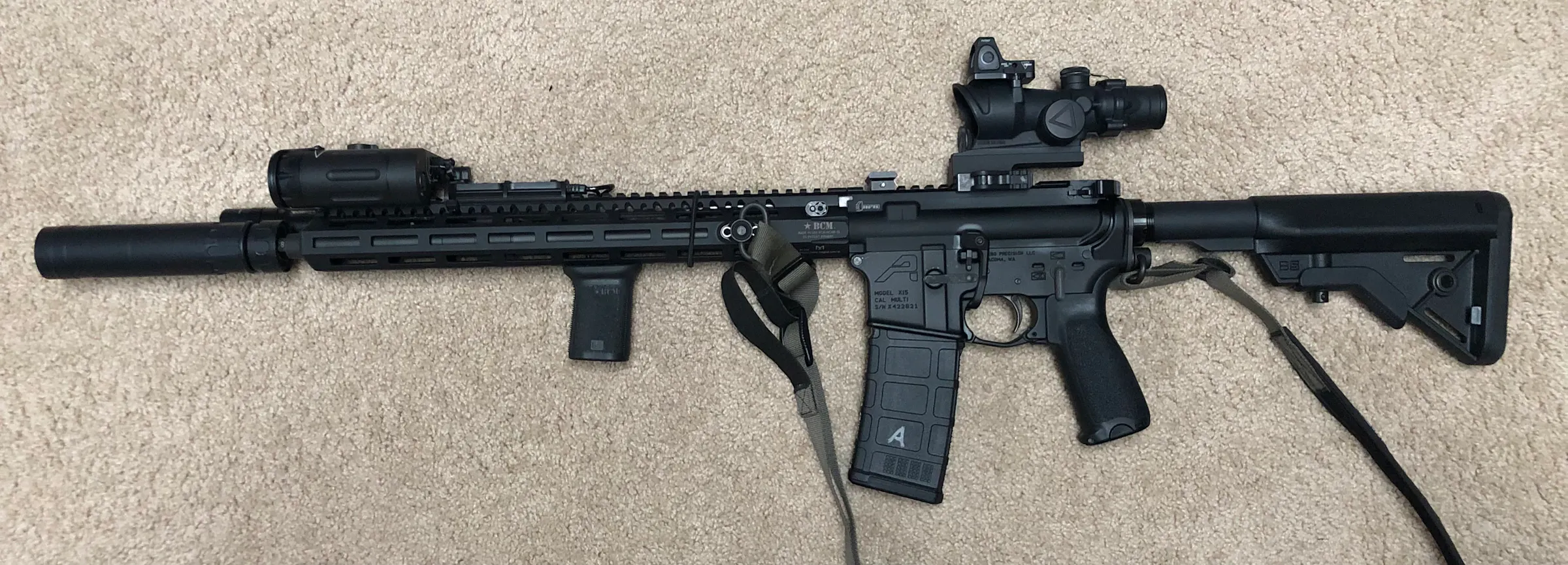

I love my ACOG, I have shot it out to 300 yards and the chevron reticle make it’s easy to engage targets. The glass is crazy clear and is very durable. It comes with a mount, the screw under the mount did come loose so check it. The only issue with it is that it’s heavy and eye relief is meh. I have mine mounted all the way back and it works very well. I am so glad I went with this OG option.
Viewing 1/1 review
