ESS Crossbow IR Protection Lens

What’s Included | Specs | Pictures | Restrictions

The ESS IR Protection Lenses are drop-in replacements for the ESS Crossbow and Crosshair glasses. They protect against laser threats in both the visible and infrared (IR) spectrums. Their extra-thick 2.4mm polycarbonate construction also provides excellent protection from impacts and debris.

WHAT’S INCLUDED

---

• 1x ESS Crossbow LPL-B Replacement Lens

Back to top ↑

SPECS

---

TERMINOLOGY

• Optical density (OD) measures how much a filter attenuates laser light at a specific wavelength. A higher OD value means greater protection from laser radiation.
• Visible Light Transmission (VLT): While OD focuses on laser light attenuation, VLT indicates how much visible light passes through the filter.
• OD 4 vs OD 5: An OD 4 filter allows 0.01% of the laser light to pass through, while an OD 5 filter allows only 0.001%.

FEATURES

• LPL-B Lens technology blocks non-visible InfraRed lasers from damaging the wearer’s eyes.
• Protects against non-visible IR lasers at 820-1090nm (OD 4) and 1064nm (OD 5), visible violet lasers at 405nm wavelength (OD 5), and visible blue lasers at 445nm wavelength (OD 4).
• Built from extra-thick, 2.4mm high-impact polycarbonate.
• ESS Optics feature distortion-free clarity and 100% UVA/UVB protection.
• Drop-in replacement for ESS Crossbow and Crosshair glasses

Made in the USA.

PROTECTION STANDARDS

(Infrared) IR: Wavelengths	820 – 1090nm @ OD 4
(Infrared) IR: Wavelengths	1064nm @ OD 5
Violet: Wavelengths	405nm @ OD5
Blue: Wavelengths	445nm @ OD 4
VLT Photopic (Day)/ Scotopic (Night)	57%/42%

Back to top ↑

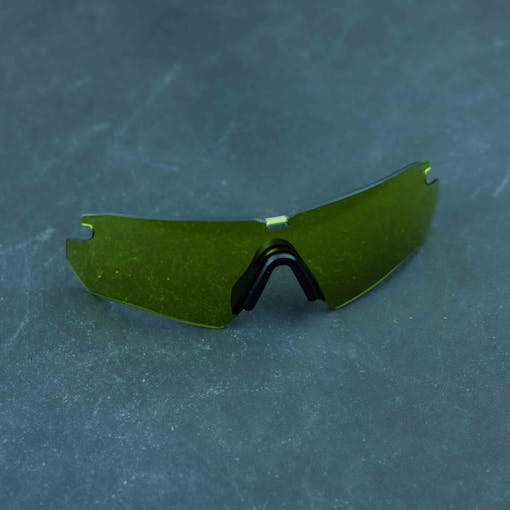

PICTURES

Back to top ↑

RESTRICTIONS

---

ESS products cannot be shipped outside of the US.
