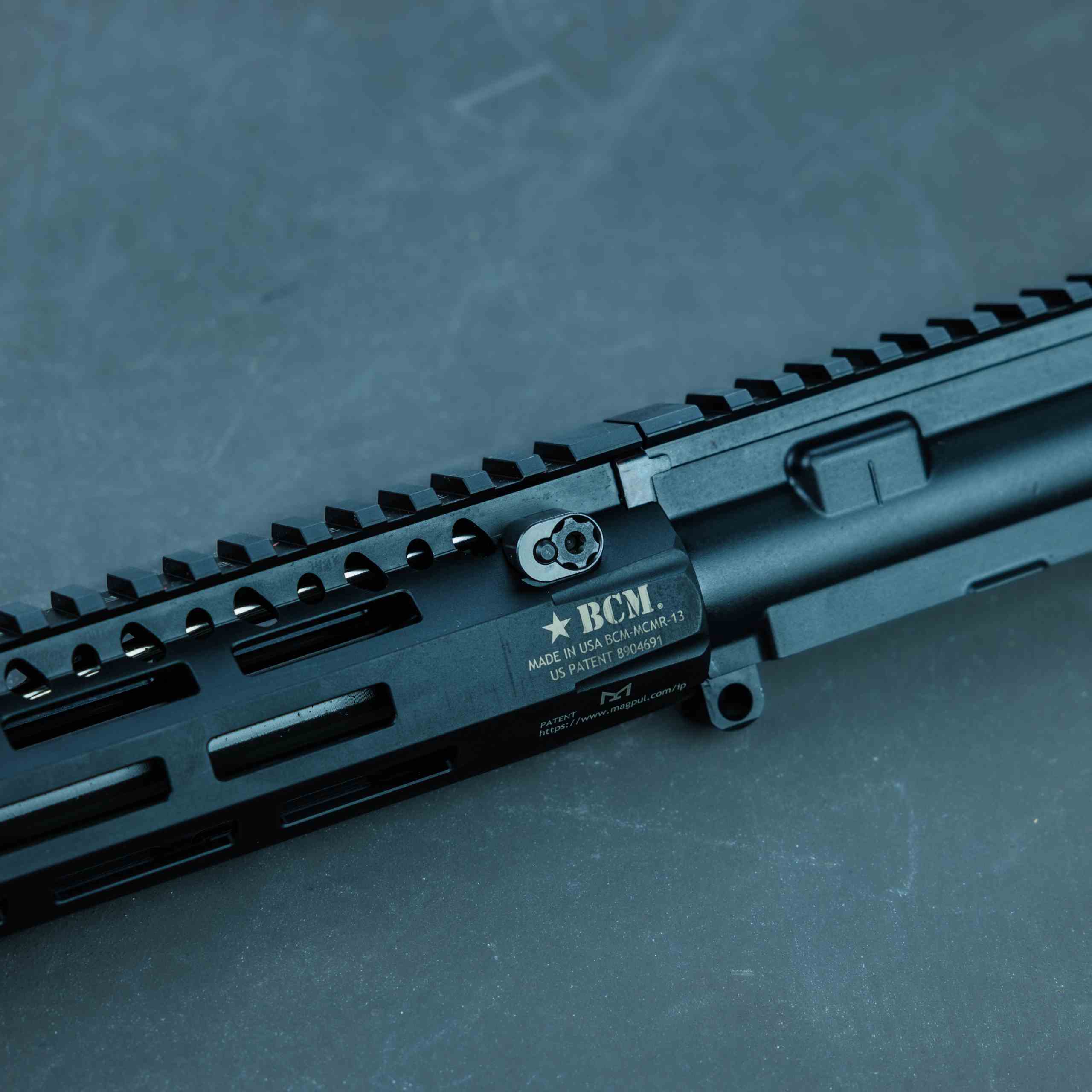

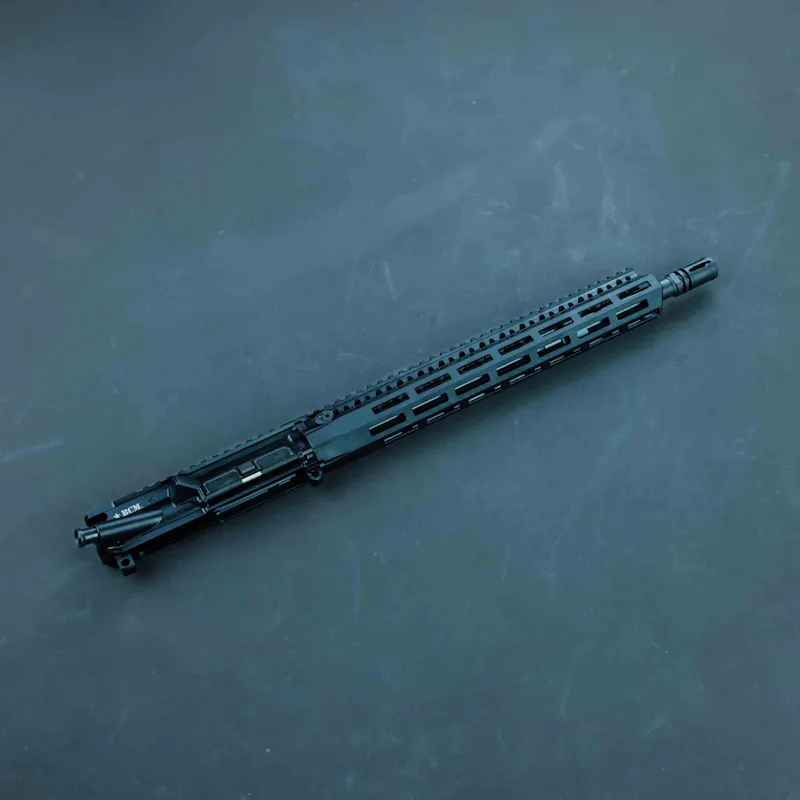

BCM Standard 5.56mm Upper Receiver Group
$77535-$86995
Overview
BCM has been our go-to for many years because they do an outstanding job of balancing quality, price, and overall performance. These standard uppers still feature the fit and finish you've come to expect from BCM without all the bells and whistles of the MK2 receivers at a lower base price. While we thoroughly enjoy the improvements found in the MK2 uppers, the cost/performance ratio of the standard upper receivers is hard to beat.
What's Included
- 1x BCM Standard Upper Receiver Group
- 1x BCM Bolt Carrier Group
- 1x BCM M-LOK QD Mount
- 1x M-LOK Picatinny Section
- Allen Keys
Team T.REX

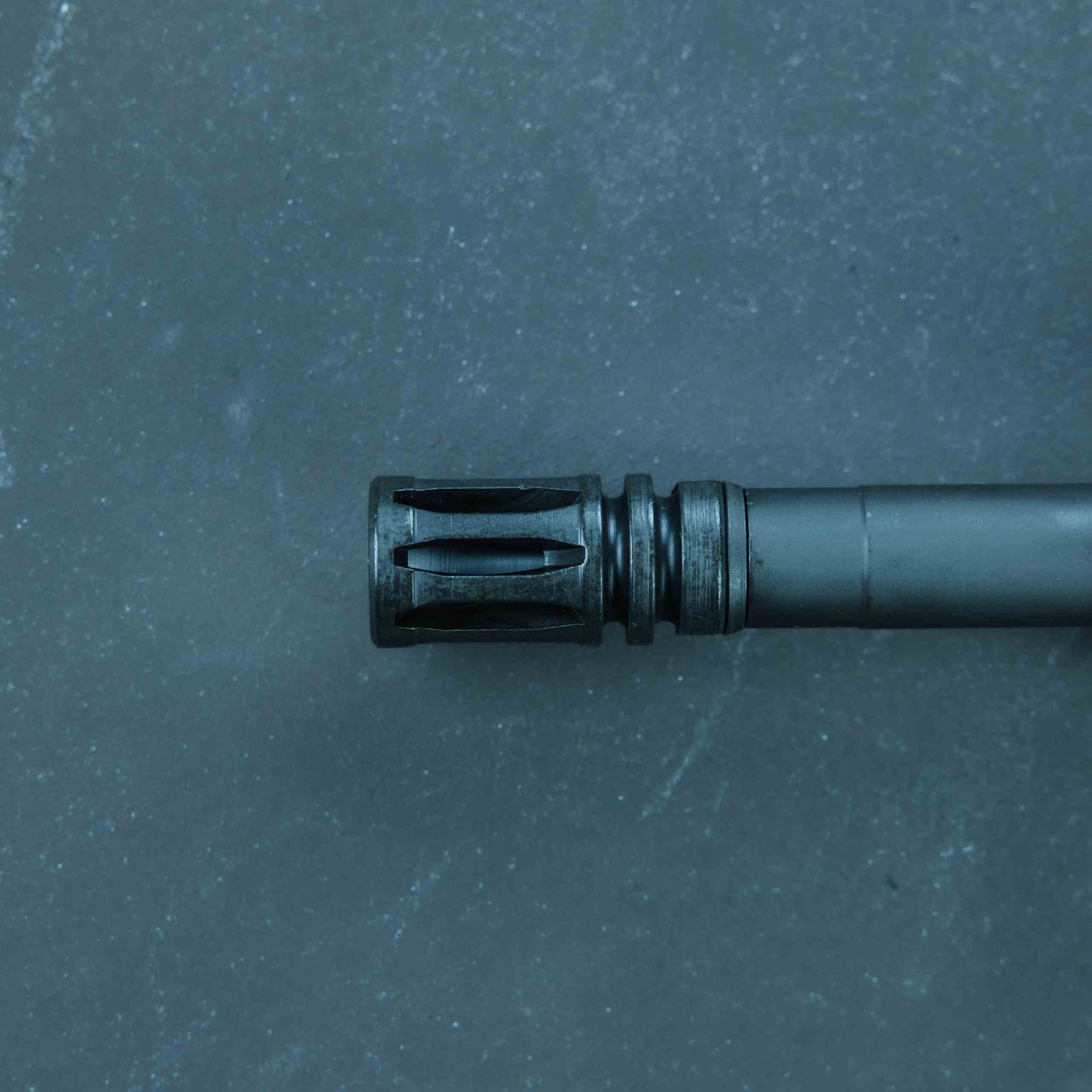

14.5" models are not pinned and welded from the factory, and the A2 device that comes with these uppers is not long enough to do so. You'll need a trusted gunsmith to do this once you install the muzzle device of your choice.
Specs
UPPER FEATURES
- Manufactured by Bravo Company MFG, Inc. (BCM)
- Fully assembled, headspaced, and test-fired
- M4 feed ramp barrel extension and upper receiver for reliable feeding

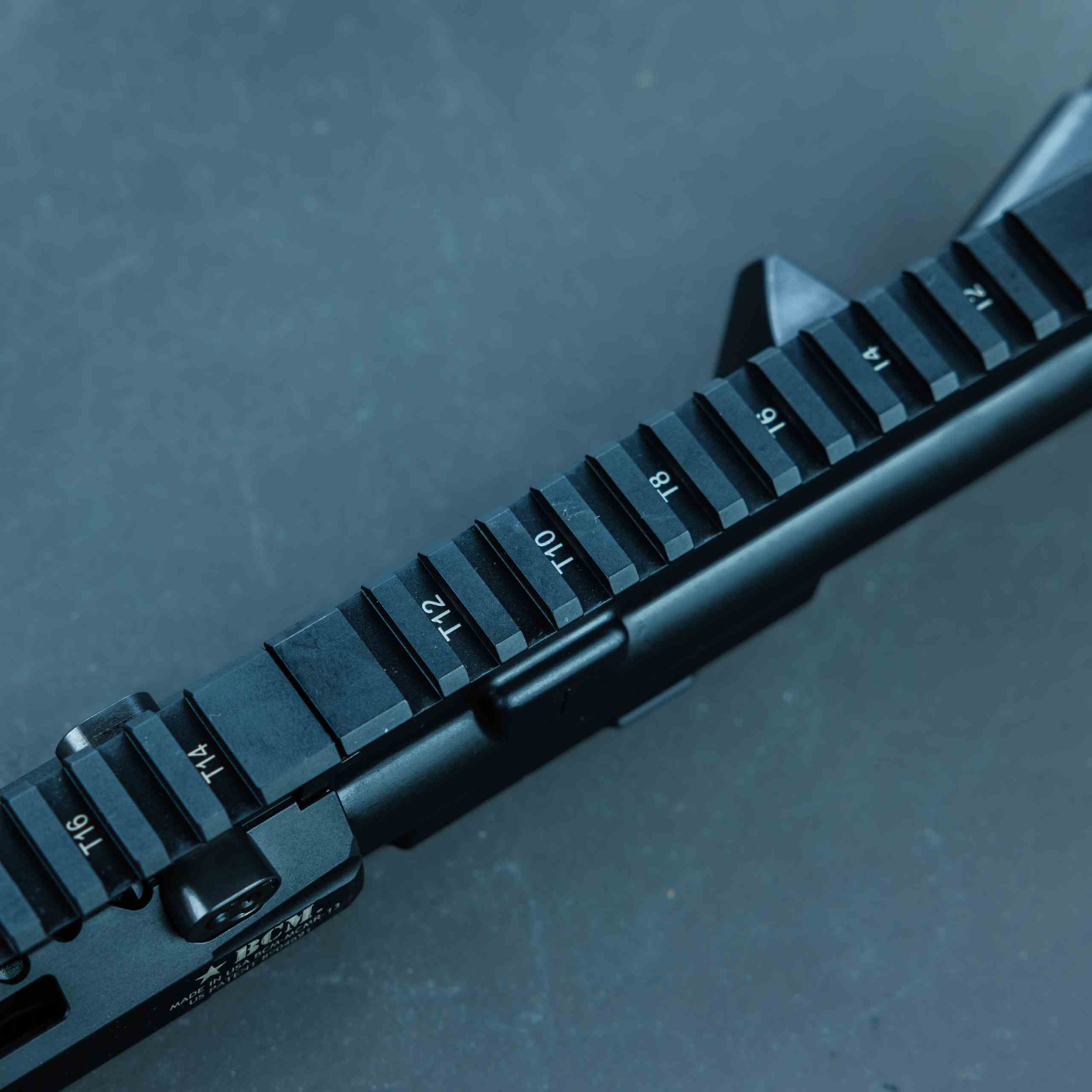

- T-marked upper receiver for easy configuration of tactical accessories
- USGI 1/7 twist rate for versatility with various ammunition
- Mil-Spec barrel steel (Certified Mil-B-11595E) for strength and durability
- Chrome bore and chamber for enhanced chambering, extraction, and reliability
- Manganese phosphate barrel finish for corrosion resistance
- 5.56 NATO Chambers for compatibility with military and high-quality ammunition
- HPT / MP Inspected barrels for quality assurance and flaw detection
BFH BARREL FEATURES
- Cold Hammer Forged Barrel
- USGI 1/7 Twist Rate
- Mil-Spec Barrel Steel (Mil-B-11595E)
- Chrome Bore and Chamber
- Manganese Phosphate Barrel Finish
- 5.56 NATO Chamber
- Government Barrel Profile
- HPT / MP Inspected
STANDARD BARREL FEATURES
- USGI 1/7 Twist Rate
- Mil-Spec Barrel Steel (Mil-B-11595E)
- Chrome Bore and Chamber
- Manganese Phosphate Barrel Finish
- 5.56 NATO Chamber
- Government Barrel Profile
- HPT / MP Inspected
BOLT CARRIER FEATURES
- BCM (MPI) complete bolt carrier group for AR-15, M16, or M4
- Parkerized exterior with chrome-lined inside carrier
- Machined to USGI specifications, Full Auto Profile
- M16/M4 carrier with Mil-Spec chrome-lined gas key
- Gas key heat-treated and chrome-lined, securely fastened with grade 8 fasteners
- Bolt assembly machined from Mil-Spec Carpenter No. 158 steel, shot peened
- Includes tool steel extractor and ejector, BCM Extractor Spring
- HPT (High-Pressure Tested) and MPI (Magnetic Particle Inspected)
- BCM test fires for function before shipping
Warranty: Covered by BCM's manufacturer warranty. Warranty service is provided by BCM.
Made in the USA.
BUFFER RECOMMENDATIONS
INDEX:
Sprinco Hot White: In the middle of a standard carbine spring and the Blue spring, roughly 7-8% stiffer than standard.
Sprinco Blue: 15% stiffer than standard carbine springs.
Sprinco Green: Rifle length spring for A5/MK2 buffer systems.
| 16" MidLength Gas | 14.5" MidLength Gas | 11.5" Carbine Gas | |
| Unsuppressed | Carbine: H1 - Standard Spring Vltor A5/BCM MK2: -A5H1/T1 - Rifle or Sprinco Green Spring | Carbine: H1 - Standard Spring Vltor A5/BCM MK2: -A5H1/T1 - Rifle or Sprinco Green Spring | Carbine: H2 - Standard Spring Vltor A5/BCM MK2: - A5H2/T2 - Rifle or Sprinco Green Spring |
| Suppressed (Low BackPressure) | Carbine: H1 - Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: - A5H2/T2 - Rifle or Sprinco Green Spring | Carbine: H1 - Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: - A5H2/T2 - Rifle or Sprinco Green Spring | Carbine: H2 - Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: - A5H2/T2 - Rifle or Sprinco Green Spring |
| Suppressed (High BackPressure) | Carbine: H2 - Standard or Sprinco Hot White Spring Vltor A5/BCM MK2: A5H2/T2 - Rifle or Sprinco Green Spring | Carbine: H2 - Standard or Sprinco Hot White Spring Vltor A5/BCM MK2: A5H2/T2 - Rifle or Sprinco Green Spring | Carbine: H3 - Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: - A5H3/T3 - Rifle or Sprinco Green Spring |
TECHNICAL SPECIFICATIONS
| Specifications | 16", MCMR-13, Government Profile, MidLength Gas | 14.5", MCMR-13, Government Profile, MidLength Gas |
| Weight | 3 lb 15 oz | 3 lb 12.5 oz |
| Weight, Standard Lower - No Stock | 5 lb 10.5 oz | 5 lb 8 oz |
| Weight, Standard Lower - Law Folder, No Stock | 6 lb 5.6 oz | 6 lb 3.1 oz |
| Length, Upper Only | 24.6" Muzzle Device to End Of Receiver | 22.9" Muzzle Device to End Of Receiver |
| Length, Standard Lower - No Stock | 31.9" Muzzle Device to End Of Carbine Extension | 30.2" Muzzle Device to End Of Carbine Extension |
| Length, Standard Lower - Law Folder, No Stock | 33.2" Muzzle Device to End Of Carbine Extension | 31.5" Muzzle Device to End Of Carbine Extension |
| Length, Standard Lower - Law Folder, No Stock (Folded) | 26.6" Muzzle Device to Furthest point | 24.9" Muzzle Device to Furthest point |
FAQ
BFH vs. Standard? What do I get?
BFH is BCM's name for cold hammer forged barrels. CHF barrels generally last a little longer and have more accuracy potential than standard barrels at an increased cost. This is not to say that standard barrels are bad. They will still have a long lifespan and be plenty accurate for 99% of shooters while maintaining a relatively low cost.
