Trijicon REAP-IR 35mm Thermal Riflescope with Onboard DVR
Overview
The Trijicon REAP-IR is a dedicated thermal optic that combines an advanced 640x480, 12-micron thermal sensor with a compact design and the bomb-proof durability Trijicon is known for.
The REAP-IR features several user-selectable reticles, including a standard crosshair, MRAD, MOA, and BDC reticles for popular calibers like .223, .308, and 300 BLK, giving users the flexibility to tailor the REAP-IR to their needs. The integrated DVR records 640x480 MP4 video to an SD card, while the USB-C port supports video output with compatible external DVRs. This USB-C port can also provide external power to extend runtime and reduce the need for battery swaps. Even without external power, the REAP-IR offers up to 4 hours of battery life with two standard CR123 batteries.
What's Included
- 1x Trijicon REAP-IR 35mm Thermal Riflescope with Onboard DVR
- 2x CR123 Batteries
- 1x Q-LOC Mini Picatinny Rail Mount
- 1x USB-C to USB-C Cable
- 1x User Manual
- 1x Quick Reference Guide
- 1x Trijicon Logo Sticker
- 1x Shuttered Eye Guard
- 1x Warranty Card
- 1x LENSPEN

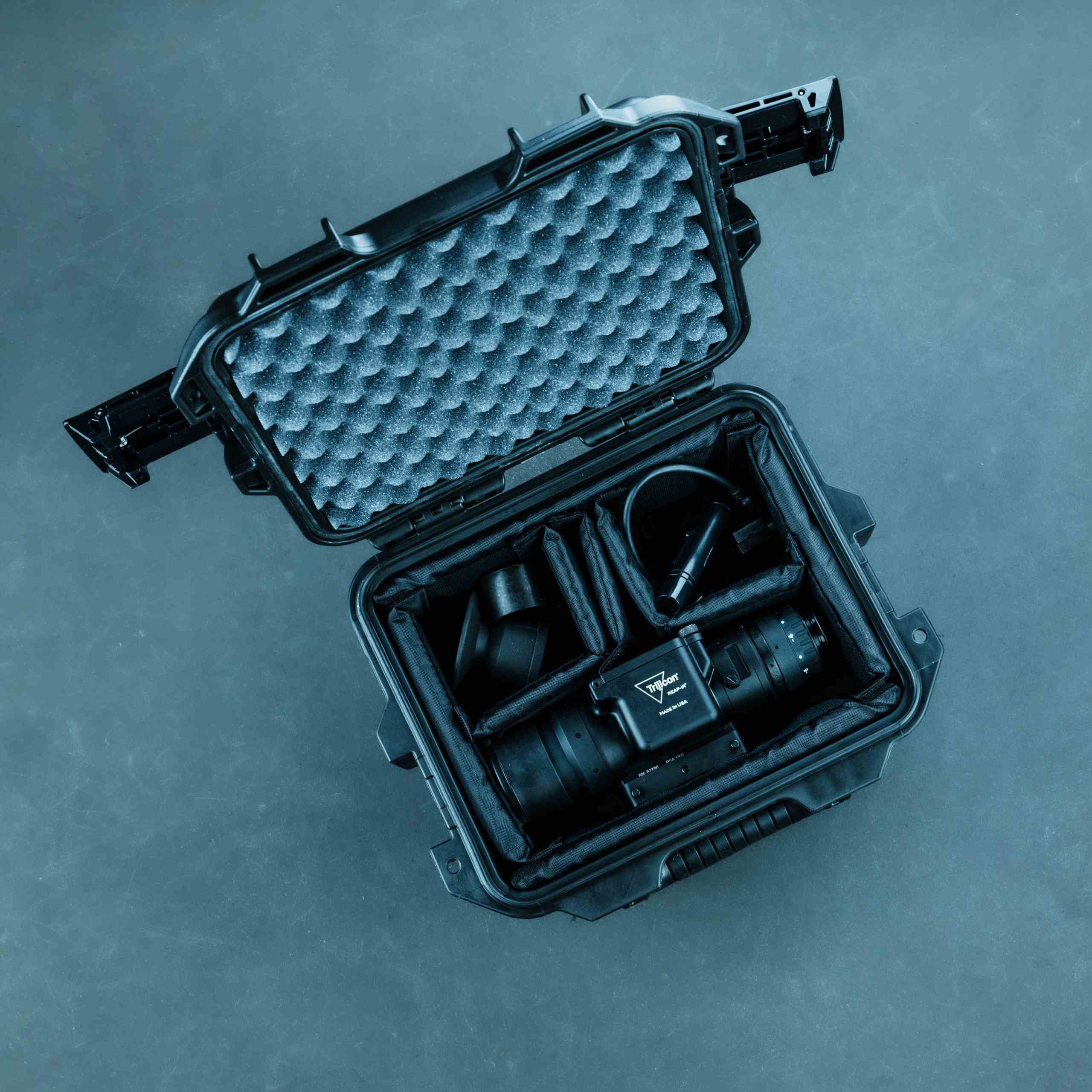

- 1x Hard Case
Specs
FEATURES
- User-selectable reticle choices include the classic crosshair, MRAD, MOA, .223 REM, .308 WIN, and 300 BLK BDCs.
- 640x480 thermal sensor offers clear, crisp imagery through smoke, dust, and complete darkness.
- The durable 12-micron image sensor allows for reduced size and weight.
- The USB-C connector allows the use of external battery packs and the download of analog and digital video with an adapter and compatible DVRs.
- Integrated DVR records 640x480 MP4 video to SD card, or an external recorder can be attached via USB-C.
- Fully ruggedized, weatherproof, multi-directional thumbstick control with improved design for faster system response.
- Ruggedized, vertical battery compartment design creates a slimmer look and is engineered for increased durability and solid battery connection.
- Warranty: Covered by Trijicon's manufacturer warranty. Warranty service is provided by Trijicon..
Made in the USA.
DOWNLOADS
Technical Specifications
| Dimensions (L × W × H) | 7.14" × 3.1" × 2.9" (181.36mm × 78.74mm × 73.66mm) |
| Weight | 28.18 oz (798.89 g) |
| Magnification | 1.75x |
| Objective Size | 35mm |
| Reticle Pattern | MRAD, MOA, .223 BDC, .308 BDC, 300 BLK BDC |
| Day Reticle Color | Auto Contrast B/W |
| Night Reticle Color | Auto Contrast B/W |
| Power Source | 2x CR123 or External USB-C |
| Battery Life | ~4 hours |
| Eye Relief | 1.063 in (27mm) |
| Field of View | 12° Horizontal |
| Mount | Q-LOC Mini Picatinny Rail Mount |
| Diopter Range | -6 / +2 |
| Housing Material | 7075-T6 Aluminum |
| Finish | Matte Black Anodized |
| Submersion Depth | 3.28 ft (1m) |
| Operating Temperature | -31°F to 122°F (-35°C to 50°C) |
| Sensor Type | Vanadium Oxide |
| Sensor Resolution | 640 x 480 |
| Sensor Pixel Pitch | 12 µm |
| Focal Length | 35 mm |
| Frame Rate | 30 Hz / 60 Hz |
| Digital Zoom | 8X |
| Video Output | 640x480 MJPEG, 30 Hz |
