Overview

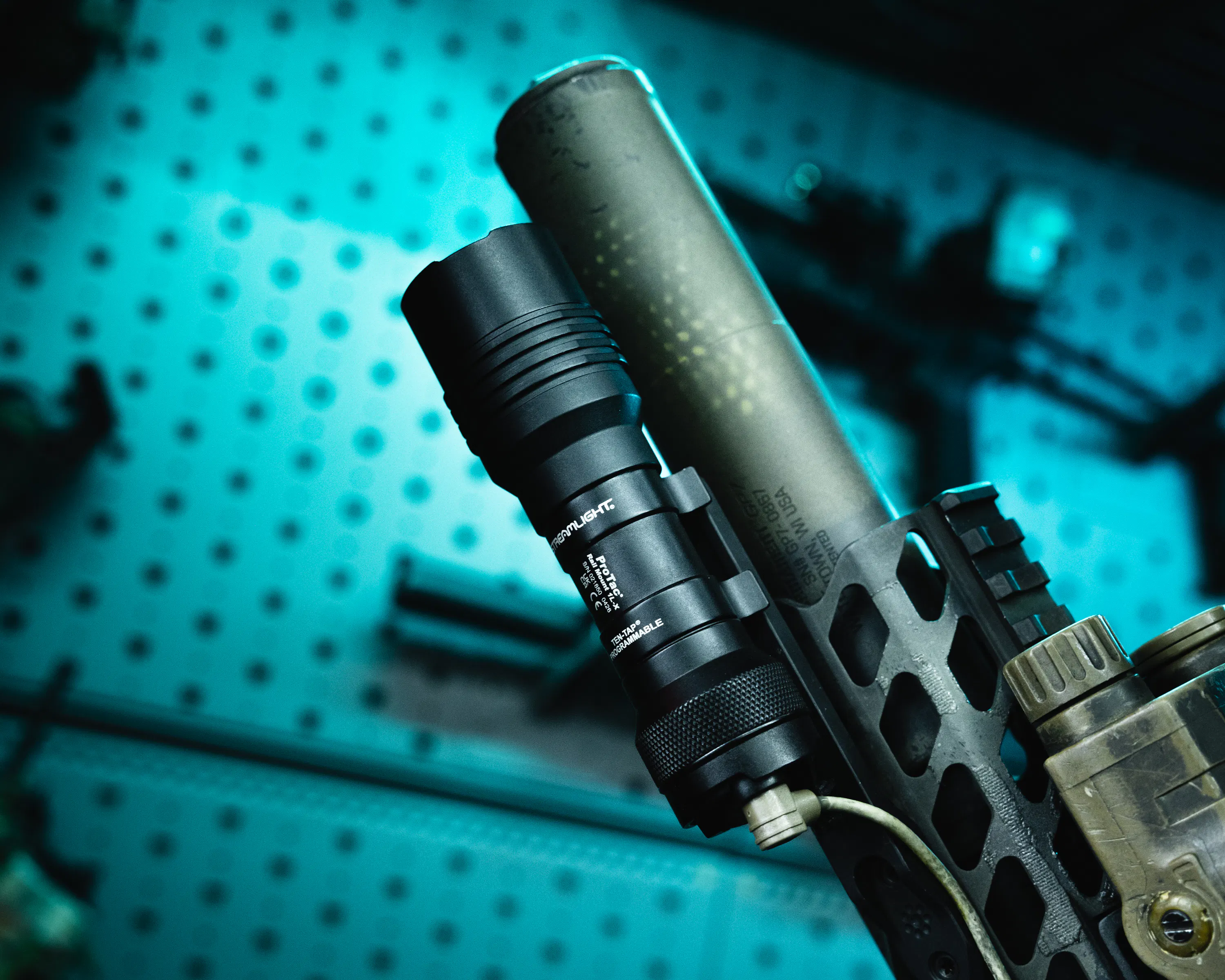

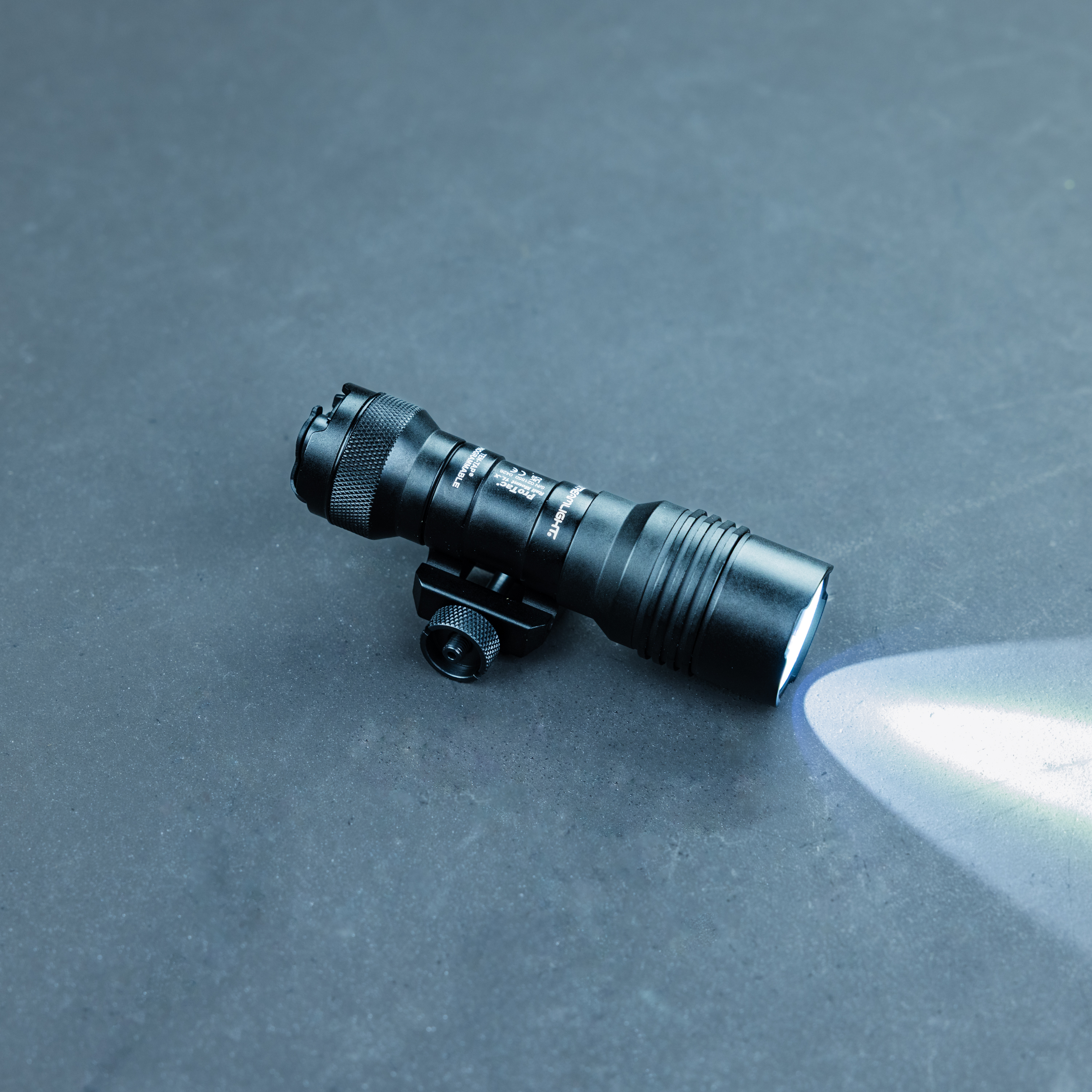

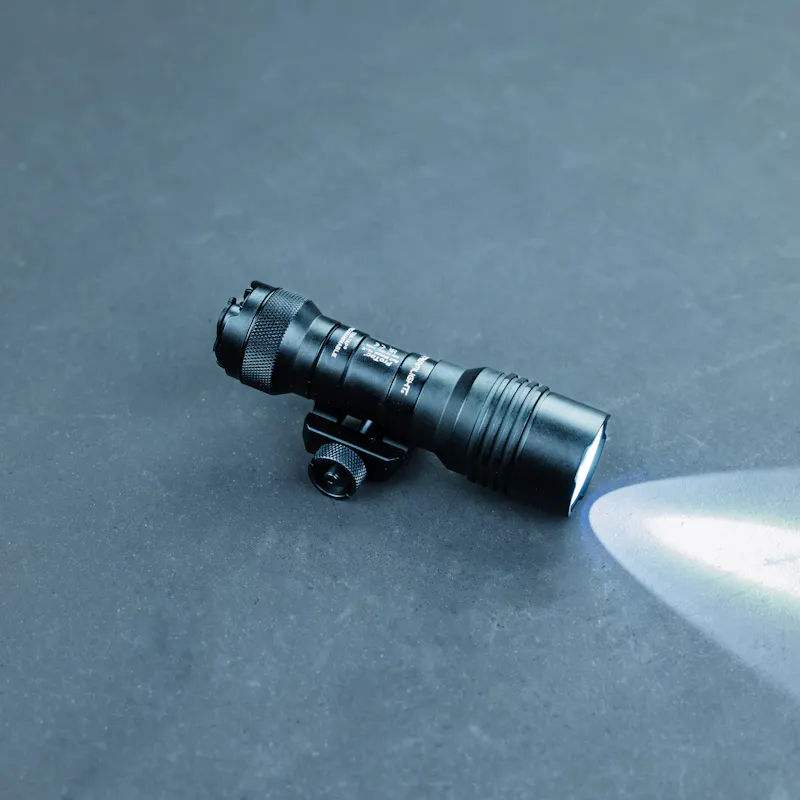

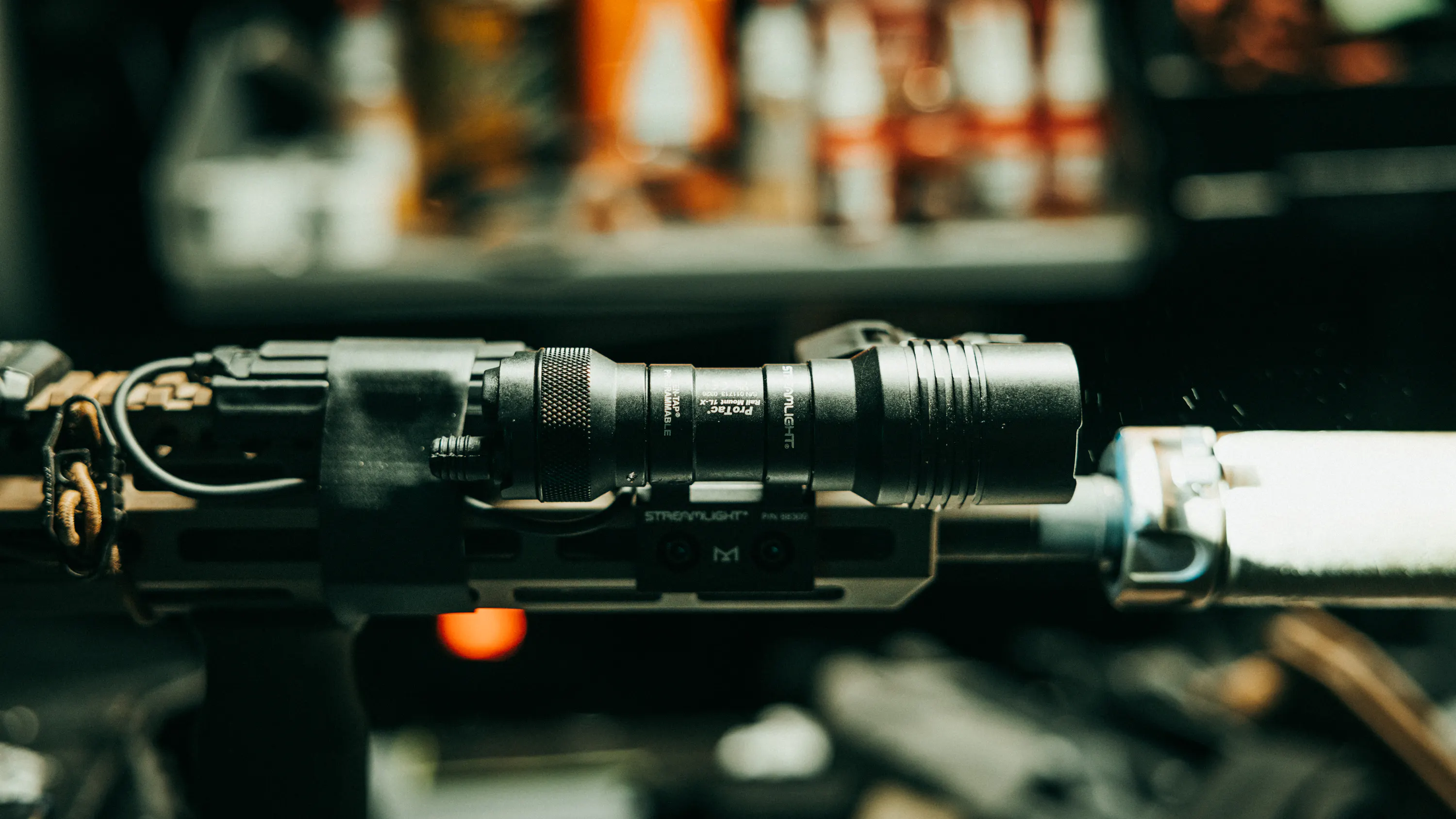

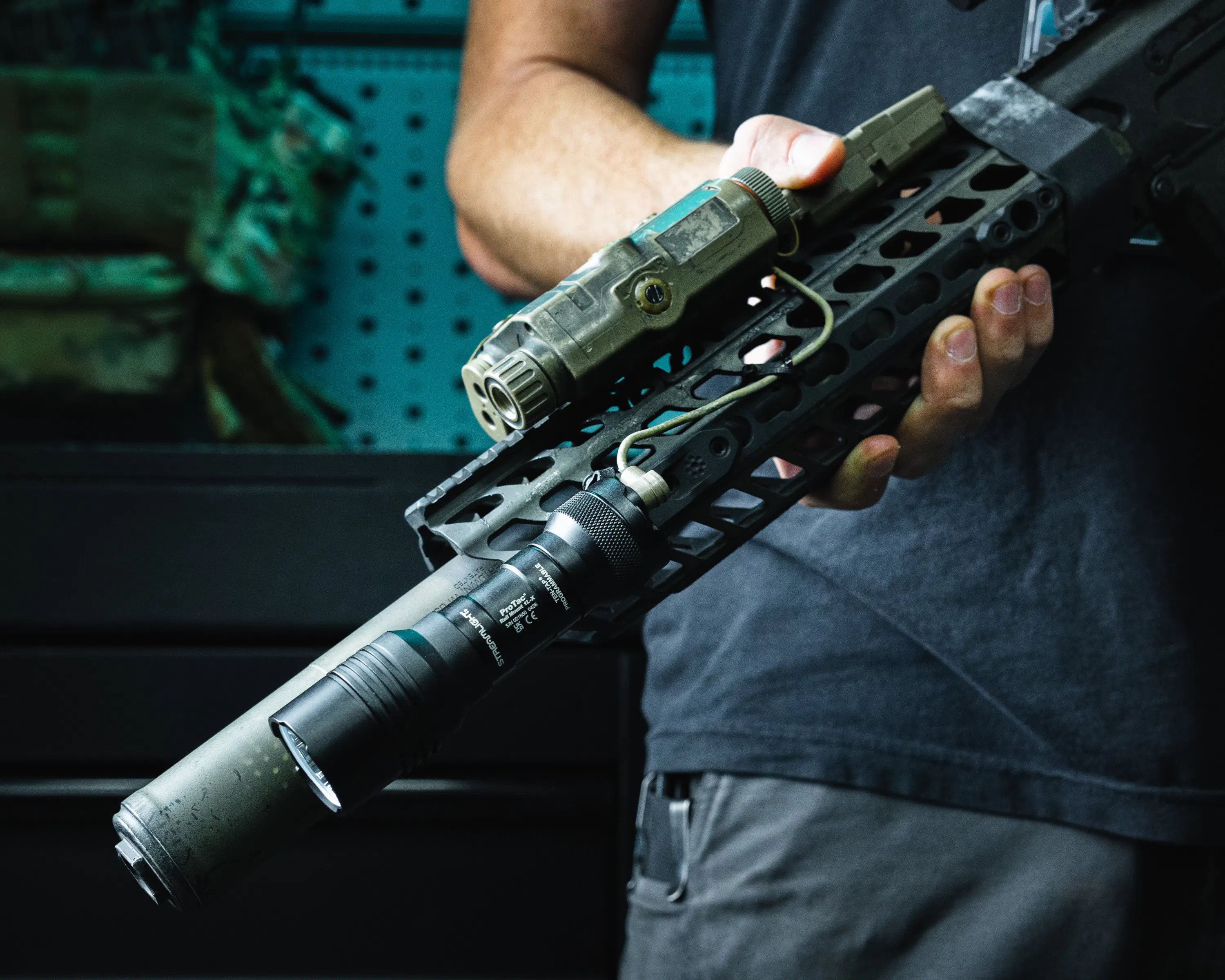

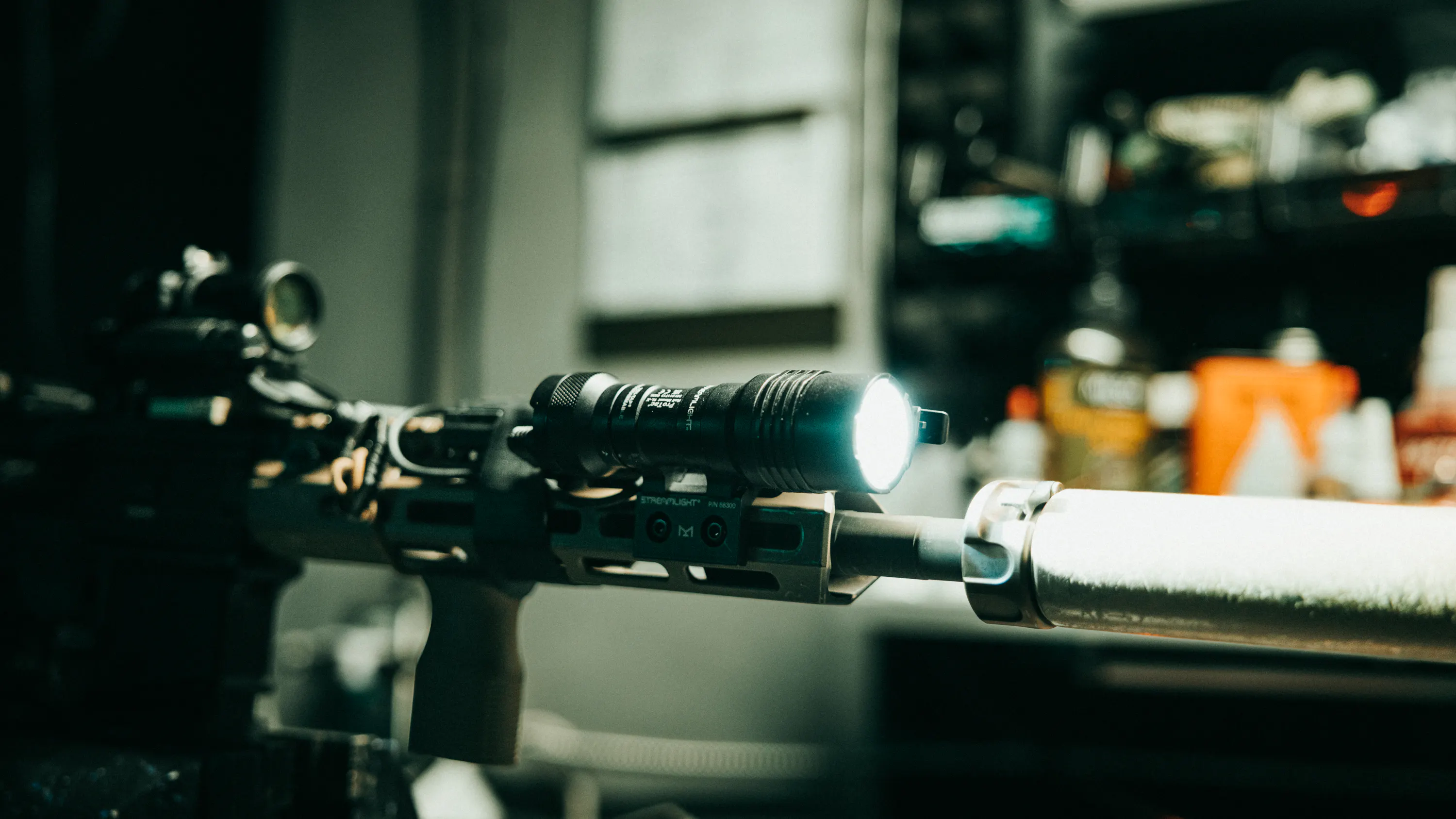

The Streamlight Rail Mount 1L-X is a compact version of the Rail Mount HL-X, utilizing a single SL-B9 battery instead of the larger 18650. Even with a smaller battery, the 1L-X still offers 850 lumens and 30k candela on high, with 30 minutes of continuous operation.

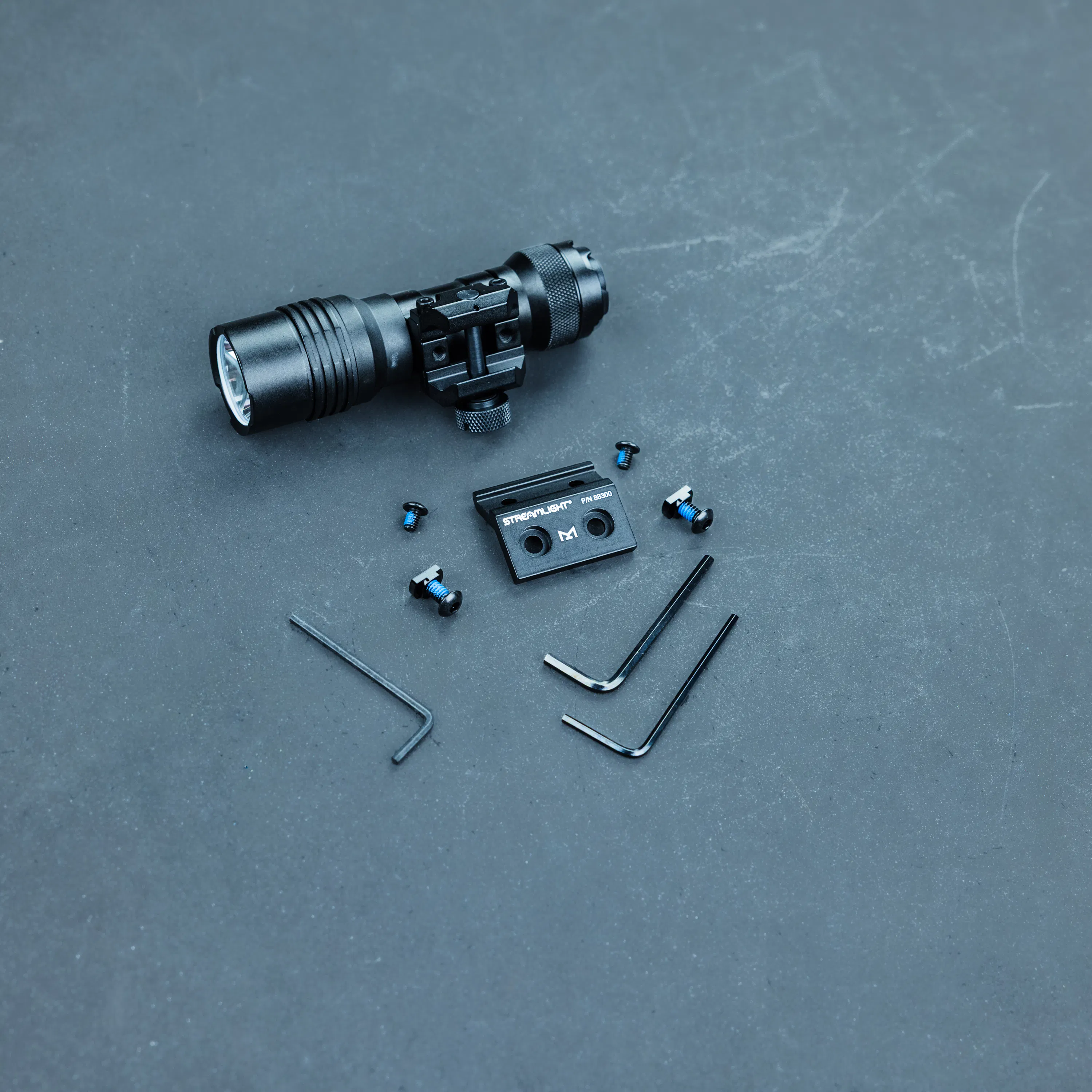

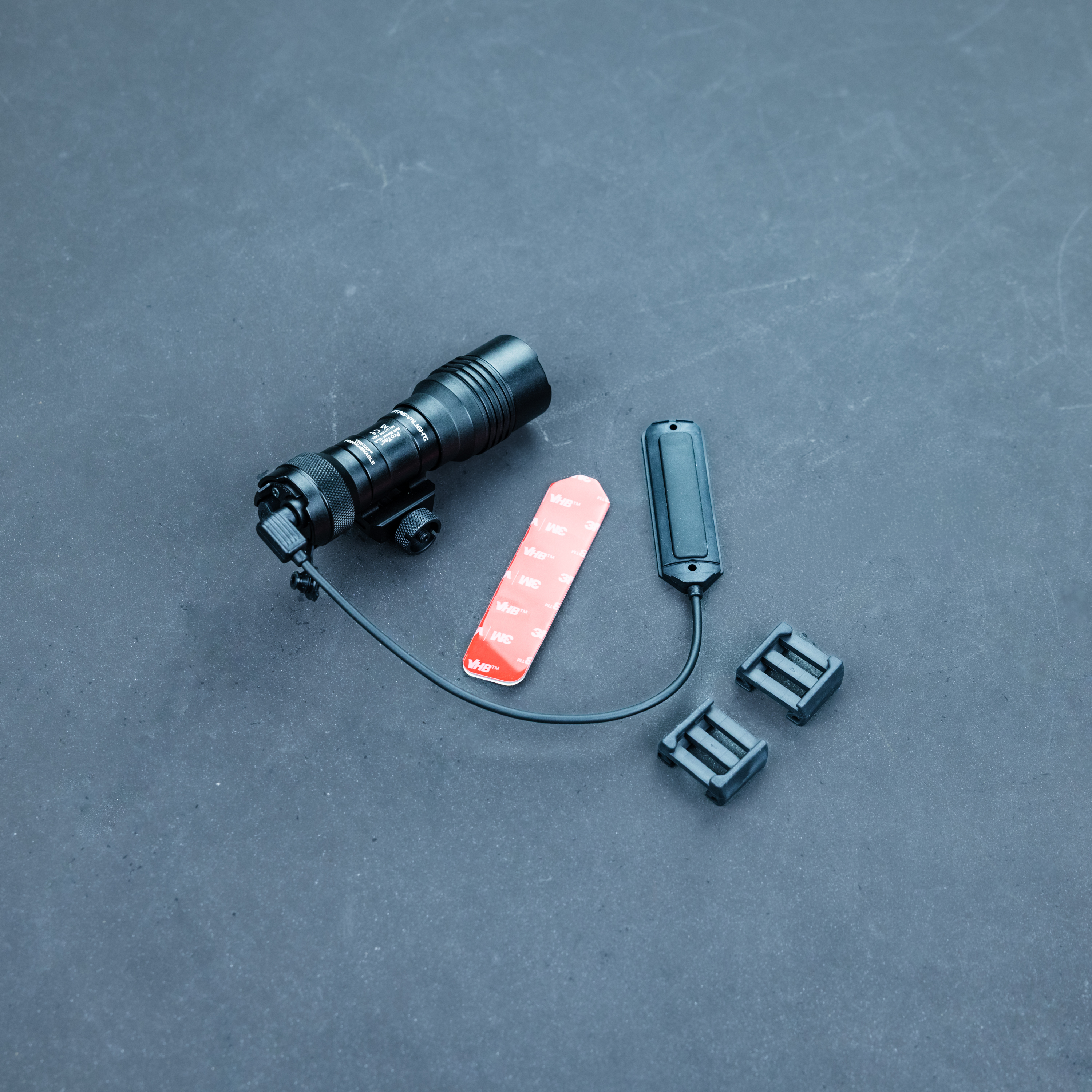

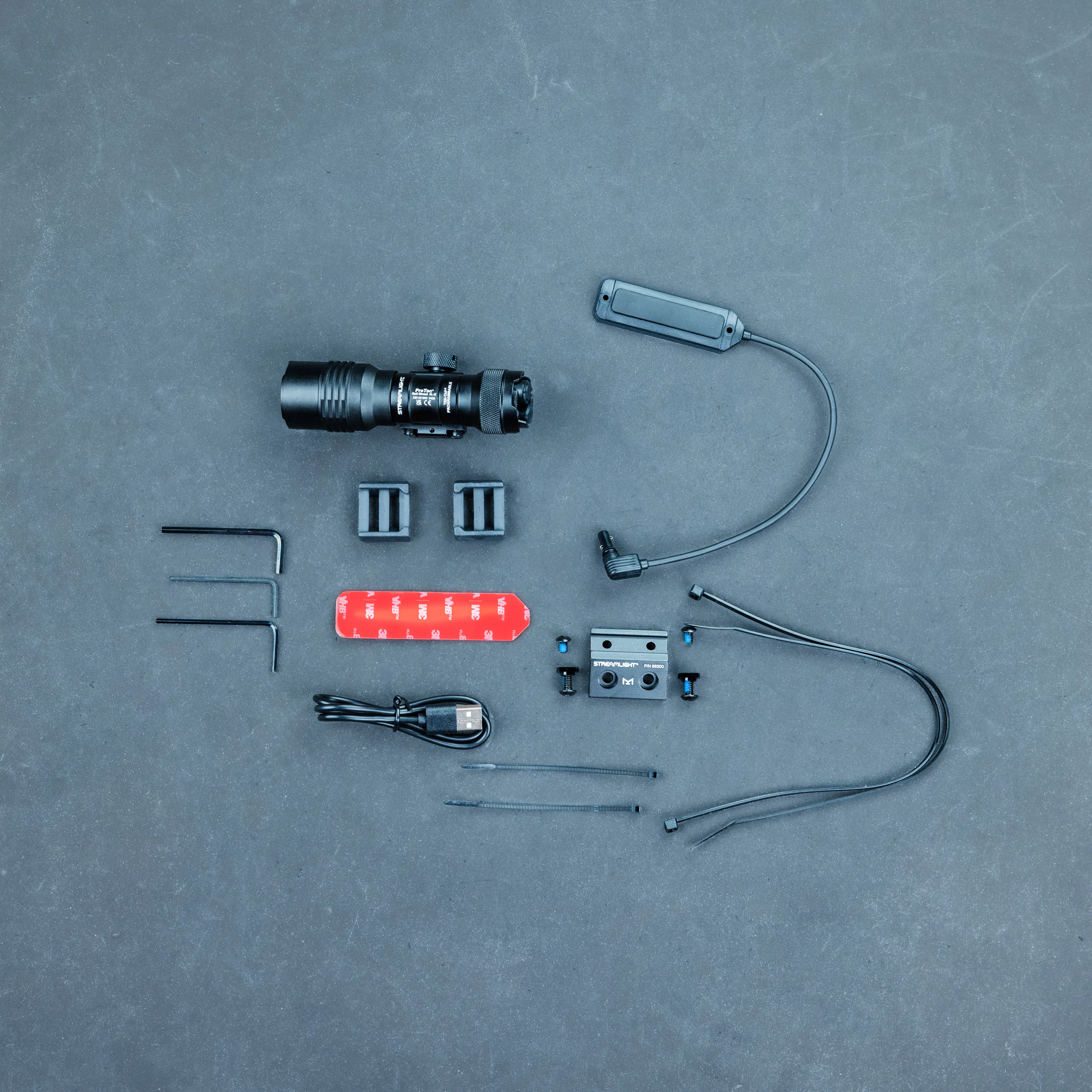

What's Included
- 1x Streamlight Protac Rail Mount 1L-X Pro
- 1x Tape Switch
- 1x Offset M-LOK Mount
- 1x Dual Sided Adhesive
- 1x Picatinny Tape Switch Mounts
- 1x SL-B9 Rechargeable Battery
- 4x Zip Ties
Specs
Features
- Jack-Cap tailcap offers switch redundancy with push-button operation or remote pressure switch operation
- IP67-rated with standard push-button switch installed (waterproof to 1m for 30 minutes); IP54-rated with remote pressure switch installed (water-resistant)
- Multi-Fuel capable, using one SL-B9 Rechargeable Battery (included) or 1x CR123A
- TEN-TAP® programming allows for the selection of three different operating programs, High/Strobe, High Only, and Low/High
- Utilizes existing SureFire Scout footprint mounts
Technical Specs
| SL-B9 | CR123A | |||
|---|---|---|---|---|
| High | Low | High | Low | |
| Output (Lumens) | 850 | 100 | 500 | 100 |
| Run Time (Hours) | 0.5 | 4.5 | 1.75 | 6.5 |
| Distance (Meters) | 346 | 117 | 268 | 117 |
| Intensity (Candela) | 30,000 | 3,400 | 18,000 | 3,400 |
| Strobe Run Time (Hours) | 1.25 | 2.5 | ||
| Weight | 5.6 oz (159g) | 5.5 oz (156g) | ||
| Dimensions (L x W x H) | 4.64" x 1.37" x 1.72" | |||
Manuals/Documents
Shipping Restrictions
- Cannot be shipped outside the US.
