Nocpix Micro 2 Thermal
Overview

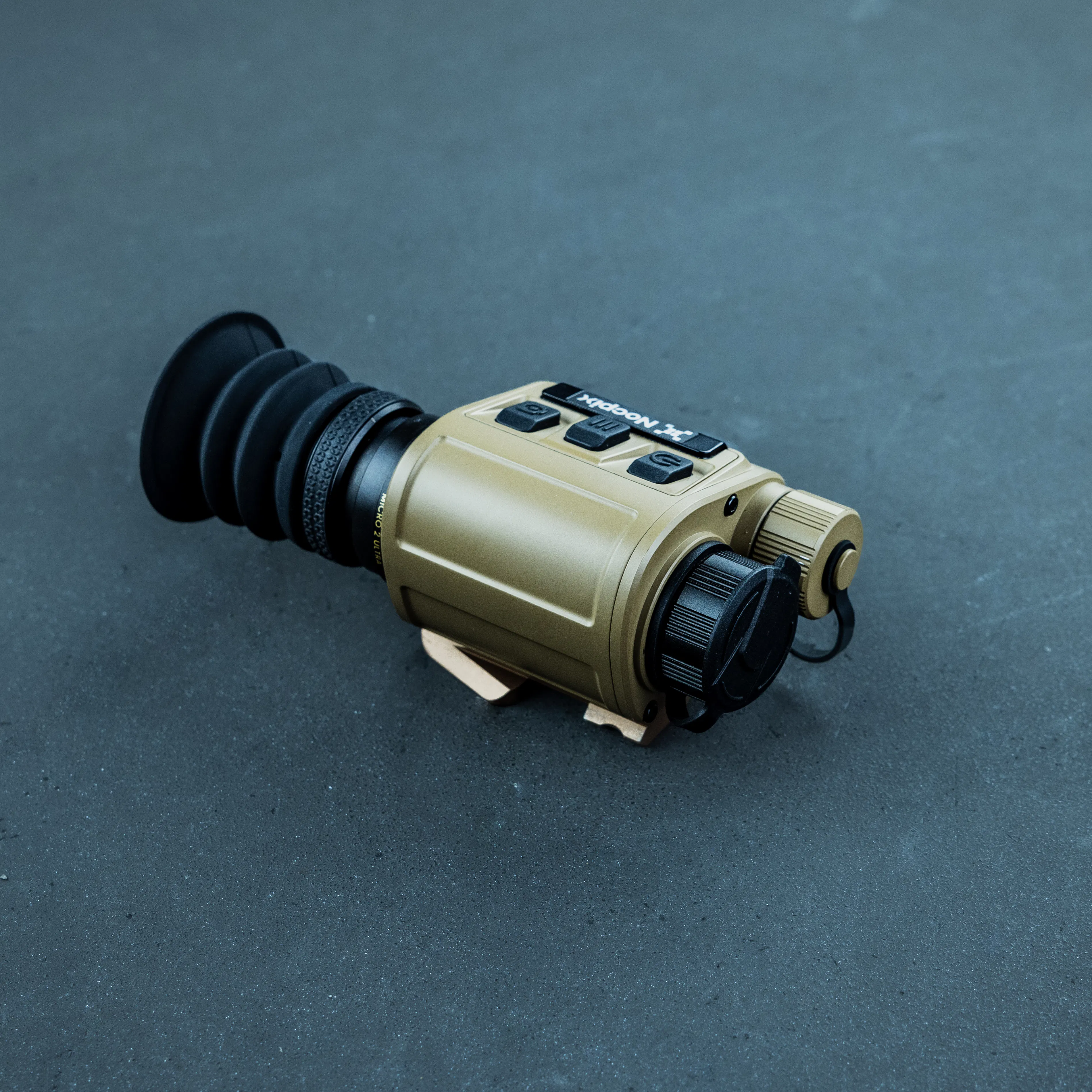

The Nocpix Micro 2 is a thermal monocular built on the latest Nocpix Gen-II sensors, offering 60hz refresh rates, and a large 2560x2560 AMOLED display. These new sensors also offer increased resolution, with the H25 featuring a 640x512 sensor and the Ultra boasting an impressive 1280x960 sensor.

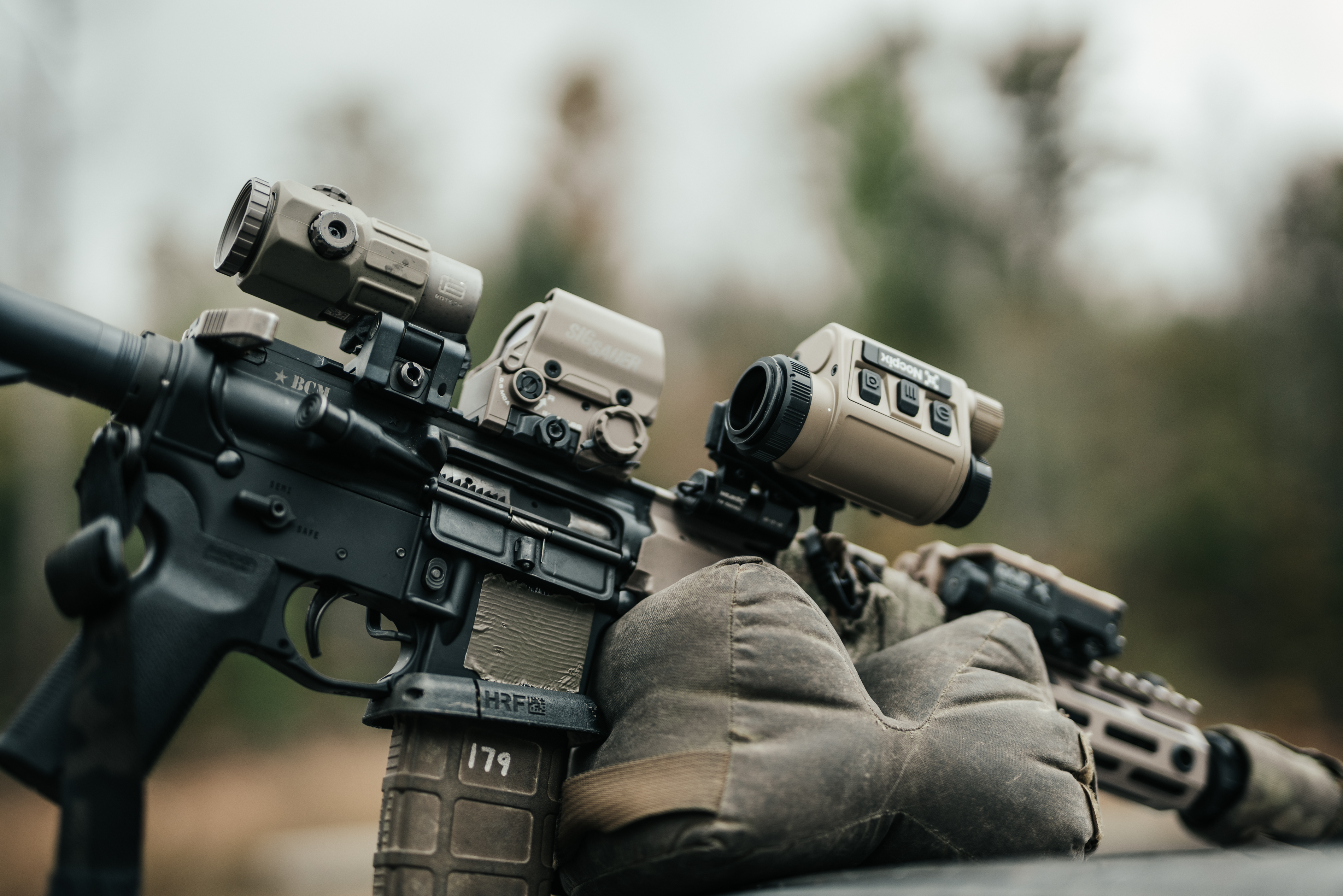

The Micro 2 operates in standalone/handheld, helmet, and clip-on modes, includes recoil-activated video recording, picture-in-picture, Wi-Fi 6 app connectivity, and Bluetooth remote control. it has an IP67-rated magnesium-alloy housing, runs on replaceable 18650 batteries, and stores images and video on 64 GB of internal storage.
Both of these units are direct successors to the IrayUSA RICO MICRO RH25v2, with the H25 being more of a direct replacement that features several upgrades, and the Ultra being the premium option that offers the best hardware that Nocpix currently has to offer.
- Nocpix Gen-II thermal sensor
- Standalone, helmet, and clip-on modes
- High-resolution AMOLED display
- Recoil-activated video recording
- Wi-Fi 6 and app connectivity
- Replaceable 18650 batteries
- IP67-rated magnesium-alloy housing
Wondering how the Micro 2 H25 and Ultra stack up to the iRay RH25v2? Check out our iRayUSA RH25v2 Vs. Nocpix Micro 2 Thermal article.
What's Included
- 1x Nocpix Micro 2 (H25 or Ultra)
- 1x 25mm Objective Lens Cap
- 1xRemovable Eyeguard
- 1x OEM Rifle Mount (1.93 inch)
- 2x M4×8mm Flat Head Screws
- 2x M4×6mm Socket Head Screws
- 1x 2.5mm and 3mm Hex Keys
- 1x Objective Lens Lever
- 1x Bluetooth Remote
- 2x 18650 Batteries
- 1x 18650 Battery Charger
- 1x USB-C Cable
- 1x Hard Case
- 1x Lens Cloth
- 1x User Manual
Specs
Features
- High-performance 12 µm Nocpix Gen-II sensor
- ≤15 mK thermal sensitivity
- 60Hz image refresh rate
- Large 1.03-inch 2560×2560 high-resolution AMOLED display
- 26mm eyepiece with extended eye relief
- 1,375 yard detection range

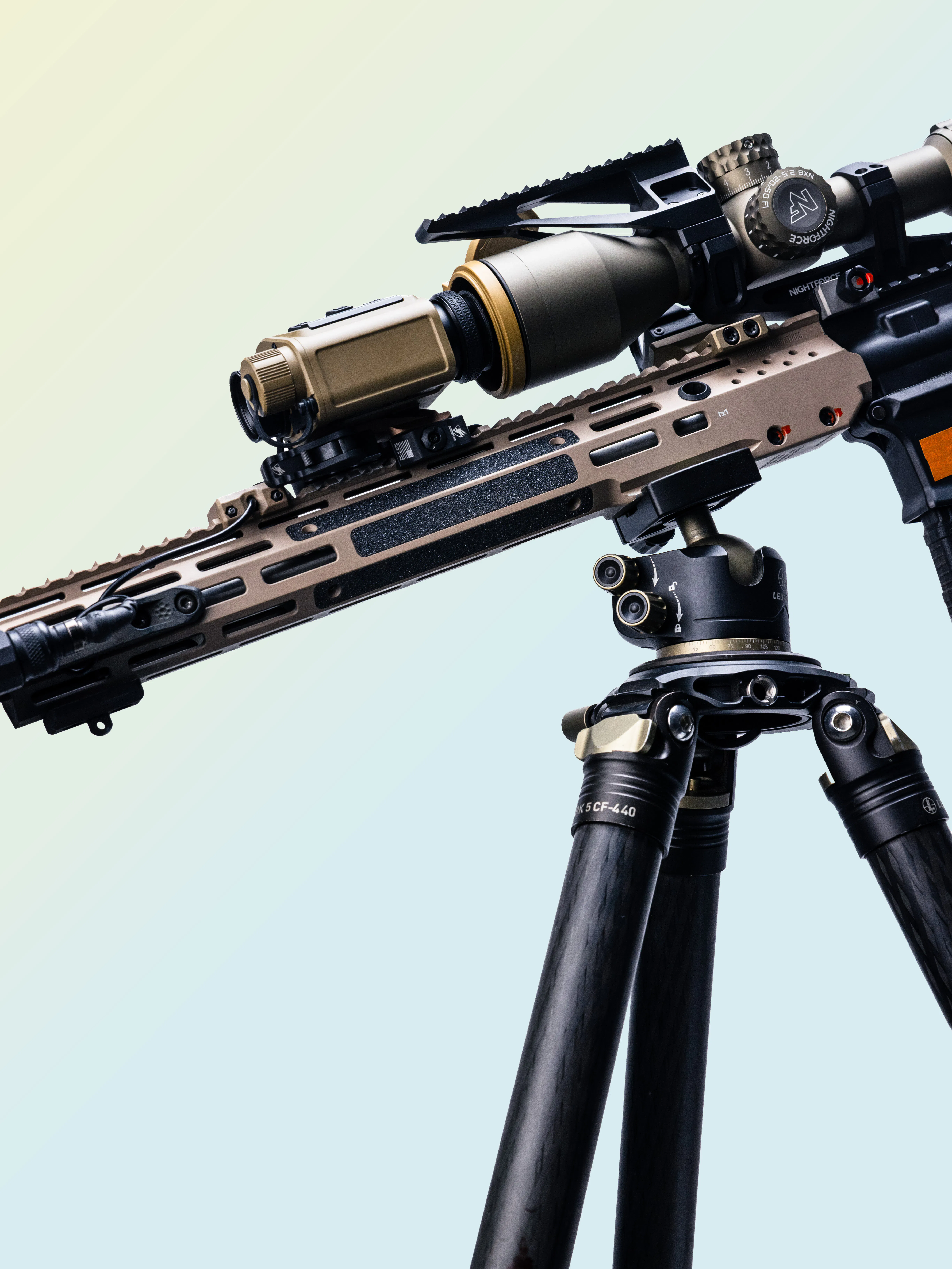

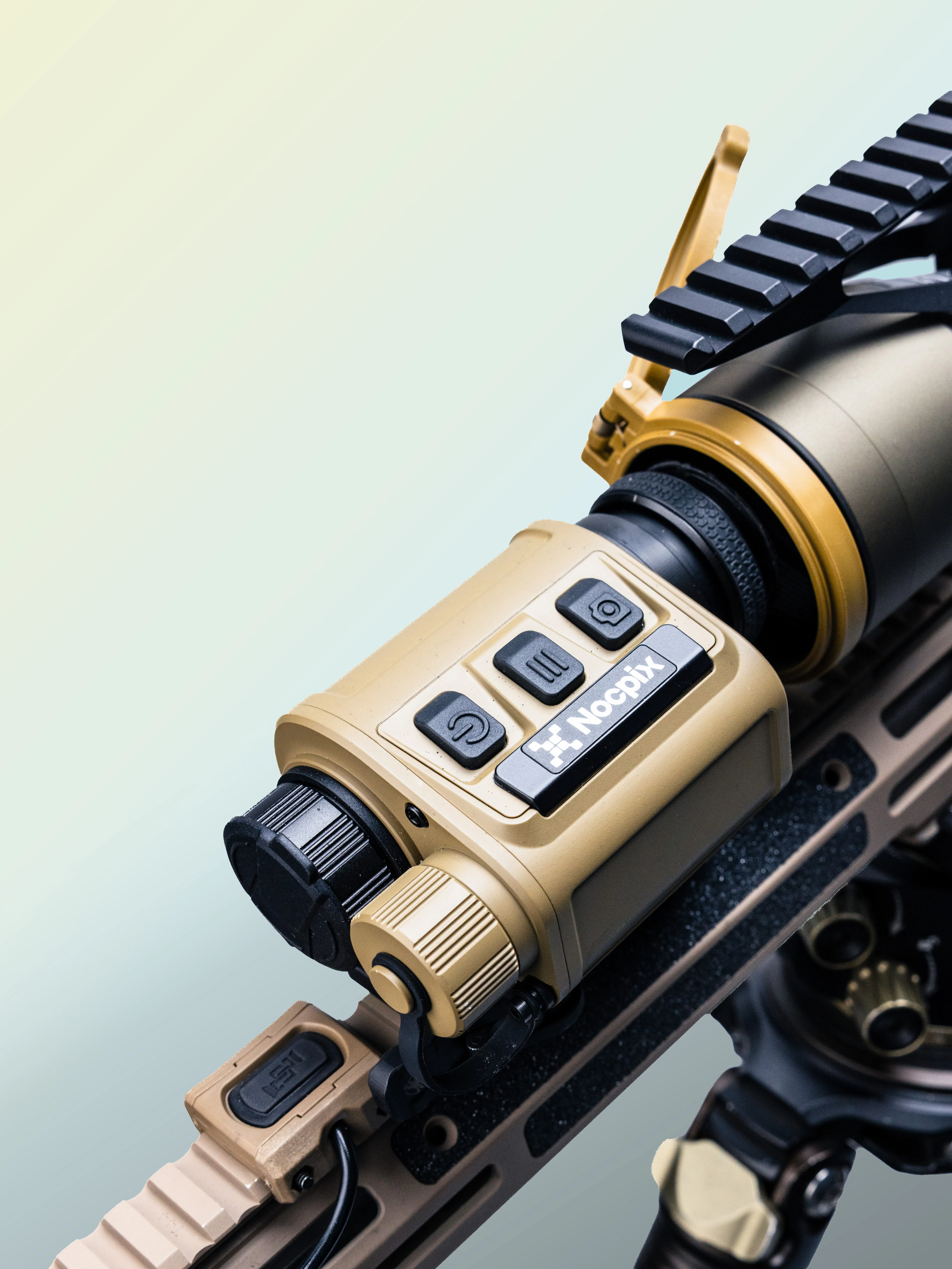

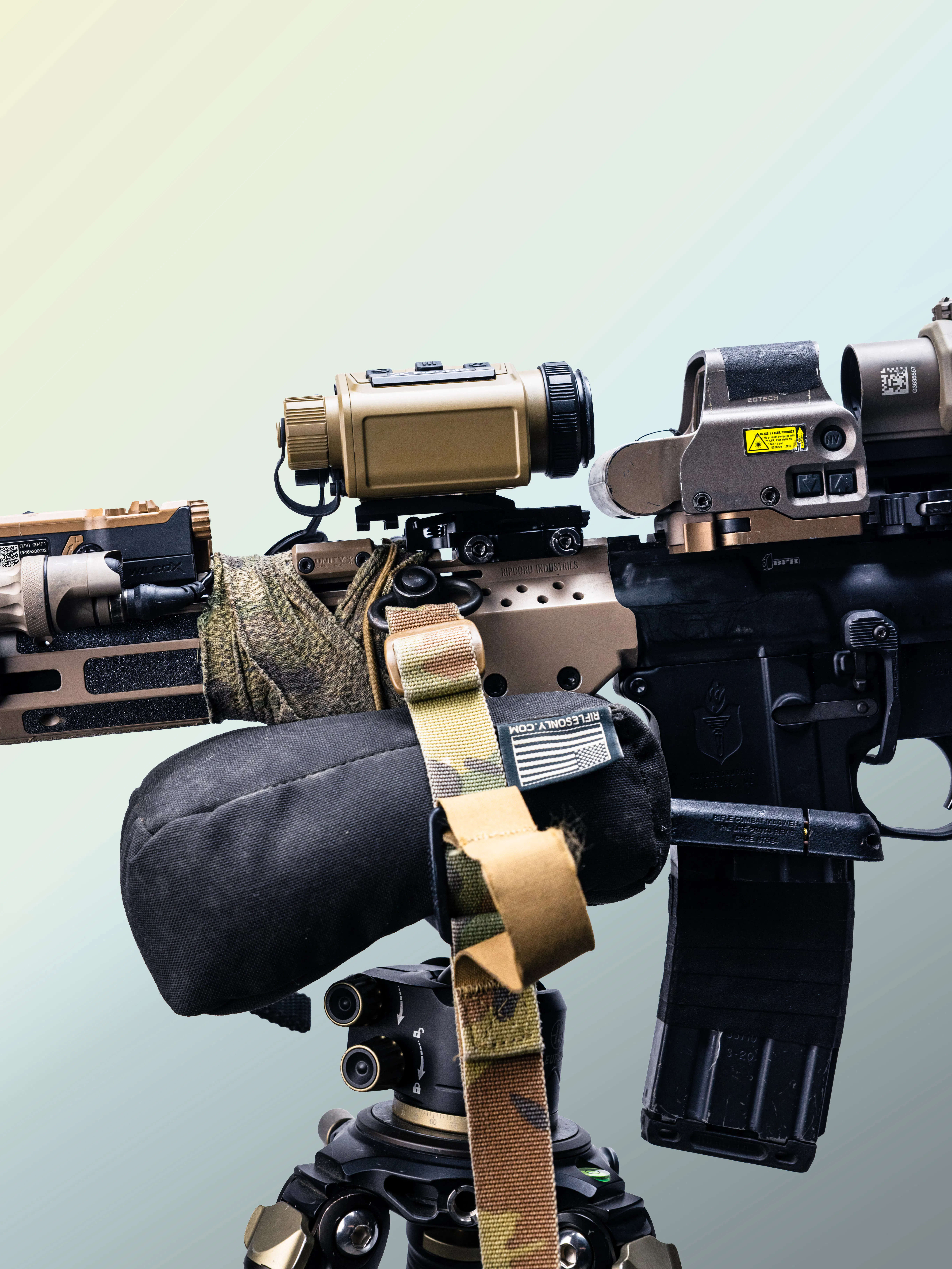

- Three operating modes: standalone/handheld, helmet, and clip-on
- Lightweight magnesium-alloy housing
- Recoil-activated video recording
- Supports up to 10× day scope magnification in clip-on mode
- Multiple power-saving settings, including Auto Power Saving, timed standby, and Flip Standby in helmet mode
- Replaceable 18650 batteries
- Dual-Link control for paired helmet-mounted devices
- Full, highlight, and outline night vision display modes
- 64 GB internal storage supports up to 1600 images and 40 hours of video
- Built-in Wi-Fi 6 module
- Mobile device App compatible
- Multiple clip-on calibration profiles, zeroing profiles, zero distances, and reticle styles and color options
- Bluetooth remote control support
- Picture in Picture (PIP) function
- Defective pixel correction
- Warm and cool image-hue options
| Spec | MICRO 2 H25 | MICRO 2 ULTRA |
| Resolution | 640×512 | 1280×960 |
| Pixel Size | 12 µm | 12 µm |
| Frame Rate | 60 Hz | 60 Hz |
| Image Processing | Reality+ 2.0 | Reality+ 2.0 |
| Sensor Sensitivity | ≤15 mK | ≤15 mK |
| Core | Nocpix Generation II 640 | Nocpix Generation II 1280 |
| Objective Lens | 25 mm f/1.0 | 25 mm f/1.0 |
| Magnification | 1.5× | 1.1× |
| Digital Zoom | 4× | 8× |
| Field of View | 17.5° × 13.1° | 34.2° × 25.9° |
| Detection Range | 1,375 Yards | 1,375 Yards |
| Display Type | 1.03-inch Large-format AMOLED | 1.03-inch Large-format AMOLED |
| Display Resolution | 2560×2560 | 2560×2560 |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian | White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian |
| Reticle Types | 8 (7 Static, 1 DIY) | 8 (7 Static, 1 DIY) |
| Reticle Colors | Black, White, Red, Green, Yellow, Blue | Black, White, Red, Green, Yellow, Blue |
| Mounting System | MUM Rail, Picatinny MIL-STD-1913 Rail, PICTAIL (Optional/Not Included) | MUM Rail, Picatinny MIL-STD-1913 Rail, PICTAIL (Optional/Not Included) |
| Operating Modes | Standalone, Handheld, Helmet, Clip-on | Standalone, Handheld, Helmet, Clip-on |
| P.I.P | Yes | Yes |
| Rangefinder | No | No |
| Eye Relief | 45 mm | 45 mm |
| Diopter Range | -4 to +2 | -4 to +2 |
| Onboard Recording | Video, Recoil-Activated Video, and Image | Video, Recoil-Activated Video, and Image |
| Onboard Storage | 64 GB | 64 GB |
| Wireless Connectivity | Video and Image via App | Video and Image via App |
| Data Connector | USB-C | USB-C |
| Power Supply | USB-C External, 18650 Batteries ×2 | USB-C External, 18650 Batteries ×2 |
| Max. Use Time: Standard Use / Auto Power Saving | 6.5+ Hrs / 9+ Hrs (Each Battery) | 4.5+ Hrs / 6+ Hrs (Each Battery) |
| Start Up Time | ≤5 Seconds, Instant from Standby | ≤5 Seconds, Instant from Standby |
| Size | 3.98" × 2.52" × 2.01" | 4.45" × 2.52" × 2.05" |
| Weight | 11.2 Oz | 12.9 Oz |
| Housing Color | Cerakote TAN H-235 | Cerakote TAN H-235 |
| Warranty | 5 Years | 5 Years |
| Housing Material | Magnesium Alloy | Magnesium Alloy |
| Ingress Protection | IP67 | IP67 |
| Operation Temp. | -4°F ~ 122°F | -4°F ~ 122°F |
| Max. Recoil | 1200 g/s² (300 Win./7mm Mag) | 1200 g/s² (300 Win./7mm Mag) |
Made in China.
