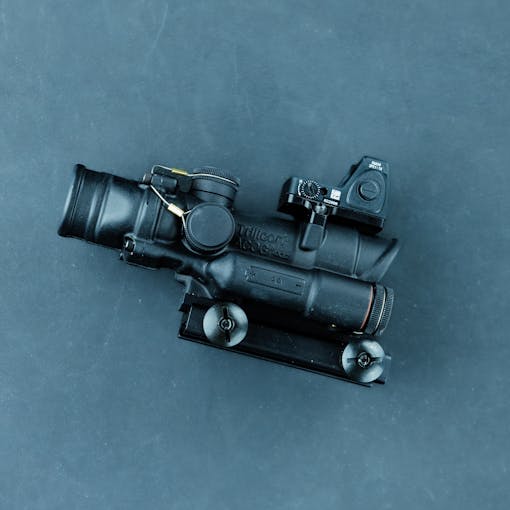

Trijicon ACOG TA02 LED and RM06 Combo
Video | What’s Included | Specs | Pictures | Restrictions | Related Info

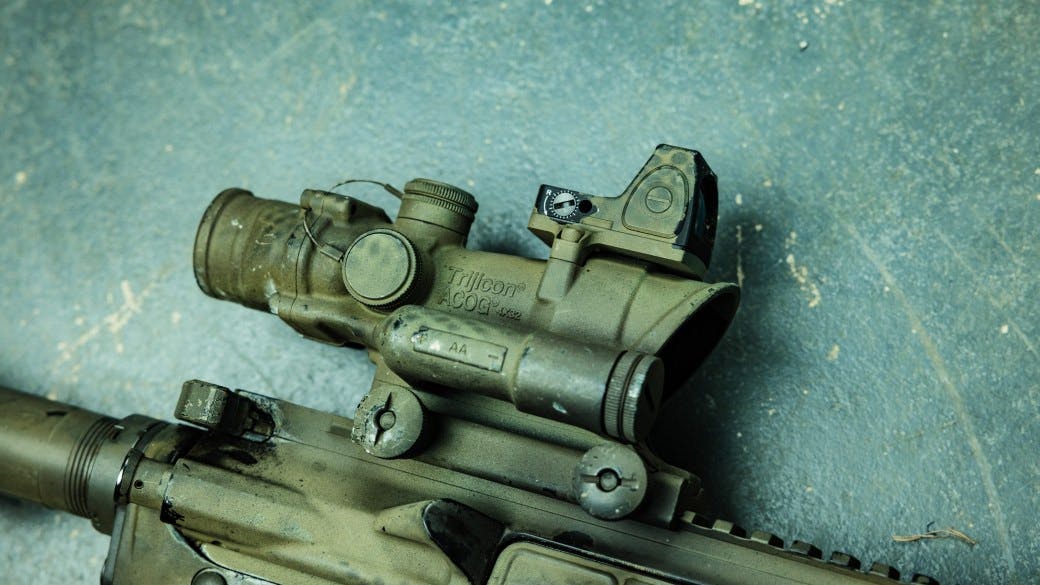

Ideal for short to medium-range shooting and passive aiming under night vision, this is one of our favorite optic combos for our 5.56 guns. This combo comes ready to go right out of the box; just insert the included battery into the ACOG, attach it to your rifle, and get to work. This optic combo is also one of the most durable optic setups we’ve found, as each product can take serious abuse with no loss of performance.
OVERVIEW VIDEO

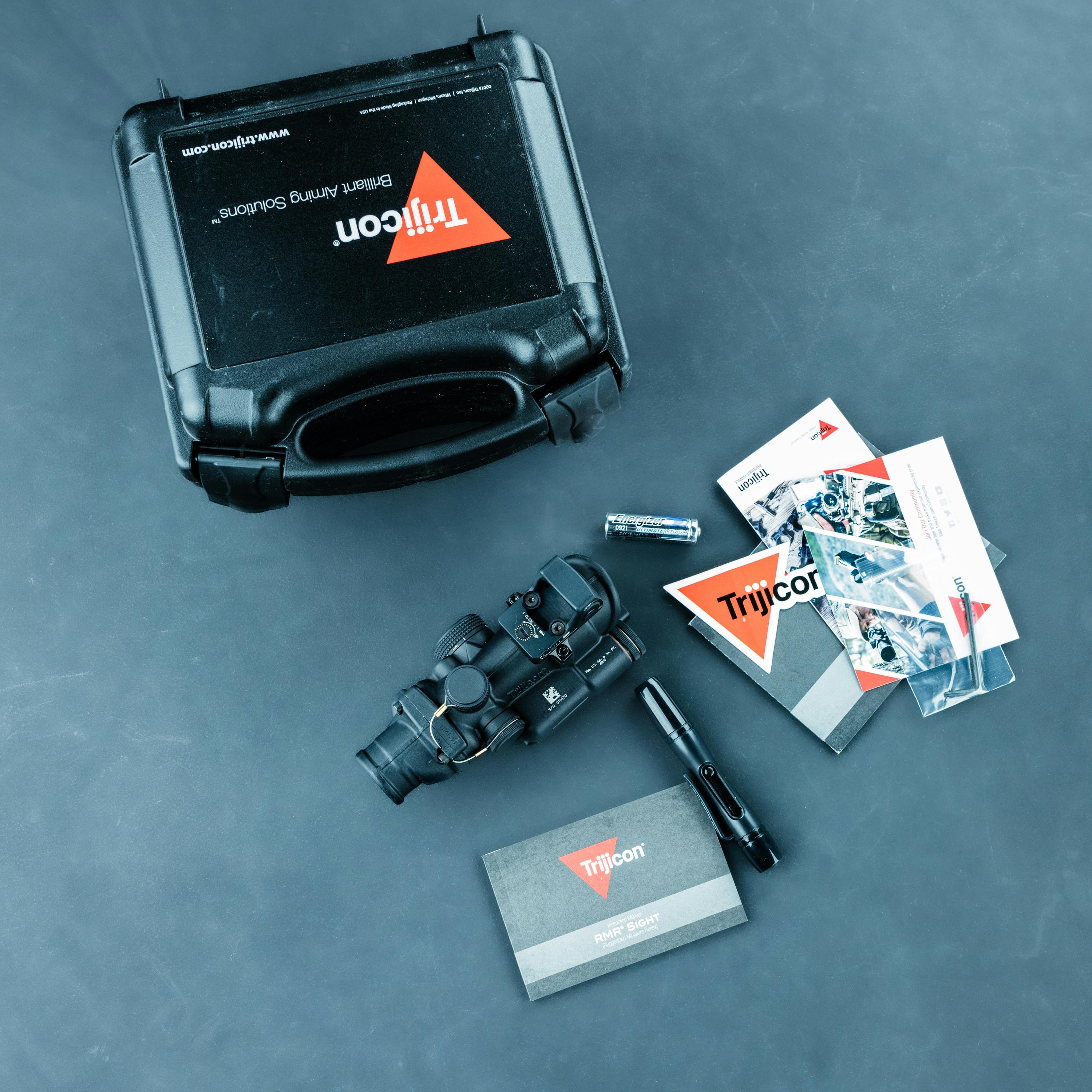

WHAT’S INCLUDED
| One each: | Trijicon Part Number |
| Trijicon ACOG 4×32 LED Riflescope- .223 / 5.56 BDC | TA02 |
| 3.25 MOA RMR Type 2 LED (with CR2032 battery installed) | RM06 |
| ACOG® Flattop Mount for MIL-STD Rails | TA51 |
| RMR Front Mount | RM66 |
| Lanyard assembly for adjuster caps | TA71E |
| Lanyard assembly for battery cap | |
| AA lithium battery | |
| Torx wrench for RMR screws | |
| Lenspen lens cleaner | TA56 |
| ACOG manual; RMR manual; Warranty card | |
| Trijicon logo sticker | PR15 |
We include an 8.5″ x 11″ rifle zero target with every optic setup. We recommend a 100-meter zero for the ACOG and a 50/200 for the RMR on most 5.56 rifles.
How to Zero in 2 Minutes – Video – T.REX ARMS
SPECS
FEATURES
- Outstanding clarity: The quality of the glass and multi-coated lenses maximize light-gathering capabilities and a clear field of view with zero distortion
- “Both eyes open” shooting using Trijicon’s Bindon Aiming Concept (BAC) allows for improved situational awareness
- ACOG body has been optimized by moving the RMR Type 2 mount forward to maximize RMR Type 2 performance
- Six adjustable brightness levels with an “off” between each setting
- Shock resistant: Proven to withstand recoil from a .22LR to a .50BMG and everything in between
- Performs in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging
- Easily passes U.S. Military drop test requirements
- Minimal moving parts, creating a nearly indestructible sighting system
- Exceptional waterproof performance that exceeds military standards
- LED ACOG can run 12,000 continuous hours (on setting #4)
- Forged from rugged 7075-T6 aircraft-aluminum
- Night vision device compatible
- Compatible with most other 4×32 ACOG accessories available
Made in the USA.
View the Spec Sheet HERE and the crosshair reticle measurements HERE.
RMR RDS FEATURES
- Ruggedized battery contacts and electronics ensure performance and survivability in harsh environments
- Suitable for military, law enforcement, concealed carry self-defense, target shooting, and hunting applications
- Multiple primary applications include rifle, pistol, shotgun, and carbine, or use as a secondary sight with a magnified optic
- True color, multi-coated lens creates a wide-band light transmission for minimal change in target area color
- Adjustable LED brightness, manual/automatic modes
- Automatically adjusts aiming dot to ambient lighting conditions after 16.5 hours
- Compatible with night vision devices
- Easily adjustable windage/elevation. No need for special tools. 1 MOA per click
- Waterproof to 20 meters (66 ft.)
- Electronics are warrantied for 5 years from the date of original manufacture
Made in the USA.
ACOG Chevron BDC reticle, when used on 10.5-16″ 5.56 rifles
Centerline measurements:
- ACOG centerline above rail is 1.6″
- RMR centerline above rail is 3″
ACOG SPECIFICATIONS
| Length x Width x Height | 6 in x 2.9 in x 2.5 in (152.4mm x 73.66mm x 63.5mm) |
| Weight | 15.1 oz. (428.08g) |
| Magnification | 4x |
| Objective Size | 32mm |
| Reticle Pattern | Crosshair |
| Day Reticle Color | Red |
| Night Reticle Color | Red |
| Caliber | 0.223 |
| Bullet Drop Compensating (BDC) | Yes |
| Bindon Aiming Concept (BAC) | Yes |
| Adjustment | 2 clicks per inch @100 yards |
| Illumination Source | LED |
| Power Source | AA Lithium or Alkaline Battery |
| Battery Life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21° C (70° F) |
| Eye Relief | 1.5 in. (38.1mm) |
| Exit Pupil | 0.32 in. (8.13mm) |
| Field of View (degrees) | 7° |
| Field of View (feet) | 36.8 ft. @100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminum |
| Finish | Matte Black |
RMR RDS SPECIFICATIONS
| Length x Width x Height | 1.8 in x 1.1 in x 1 in (45.72mm x 27.94mm x 25.4mm) |
| Weight | 1.2 oz. (34.02g) |
| Magnification | 1x |
| Reticle Pattern | 3.25 MOA Dot |
| Day Reticle Color | Red |
| Night Reticle Color | Red |
| Bullet Drop Compensating (BDC) | No |
| Bindon Aiming Concept (BAC) | No |
| Illumination Source | LED |
| Power Source | 1 CR2032 Lithium Battery |
| Battery Life | Over 4 years of continuous use (when used at 70°F (21 °C)) at setting 4 of 8. *Extreme temperatures (high or low) will affect lithium battery performance. |
| Adjustment | 1 MOA Per Click |
| Mount | RMR Front Mount (RM66) |
| Housing Material | Forged Aluminum |
| Finish | Matte Black |

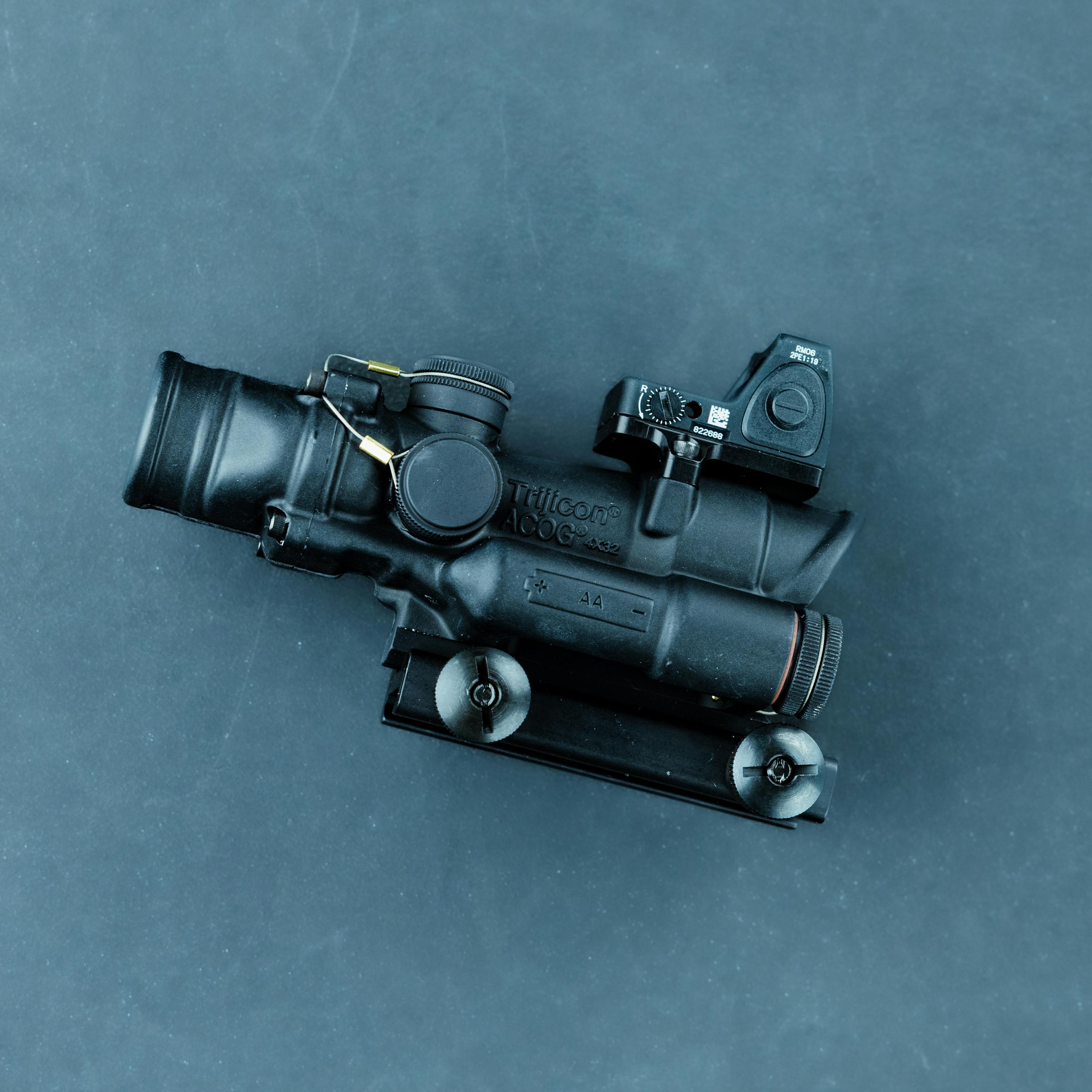

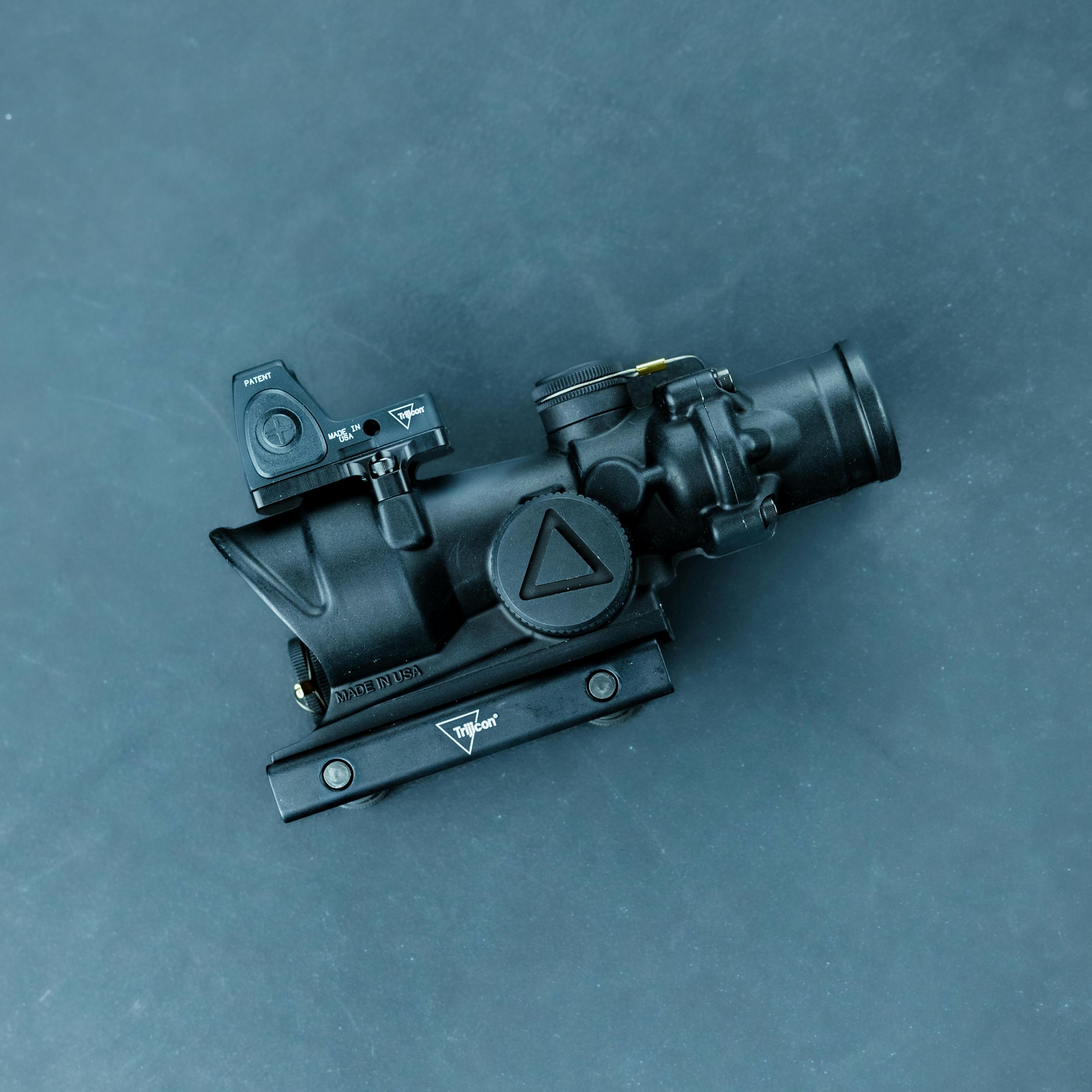

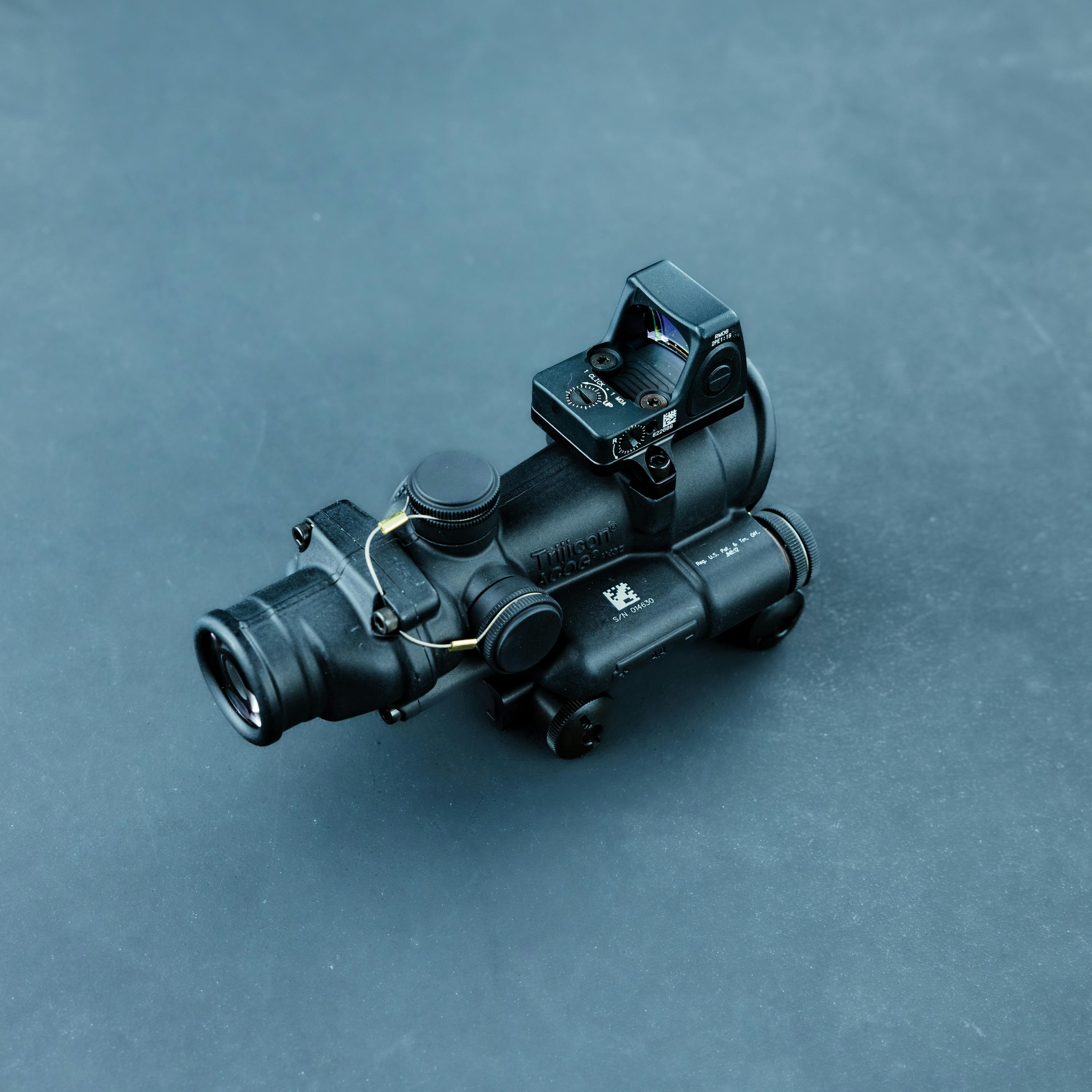

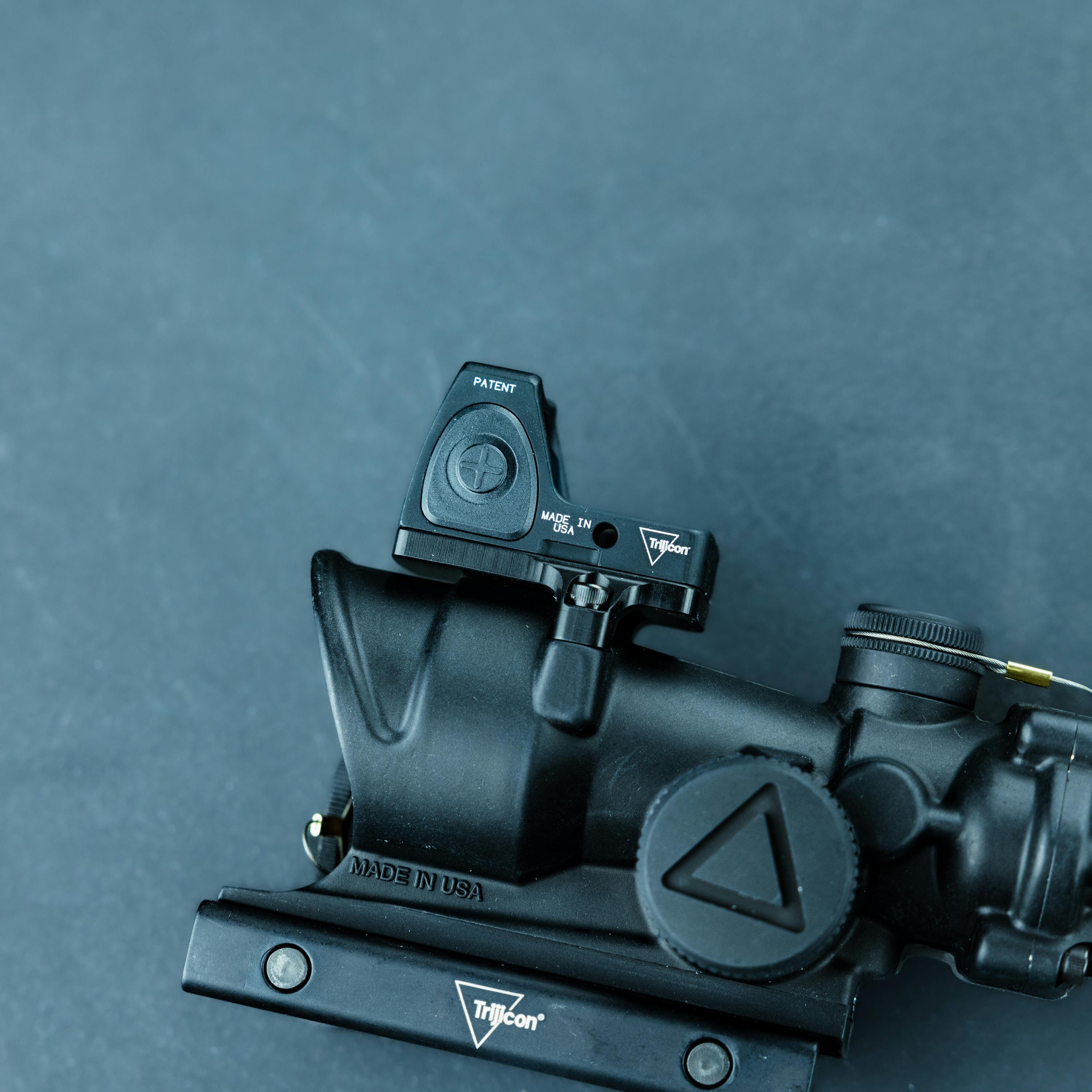

PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the US.
