Nightforce NX8 1-8x24mm F1 Capped
Video | What’s Included | Specs | Pictures | Restrictions

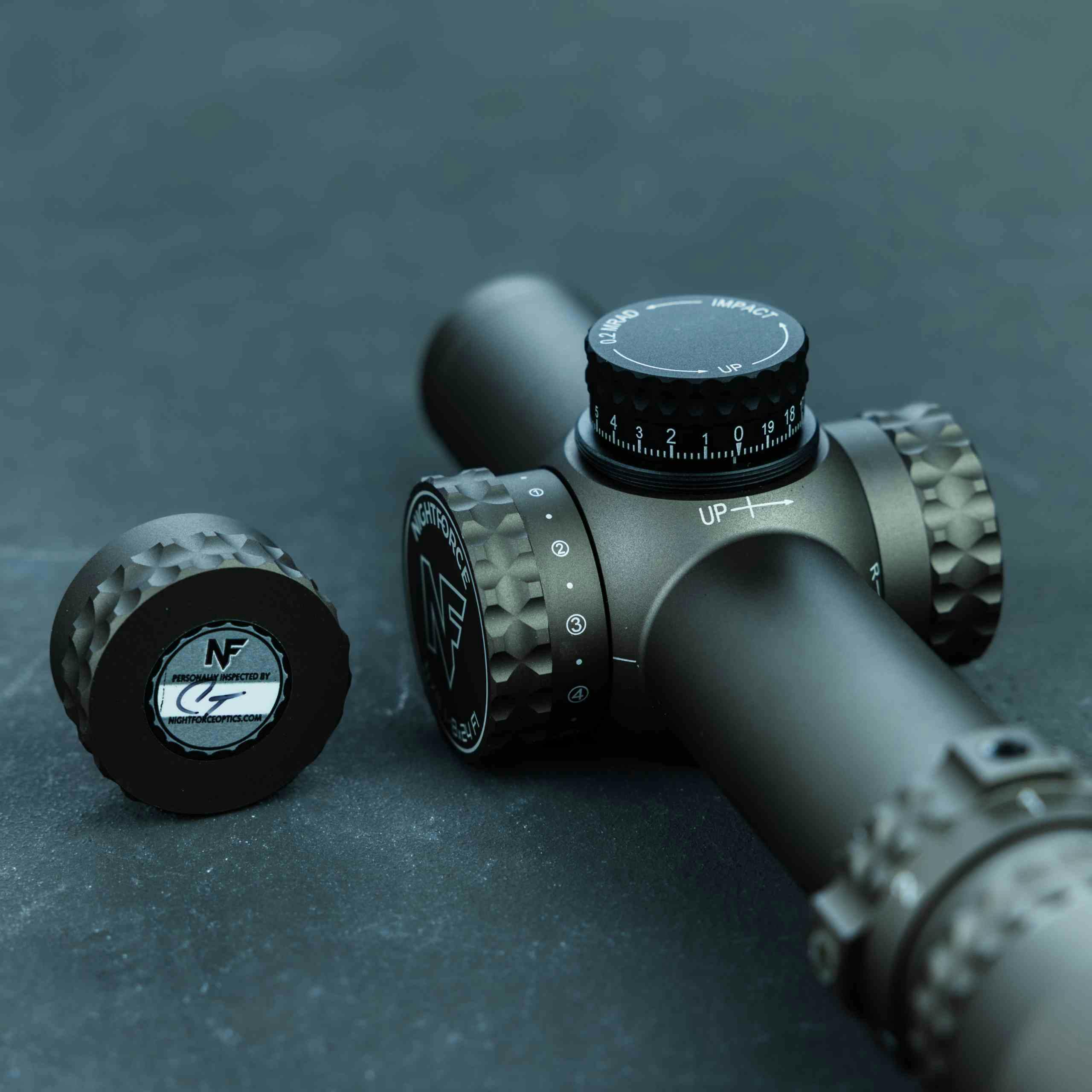

The Nightforce NX8 1-8 is a compact, lightweight LPVO that balances form factor and cost while maintaining the durability Nightforce is known for. It features a 30mm main tube, first focal plane construction (F1), and daylight-bright illumination. This specific capped model also uses a capped elevation turret instead of Nightforce’s ZeroStop turret, which allows for a little more durability and security over the exposed turret models.
Like the ATACR 1-8, the NX8 1-8 comes with the FC-DMx reticle, a recent update from the old FC-DM reticle found in older NF 1-8s. The DMx reticle slims down on some of the bulk of the older DM reticle and has a more open center and a simplified tree, allowing a better view of targets while offering quick holds for wind and elevation. Unlike most LPVO reticles, the FC-DMx is a mil-based reticle instead of a BDC, allowing for greater adaptability between numerous platforms, calibers, and barrel lengths while offering the opportunity to use speed drop and mil-based ranging techniques.
OVERVIEW VIDEO
WHAT’S INCLUDED
- 1x Nightforce NX8 1-8x24mm F1 Capped
- 2x Rubber Lens Covers
- 1x Cleaning Cloth
- 1x Multi-Tool
- 1x Power Throw Lever – Standard
- 1x Stickers
- 1x Owners Manual
We include an 8.5″ x 11″ rifle zero target with every rifle optic. (Click on the thumbnail for a printable version.)
How To Shoot Part 2: Zeroing – Video – T.REX ARMS
SPECS
FEATURES
- First Focal Plane.
- Fixed parallax at 125 m.
- Illumination is daylight visible and externally adjustable.

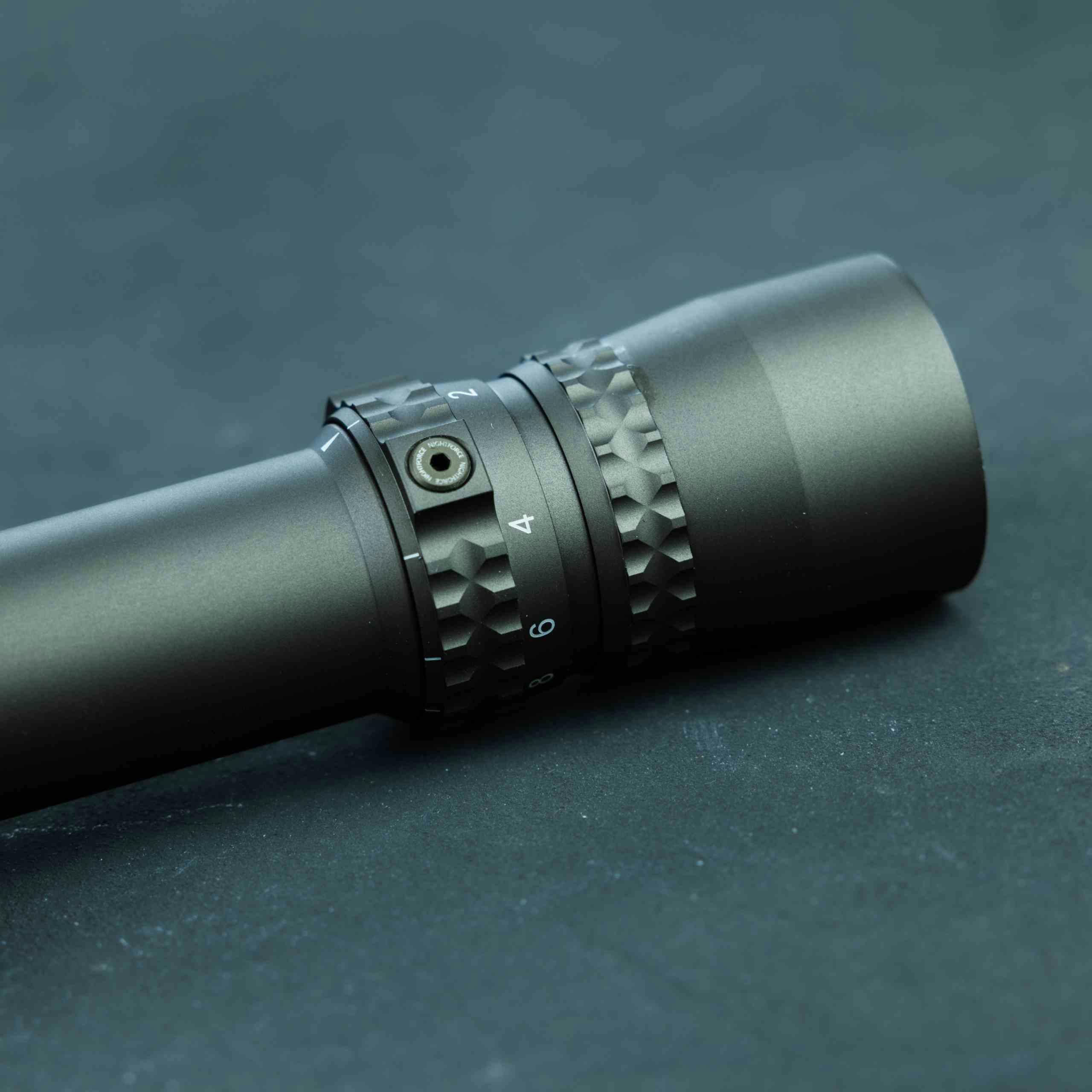

- The included Power Throw Lever allows for quick and positive magnification changes and serves as a reference point.
- 30mm main tube diameter.
Made in Japan.
TECHNICAL SPECIFICATIONS
| Body Tube Diameter | 30mm |
| Click Value | .2 MRAD |
| Elevation Feature | Capped, finger-adjustable |
| Eye Relief | 3.7 in / 95 mm |
| Focal Plane | First Focal Plane (F1/FFP) |
| Illumination | Daylight visible, Externally adjustable |
| Magnification Range | 1-8x |
| Mounting Length | 5.7 in / 144 mm |
| Overall Length | 8.7 in / 222 mm |
| Parallax Adjustment | Fixed @ 125 m |
| Power Throw Lever | Standard |
| Weight | 17.3 oz / 490 g |

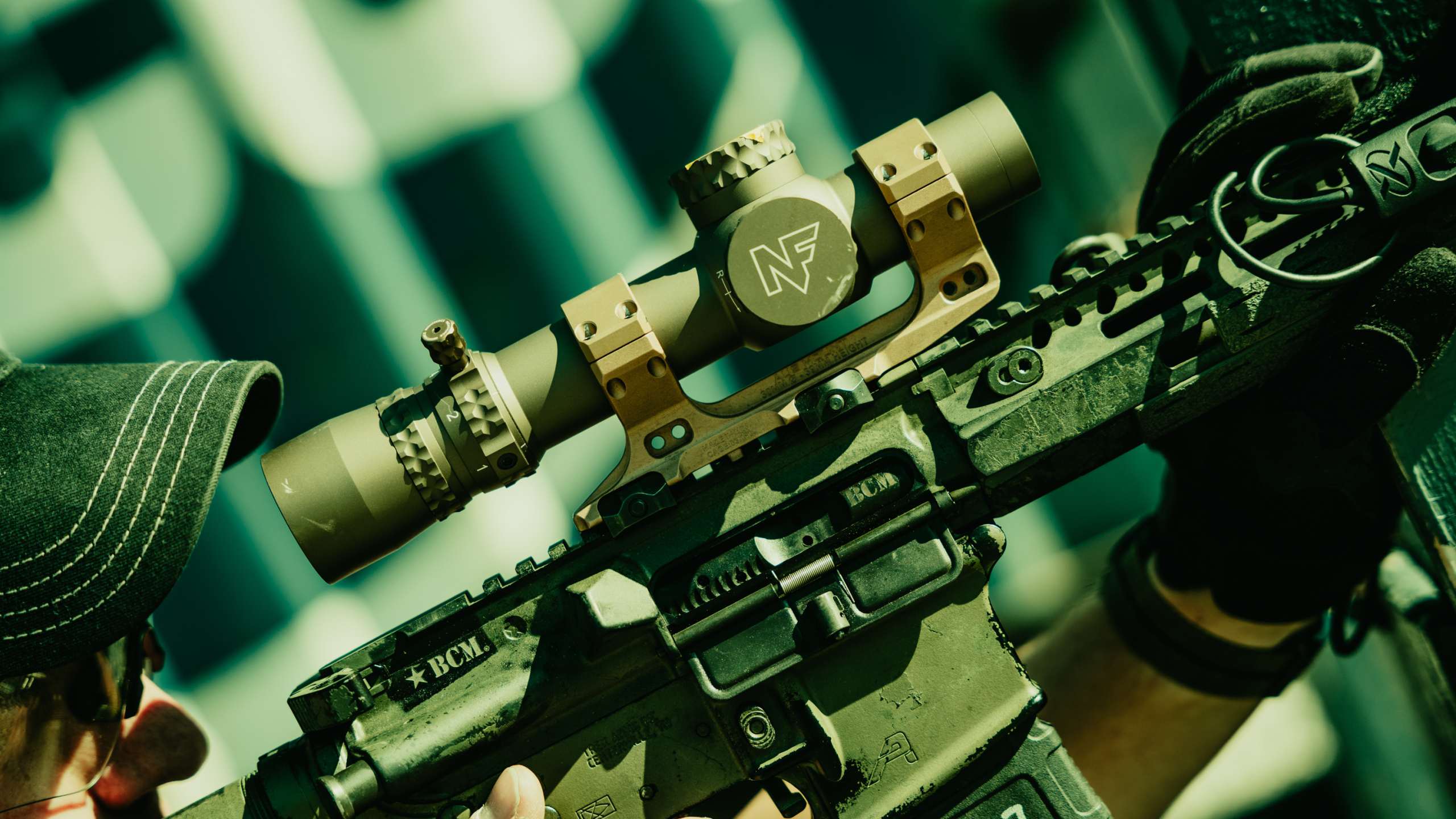

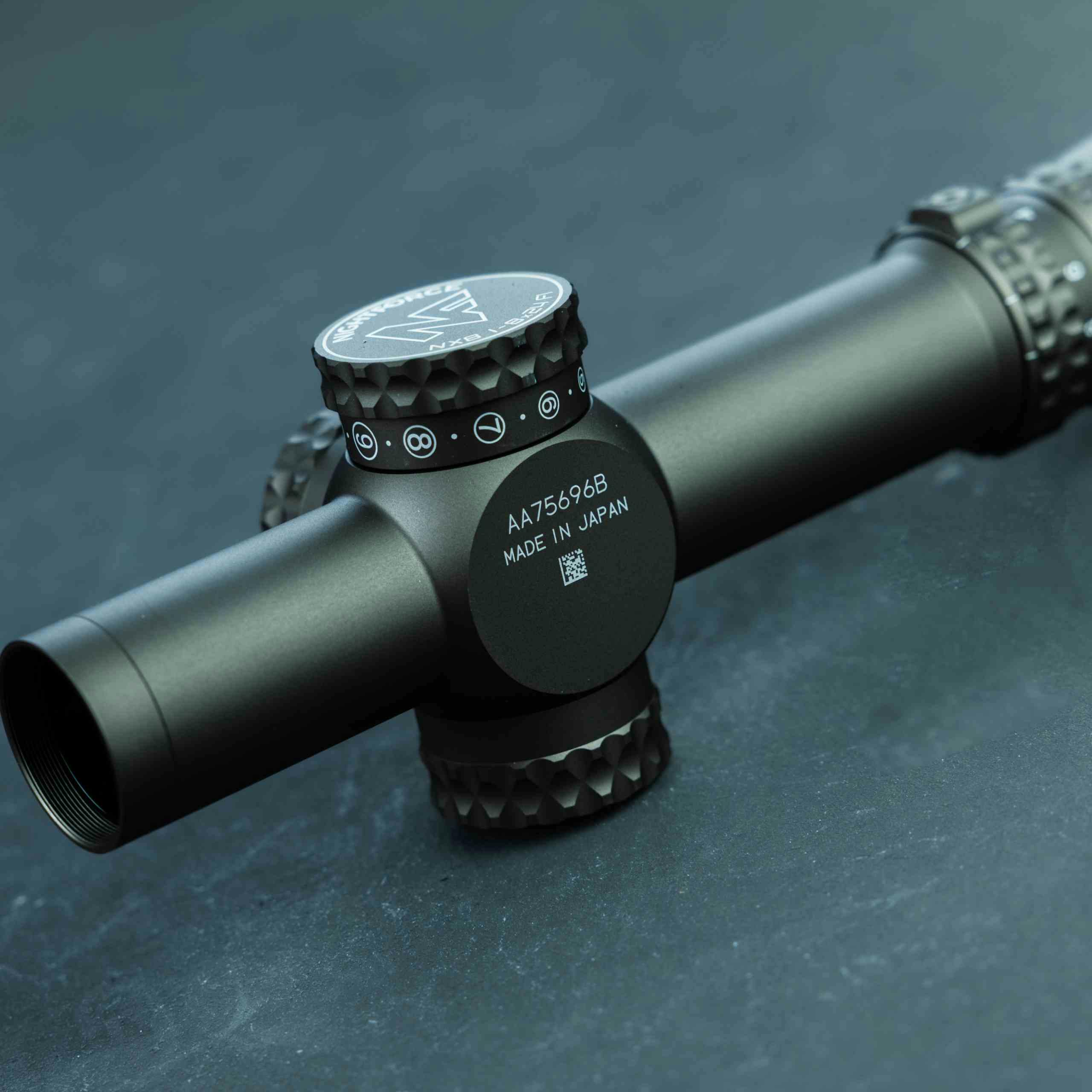

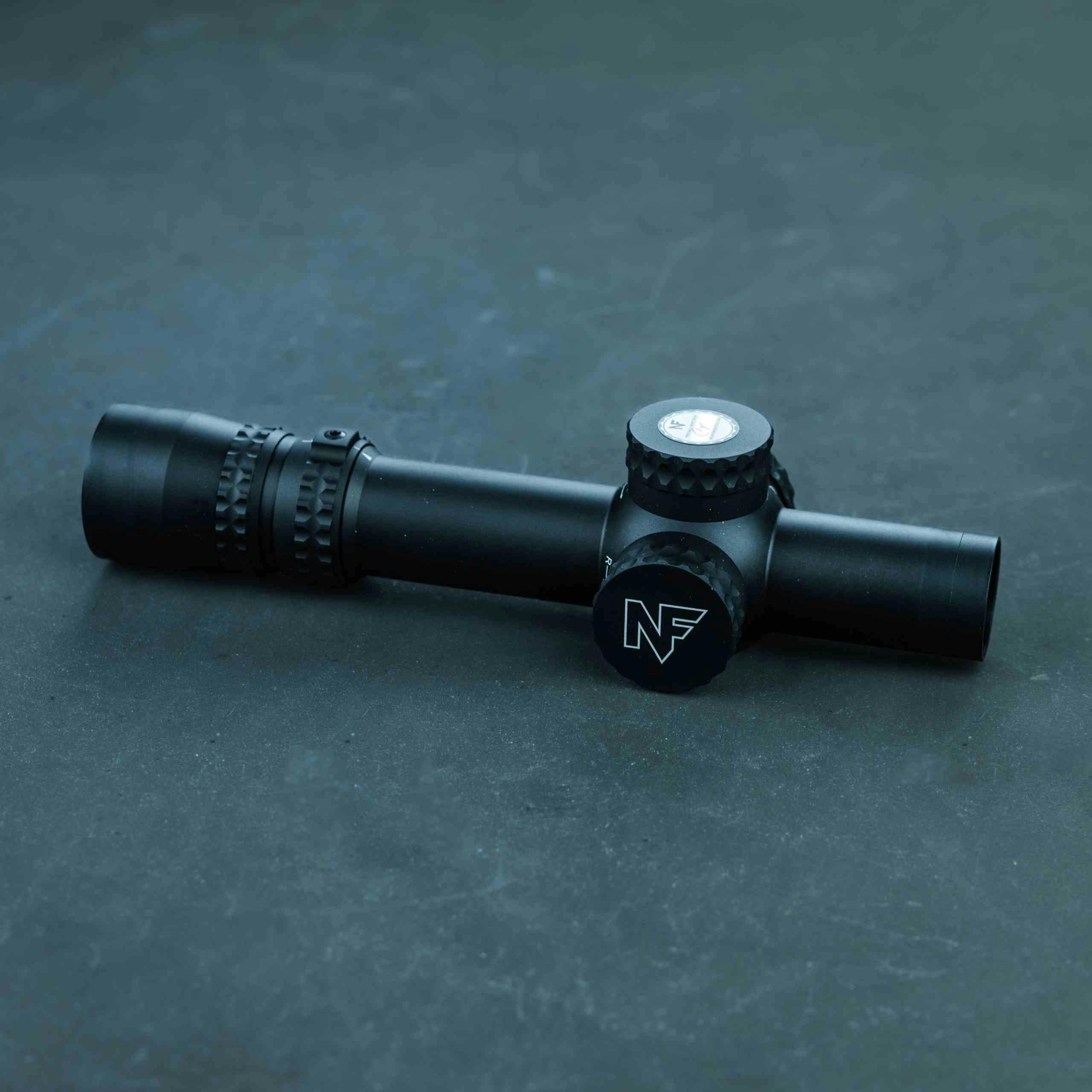

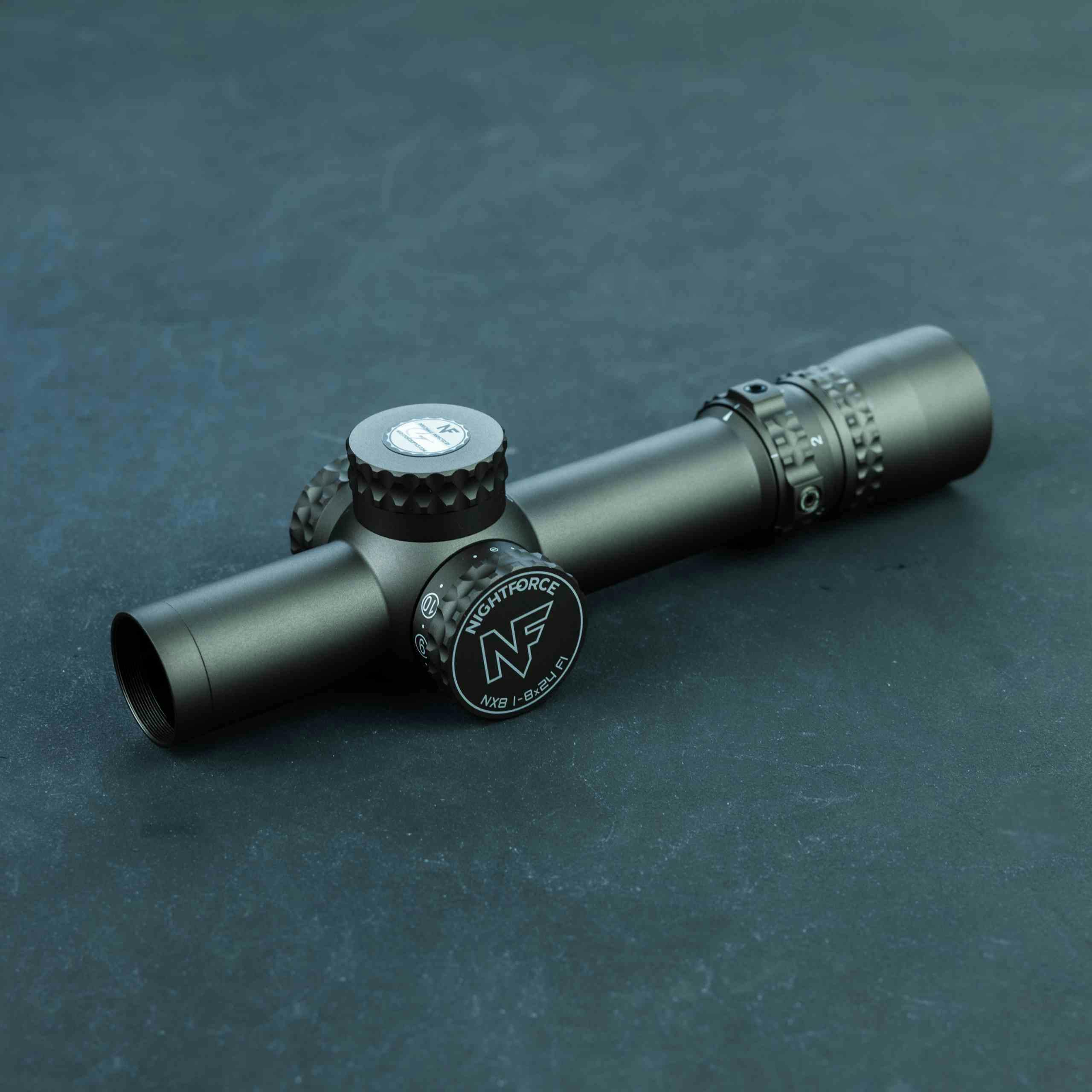

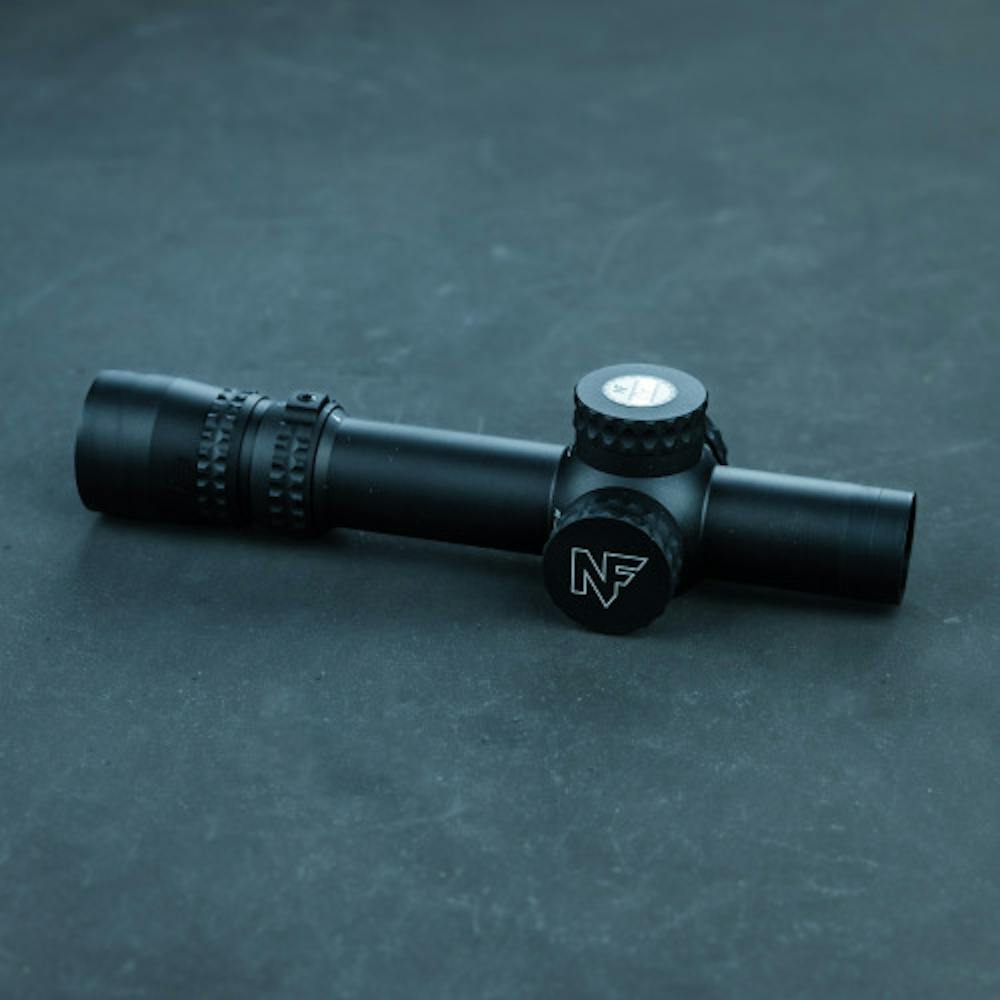

PICTURES
RESTRICTIONS
Nightforce products cannot be shipped outside of the U.S.
